Fuel Evaporation System - Wright Manufacturing Stander 54700 Owner's Manual

5.16 Fuel Evaporation System

All Wright Standers need to have this mandatory feature.
•
Do Not alter or remove.
•
Do Not fill past the "Max Fill Level" line shown in Figure 1.
•
Over-filling could result in clogging the roll-over vent and/or
contaminating the purge canister.

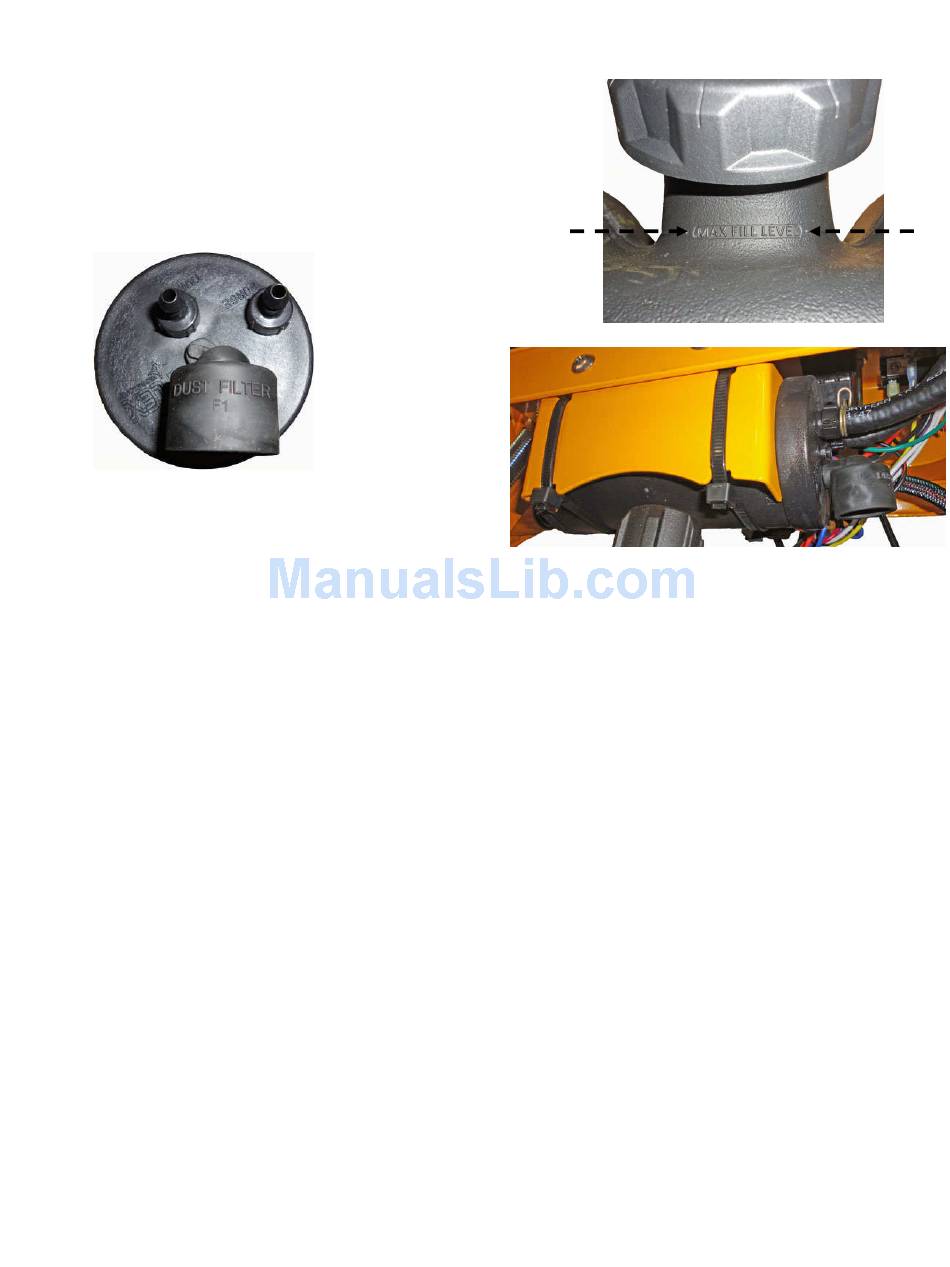

• The vapor canister is located under the dash. (Fig. 2)
• Inspect and clean dust filter every 500 hrs or annually.
To
Tank
Dust Filter
Vent /
Purge
Figure 2
26
Figure 1
