Cc ac/dc welding generator for smaw, gmaw, gtaw welding
Hide thumbs
Table of Contents

Advertisement

Quick Links

TECHNICAL MANUAL
Weld
Welding
Output
Mode
Range
CC/AC
35 – 225 A
CC/DC
25 – 200 A
cover_tm 4/95 – ST-140 091-E
Service And Parts
Miller Legend
(Formerly The Legend
CC AC/DC Welding Generator For SMAW, GMAW, GTAW Welding
Rated
Maximum
Welding
Open-Circu
Output
it Voltage
225 A, 25 V,
100% Duty
80
Cycle
200 A, 25 V,
100% Duty
72
Cycle
1996 MILLER Electric Mfg. Co.
February 1996
Effective With Serial No. JH242114
AEAD-200LE)
Auxiliary Power
Fuel Capacity
Rating
Single-Phase,
5 kVA/kW, 42/21 A,
120/240 V AC, 60 Hz
And
And
7.5 gal (28 L) Tank
7 5 gal (28 L) Tank
Single-Phase,
1 kVA/kW, 9 A,
115 V AC, 100 Hz
Form: TM-428
Engine
Onan P218 Air-Cooled,
Two-Cylinder, Four-Cycle,
Two-Cylinder, Four-Cycle,
Gasoline Engine
PRINTED IN USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Legend AEAD-200LE and is the answer not in the manual?

Questions and answers

Bo
March 22, 2025

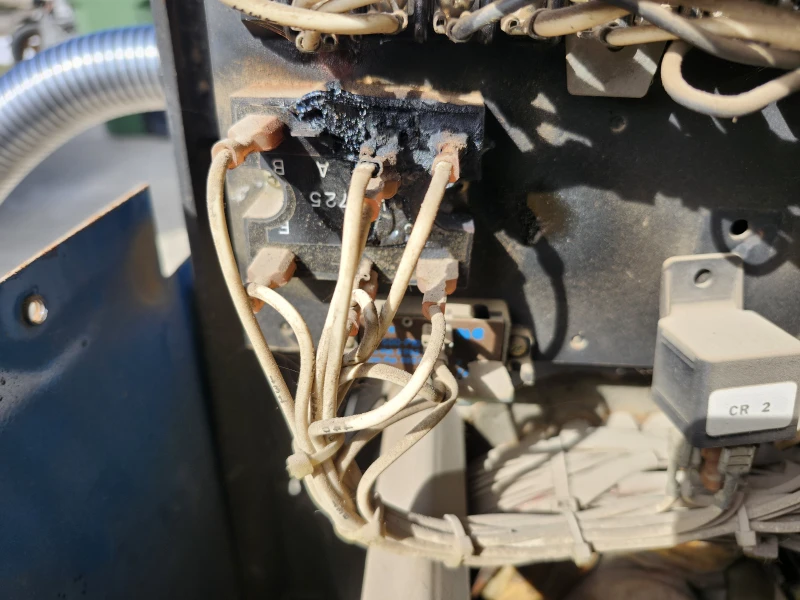

Is there a way to bypass the pull/weld part on a miller legend 200le
