- Page 1 WideLine-10 Loudspeaker User Manual WL2102 – Cored composite enclosure WL2102-w – Birch plywood enclosure AF2102-LA – Large aluminum array frame WL SmALL Grid – Small steel array frame TD-000227-00-C *TD-000227-00*...
-
Page 2: Important Safety Precautions And Explanation Of Symbols
Periodically, this warranty is updated. To obtain the most recent version of QSC’s warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com. The QSC limited warranty is valid for a period of three (3) years from date of purchase in the United States and many (but not all) other countries. - Page 3 83 lb (37.7 kg). The hardware allows for simple vertical splay angle adjustment of 0, 2, 3, 4, 5, 6, 7, 8, 9, and 10° between enclosures. Two array frames are available. The WL SmALL GRID is for suspended applications or stacking on top of QSC’s 215SB or 215PCm subwoofers. The AF2102-LA is for suspended or ground stack applications.
- Page 4 TRI AMP/BI AMP Switch TRI AMP TRI AMP: Shading network is NOT applied (shading must be provided by upstream signal processing). Connect the full-range input signal to pins 1+ and 1-, connect the shaded (processed) signal to pins 2+ and 2-.
-
Page 5: Input Connections

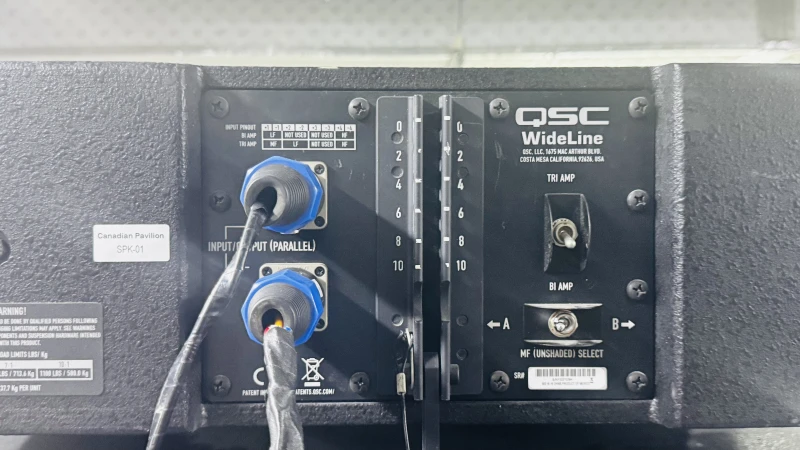

Input Connections The input connectors are a pair of Neutrik NL8’s wired in parallel. Connections for bi-amp and tri-amp vary (Table 1). The pin designations for the NL8FC cable connector is shown for reference, bottom right. Note! In TRI AMP mode, the MF (UNSHADED) SELECT switch position determines the input connector wiring! Unexpected results may occur if switch positions and wiring are not strictly controlled. - Page 6 Rigging Rules for Suspension • Correct use of all suspension hardware and components is imperative in sound system rigging and deployment. • Always calculate suspended loads before lifting to ensure suspension components and hardware are used within their respective load limits. •...
- Page 7 Rigging WideLine-10 enclosures use a three-point suspension system. The system consists of front, left/right, captive articulated joints and a single rear link bar. Articulation is in 2° increments using the first location on the link bar. With the use of the second location, 1° degree increments can be obtained starting at 3°.
- Page 8 AF2102-LA Use only the QSC supplied 5/16" diameter x 1.25" long Bolt on receiver ball-lock pins or equivalents from a reputable source on front tube and 5/16"...
- Page 9 Use only the QSC supplied 5/16" diameter x 1.25" long ball-lock pins or equivalents from a reputable source on front receiver tubes. The WL SmALL GRID interfaces with QSC’s 215PCm or 215SB subwoofer in either a stacked or flown configuration. The stacking bumpers on the frame may need to be moved to the opposite side of the frame member for use.
- Page 10 Stacking the WL SmALL Grid The WL SmALL GRID comes with two aluminum I-bars used for aligning and securing the frame to QSC’s 215SB or 215PCm subwoofer. To use the I-bars, simply slide each one into the small frame’s L-track and secure with a stud fitting. Then, turn the frame over (I-bars on the bottom) and slide the exposed I-bars into the subwoofer’s L-track.
-
Page 11: Specifications
AF2102-LA Frame used for suspending or stacking applications. Frame weight 37 lb/16.8 kg. Software EASE Focus line array modeling software tool available; visit www.qscaudio.com or contact QSC’s Technical Services for DSP files for both QSControl.net and Signal manager Ball-lock Pins WL2102 Nylon Lanyard 5/16"... -
