Toshiba 46RV525RZ Owner's Manual

Integrated high definition lcd television
Hide thumbs Also See for 46RV525RZ:
Table of Contents

Advertisement

Quick Links

TOSHIBA
Leading Innovation
»>

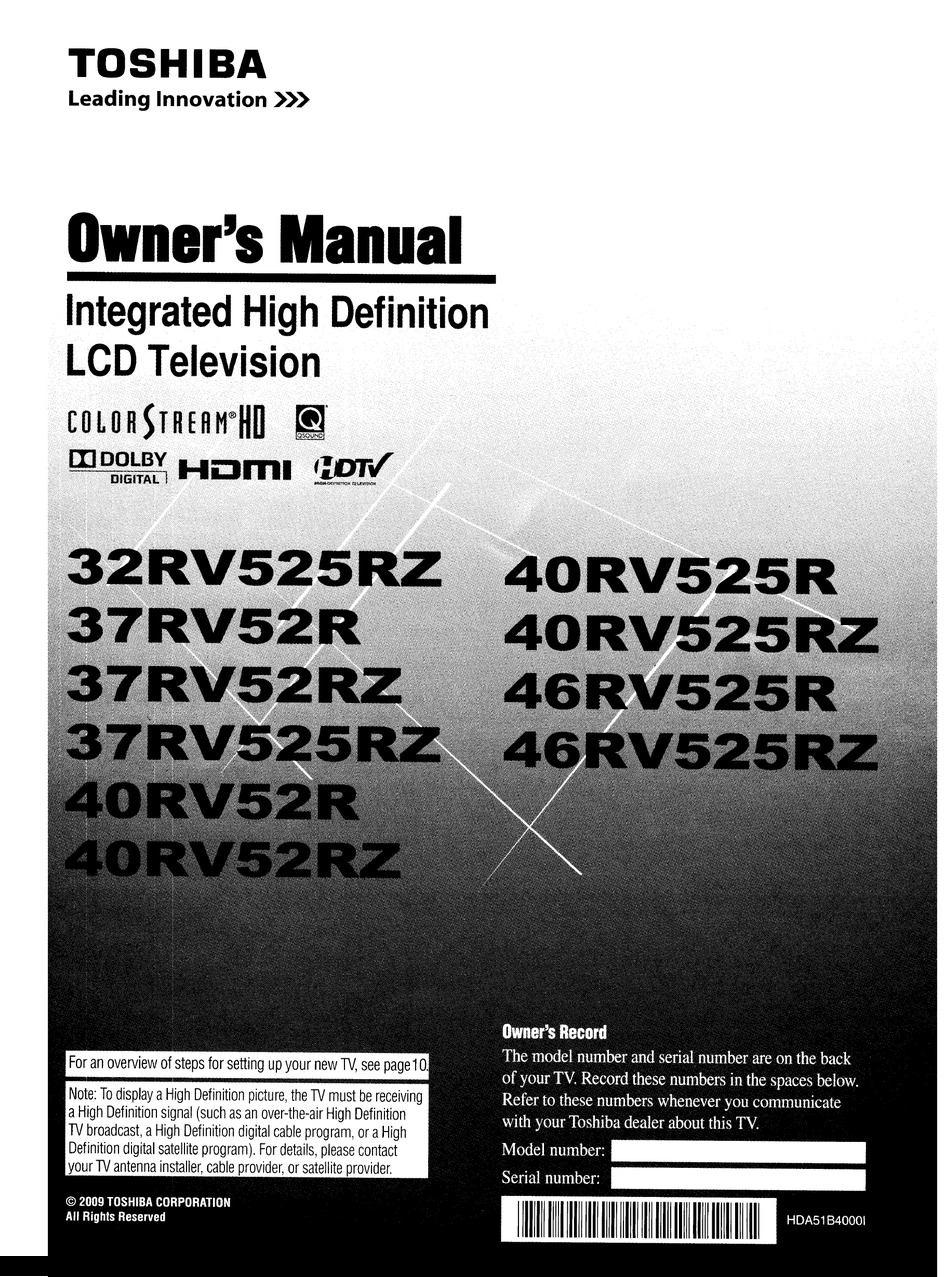

Owner's Manual
Integrated High Definition
LCD Television
.. t
nt6~~'i
8fH
H~RDII.
For an overview of steps for setting up your new TV, see page 10.
Note: To display aHigh Definition picture, the TV must be receiving
aHigh Definition signal (such as an over-the-air High Definition
TV broadcast, aHigh Definition digital cable program, or aHigh
Definition digital satellite program). For details, please contact
your TV antenna installer, cable provider, or satellite provider.

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 46RV525RZ

Summary of Contents for Toshiba 46RV525RZ

  • Page 1 TOSHIBA »> Leading Innovation Owner's Manual Integrated High Definition LCD Television nt6~~'i H~RDII. .. t For an overview of steps for setting up your new TV, see page 10. Note: To display aHigh Definition picture, the TV must be receiving...
  • Page 2 Dear Customer, CHILD SAFETY: Thank you for purchasing this Toshiba LCD TV. This manual will help you use the many exciting features Makes ADifference How and Where You Use Your Flat of your new LCD TV. Before operating your LCD TV,...

  • Page 3: Important Safety Instructions

    • NEVER allow your body to come in contact Important Safety Instructions with any broken glass or liquid from the damaged television. The LCD panel inside the Read these instructions. TV contains glass and a toxic liquid. If the Keep these instructions. liquid comes in contact with your mouth or Heed all warnings.
  • Page 4 Never place the TV: Care • on a bed, sofa, rug, or similar surface; For better performance and safer operation of your TOSHIBA • too close to drapes, TV, follow these recommendations and precautions: curtains, or walls; or 32) If you use the TV in a room whose temperature is •...
  • Page 5 2) Unplug and remove any cables and/or other Refer all servicing not specified in this manual to a component connectors from the rear of the TV. Toshiba Authorized Service Center. 3) Remove the screws of the VESA Mounting Pattern 42) If you have the TV serviced: show in the right diagram.
  • Page 6 6) VESA Mounting Pattern 40" TV VESA Mounting Pattern TV Size Hole Pattern(HxV) Screw Size 31" 200x200 31" 200x200 40" 200x200 46" 400x200 (unit in mm) Removing the Pedestal Stand Carefully lay the front of the unit face down on a tlat. cushioned surface such as a quilt or blanket.
  • Page 7 Toshiba 32RV525RZ, 32RV52RZ, 37RV525RZ, 37RV52RZ,40RV525R,40RV525RZ,40RV52R, ENERGY STAR® qualified TV. 40RV52RZ, 46RV525R, and 46RV525RZ Televisions Products that earn the ENERGY comply with Part 15 of the FCC rules. STAR prevent green house Operation is subject to the following two conditions:...

  • Page 8: Table Of Contents

    Acceptable signal fonnats for PC IN and unprogrammed) HDMlterminals Switching between two channels using Limited United States Warranty Channel Return for LCD Televisions 26" and Larger. Switching between two channels using SurfLock Limited Canadian Warranty Selecting the picture size for Toshiba Brand Flat Panel Televisions...

  • Page 9: Chapter 1: Introduction

    Features of your new TV The following are just a few of the many exciting features of your new Toshiba widescreen, integrated HD, LCD TV: • Integrated digital tuning (8VSB ATSC and QAM) eliminates the need for a separate digital converter set-top box (in most cases).

  • Page 10: Overview Of Steps For Installing. Setting Up, And Using Your New Tv

    Inadeljuate ventilation may cause overheating. which will damage the TV THIS TYPE OF DAMAGE IS NOT COVERED UNDER THE TOSHIBA WARRANTY. Do not plug in any power cords until AFTER you have connected all cables and devices to your TV BEFORE connecting cables or devices to the TV learn the functions (;-].

  • Page 11: Tv Front And Side Panel Controls And Connections Ll

    SERVKJE ONLY ' - - - - - - ' ARROWS A ..Green LED and TOSHIBA Logo LED When a menu is on- screen, these buttons function as up/down/left! Power LED(Green) = Power indicator TOSHIBA Logo LED= On or Off page 28).

  • Page 12: Tv Back Panel Connections

    Dolby Digital audio inputs) for connecting devices with decoder, amplifier, A/V receiver, or home theater component video output, such as a Toshiba DVD system with optical audio input. player with ColorStream®. PCIHDMI-l (AUDIO) IN -...

  • Page 13: Chapter 2: Connecting Your Tv

    Component video cables come in sets of three and are for use with video devices with component video output. (ColorStream® Toshiba's brand of component video.) These cables are typically color-coded red, green, and blue. Separate audio cables are required for a complete connection.

  • Page 14: Connecting A Vcr (Or A Vcr With S-Video) And Antenna, Cable Tv Or Camcorder

    Connecting a VCR (or a VCR with S-video) and antenna, Cable TV or Camcorder From Cable TV or From Cable TV Camcorder antenna AUDIO right side panel r---... ~E~l _,.ur-~=e~ AUDIO ..; ..~ '..:::.u.- SERVICE ONLY You will need: To view the antenna or Cable signal: ANTICABLE Select the...

  • Page 15: Connecting A Dvd Player With Colorstream' (Component Video), A Vcr, And A Satellite Receiver

    Connecting a DVD player with ColorStream® (component video), a VCR, and a satellite receiver Your TV has two sets of ColorStream® (component video) inputs. 3E>>-+-----I---.;~----------- ...--- L.._ _ ...I Satellite receiver with component video You will need: To view antenna or Cable channels: ANT/CABLE •...

  • Page 16: Connecting An Hdmitm Or Dvi Device To The Homi Input

    To connect a DVI device, you will need: Connecting an HDMITM • one HDMI-to-DVI adapter cable (HDMI type A device to the HDMI input connector) per DVI device - For proper operation, the length of an HOMI- The HDMI input on your TV receives digital audio to-OVI adapter cable should not exceed and uncompressed digital video from an HDMI (3m).

  • Page 17: Regza-Llnk® Connection

    HDMI cables with the HDMI Logo • This feature is limited to models incorporating (HOm. ). Toshiba's REGZA-LINK. However, Toshiba is not liable for those operations. Refer to the individual instruction manuals for compatibility information. Note: This feature may not work properly depending on the devices that are connected.

  • Page 18: Connecting A Digital Audio System

    standard optical out signals may not work Connecting a digital audio system properly, creating a high noise level that may damage speakers or headphones The TV's DIGITAL AUDIO OUT terminal outputs a THIS DAMAGE IS NOT COVERED BY YOUR DigitallIlD"?,,~?~ Dolby'()o1' or 2-channel down-mixed WARRANTY...

  • Page 19: Connecting A Personal Computer (Pc)

    Connecting a personal computer (PC) With either the PC IN or HDMI connection, you can watch your computer's display on the TV and hear the sound Ground from the TV's speakers. Ground To connect a PC to the PC IN terminal on the TV: Ground H-sync When connecting a PC to the PC IN terminal on the TV, use...

  • Page 20: Chapter 3: Using The Remote Control

    24). you have a non·Toshiba device or a Remote control effective range Toshiba device that the remote control is not preprogrammed to operate: For optimum performance, aim the remote control You can program the TV remote control so it will...

  • Page 21: Learning About The Remote C;Ntrol

    1 POWER turns the TV on and off. When the TV is Learning about the remote control on, the green LED indicator on the TV front will be illuminated. The buttons used for operating the TV only are described here. For a complete list of the remote FREEZE freezes the picture.

  • Page 22: Using The Remote Control To Control Your Other Devices

    (as opposed to 3 +10 Press to directly access DVD chapters higher than If you have a non-Toshiba device or a Toshiba device that the remote control is not preprogrammed to operate, you must first program the remote control to recognize the 4 TOP MENU Accesses a DVD's top menu.

  • Page 23: Remote Control Functional Key Chart

    Remote Control functional key chart Note: key does not send signal in that remote control mode. • " '~TV" • key will affect the TV, even though the remote control is in another mode. • * Not available for your TV FREEZE Digit 1-9 Digit 1-9...

  • Page 24: Programming The Remote Control To Control Your Other Devices

    TV remote control to operate a oon-Toshiba device device, use the device's original remote control. (or a Toshiba device that it is not preprogrammed to operate), follow the steps below. For details on using • Every time you change the batteries, you will need the remote control to operate the device, see page 22.

  • Page 25: Remote Control Codes

    Samsung Memorex 092,104 Memorex Sony 014,055 Multi Canal Mintek Star Choice 057,106 Novavision Star Trak 025,026,037,054 Panasonic 081,083,085 Nakamichi Philco Norcent Toshiba 000,001,002,003, Philips 066,067,068,070, Onkyo 004,005,006,007, 072,073,074,075, Oritron 020,031,056 Panasonic 010,045,046,047, Vniden 021,028,030,032, Pioneer 076,077 048,049,050 035,039,043,045, Philips 004,051...
  • Page 26 Noblex Tatung Daytron Optimus 010,049,065 Teac 018,029,037 Denon Optonica Technics Dimensia 001,048 Orion 054,057,062,065, Teknika 010,018,065 Electrohome 010,020,065 068,072 Toshiba 000,011,021,023, Emerson 003,008,010,011, Panasonic 036,045,046,057, 024, 028, 030,039, 017,018,020,028, 061,072,079 057,074,078,079 039,054,057,062, Pentax 012,024,025,035, 065,068,072 042,053,063 Totevision 009,010,065 Fisher 007,016,021,022,...

  • Page 27: Chapter 4: Menu Layout And Navigation

    Main menu layout The tables below and on the next page provide a quick overview of your TV's menu system. MENU To open the main menus (illustrated below), press on the remote control or TV control panel. "Jtem Icon Option Mode Sports / Standard / Movie / PC / Preference Video...

  • Page 28: Setup/Installation Menu Layou

    Setup/Installation menu layout The Installation menu contains the Terrestrial and System Status menus. " · MENU To open the menu (Illustrated below), press 0 on the remote contro) or TV control panel, open the Setup Installation. menu, select and press lcol1 ··ltem"·...

  • Page 29: Chapter 5: Setting Up Your Tv

    TOSHIBA Logo LED Setting the Energy Saving Mode When you first turn on the TV, the Menu Language, TOSHIBA Logo LED Off. You can select either and Energy Saving Mode windows will appear by MENU default. Setup Press 0 and open the menu.

  • Page 30: Programming Channels Into The Tv's Channel Memory

    Programming channels into the TV's channel memory Sleep Timer ICHI When you press ICHI on the remote control PC Settings Logo LED or TV control panel, your TV will stop only on the channels you programmed into the TV's channel Installation (A new set of menu icons will...

  • Page 31: Labeling Channels

    Open the Terrestrial menu, highlightChannel Labeling channels Add/Delete, and then press To add a channel to the channel memory: A list of common channel labels (logos) for various channels (ABC, CBS, etc.) will be programmed into Highlight the unchecked box next to the channel the TV.

  • Page 32: Setting The Hdmfm Audio Mode

    To create and assign a custom label: Setting the HDMITM audio mode Channel Labeling Open the window. (ti;) Press to select a channel you want to To set the HDMI audio mode: label. MENU AudiO Press 0 and open the menu.

  • Page 33: Viewing The Digital Signal Meter

    TV channel number Contact your 37RV52RZ, 37RV525RZ, 37RV52RZ, local broadcasters to obtain the RF channel 40RV525RZ, 40RV52RZ and 46RV525RZ numbers for your local digital stations. • The signal strength does not change between To close the screen and return to the...

  • Page 34: Chapter 6: Using The Tv's Features

    Press ~~ repeatedly to highlight the desired input Selecting the video input source EXIT source, and then press O. to view Note: • When selecting REGZA-LINK input sources To select the video input source to view: from the popup window using some Press on the remote control or TV control...

  • Page 35: Tuning Channels

    Press'" or to highlight the video source you Tuning channels want to label. Tuning channels using the Input Labeling Video 1 Channel Browser™ Cable Video 2 Color Stream HO 1 ColorStream H D 2 The Channel Browser™ provides an easy navigation HOMI1 interface for all your channels and inputs.
  • Page 36 Elements of the ChannelBrowser™ Channel Browser Setup ~ig.tiO!l • History List ANT/CABLE List Inputs List Favorites List REGZA-L1NK List Reset Done (History, ANT/CABLE, Inputs, Current list History List, Press to highlight and then press Favorites, REGZA-lINK) ..or ~ to select the setting you preteI': either 2 Input type Off.

  • Page 37: Setting The Channel Tuning Mode

    To tune to a channel or input in Select mode: Setting the Channel Tuning Mode ~ to open the This feature allows you to choose how tuning will be While watching TV, press C§J jg;) ..handled for analog and digital channels when the TV Channel Browser™...

  • Page 38: Tuning To The Next Programmed Channe

    Tuning to the next programmed Switching between two channels channel using SurfLock™ To tune to the next programmed channel: The SurtLock feature temporarily "memorizes" one CH RTN I~HI (4'\ channel to the button. so you can return to that Press ICHI on the remote control or TV control channel quickly from any other channel by pressing...
  • Page 39 j/Pictufe. To select the picture size using the menus: Size>.' . Picture Size Theater Settings Select in the menu. TheaterWide 2 Press ..or ~ to select the desired picture size (for letter box programs) setting. Done Highlight and press loooHOOOI Note: Some of the picture sizes may not be 0 0 0...

  • Page 40: Scrolling The Theaterwide@ Picture (Theaterwide 2 And 3 Only)

    To set the scroll settings: MENU Video Press and open the menu. Native Theater Settings Highlight and press (for 48Di (HDMI), 48Dp (HDMI), 72Dp, 1D8Di, and 1D8Dp signal programs) P(TCl~IO tLo..ij • If receiving a 4S0i (HDMl), 4S0p (HDMI), nop, Picture Size TheaterWide In the...

  • Page 41: Selecting The Cinema Mode

    To turn on the auto aspect ratio feature: Adjusting the picture MENU Video Press and open the menu. Selecting the picture mode Theater Settings Highlight and press Auto Aspect Ratio In the field, select You can select your desired picture settings from four different modes, as described below.

  • Page 42: Adjusting The Picture Quality

    Adjusting the picture quality Using the closed caption mode You can adjust the picture quality (Contrast, Base closed captions H " Backlight, DynaLight Brightness, Color, Tint, and Sharpness) to your personal preferences. The closed caption mode has two options: • Captions-An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked Contrast...

  • Page 43: Digital Cc Settings

    change to another analog channel, the closed caption Digital CC Settings setting will automatically change back to the current You can customize the closed caption display Base CC Mode setting. characteristics by changing the background color, CC Selector You can also use the to select digital opacity, text size, type, edge, and color.

  • Page 44: Selecting Stereo/Sap Broadcasts

    language as a second audio program. If you Digital Audio Selector Highlight and press @. have SAP on, you will see the current program on the screen but hear the other language instead of the program normal audio. • If you have SAP on and the station you are Audio Settings watching is not broadcasting second audio...

  • Page 45: Using The Dolbl' Digital Dynamic Range Control Feature

    Using the Dolby® Digital Dynamic PIN code has not been stored. Press the Channel Number buttons to enter a new four-digit code. Range Control feature enter the code a second time to confirm, and This dynamic range control feature causes the ATSC press dynamic range to be further compressed, allowing Lock System...

  • Page 46: Downloading An Additional Rating System For Blocking Tv Programs And Movies

    • The additional rating system is not designed, transmitted, or controlled by the TV or Note: The currently tuned station must be Toshiba, nor is the availability of an additional receiving a digital signal before an additional rating system can be downloaded.

  • Page 47: Blocking Channels

    Parental Guidance Suggested Independent rating system for broadcasters (Some material may not be kJJ~~~j:"'i~i'oll",W~~:~onjiQt~~~m~~".';,~J8/,' ,:,~~ti~g,s,.::- suitable for children) Mature Audience Only (This General Audience (Appropriate program is specifically designed for all ages) to be viewed by adults and therefore may be unsuitable for Note: TV-MA children under 17)

  • Page 48: Unlocking Programs Temporarily

    and channels 3 and 4. You will not be able to view the Channels Block input sources or channels until you unlock the inputs. To lock/unlock the video inputs: Locks From the menu, Press to display the PIN code entering screen. Allow All Enter your four-digit PIN code and press Block All...

  • Page 49: Using The Control Panel Lock Feature

    Horizontal Position picture are cut off, readjust the Note: Vertical Position. If the picture is affected by • A message will appear when 10 minutes, Clock Phase Sampling interference, readjust the 3 minutes, and 1 minute remain on the Clock. Game Timer To adjust the PC settings: •...

  • Page 50: Setting The Pc Audio

    This is a new feature that uses CEC technology Audio Setup Highlight and press and allows you to control Toshiba REGZA-LlNK PC Audio compatible devices from the TV remote via HDMI Press'& or select anel then press ~ or ~ to select connection (1&...

  • Page 51: Regza-L1Nk® Input Source Selection

    VOLUME and MUTE controls of Audio ... T ..Navigate contents menu, etc. Receiver Enters contents menu, etc. EXIT With your TV's remote control, you can adjust or Returns to the previous menu. mute the sound volume of the Audio Receiver, First, set the MODE SELECT switch on the remote control Note: These functions depend on the devices connected...

  • Page 52: Regza-L1Nk

    Note: When you tum on the Audio Receiver, To close the RECALL screen: change its input source, or adjust the sound RECALL Press agalIl. volume, the sound will be output from the audio To display TV status information using INFO: receiver's speakers even if TV Speakers has been selected.

  • Page 53: Chapter 7: Using The Tv's Advanced Features

    Done To save the new settings, highlight Using the advanced picture press settings features Reset To revert the factory defaults. highlight and press Using dynamic contrast Note: If you select one of the factory-set picture modes (Sports, Standard, Movie When dynamic contrast is set to the TV will or PC) and then change the static gamma detect changes in the picture quality that affect...

  • Page 54: Using Cableclear~ Digital Noise Reduction

    Using CableClear® digital noise Using the Game Mode feature reduction You can use the Game Mode feature for shorter The CableClear@ digital noise reduction feature frame delays when playing a video game requiring allows you to reduce visible interference in your split-second timing between the on-screen display TV picture.

  • Page 55: Usin

    Using the advanced audio settings features Using the QSound® sound feature aSound@ is the original name for a positional three- dimensional (30) sound processing algorithm from QSound Labs that creates 3D audio effects from multiple monophonic sources and sums the outputs to two channels for presentation over regular stereo speakers.

  • Page 56: Chapter 8: Troubleshooting

    Noisy picture General troubleshooting • If you are watching an analog channel (off- air broadcast or Cable TV), you can set the CableClear@ feature to reduce visible interference Before calling a service technician, please check this in the TV picture page 54).
  • Page 57 • Remove all obstructions between the remote control and the TV. • The REGZA-UNK feature is available for • The remote control batteries may be dead. Toshiba REGZA-UNK compatible devices. Replace the batteries page 20). (1& • Make sure the HDMI cables with the HDMI •...

  • Page 58: Chapter 9: Appendix

    46RV525R/46RV525RZ: 40RV525R/40RV52R: 0.6 W in standby mode Width: 3'8-3/8 inches (1127.5mm) 40RV525RZ/40RV52RZ:0.6 W in standby mode Height: 2'6 inches (761.1 mm) 46RV525R/46RV525RZ: 0.6 W in standby mode Depth: 1'-3/4 inches (325.3 mOl) Audio Power: Mass (Weight) 32RV525RZ132RV52RZ: 10 W 10 W 32RV525RZ/32RV52RZ: 27.2 Ibs (12.3 kg)

  • Page 59: Acceptable Signal Fonnats For Pc In And Hdmlterminals

    Acceptable signal formats for PC IN and HDMI terminals PC IN signal formats Note: Depending on the connected PC, the following status may occur; incorrect display, false format detection, picture position failure, blur, or judder But this is not malfunction of your TV 31.470kHz 25.180MHz 640 x 400...

  • Page 60: Limited United States Warranty For Lcd Televisions 26" And Larger

    You must retain your oriqinal bill of sale or provide other prool of purcnase (2) All warranty servicing of this LCD Television must Toshiba America Consumer Products, LLC. ("TACP") be performed by an Authorized TACP Service makes the following limited warranties to original Station.

  • Page 61: Limited Canadian Warranty For Toshiba Brand Flat Panel Televisions

    (d) FOR TELEVISIONS OVER 32 INCHES During this period, ASP personnel will come on-site when warranty service is required. Depending on the Toshiba of Canada limited ("TCl") makes the type of repair required, the service will either be follOWing limited warranties to original consumers in performed on-site or the Television will be taken Canada.
  • Page 62 USAGE INSTRUCTIONS IN THE APPLICABLE USER modifications to the Television; GUIDES AND/OR MANUALS. IF YOU FAil TO DO SO, Service of a Television on which the TOSHIBA THIS TELEVISION MAY NOT FUNCTION PROPERLY label or logo, rating label or serial number AND YOU MAY SUFFER DAMAGE.
  • Page 63 A copy of the GPl source code in this product that the Dispute arises. To the extent not precluded by may be obtained by contacting Toshiba Consumer law, no claim, dispute, controversy or disagreement of Solutions at (800)631-3811 . There will be a charge to any other person may be joined or combined with any cover the costs of providing the source code.
  • Page 64 - TEL: (604) 303-2500 CableClear, ColorStream, GameTimer, and TheaterWide are registered trademarks of Toshiba America Consumer Products, L.L.C. Channel Browser, DynaLight, and SurfLock are trademarks of Toshiba America Consumer Products, L.L.C. REGZA-L1NK is a registered trademark of Toshiba Corporation. TOSHIBA...
  • Page 65 ® WARNING: AVERTISSEMENT To prevent possible electric shock, protect the :Pour eviter tout risque de choc electrique, power cord from being pinched when attaching the pedestal empEkher Ie cordon electrique d'etre coince en fixant Ie stand. piedestal. CAUTION: ATTENTION : Before beginning pedestal assembly, carefully Avant de commencer I' assemblage du support de lay the front of the LCD Panel face down on a flat, cushioned...
  • Page 66 Many questions regarding parts, service, and warranties can be answered by visiting the Customer Support Section of our website: www.tacp.com (For US Customers) www.toshiba.ca (For Canadian Customers) THANK YOU Si vous eprouvez des difficultes techniques ou si vous avez des questions concernant Ie fanctionnement du produit, les centres de service autarises, la garantie au les pieces, veuillez appeler notre departement du service a la clientele au: 1-(800) 631-3811 (Etats·Unls seulement)
  • Page 67 HDTV Quick Set.Up Guide (For US customers) Congratulations on the purchase of your new Toshiba High-Definition Television. You must get HD Signal to get an HD Picture! Getting HDTV is as easy as 1,2 or 3. There are 3 basic ways to receive an HDTV Signal on your new High-Definition TV...
  • Page 68 Area Code Area Code Month Year IMPORTANT! To ensure your enrollment in Toshiba's Consumer Information Program, write the complete model number of the product you purchased in the space below. Serial Number Model Number Price paid (excluding tax) $ §...
  • Page 69 ™ PRODUCT REGISTRATION CARD Complete and return this Product Registration Card within 10 days to receive valuable Toshiba information. Failure to complete and return this card does not diminish your warranty rights. See details inside... If you have comments or suggestions about our product, please write to: Toshiba America Consumer Products, L.L.C.
  • Page 70 Please send products and other correspondence to: First Class Toshiba America Consumer Products, L.L.C. Postage 82 Totowa Road Required Wayne, NJ 07470 Post Office will not deliver without proper postage. Toshiba America Consumer Products, L.L.C. P.O. Box 174007 Denver, CO 80217-4007...
