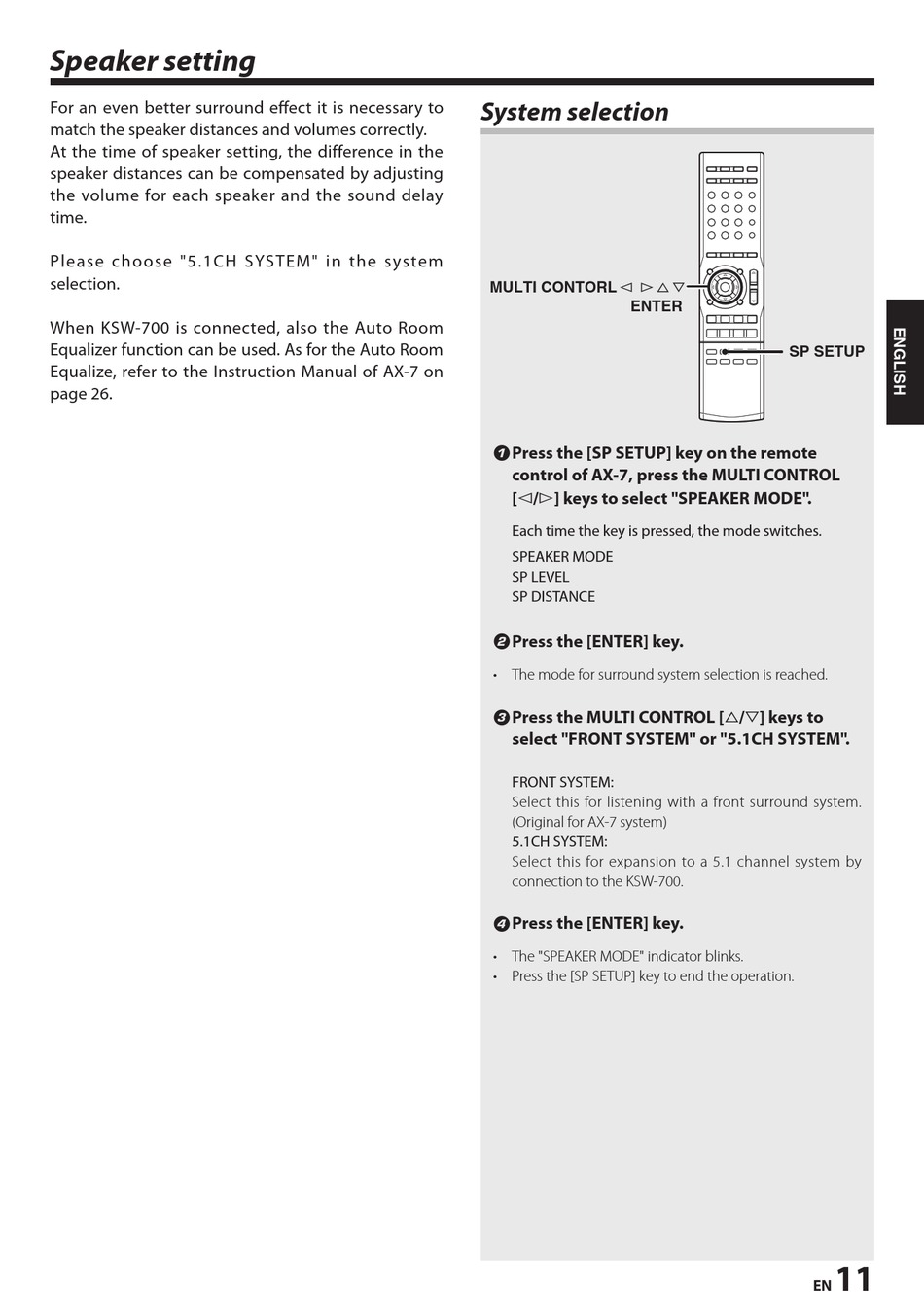

Speaker setting

For an even better surround effect it is necessary to
match the speaker distances and volumes correctly.
At the time of speaker setting, the difference in the
speaker distances can be compensated by adjusting
the volume for each speaker and the sound delay
time.
Please choose "5.1CH SYSTEM" in the system
selection.
When KSW-700 is connected, also the Auto Room
Equalizer function can be used. As for the Auto Room
Equalize, refer to the Instruction Manual of AX-7 on
page 26.

System selection

MULTI CONTORL
ENTER
1 Press the [SP SETUP] key on the remote
control of AX-7, press the MULTI CONTROL
[ @ / # ] keys to select "SPEAKER MODE".
Each time the key is pressed, the mode switches.
SPEAKER MODE
SP LEVEL
SP DISTANCE
2 Press the [ENTER] key.
• The mode for surround system selection is reached.
3 Press the MULTI CONTROL [ % / fi ] keys to
select "FRONT SYSTEM" or "5.1CH SYSTEM".
FRONT SYSTEM:
Select this for listening with a front surround system.
(Original for AX-7 system)
5.1CH SYSTEM:
Select this for expansion to a 5.1 channel system by
connection to the KSW-700.
4 Press the [ENTER] key.
• The "SPEAKER MODE" indicator blinks.
• Press the [SP SETUP] key to end the operation.
SP SETUP
