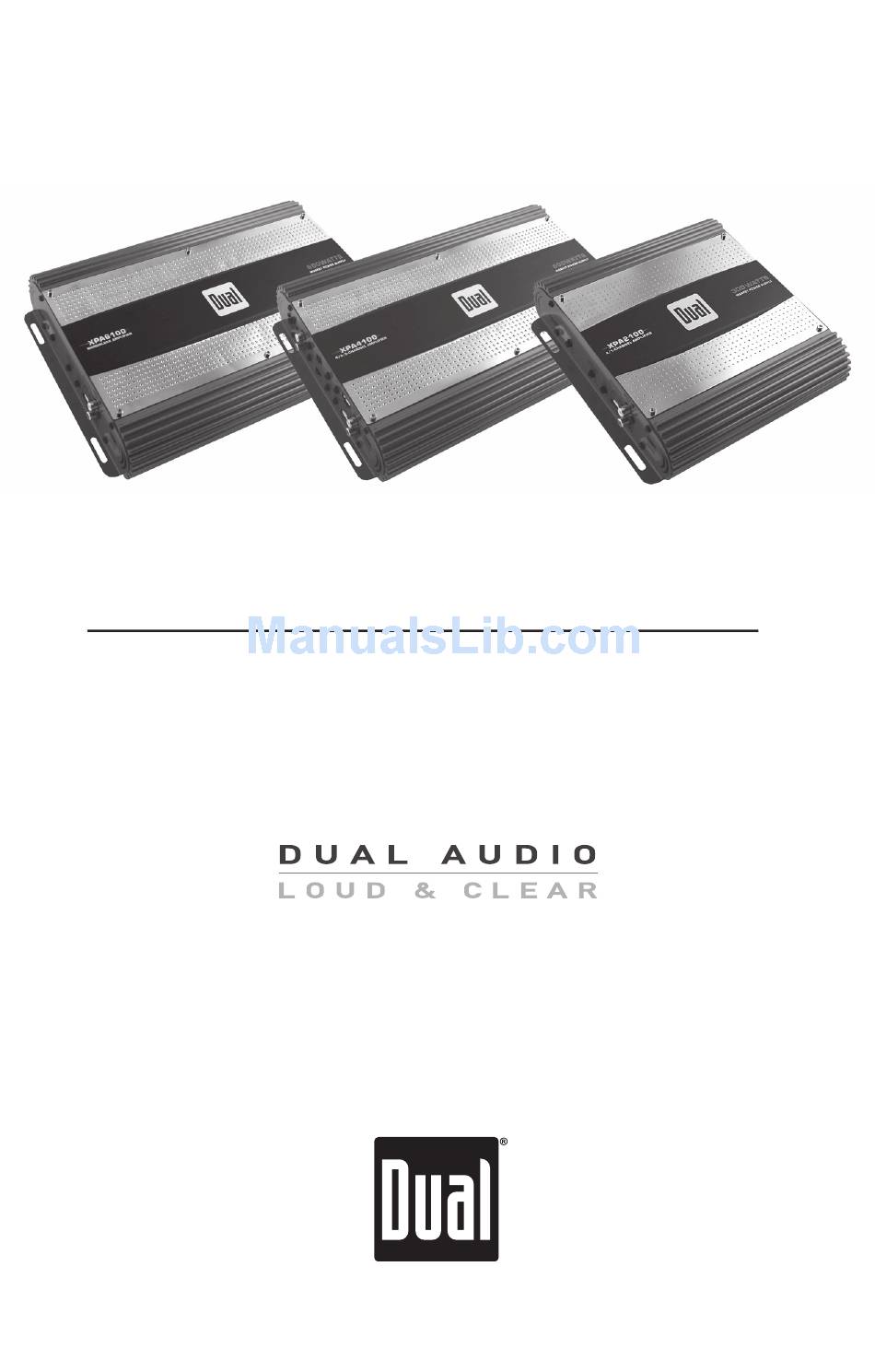

- Page 1 XPA2100 XPA4100 XPA6100 XPA SERIES INSTALLATION/OWNER’S MANUAL Mobile Power Amplifiers...
- Page 2 XPA SERIES INSTALLATION Preparation Please read entire manual before installation. Due to the technical nature of amplifiers, it is highly recommended that your DUAL amplifier is installed by a professional installer or an authorized dealer. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) •...
-
Page 3: Connection Descriptions
NOTE Be sure to follow specific instructions included with your amplifier installation kit (not included with this amplifier). The information below should be used a general guideline only. Power Wire (+12V) • Disconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure. • Plan wire routing before cutting any wires to length. Begin by routing the power +12V wire from the battery to the amplifier location. Use a grommet when running wires through the firewall or metal openings. -
Page 4: Power And Speaker Connections
XPA SERIES INSTALLATION Power and Speaker Connections XPA2100 XPA4100 XPA6100 Speaker Connection(s) Ground Connection Remote Connection +12VDC Battery Connection Fuse(s) - Page 5 LED Indicator Bass Boost Crossover Mode Switch Crossover Frequency XPA SERIES INSTALLATION Audio Inputs and Controls Input Level Control High Level Inputs Low Level Inputs Input Mode Switch XPA2100 XPA4100 XPA6100...
-
Page 6: Typical Wire Routing
When replacing fuses, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the amplifier. XPA2100 25 amp ATO x 1 XPA4100 25 amp ATO x 2 XPA6100 20 amp ATO x 2 Power/Ground Wire Size For optimum performance, use only the wire size listed below or larger. -
Page 7: Input Signal Connections
Speaker Connections Connect speaker wires observing polarity. The minimum impedance load for the XPA2100 and XPA4100 is 2 ohms stereo and 4 ohms bridged. The minimum impedance load for the XPA6100 is 2 ohms. Use of loads lower than these is not recommended and may cause amplifier damage.The XPA2100... -
Page 8: Configuration/Setup
XPA SERIES OPERATION Configuration/Setup Input level Control Input Mode Switch (XPA4100) Crossover Mode (XPA2100 & XPA4100) Crossover Frequency Control Bass Boost LED Indicator The input level control (gain) is used to obtain the best possible match between the head unit audio output and the amplifier input. Begin by turning the input level control fully counterclockwise. -
Page 9: Limited One-Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 10: Specifications
XPA SERIES OPERATION Specifications XPA2100 Power Output: Signal to noise ratio: Additional power output: Dynamic power: Frequency response: Maximum input signal: Minimum input signal: Speaker output impedance: Bass boost: Crossover range: Power supply: Fuse: Amplifier dimensions: Typical installation dimensions: ... - Page 11 XPA6100 Power Output: Signal to noise ratio: Additional power output: 300 Watts RMS x 1 channel at 2 ohms and < 1% THD+N Dynamic power: Frequency response: Maximum input signal: Minimum input signal: Speaker output impedance: Bass boost: Crossover range: Power supply: Fuse: 20 amp ATO x 2 Amplifier dimensions: Typical installation dimensions: Design and specifications subject to change without notice.
-
Page 12: Troubleshooting
2 ohms Check connections and reduce/adjust input level Check connections and increase/adjust input level Check (+) and (-) speaker connections (Observe correct polarity) Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2008 Dual Electronics Corp. NSA0208-V02 Action...
