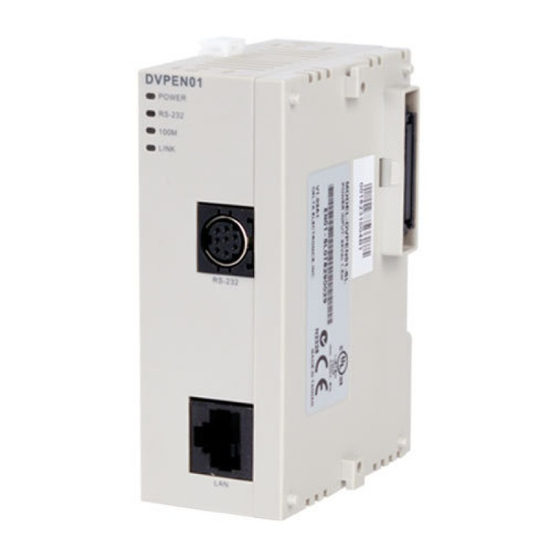

DVPEN01-SL
Ethernet Communication Module
Operation Manual
DVP-0204320-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVPEN01-SL and is the answer not in the manual?

Questions and answers

Related Manuals for Delta DVPEN01-SL

Summary of Contents for Delta DVPEN01-SL

  • Page 1 DVPEN01-SL Ethernet Communication Module Operation Manual DVP-0204320-02...

  • Page 3: Table Of Contents

    LED Indicators...5 RJ-45 PIN Definition...5 INSTALLATION & WIRING ...5 Installation ...5 CONTROL REGISTER (CR) ...6 Control Registers in DVPEN01-SL...6 Explanations on CR ...8 Numbering of Left-Side Modules...13 SETTING UP SOFTWARE ...14 Setting up Communication & Searching for Modules...14 Basic Settings ...20 Network Settings ...21...
  • Page 4 APPLICATION EXAMPLES... 30 Setting up IP and Communicating through WPLSoft... 30 Connecting the PC with DVPEN01-SL through LAN ... 33 Setting up Password and Clearing Password ... 37 When the Password is Lost (Returning to Default Setting by RS-232)... 39 IP Filter Protection ...

  • Page 5: Introduction

    Introduction Thank you for choosing DVPEN01-SL module. To correctly install and operate DVPEN01-SL, please read the manual carefully before using the module. DVPEN01-SL is an Ethernet communication module for remote setting and communication through WPLSoft. DVPEN01-SL is able to send E-mails, automatically correct the RTC in DVP28SV11R/T and exchange data.

  • Page 6: Product Profile & Outline

    Ethernet Communication Module DVPEN01-SL Item Vibration/ Shock Resistance Electrical specifications Item Power supply voltage Power consumption Insulation voltage Weight (g) Product Profile & Outline Dimension Product Profiles 1. Model name 2. Extension port to connect device 3. Extension port to connect I/O module 4.

  • Page 7: Led Indicators

    Fasten the I/O module clip on the left side of the MPU. Connect DVPEN01-SL to other I/O modules To connect DVPEN01-SL with the other I/O module, lift the extension clip of the I/O module by a screwdriver and open the side cover.

  • Page 8: Control Register (Cr)

    Connect DVPEN01-SL to the Network: Connect DVPEN01-SL to the Ethernet Hub by twisted pair cable CAT-5e. DVPEN01-SL has Auto MDI/MDIX function; therefore, DVPEN01-SL does not need to use a crossing cable between the PC and DVPEN01-SL. Network connections between the PC and DVPEN01-SL:...
  • Page 9 #113 Reserved #114 Modbus TCP time-out DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL Content b0 ~ b7: Current status of E-Mail 2 b8 ~ b15: Current status of E-Mail 1 b0 ~ b7: Current status of E-Mail 4 b8 ~ b15: Current status of E-Mail 3 Filled in by the user, and it will be send by E-mail.

  • Page 10: Explanations On Cr

    2. You can read the model code in the program to see if the I/O module exists. CR#1: Firmware Version Explanations: The firmware version of DVPEN01-SL is displayed in hex, e.g. H’0100 indicates version V1.00. CR#2: Communication Mode Explanations: Bit No.
  • Page 11 When the CR is set as “2”, the data exchange is successful. When the CR is set as “3”, the data exchange fails. DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL E-Mail status Not been sent...
  • Page 12 CR#28: Destination Slave ID Explanations: When you set up the Salve ID (i.e. K1 ~ K255) for data exchange, DVPEN01-SL will automatically search for the corresponding IP address from the Slave IP list. For example, if the ID is set as “0”, the value in CR#25 and #26 will be regarded as the destination IP.
  • Page 13 D8 ~ D11 of the Master will be written into D2 ~ D5 of the Slave. Both sending and receiving can be executed at the same time. When the values in CR#82 and #85 are both “0”, DVPEN01-SL will use the default registers (CR#29 ~ CR#68) and number of registers (K20).
  • Page 14 Ethernet Communication Module DVPEN01-SL CR#114: Modbus TCP Time-Out Explanations: Setting up the communication time-out (in ms) for Modbus TCP mode. CR#115: Modbus TCP Trigger Explanations: When the CR value is set as “1”, Modbus TCP will be triggered. After the data transmission is completed in Modbus TCP mode, the CR value will automatically be reset to “0”.

  • Page 15: Numbering Of Left-Side Modules

    Status of RTU slave 4 Numbering of Left-Side Modules After DVPEN01-SL is installed properly, you need to compile the PLC program to control the special I/O module. PLC offers FROM instruction (for reading) and TO instruction (for writing) to control the control registers (CR) in the special I/O module.

  • Page 16: Setting Up Software

    Before you start a setup page, you have to select “Ethernet” in the communication setting. Next, you can search by IP address or use Auto-Search. You also can open the setup page for DVPEN01-SL by RS-232. DVPEN01-SL is set up by UDP port 20006; therefore, you have to be aware of the relevant settings of the firewall.
  • Page 17 Broadcast search 1. Click broadcast icon in DCISoft to search for all Delta Ethernet products on the network. The window on the left hand side shows the models found, and the window on the right hand side displays the device list of all models.
  • Page 18 Ethernet Communication Module DVPEN01-SL 3. You will see the basic setup page as follow. Designating model to search 1. Right click “Ethernet” on the left hand side window and select “Configure” to designate a model to search for. DVP-PLC Operation Manual...
  • Page 19 Ethernet Communication Module DVPEN01-SL 2. After configure a model, select “DVPEN01-SL” and click “OK” to auto-search for DVPEN01-SL modules on the network. 3. List of the current DVPEN01-SL modules DVP-PLC Operation Manual...
  • Page 20 1. Set the communication type to “Ethernet” and enter the IP address. Click “OK”. 2. Click “IP Search” icon to start searching for the designated IP. 3. The DVPEN01-SL module found will be displayed in the right hand side window. Double click it to enter the setup page.
  • Page 21 1. Select “RS232" as the transmission type in communication setting. You will have to designate a communication port. When DVPEN01-SL is searched by RS-232, you do not need to set up the parameters (i.e. data length, parity, stop bits and baud rate).

  • Page 22: Basic Settings

    Setting up DVPEN01-SL basics 1. Module Name: There can be many DVPEN01-SL modules in the network. Thus, you can set up a module name for each module to identify the module when you need to use them. 2. Module Language: You can select a language for each module name, and the windows will be displayed in the selected language.

  • Page 23: Network Settings

    Setting up static IP of the PC 1. Enter Control Panel → Network Connection → click on “Local Area Connection” 2. You will see the “Local Area Connection Status” window. Click on “Properties”. DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL...
  • Page 24 Ethernet Communication Module DVPEN01-SL 3. Click on “Internet Protocol (TCP/IP). 4. Enter 192.168.0.1 into IP address. Click on “OK” to complete the IP address setting of the PC. DVP-PLC Operation Manual...
  • Page 25 For example, if the LAN has to be connected to WAN, it will need a gateway to bridge the communication. The IP of the gateway has to be in the same subnet as DVPEN01-SL. The default gateway IP address of DVPEN01-SL is 192.168.1.1.

  • Page 26: Setting Up E-Mails

    DVPEN01-SL offers 4 sets of E-Mail information, and you can self-define the register or bit information to be read. When the trigger occurs, DVPEN01-SL will add the set register or bit present value read to the E-Mail. Every set of E-Mail information is able to contain maximum 100 continuous register data.

  • Page 27: Data Exchange

    3. Communication Address & Data exchange host IP: You have to enter the IP address of DVPEN01-SL at the other end. For example, if you would like DVPEN01-SL to exchange data with 192.168.0.1, set No. 1 as 192.168.0.1. When the data are being exchanged, if the value in CR#28 is H’0001, the data will be exchanged with...

  • Page 28: Rtu

    Use the “RTU” function to conduct mapping between Delta’s network modules DVPEN01-SL and RTU-EN01.Set up the mapping information first, and you will be able to use WPLSoft in DVPEN01-SL to save and retrieve the mapped bit (M) and register (D) in order to operate the remote RTU-EN01.

  • Page 29: Ip Filter

    MAC address. You can use ARP to look up the MAC address by IP address, and the corresponding MAC address will be saved, so you do not need to look it up again when sending the next datum. DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL...

  • Page 30: Setting Up Password

    Incorrect settings may result in connection failure. Therefore, DO NOT set the MAC address of the equipment without the network into the table. Setting up Password To prevent the set values in DVPEN01-SL from being modified, you can set up password to lock the settings in DVPEN01-SL. Setting up DVPEN01-SL password...

  • Page 31: 5.10 Returning To Default Setting

    After the password is locked, all the pages cannot be set up unless you unlock the password. However, if you set up DVPEN01-SL by RS-232, you can return the setting to default setting whether the password is locked or not. For example, if you have locked DVPEN01-SL but forget the password, you have to return DVPEN01-SL to factory default setting by RS-232, and all the settings will return to default ones.

  • Page 32: Application Examples

    Check “Default Setting” box and click on “Yes”. Note: If you set up DVPEN01-SL by RS-232, you can return the setting to default setting whether the password is locked or not. It takes approximately 10 seconds to return to default setting, so DO NOT switch off the power within the 10 seconds.
  • Page 33 Ethernet Communication Module DVPEN01-SL 3. Select “Ethernet” and press "OK”. 4. Click on “Auto-Search” icon to search for all DVPEN01-SL modules in the network. 5. Designate a DVPEN01-SL and double click it to open the setup page. DVP-PLC Operation Manual...
  • Page 34 Ethernet Communication Module DVPEN01-SL 6. Open “Basic” setup page. 7. Switch to “Network” setup page DVP-PLC Operation Manual...

  • Page 35: Connecting The Pc With Dvpen01-Sl Through Lan

    WPLSoft will automatically search for DVPEN01-SL. 9. The IP of DVPEN01-SL has been modified into the new setting (DELTA DVPEN01-SL: 192.168.0.4). 10. Click on DELTA DVPEN01-SL, and WPLSoft will be able to communicate with the MPU. Connecting the PC with DVPEN01-SL through LAN Application Setting up network parameters of DVPEN01-SL by WPLSoft through LAN.
  • Page 36 Ethernet Communication Module DVPEN01-SL 2. Open “Communication Setting” in WPLSoft. 3. Select “Ethernet” and press “OK”. DHCP Server DVPEN01 DVP-PLC Operation Manual DVP-PLC...
  • Page 37 4. Click on “Auto-Search” icon to search for all DVPEN01-SL modules in the network. Follow “View Workspace Communication” or “View DVPEN01-SL module (default module name: DELTA DVPEN01-SL, IP: 192.168.1.5) in the window. 5. Designate a DVPEN01-SL and double click it to open the setup page.
  • Page 38 6. Open the setup page. You can modify the module name for easier identification. 7. Next, set up the new IP of DVPEN01-SL. First switch to “Network” setup page. If there is a DHCP server in the LAN, select DHCP in “IP Configuration”. If there is no DHCP server in the LAN, you can set a static IP.

  • Page 39: Setting Up Password And Clearing Password

    3. Check “Modify” box and enter “aabb” in “New Password” and “Confirm Password" columns. Click on “OK” to save the password. 4. Open the setup page again, and DVPEN01-SL is now locked by the password. You cannot open any of the settings now. Click on “Unlock” to leave the entering password window.
  • Page 40 Ethernet Communication Module DVPEN01-SL 5. Enter the password to temporarily unlock the protection and modify the parameters. If you close the setup page, the locking will automatically be recovered. 6. To clear the password, simply leave the password columns blank. Click on “OK” to clear the password.

  • Page 41: When The Password Is Lost (Returning To Default Setting By Rs-232)

    (1) DVPEN01-SL is set with a password. requirement (2) The password is forgotten. 1. Use DVPACAB2A30 cable to connect the PC and DVPEN01-SL and open the setup page. Open the “reset to default setting”” pages. Click on “Unlock”. DVP-PLC Operation Manual...

  • Page 42: Ip Filter Protection

    IP Filter Protection Application Setting up IP filter protection Network (1) IP of DVPEN01-SL: 192.168.0.4 requirement (2) Only connections to 192.168.0.7 and 172.16.0.1~172.16.0.255 are allowed. 1. See 6.1 for the connection and how to set up the communication. 2. Open the setup page and switch to “IP Filter” page.
  • Page 43 3. Check “Enable IP Filter Function” box. Enter “192.168.0.4” in No. 1 IP and “255.255.255.255” in all “Netmask” columns. 4. Enter “192.168.0.1” in No. 2 IP and “255.255.255.0” in No.2 “Netmask” column. Click on "OK” to complete the setting. Only the equipment within the IP range can be connected. DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL...

  • Page 44: Setting Up Static Arp Table

    1. See 6.1 for the connection and how to set up the communication. 2. Open the setup page and switch to “Static ARP Table” page. 3. Check “Enable ARP Table” box. Enter “192.168.1.6” in No. 1 IP, and its corresponding MAC address is “00:18:23:10:00:35”.
  • Page 45 Only the equipment within the IP range can be connected. Note: The MAC address of DVPEN01-SL can be obtained from WPLSoft or the MAC address sticker on the equipment. The MAC address of PC can be found in the “Network Connection Details” (see below).

  • Page 46: Application Of E-Mail

    Ethernet Communication Module DVPEN01-SL Application of E-Mail Sending an E-Mail to notify the administrator when the current status of X0 and Y0 is Application changed. Network (1) SMTP Server IP: 172.16.144.121。 application (2) E-mail address of administrator: test@sample.com (3) An E-mail message will be generated when the status of X0 and Y0 is changed.

  • Page 47: Application Of Data Exchange (1)

    4. Switch to “Select Recipients” page. Check all the boxes of “Recipient 1”. Click on “OK” to complete the setting. 5. After all the settings in DVPEN01-SL are completed, compile the ladder diagram in the MPU and download it to the MPU. See below for the program design: Explanations: •...
  • Page 48 Ethernet Communication Module DVPEN01-SL 1. See 6.1 for how to set up the communication. 2. Open the setup page of PLC_B and switch to “Data Exchange” page. 3. Check “Enable Data Exchange” box. Select “Program Control” for Execute Mode. Enter IP address of PLC_A “192.168.0.4”...
  • Page 49 • The data exchange will be executed every one second. • Write the communication address of the destination PLC in CR#28, and DVPEN01-SL will automatically detect by the previous setting that No. 1 IP is “192.168.0.4". • Write the data in RTC into CR#29 ~ CR#35.

  • Page 50: Application Of Data Exchange (2)

    (4) Update from PLC_A to PLC_B and PLC_B to PLC_A. 1. See 6.1 for how to set up the communication. 2. Open the setup page of PLC_A and switch to “Data Exchange” page. Check “Enable Data Exchange” box. Select “Always Enable” for Execute Mode. Enter IP address of PLC_B “192.168.1.97”, D200 D0 Quantity: 100 and D0 D0 Quantity: 100 in No.

  • Page 51: Application Of Data Exchange (3)

    (4) Update from PLC_A to PLC_B and PLC_B to PLC_A. 1. See 6.1 for how to set up the communication. 2. Open the setup page of PLC_A and switch to “Data Exchange” page. 3. Check “Enable Data Exchange” box. Select “Program Control” for Execute Mode. Enter IP address of PLC_B “192.168.1.97”, D200 D0 Quantity: 100 and D0 D0 Quantity: 100 in No.

  • Page 52: Application Of Data Exchange (4)

    Ethernet Communication Module DVPEN01-SL After all the settings in PLC_A are completed, compile the ladder diagram in the MPU and download it to PLC_A. See below for the program design: 6.11 Application of Data Exchange (4) Writing the time in RTC in PLC_B into D0 ~ D6 of PLC_A by designating IP by ladder Application diagram.
  • Page 53 2. Compile the ladder diagram for PLC_A and download it to PLC_A. M1013 Explanations: • The received data are stored in CR#49 ~ CR#55. • The data received every one second are written into D0 ~ D6. DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL D100 K100 K100 HC0A8 K100 K100 D100...

  • Page 54: Application Of Data Exchange (5)

    Ethernet Communication Module DVPEN01-SL 6.12 Application of Data Exchange (5) Writing the time in RTC in PLC_B directly into D0 ~ D6 of PLC_A without writing in ladder Application diagram into PLC_A. Network (1) Adopting static IP. requirement (2) IP of PLC_A: 192.168.0.4 (3) IP of PLC_B: 192.168.0.5...

  • Page 55: 6.13 Application Of Modbus Tcp Master

    2. Compile the ladder diagram in the MPU and download it to PLC_B. See below for the program design. We do not need to write any corresponding ladder diagram into PLC_A. M1013 = D0 K0 = D0 K1 DVP-PLC Operation Manual Ethernet Communication Module DVPEN01-SL K100 K118 HC0A8 K100 K117...

  • Page 56: 6.14 Rtu Mapping

    (5) Set up the mapping start address and number of data for RX, RY, RCR (read) and RCR (write) at DVPEN01-SL. (6) Enable the mapping function in DVP-SV PLC at DVPEN01-SL. Use M2000 and D2000 in DVP-SV to read and M3000 and D3000 to write the value in the remote RTU-EN01.
  • Page 57 2. Use DCISoft for RTU-EN01 to set up the mapping CR for read/write. 3. Use DCISoft for DVPEN01-SL to set up the mapping start address and number of data. RX: M2000 ~ M2009, RY: M3000 ~ M3009, RCR Read: D2000 ~ D20009, RCR Write: D3000 ~ D3009 4.
  • Page 58 Ethernet Communication Module DVPEN01-SL Explanations: 1. Enable mapping: CR15 = 1 2. Disable mapping: CR15 = 0 3. Once CR#15 is enabled, M2000 ~M2009 and D2000 ~ D2009 will read the data, and M3000 ~ M3009 and D3000 ~ D3009 will read the present value before starting to write.
