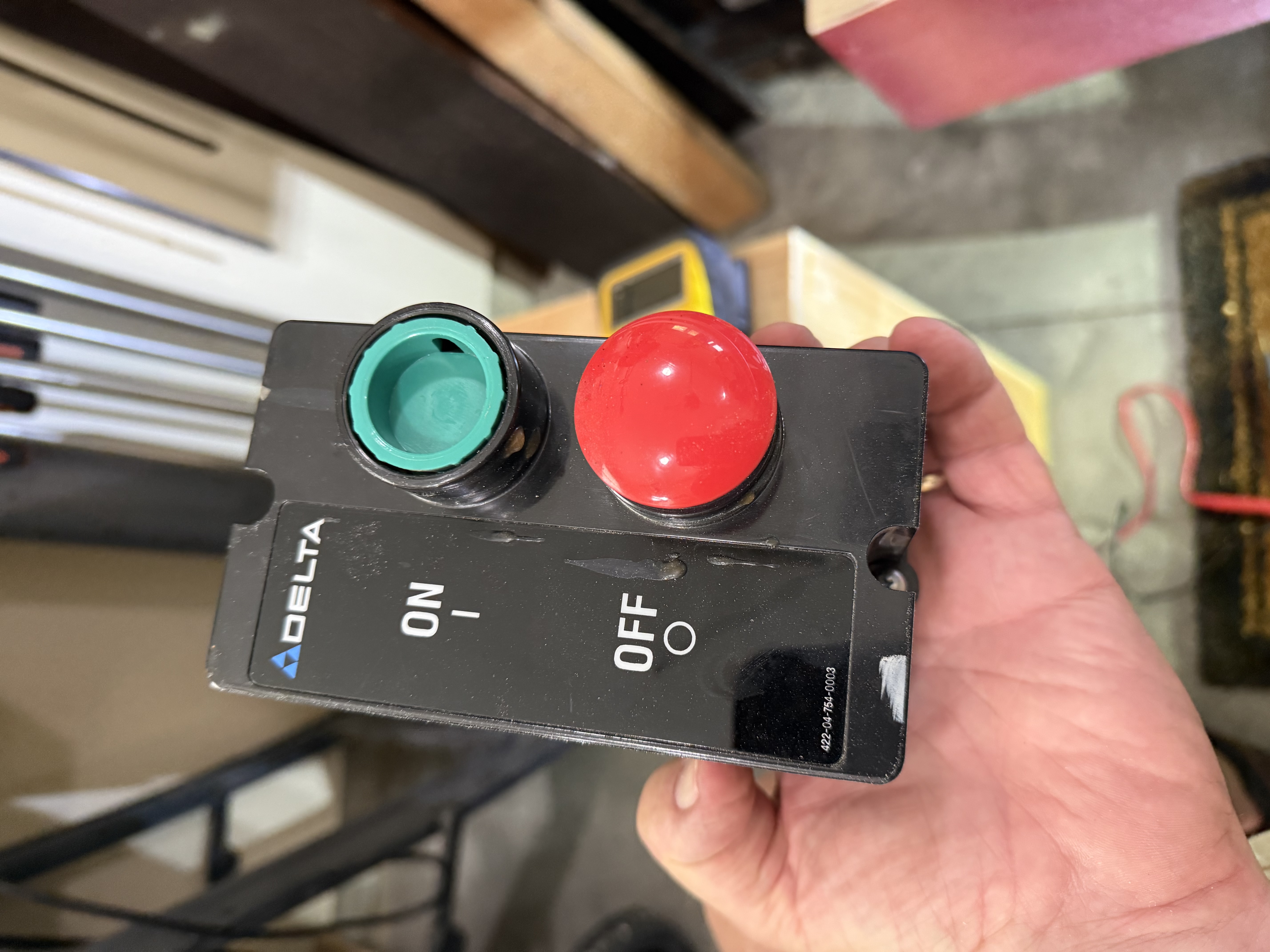

Delta Unisaw 36-841 Instruction Manual

Limited edition unisaw with 52" unifence or with 50" commercial biesemeyer fence system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Limited Edition Unisaw
Limited Edition Unisaw
50" Commercial Biesemeyer
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
please call
52" Unifence
Fence System
78-995 (50") Biesemeyer Fence Assembly
1-800-463-3582).
In Canada call
with
®
(Model 36-841)
36-841 Consists of:
36-829 Base Unit
36-937 10" Cast Iron Wings(2)
36-918 (52") Unifence Assembly
36-978 Gray table boards
36-904 Unifence Front Rail with Stop
35-617 Carbide Blade
50-289 Mobile Base
36-862 Zero Clearance Insert
with
®
(Model 36-843)
36-843 Consists of:
36-829 Base Unit
36-937 10" Cast Iron Wings(2)
78-996 Commercial Fence with Legs
78-924 Gray table boards
35-617 Carbide Blade
50-289 Mobile Base
36-862 Zero Clearance Insert
PART NO. 422-04-651-0063 (01-15-02)
