KitchenAid KP2671XAC - Professional Stand Mixer Parts List
Solid state 6 qt. stand mixer variations
Hide thumbs
Also See for KP2671XAC - Professional Stand Mixer:
- Instructions and recipes manual (88 pages)
Related Manuals for KitchenAid KP2671XAC - Professional Stand Mixer
Summary of Contents for KitchenAid KP2671XAC - Professional Stand Mixer
- Page 1 PARTS LIST SOLID STATE 6 QT. STAND MIXER VARIATIONS KD2661−3, KT2651−3, KP2671−3 (PROD. DATE CODES: WL46 − PRESENT) 2004 KITCHENAID 03−04 Litho in U.S.A. (bd) Part No. 8204525 Rev. A...
- Page 2 COLOR VARIATION PARTS For Models: KD2661−3, KT2651−3, KP2671−3 8204525...
- Page 3 COLOR VARIATION PARTS For Models: KD2661−3, KT2651−3, KP2671−3 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Availability of All Planetary Column Colors Subject to Change. 9708172 White 9703673 White Any Color Not Listed is 9708173 Imperial Gray 9703525 Imperial Gray No Longer Available.
-

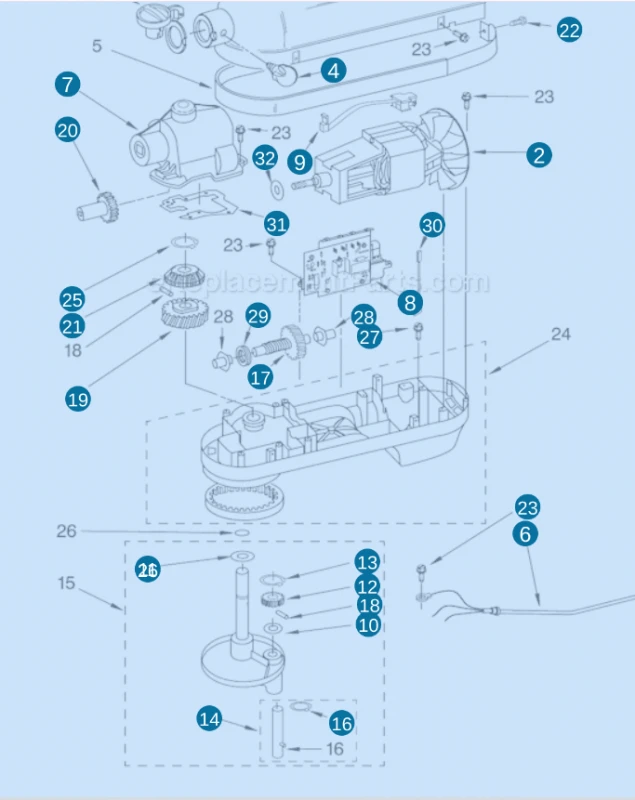

Page 4: Case, Gearing And Planetary Unit
CASE, GEARING AND PLANETARY UNIT For Models: KD2661−3, KT2651−3, KP2671−3 8204525... - Page 5 CASE, GEARING AND PLANETARY UNIT For Models: KD2661−3, KT2651−3, KP2671−3 Illus. Part DESCRIPTION Gearcase Motor Housing Motor (10 Tooth) 9707507 (KD & KP) 9706548 (KT) 9703315 Cap, Attachemnt Hub (Hinged) Thumb Screw 240374 Black 240374−2 Gray 240374−3 Buff Band, Trim Power Cord 9706551 White 9706552 Black...
-
Page 6: Base And Pedestal Unit
BASE AND PEDESTAL UNIT For Models: KD2661−3, KT2651−3, KP2671−3 Illus. Part DESCRIPTION Literature Parts LIT9707946 Use & Care Guide LIT8204525 Repair Parts List 9703414 Foot, Rubber (5) Column Assembly Bowl Support 9703474 Latch, Bowl Spring 9706885 Arm, Bowl Lift 9706787 Rod, Bowl Lift Base And Foot Supports 9703439 Washer... -
Page 7: Accessory Parts
ACCESSORY PARTS For Models: KD2661−3, KT2651−3, KP2671−3 Illus. Part DESCRIPTION Following Parts Not Illustrated OPTIONAL ATTACHMENTS, ACCESSORIES AND SERVICE ITEMS 4164778 Mixer Attachment Pak (Includes Food Grinder (FG−A), Food Strainer (FVSP), And Vegetable Slicer, (RVS−A) (FPP−A) 4164749 Food Grinder (FG−A) 4164751 Grain Mill (GM−A) 4164768 Pasta Maker And...
Need help?
Do you have a question about the KP2671XAC - Professional Stand Mixer and is the answer not in the manual?
Questions and answers
I purchased a second hand Kitchen Aid Stand Mixer, Model# KP2671XBK. I need several gear parts, but I'm unable to match this with the posted information on this site.

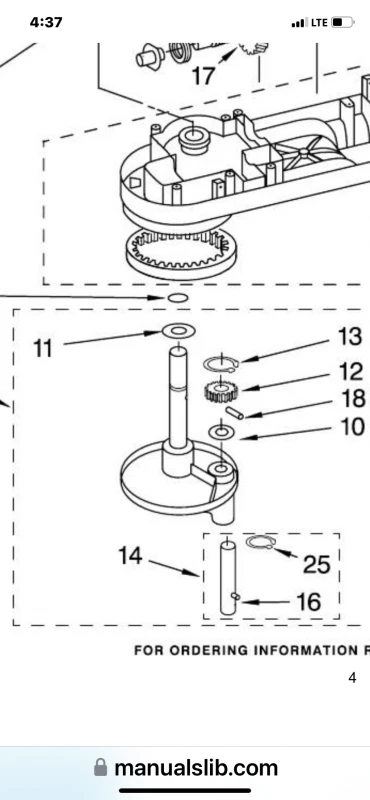

Need replacements for KitchenAid Stand Mixer: KP2671x (Blue). See photos.
Replacement parts for the KitchenAid Professional Stand Mixer KP2671XAC in blue can be found under the color name "Navy Blue" with part numbers 9706313 and 9705321.
This answer is automatically generated
