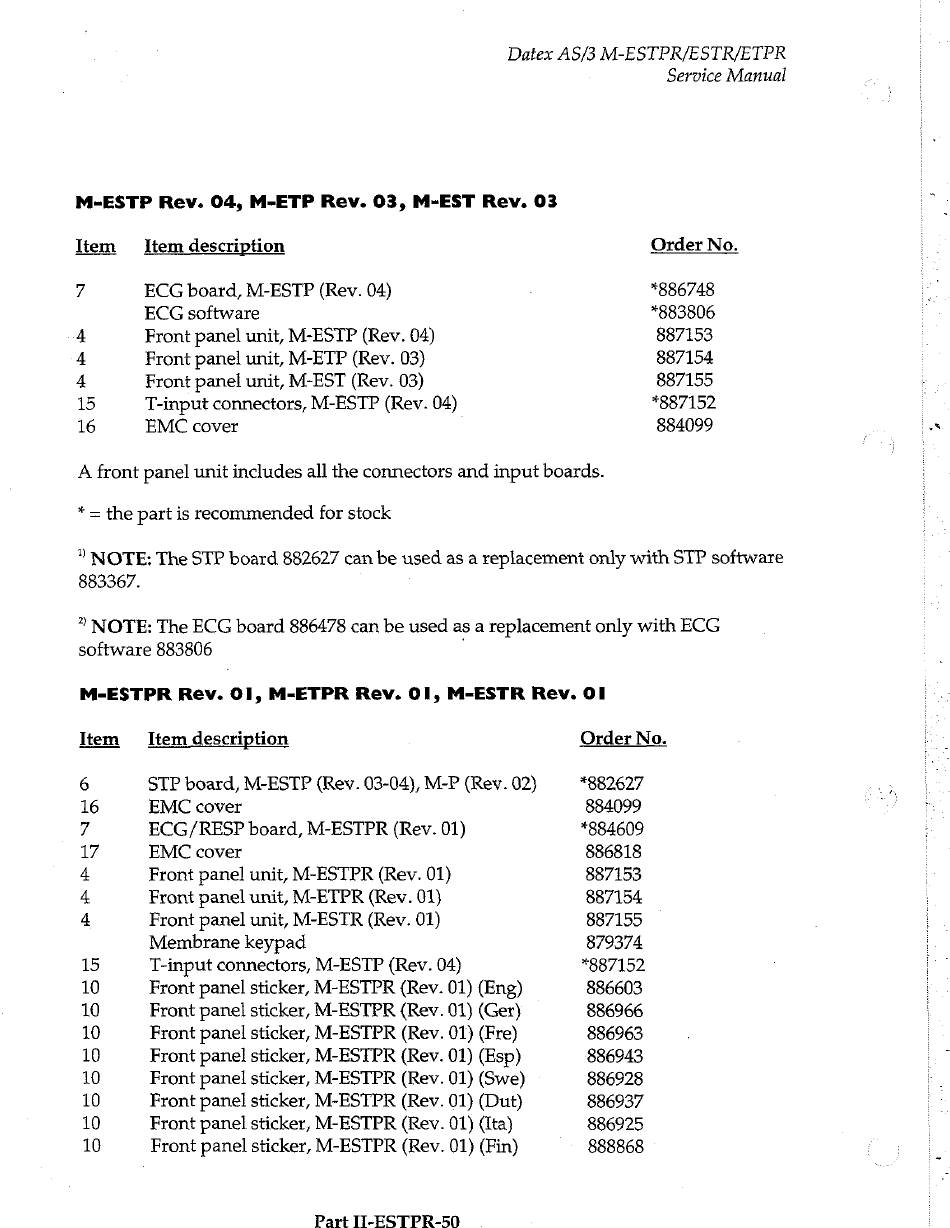

Instrumentarium Datex D-VNC15 Manual page 106

M-ESTP Rev. 04, M-ETP Rev. 03, M-EST Rev. 03
Item
5
6
Datex AS/3 M-ESTPR/ESTR/ETPR
Item description
ECG board, M-ESTP (Rev. 04)
ECG software
Front panel unit, M-ESTP (Rev. 04)
Front panel unit, M-ETP (Rev. 03)
Front panel unit, M-EST (Rev. 03)
T-input connectors, M-ESTP (Rev. 04)
EMC cover
Service Manual
Order No.
*886748
*883806
887153
887154
887155
*887152
884099
A front panel unit includes all the connectors and input boards.
* = the part is recommended for stock
2 NOTE: The STP board 882627 can be used as a replacement only with STP software
883367.
2 NOTE: The ECG board 886478 can be used as a replacement only with ECG
software 883806 |
M-ESTPR Rev. 01, M-ETPR Rev. Ol, M-ESTR Rev. Ol
Item
Item description
STP board, M-ESTP (Rev. 03-04), M-P (Rev. 02)
EMC cover
ECG/RESP board, M-ESTPR (Rev. 01)
EMC cover
Front panel unit, M-ESTPR (Rev. 01)
Front panel unit, M-ETPR (Rev. 01)
Front panel unit, M-ESTR (Rev. 01)
Membrane keypad
T-input connectors, M-ESTP (Rev. 04)
Front panel sticker, M-ESTPR (Rev. 01) (Eng)
Front panel sticker, M-ESTPR (Rev. 01) (Ger)
Front panel sticker, M-ESTPR (Rev. 01) (Fre)
Front panel sticker, M-ESTPR (Rev. 01) (Esp)
Front panel sticker, M-ESTPR (Rev. 01) (Swe)
Front panel sticker, M-ESTPR (Rev. 01) (Dut)
Front panel sticker, M-ESTPR (Rev. 01) (Ita)
Front panel sticker, M-ESTPR (Rev. 01) (Fin)
Order No.
*882627
884099
*884609
886818
887153
887154
887155
879374
*887152
886603
886966
886963
886943
886928
886937
886925
888868
