3 System description

The Uponor Smatrix Base thermostat D+RH T-247 BUS comes with a
big LED display and capacitive keys.
The capacitive keys and the front glass make cleaning of the front of
the thermostat easy.

3.1 Thermostat features

Main characteristics for the thermostat:
• Mounting
– on wall
– on the bigger boxes that can be used with the optional wall
frame
• Optional: an external temperature sensor can be connected to
the thermostat, to measure the room, floor or outdoor
temperature
Software features
Main characteristics of the thermostat software:
• Heating/cooling demand indication
• Relative humidity (RH) measured value
• Comfort/ECO modes indication
• ECO setback modification
• Cooling allowed function (room by room)
• Temperature display in Celsius or Fahrenheit
• Operating modes
– RT: room temperature sensor
– RFT: room temperature sensor and floor temperature
sensor
– RS: remote sensor
– RO: room temperature sensor and outdoor temperature
sensor
• Room temperature calibration
• Optional: floor, remote or outdoor sensor can be connected
• Factory reset

3.2 System compatibility

Note
For more detailed information, product range and
documentation please visit the Uponor website:
www.uponor.com.
CD0000776
The Uponor Smatrix Base thermostat D+RH T-247 BUS is compatible
with the components listed below:
• Uponor Smatrix Base controller PULSE X-245 BUS 6X
• Uponor Smatrix Base PRO controller X-147 BUS 6X
• Uponor Smatrix Base PRO controller X-148 Modbus RTU
• Uponor Smatrix floor/remote sensor S-1XX

3.3 Components of the thermostat

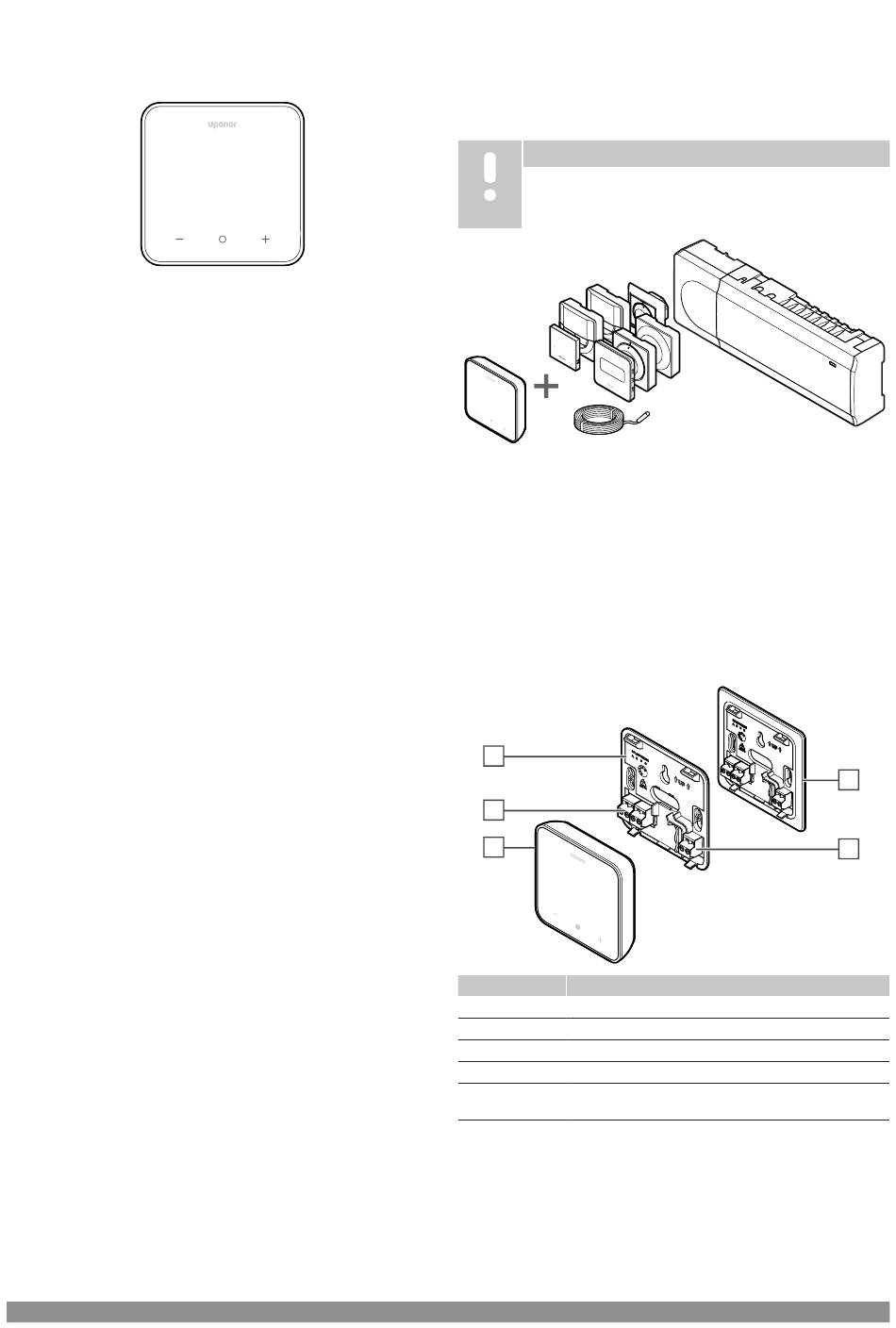

The illustration below shows the thermostat and its components.
A
B
C
Item
A
B
C
D
E
Uponor Smatrix Base thermostat D+RH T-247 BUS
Description
Thermostat back cover
Power and communication from the controller
Thermostat body
Terminal for external sensor (non-polarised)
Extended-size thermostat back cover (optional - not
included in the box, must be ordered separately)
| Operation manual
CD0000790
E
D
CD0000777
