Wrapping jam When the first sensor after the fixing roller is turned
ON is turned OFF immediately detection after the
detection.
Alternatively, when the second sensor after fixing
roller is turned ON and immediately after detection,
the first sensor is detection turned OFF.

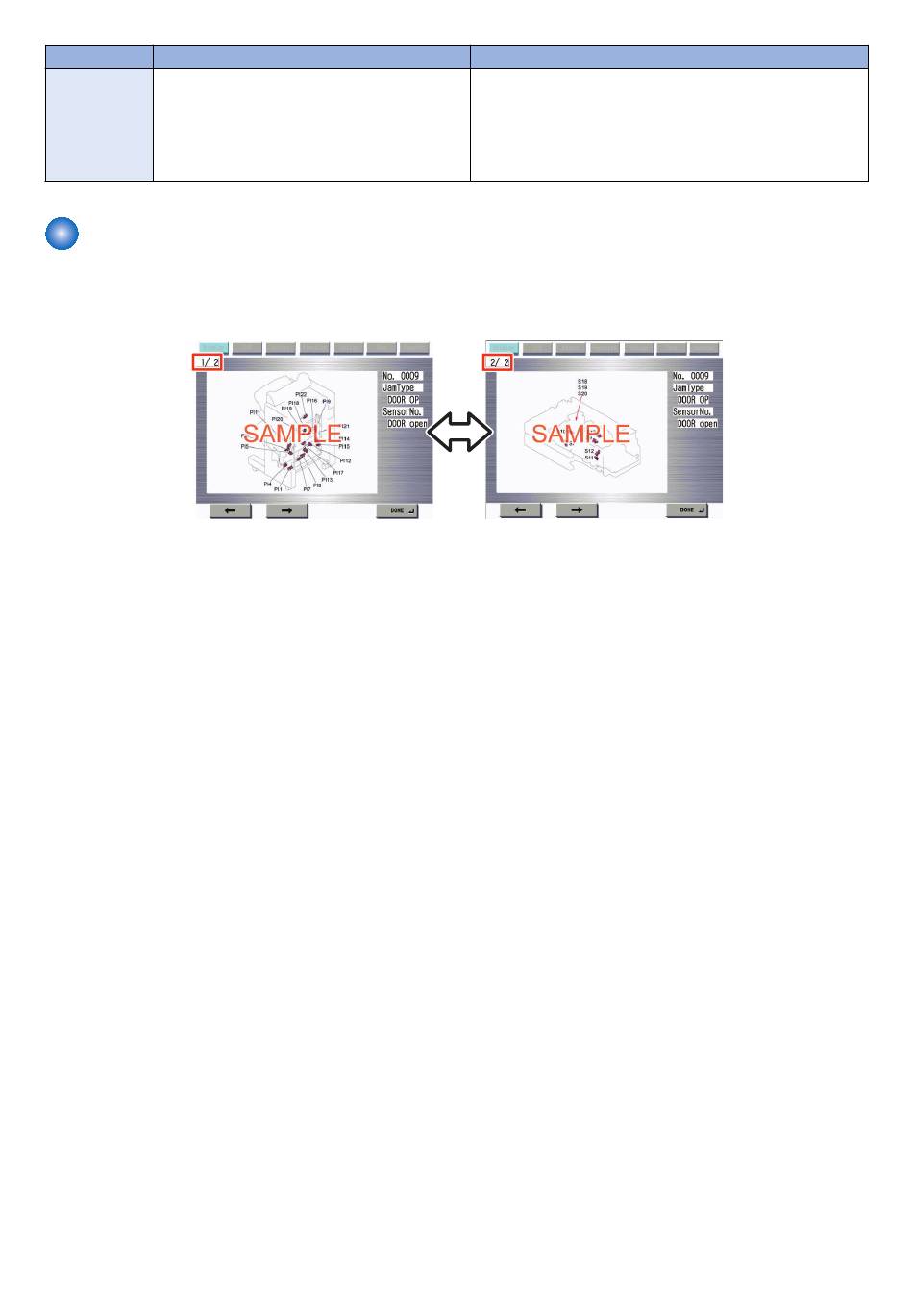

Jam screen display specification
Due to one jam code being used for multiple options, the illustration for the different option may be displayed on the jam screen.
In this case, "1/2" or similar information is displayed on top left side of the screen and this area can be pushed. This operation
can be used to switch information on the screen.
Overview of detection Check items (in arbitrary order)
• Fixing Assembly remaining in Paper
• Failure of the target sensor
• Fixing Assembly failure
• Paper Type Confirmation (Check if paper type cannot be
used.)
