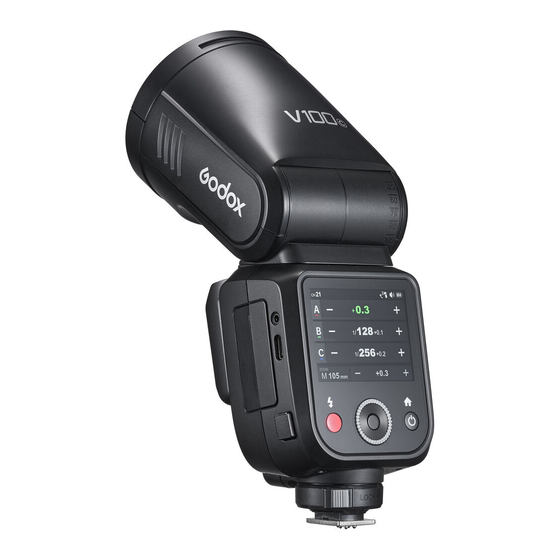

Godox V100 C Manual

Hide thumbs

page of 40

/ 40
Bookmarks

Quick Links

Download this manual

合格证

Wechat

Official Account

神牛微信公众号

深圳市神牛摄影器材有限公司

地址：深圳市宝安区福海街道塘尾社区耀川工业园厂房 2 栋

电话：0755-29609320（8062）传真：0755-25723423 邮箱：godox@godox. com

GODOX Photo Equipment Co., Ltd.

Add.: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao'an

District, Shenzhen 518103, China

Fax: +86-755-25723423

www.godox.com

Made in China | 705-V100C0-00

Tel: +86-755-29609320(8062)

E-mail: godox@godox.com

Need help?

Do you have a question about the V100 C and is the answer not in the manual?

Questions and answers

Summary of Contents for Godox V100 C

Page 1 合格证 Wechat Official Account 神牛微信公众号深圳市神牛摄影器材有限公司地址：深圳市宝安区福海街道塘尾社区耀川工业园厂房 2 栋电话：0755-29609320（8062）传真：0755-25723423 邮箱：godox@godox. com GODOX Photo Equipment Co., Ltd. Add.: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen 518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com www.godox.com...
Page 2 Wireless Stroboscopic Flash Shooting with Multi Flash Other Applications Sync Triggering Modeling Flash(Only available in V100 C) Bounce Flash Low Battery Warning Control with the Camera's Menu(Only available in V100 C) Global Shutter Sync Photography(Only available in V100 S) Protection Function...
Page 3 The Reason & Solution of Not Triggering in Godox 2.4G Wireless Technical Data Troubleshooting Firmware Upgrade Compatible Camera Models...
Page 4 About This Instruction Manual This manual is based on the assumption that both the camera and camera flash's power switches are turned on. The following alert symbols are used in this manual: The caution symbol indicates a warning to prevent shooting problem. The note symbol gives supplemental information.
Page 5 Important Safety Instructions This product is a professional photographic equipment, to be operated by professional personnel only. All transport protective materials and packaging on the product must be removed before use. The following basic safety precautions must be followed when using this product: Carefully read and fully understand the instruction manual before use and strictly follow the safety instructions.
Page 6 Unauthorized repairs will void the warranty and will incur charges. Please check the status and power of the lithium battery upon receipt. If there are any quality issues, please contact Godox or our authorized dealer within the warranty period. Failures from improper operation is not covered under warranty.
Page 7 Stable Continuous Shooting: The output brightness and CCT remain consistent, and the light is evenly distributed in high-speed continuous shooting. Continuous Firmware Upgrade: Godox is committed to regularly updating its flash software to maintain the optimal compatibility with the original camera system.
Page 8 Name of Parts Body 1. Flash Head 2. LED Modeling Lamp 3. External Flash Interface 4. Wireless Sensor 5. Focus Assist Beam 6. External Power Box Port 7. Bounce Angle Scale 8. Battery Charging Indicator (red in charging, green in fully charged) 9.
Page 9 2.3 " LCD Panel Mode Interface Wi-Off Mode Sender Mode Receiver Mode (This interface takes V100 C as an example, other models interfaces may differ) Other Functions What's Inside Adapter Mini Stand USB-C Charging ×1 Cable×1 Flash Body Storage Lithium...
Page 10 Accessory Kit for Round Flash Head AK-R1 Note: Please purchase the correct accessories according to your flash models. Installing/Disassembling Battery Disassembling the battery: Press and hold the battery remove button, then push the battery out of the battery compartment. Installing the battery: Insert the battery into the battery compartment in the direction as referred below until it’s firmly locked.
Page 11 Installing/Disassembling the Camera Flash Installing the camera flash: Rotate the hot shoe fixing buckle and rotate it to the left, insert the camera flash into the camera's hot shoe. Then rotate it to the right until it locks up. Disassembling the camera flash: Press and rotate the hot shoe fixing buckle to the left until it is loosened, then take off the camera flash.
Page 12 Standby: Setting as wi-off/sender mode when the standby function is on, the flash will enter standby mode automatically after a certain period (approx. 90 seconds) of idle use. Press the camera shutter halfway or press any button will wake up the flash unit. Auto Off: 1.
Page 13 S1 Photocell Unit Setting In M manual flash mode, this flash can function as an optic S1 secondary flash with optic sensor. With this function, the flash will fire synchronously when the main flash fires, the same effect as that by the use of wireless triggers.
Page 14 If you set the flash coverage manually, make sure it covers the lens focal length so that the picture will not have a dark periphery. SUB: Detachable Sub Flash SU-1 With detachable sub flash SU-1 attached to the external flash interface, better filling light effects can be achieved in M (manual) flash/TTL auto flash mode, this is helpful for portrait shooting.
Page 15 The wireless is turned on by default in sender mode. Group Five groups: A, B, C, D, E(V100 C) M, A, B, C, D(V100 S) M: Manual Flash—Flash Power Touch Screen: Press and hold the group box to switch among M (manual) flash, TTL auto flash and OFF.
Page 16 Receiver Mode Touch Screen: Slide the screen from the left to the right to make the mode interface appears, click the “Receiver” icon to enter receiver mode. Buttons and Select Dial: Press the power switch button to make the mode interface appears, rotate the select dial and press the set button to choose and enter receiver mode.
Page 17 Buttons and Select Dial: Rotate the select dial to choose “SYNC” icon, then press the set button to switch sync mode(V100 C). Press the set button can only turn on or off HSS, second-curtain sync need to be set on cameras (V100 S).
Page 18 Buttons and Select Dial: Rotate the select dial to choose “Model” icon, then press the set button turn on or off the modeling lamp. When the modeling lamp is on, its brightness is adjustable from 1 to 10 by rotating the select dial and pressing the set button after selecting the progress bar down, then press the set button again to exit.
Page 19 1. Multi flash is most effective with a highly reflective subject against a dark background. 2. Using a tripod and TTL flash trigger XPROII is recommended. 3. A flash output of 1/1 and 1/2 cannot be set for multi flash. 4.
Page 20 Wireless Settings Touch Screen: Slide the screen from the left to the right to make the mode interface appears, click the “Wireless” icon to enter wireless mode. Then slide from the left to the right to return to the main interface. Buttons and Select Dial: Press the power switch button to make the mode interface appears, rotate the select dial...
Page 21 Sender Wireless Sync Preconditions: 1. Set V100 to receiver mode and the “Receiver” icon on the panel is yellow. 2. Assume flash trigger X3 as the sender. Touch Screen: Click the “SYNC” icon on both V100 and X3. Buttons and Select Dial: Rotate the select dial on V100 to choose “SYNC” icon, then press the set button.
Page 22 Screen standby after 3 minutes of idle use. New Agreement The new agreement is turned on by default. Turn off the new agreement in case of incompatibility (unavailable in V100 C) of flash and camera. Language Simplified Simplified Chinese system...
Page 23 Wireless Flash Shooting (2.4G Wireless Transmission) This section explains wireless sending/receiving flash shooting. The V100 attached to the camera is referred as the sender unit, while a V100 that is wirelessly controlled is referred as the receiver unit. You can also wirelessly control the V100 set as the receiver unit with the TTL flash trigger XPROII (sold separately).
Page 24 (receiver unit). Sender Unit's (Flash) ON/OFF(Only available in V100 C) You can set whether the sender unit flash that sends wireless signal flashes or not, and when the sender unit flash setting is on, the flash fires as a flash A group.
Page 25 1 as well. You can also use the wireless sync function to set the channels and ID to the same quickly. (This interface takes V100 C as an example, other models interfaces may differ) 4. Position the Camera and Flashes...
Page 26 1. Press the depth-of-field preview button on the camera to fire a modeling flash(V100 C). 2. If the receiver unit’s auto power off function is on, press the sender unit’s test button to power it on. Please note that test firing is unavailable during the camera’s regular metering time.
Page 27 M: Wireless Stroboscopic Flash Shooting with Manual Flash Using wireless (multiple flash) shooting with manual flash, you can shoot with a different flash output setting for each receiver unit (flash group) while setting all parameters on the sender unit. 1. Click the “Sender” icon on the panel, then the V100 attached to the camera is set as the sender unit.
Page 28 The sync cord jack is a Φ2.5mm plug. Insert a trigger plug here and the flash will be fired synchronously with the camera shutter. Modeling Flash(Only available in V100 C) If the camera has a depth-of-field preview button, pressing it will fire the flash continuously for 1 second.
Page 29 Control with the Camera's Menu(Only available in V100 C) If the camera flash is attached to an EOS camera which has a camera control function, the flash can be controlled using the camera’s menu screen. The functions that can be set are as follows. The available settings vary depending on the flash mode, wireless flash function settings, and other conditions.
Page 30 1. When V100 S is used in TTL auto flash mode with a global shutter camera, the flash will be synchronized properly at both low and high shutter speeds. Compared to a non-global shutter camera, with a global shutter camera, the HSS flash time is shorter (about 2-5 milliseconds), the recycle time is faster, and the camera can take more shots.
Page 31 Protection Function Over-Temperature Protection To avoid overheating and deteriorating the flash head, do not fire more ● than 70 continuous flashes in fast succession at 1/1 full power. After 70 continuous flashes, allow a rest time of at least 10 minutes. If you fire more than 70 continuous flashes and then fi re more flashes ●...
Page 32 The Reason & Solution of Not Triggering in Godox 2.4G Wireless 1. Disturbed by the 2.4G signal in outer environment (e.g. wireless base station, 2.4G wifi router, Bluetooth, etc.) → To adjust the channel CH setting on the flash trigger (add 10+ channels) and use the channel which is not disturbed.
Page 33 Provided (up to 100 times, 100Hz) Wireless Flash (Radio 2.4G Transmission) Wireless Function Sender, Receiver Sender Groups A, B, C, D, E(V100 C) M, A, B, C, D(V100 S) Controllable Receiver Groups A, B, C, D, E 100m Transmission Range (approx.)
Page 34 Troubleshooting If there is a problem, refer to this troubleshooting guide. The camera flash does not fire. The camera flash is not attached securely to the camera. ● → Attach the camera’s mounting foot securely to the camera. The electrical contacts of the camera flash and camera are dirty. ●...
Page 35 Compatible Camera Models V100 C unit can be used on the following Canon EOS series camera models: 1DX, 5D Mark II, 6D, 7D, 60D, 50D, 40D, 30D, 650D, 600D, 550D, 500D, 450D, 400D Digital, 1100D, 1000D, 5D Mark IV, 7D Mark II, 760D, 750D, 70D, 80D,...
Page 36 Operating frequency: 2412.99MHz – 2464.49MHz Maximum EIRP Power:5.0dBm Declaration of Conformity GODOX Photo Equipment Co.,Ltd. hereby declares that this equipment are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.For more...
Page 37 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 38 产品保修尊敬的用户，本保修卡是申请保修服务的重要凭证，请您配合销售商填写并妥善保管，谢谢！产品信息型号产品条码用户信息姓名联系电话通信地址销售商信息名称联系电话通信地址销售日期备注注：此表应由销售商盖章确认。适用产品本文件适用于相关《产品保修资讯》（见后面说明）所列产品，其他非属此范围的产品或部件（如促销品、赠品及其他出厂后附加的部件等）不在此保修承诺内。保修期产品及部件的相应保修期按相关的产品保修信息执行。保修期自产品首次购买日起算，购买日以购买产品时保修卡登记日期为准。如何获得保修服务您可直接与产品销售商或授权服务机构联系，也可拨打神牛产品售后服务电话，与我们联系，由我们的服务人员为您安排服务。申请保修时，您应提供有效的保修卡作为保修凭证，方可获得保修。如您不能提供有效的保修卡，则在我们确认产品或部件属于保修范围的情况下，也可以为您提供保修，但这不作为我们的义务。不适用保修的情况如产品存在下列情况，本文件项下的保证和服务将不适用 : ①产品或部件超过相应保修期；②错误或不适当使用、维护或保管导致的故障或损坏，如：不当搬运；非按产品合理预期用途使用；不当插拨外接设备；跌落或外力挤压；接触或暴露于不适当温度、溶剂、酸碱、水浸或潮湿环境；③由非神牛授权机构或人员安装、修理、更改、添加或拆卸造成的故障或损坏；④产品或部件原有识别信息被修改变更或除去；⑤无有效保修卡；⑥使用非合法授权、非标准或非公开发行的软件造成的故障或损坏；⑦因不可抗力或意外事件造成的故障或...
Page 39 If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot...
Page 40 Customer sends the product to designated site Electrical parts e.g.battery Customer sends charger, etc. the product to designated site Flash tube, modeling lamp, Without warranty Other Items lamp body, lamp cover, locking device, package, etc. Godox After-sale Service Call +86-755-29609320(8062)
