Insta360 Ace Pro 2 User Manual

Hide thumbs Also See for Ace Pro 2:

Advertisement

Quick Links

Download this manual
Insta360 Ace Pro 2 User Manual
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ace Pro 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Insta360 Ace Pro 2

Summary of Contents for Insta360 Ace Pro 2

  • Page 1 Insta360 Ace Pro 2 User Manual User Manual...
  • Page 2 Insta360 Ace Pro 2 User Manual Content Product Introduction ......................1 Insta360 Ace Pro 2 Introduction ................1 Standard Accessories ....................2 First Use ........................... 5 Insert the Battery ....................... 5 Insert the MicroSD Card .................... 6 Charging ........................7 External Devices ......................8 Find Your Serial Number ...................
  • Page 3 Insta360 Ace Pro 2 User Manual File Transfer ......................28 Editing ........................31 Exclusive Features ......................32 Gesture Control ......................32 Clarity Zoom ......................33 Pre-Recording ......................34 Timecode ......................... 36 I-Log ..........................36 Endurance Mode ......................36 GPS Activity Stats ....................37 Stats Dashboard (Garmin/Apple/COROS/IGPSPORT/FIT & GPX Files) ....38 Maintenance ........................

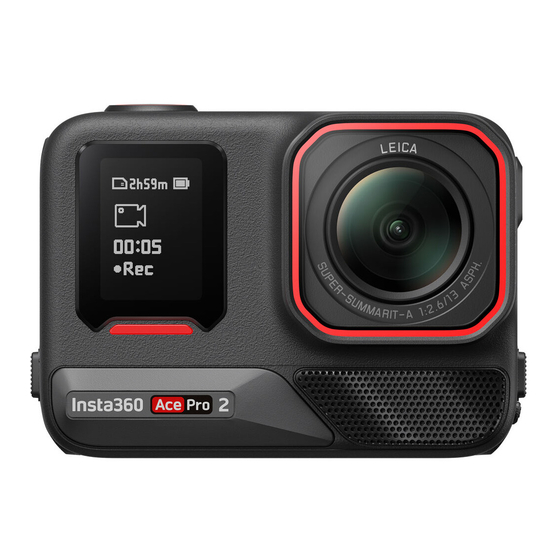

  • Page 4 Insta360 Ace Pro 2 User Manual Product Introduction Insta360 Ace Pro 2 Introduction 1. Indicator Light 11. Battery Cover 2. Front Screen 12. Battery 3. Shutter Button 13. Release Switch 4. Microphone 14. Indicator Light 5. Lens Guard 15. Flip Touchscreen 6.
  • Page 5 Insta360 Ace Pro 2 User Manual Standard Accessories Insta360 Ace Pro 2 includes three in-the-box accessories for flexible shooting wherever you go. Accessories Description Figure Standard Mount: How to Use: 1. Align the camera lens with the Secure your camera to...
  • Page 6 Insta360 Ace Pro 2 User Manual Wind Guard How to Use: The Wind Guard is installed on Get crystal-clear audio Insta360 Ace Pro 2 by default. It in any situation with the can be installed or removed as innovative Wind Guard. needed.
  • Page 7 Insta360 Ace Pro 2 User Manual Mic Cap Installation: The removable Mic Cap 1. The Wind Guard is installed by can replace the Wind default. Remove the Wind Guard Guard for underwater by sliding it to the right to expose...
  • Page 8 Insta360 Ace Pro 2 User Manual First Use Insert the Battery (1) Press and hold the latch of the Battery Cover and slide it downwards. (2) Open the cover outward. (3) Insert the battery in the direction indicated on the battery.
  • Page 9 Insta360 Ace Pro 2 User Manual Insert the MicroSD Card (1) Press and hold the latch of the USB Port Cover and slide it downwards. (2) Insert the microSD Card in the direction indicated on the card. (3) Close the cover firmly to ensure waterproofing is not affected.
  • Page 10 Open the camera's USB Port Cover. Use the USB-C charging cable included in the box to connect Insta360 Ace Pro 2 to a USB-C charger. The Indicator Lights will be solid red when charging and will turn off once the battery is fully charged.
  • Page 11 Insta360 Ace Pro 2 User Manual External Devices 1. You can remove the USB Port Cover to attach external devices. Press and hold the latch of the USB Port Cover and slide it downwards. 2. Open the cover outward and pull it off.
  • Page 12 Insta360 Ace Pro 2 User Manual Find Your Serial Number The serial number is a unique code that can be used to quickly identify your camera. You can find the serial number in the following ways: 1: Product Box The serial number is on the back of the original product box.
  • Page 13 2. Enter Settings > Device Information to view the serial number. 4: Insta360 Studio 1. Launch Insta360 Studio on your computer and import any file recorded by the camera. 2. Select the footage, click the info icon on the right side of your screen, select File Properties, and...
  • Page 14 The name of your camera is "Insta360 Ace Pro 2 ******" by default, where ****** is the last six digits of the serial number on the box your Insta360 Ace Pro 2 came in. The first time you connect to Insta360 Ace Pro 2, you will need to confirm the connection on the touchscreen.
  • Page 15 Insta360 Ace Pro 2 User Manual Basic Use Button Instructions: Power Button Camera Status Operation Description Powered off Press once • Power on camera. Powered on Press once Switch between different shooting modes or presets. • • When recording, press to mark clips as important. You can find marked clips quicker when you are editing.
  • Page 16 Insta360 Ace Pro 2 User Manual Shutter Button Camera Status Operation Description Powered off Press once Start shooting with QuickCapture*. • *QuickCapture must be enabled on the camera first. Powered on Press once During Preview: • Take a photo or start recording a video.
  • Page 17 Insta360 Ace Pro 2 User Manual Using the Screen Front Screen Once the camera is turned on, the front screen will display the following information: Camera Description Status Previewing Battery, storage capacity, shooting specifications, current shooting mode. Shooting status, i.e., paused, pre-recording, countdown, etc.
  • Page 18 Insta360 Ace Pro 2 User Manual Flip Touchscreen The touchscreen's main display shows the current camera shooting mode. The menu bar shows battery level, storage capacity, and current shooting parameters. By swiping or tapping the screen, you can achieve the following:...
  • Page 19 1. Storage: Shows the remaining number of photos or the length of video footage that can be stored on the microSD card. 2. Battery Status: Current battery level of Insta360 Ace Pro 2. 3. Shooting Mode: Click the icon and swipe to select a different shooting mode.
  • Page 20 Insta360 Ace Pro 2 User Manual Shooting Mode Click the icon and swipe or swipe left and right in the center of the screen to select a different shooting mode. Shooting Mode Description Video Record a video with FlowState Stabilization automatically applied. Active HDR is available up to 4K60fps.
  • Page 21 Insta360 Ace Pro 2 User Manual Shortcut Menu Swipe down on the touchscreen to view the camera settings. 1. QuickCapture: Turn on/off. Once enabled, press the Shutter Button when the camera is powered off to turn it on and start recording.
  • Page 22 Insta360 Ace Pro 2 User Manual Shooting Specification Settings Swipe up from the bottom of the touchscreen to view shooting specification settings. Shooting Mode Parameters Video Active HDR, Stabilization, Ratio, Duration, Resolution, Frame Rate PureVideo Stabilization, Ratio, Duration, Resolution, Frame Rate...
  • Page 23 Insta360 Ace Pro 2 User Manual Shooting Parameter Settings Swipe left from the right edge of the touchscreen to see the shooting parameter settings. Parameters Description Shutter Speed Controls the time it takes for light to enter the camera. The faster the shutter speed, the clearer the image.
  • Page 24 Insta360 Ace Pro 2 User Manual Shooting Mode Parameters Auto Manual Video Filters, EV, Metering Mode, Sharpness, I-Log, Filters, Shutter, ISO, EV, Exposure Preset, WB Sharpness, I-Log, WB PureVideo Filters, EV, Exposure Preset, WB, Metering Mode FreeFrame Filters, EV, Metering Mode, Exposure Preset,...
  • Page 25 Insta360 Ace Pro 2 User Manual Album Page Swipe right from the left of the touchscreen to enter the Album page.
  • Page 26 Insta360 Ace Pro 2 User Manual Indicator Lights Insta360 Ace Pro 2 has two LED Indicator Lights, one on the front of the camera and one on the back. Both display the same information. You can turn the Indicator Lights on/off in Settings >...
  • Page 27 Insta360 Ace Pro 2 User Manual Quick Reader has no SD card Solid yellow Updating firmware Slowly flashes blue Low battery Flashes yellow three times every 5 seconds Temperature too high Flashes yellow three times Insufficient storage/file error/USB error/no SD card...
  • Page 28 The maximum supported storage space is 1TB. Compatibility issues may cause recording to stop. We recommend using the official microSD cards available on the Insta360 Official Store. If you wish to use another microSD card, the following have also been tested to be compatible with Insta360...
  • Page 29 Format MicroSD Card It is recommended to regularly transfer camera files to a phone or computer for backup and format the microSD card via the camera or Insta360 app to avoid any storage issues. Format via Insta360 Ace Pro 2: ...
  • Page 30 3. Open the Insta360 app and tap the camera icon at the bottom of the page. Follow the on-screen instructions to activate your camera. 4. If you connect to the Insta360 app for the first time, you need to authorize the connection on the touchscreen or press the Shutter Button.
  • Page 31 Fi network in your phone settings and attempt to reconnect. 3. Make sure the Insta360 app has GPS and Bluetooth permissions enabled. On Android devices, disable WLAN+ or auto-switch Wi-Fi (if available). On iOS devices, go to system settings, select...
  • Page 32 IMPORT folder and then into the Insta360 app folder on your device. - Transfer from iPhone to Mac: Click the small triangle beside the Insta360 app to see the DCIM folder, then drag the desired files to a folder on your Mac.
  • Page 33 2. After successful authorization, click the iPhone icon in the top left corner, and the iPhone's files will appear. 3. Click "File Sharing" and choose "Insta360" from the list. Then do one of the following: - Transfer from iPhone to Windows PC: Find the DCIM folder, then click Save. Choose your desired path and click Save.
  • Page 34 Insta360 Ace Pro 2 User Manual Editing You can view and edit your footage in the Insta360 app or Insta360 Studio. Insta360 app  Edit Page 1. Connect your camera to the Insta360 app. 2. Head to the Edit page. You can open and edit your material in "Create a Video", or use AI to automatically edit your clips with "Auto Edit".
  • Page 35 Insta360 Ace Pro 2 User Manual Exclusive Features Gesture Control You can control the camera with gestures, perfect for group selfies or noisy environments. Enable Gesture Control on your camera, then give the sign to start/stop recording or take a photo. Swipe down on the touchscreen and turn on Gesture Control.
  • Page 36 Insta360 Ace Pro 2 User Manual Clarity Zoom During recording and preview, double-tap the screen or tap the zoom button at the bottom right of the screen to zoom in or out 1x or 2x without compromising image quality. Clarity Zoom is...
  • Page 37 Insta360 Ace Pro 2 User Manual Pre-Recording Pre-Recording lets you capture up to 120 seconds of footage before you've even hit the Shutter Button, so you won't miss a second of action. The following shooting modes and specifications support Pre-Recording:...
  • Page 38 Insta360 Ace Pro 2 User Manual Select the shooting mode, swipe down on the screen to enter the Shortcut Menu, tap the "PRE" icon and select a duration. Once enabled, the camera will continuously record, but will only save the set duration to the microSD card once you hit the Shutter Button.
  • Page 39 I-Log Turn on I-Log in the camera's shooting parameters page before recording. After recording, connect the camera to the Insta360 app, go to the Album page, select the file and tap the LUT icon to adjust the color. Endurance Mode When using the camera for a long period of time, turn on Endurance Mode in the camera's Shortcut Menu for a longer battery life of up to 3 hours*.
  • Page 40 How to connect: If it's the first time using GPS Activity Stats, connect the camera to the Insta360 app to sync the time from your smartphone. Go to the app's settings page, tap "GPS Activity Stats", and authorize the Insta360 app to access your phone's GPS data.
  • Page 41 "Stats" in the lower menu. Select your device as the data source. If you have not yet registered or logged into the Insta360 app, you will need to register or log in. Log in to your Garmin/COROS/IGPSPORT account and authorize the Insta360 app.
  • Page 42 "Stats" in the lower menu. Select "Apple Health" as the data source. If you have not yet registered or logged into the Insta360 app, you will need to register or log in. Authorize the Insta360 app. Apple Health data will automatically synchronize to the Insta360 app.
  • Page 43 Insta360 Ace Pro 2 User Manual FIT & GPX Files  You can import FIT or GPX files from third-party apps into the Insta360 app in the following two ways: Share FIT or GPX Files from a Third-Party App to the Insta360 App If the third-party app supports sharing FIT and GPX files, you can share these files with the Insta360 app.
  • Page 44 Update via Insta360 app:  Connect Insta360 Ace Pro 2 to the Insta360 app. The app will notify you if a new firmware update is available. Follow the on-screen instructions to update the firmware. If the camera firmware update fails, check the following and try the update again: Ensure the camera is close to your phone.
  • Page 45 Insta360 Ace Pro 2 User Manual Waterproofing Insta360 Insta360 Ace Pro 2 camera is waterproof up to 39ft (12m) without a Dive Case. For extended underwater use, use the Dive Case. The Dive Case is waterproof to 197ft (60m). Check that the battery compartment is free from dirt or foreign objects. Once the battery is inserted, close the Battery Cover and ensure the yellow indication mark is completely covered to ensure waterproofing is not affected.
  • Page 46 Battery Precautions 1. Only use batteries provided by Insta360 designed for Insta360 Ace Pro 2. Insta360 is not responsible for any accidents or failures that occur by using unofficial batteries. If you need to replace the battery, please purchase it from the Insta360 official store.
  • Page 47 Insta360 Ace Pro 2 User Manual Arashi Vision Inc. ADD: 11th Floor, Building 2, Jinlitong Financial Center, Bao'an District, Shenzhen, Guangdong, China WEB: www.insta360.com TEL: 400-833-4360 +1 800 6920 360 EMAIL: service@insta360.com V1.0...
