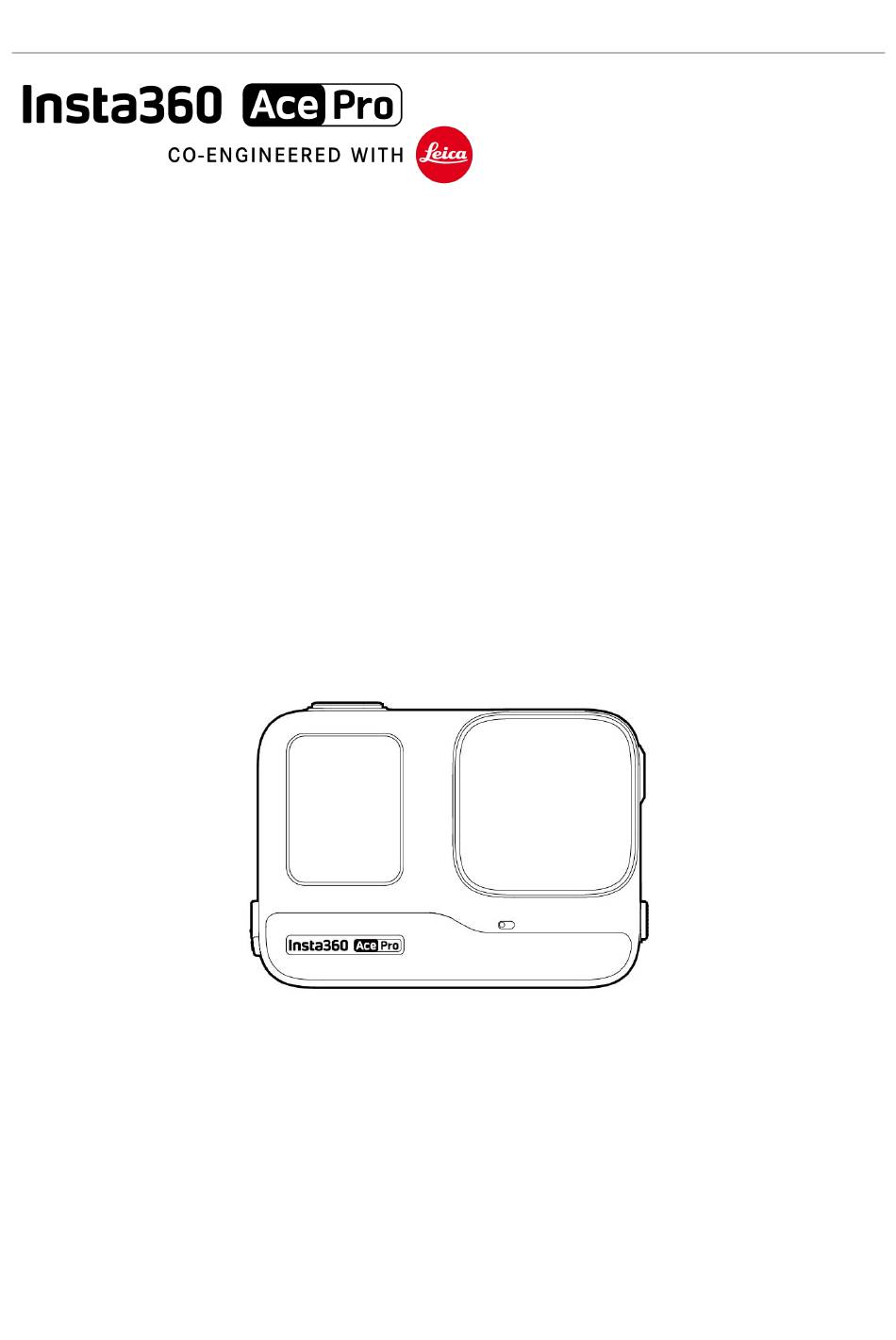

- Page 1 Ace Pro User Manual User Manual...
-
Page 2: Table Of Contents
Ace Pro User Manual Content Product Introduction Ace Pro Introduction Standard Accessories First Use Insert the Battery Insert the MicroSD Card External Devices Charging Activation Basic Use Button Instructions: Using the Screen Shooting Mode Indicator Lights File Storage Exclusive Features... - Page 3 Ace Pro User Manual Auto Dash AI Warp AI Selfie Stick Eraser AI Highlights Assistant app Background Downloading GPS Preview Remote File Transfer Insta360 App 错误！未定义书签。 Connect to the Insta360 App Android Mode app Interface Maintenance Firmware Update Waterproofing Cleaning...
-
Page 4: Product Introduction
Ace Pro User Manual Product Introduction Ace Pro Introduction Indicator Light 10. Battery Cover Front Screen 11. Battery Shutter Button 12. Release Switch Microphone 13. Indicator Light Lens 14. Flip Touchscreen Power Button 15. Mounting Latch USB Port Cover 16. Speaker... -
Page 5: Standard Accessories
Ace Pro User Manual Standard Accessories Ace Pro includes two in-the-box accessories for flexible shooting wherever you go. Accessories Description Figure Standard Mount: How to Use: Secure your camera Align the camera lens with to any accessory for the icon on the Standard... - Page 6 Ace Pro User Manual Flexible Adhesive How to Use: Mount： 1. Peel off the red sticker on the bottom of the Flexible Adhesive Flexible design with a Mount and clean the base with strong 3M adhesive a cleaning wipe before use.
-
Page 7: First Use
Ace Pro User Manual First Use Insert the Battery Press and hold the latch of the Battery Cover and slide it downwards. When you see the yellow indication mark, open the cover outward. Insert the battery in the direction indicated on the battery. -
Page 8: Insert The Microsd Card
Ace Pro User Manual Insert the MicroSD Card Press and hold the latch of the USB Port Cover and slide it downwards. Insert the MicroSD Card in the direction indicated on the card. Note: Please use exFAT format microSD cards of speed classes UHS-I and V30 or above to ensure normal recording. -
Page 9: Charging
Open the camera's USB Port Cover. Use the Type-C to Type-C charging cable included in the box to connect the Type-C port of Ace Pro to a Type-C charger. Rapid PD Fast Charging gets your camera to 80% battery in just 22 minutes and fully charges in 46 minutes. -
Page 10: Activation
The name of your camera is "Ace Pro ******" by default, where ****** is the last six digits of the serial number on the box your Ace Pro came in. The first time you connect to Ace Pro, you will need to confirm the connection on the touchscreen. -
Page 11: Basic Use
Ace Pro User Manual Basic Use Button Instructions: Power Button Camera Status Operation Descriptions Powered off Press once • Power on camera. Powered on Press once Switch between different shooting modes or presets. • • When recording, press to mark clips as important. You can find then find marked clips quicker when you are editing. - Page 12 Ace Pro User Manual Shutter Button Camera Status Operation Descriptions Powered off Press once Start shooting with QuickCapture*. • *This function must be enabled in the camera first. Powered on Press once During Preview: • ￮ Take a photo or start recording a video.
-
Page 13: Using The Screen
Ace Pro User Manual Using the Screen Front Screen Once the camera is turned on, the front screen will display the following information: Camera Descriptions Status Previewing Battery, storage capacity, shooting specifications, current shooting mode. Shooting Shooting status i.e., paused, pre-recording, countdown, etc. - Page 14 Ace Pro User Manual Flip Touchscreen The touchscreen's main display shows the current camera shooting mode. The menu bar shows battery level, storage capacity, and current shooting parameters. By swiping or tapping the screen, you can achieve the following: Swipe down from the top...
- Page 15 Storage: Shows the remaining number of photos or the length of video footage that can be stored on the microSD card. Battery Status: Current battery level of Ace Pro. Shooting Mode: Click the icon and swipe to select a different shooting mode.
-
Page 16: Shooting Mode
Ace Pro User Manual Shooting Mode Click the icon and swipe or swipe left and right in the center of the screen to select a different shooting mode. Shooting Mode Description Video Record a video with FlowState Stabilization automatically applied. - Page 17 Ace Pro User Manual HDR Photo For high dynamic range photos. Please keep the camera still while shooting. Photo Take a single photo.
- Page 18 Ace Pro User Manual Camera Settings Swipe down on the touchscreen to view the camera settings. Prompt Sound: Set the camera speaker volume. There are four options: High, Medium, Low, and Mute. Indicator Light： Turn on/off. Grid: Turn on/off. Audio: Switch audio mode. Choose between Stereo, Wind Reduction or Direction Focus.
- Page 19 Ace Pro User Manual Shooting Specification Settings Swipe up from the bottom of the touchscreen to view shooting specification settings. Shooting Mode Parameters Video Stabilization, Ratio, Duration, Resolution, Frame Rate FreeFrame Video Ratio, Duration, Resolution, Frame Rate PureVideo Ratio, Duration, Resolution, Frame Rate...
- Page 20 Ace Pro User Manual Shooting Parameter Settings Swipe left from the right edge of the touchscreen to see the shooting parameter settings. Parameters Descriptions Shutter Speed The time it takes for light to enter the camera. The faster the shutter speed, the clearer the image.
- Page 21 Ace Pro User Manual Shooting Mode Parameters Auto Manual Video Filters, EV, Face Priority, Low Light Stabilization, WB Filters, Shutter, ISO, EV, WB FreeFrame Filters, EV, Face Priority, Low Light Stabilization, WB Filters, Shutter, ISO, EV, WB Video PureVideo EV, Low Light Stabilization, WB...
- Page 22 Ace Pro User Manual Album Page Swipe right from the left of the touchscreen to enter the Album page.
-
Page 23: Indicator Lights
Ace Pro User Manual Indicator Lights Ace Pro has two LED Indicator Lights, one on the front of the camera and one on the back. Both display the same information. You can turn the Indicator Lights on/off in Settings > General. - Page 24 Ace Pro User Manual Insufficient storage/file Solid yellow error/USB error/no SD card Temperature is too high Flashing yellow three times Low battery/temperature is Continuously flashing yellow too high and camera will start auto shutdown countdown Camera Status Indicator Light Status...
-
Page 25: File Storage
The maximum supported storage space is 1TB. We recommend using the official memory card available on the Insta360 Store. If you wish to use another memory card, the following have also been tested to be compatible with Ace Pro:... -
Page 26: Exclusive Features
Ace Pro User Manual Exclusive Features Gesture Control You can control the camera with gestures, perfect for group selfies or noisy environments. Enable Gesture Control on your camera, then give the sign to start/stop recording or take a photo. Swipe down on the touchscreen and turn on Gesture Control. -
Page 27: Pause Recording
Ace Pro User Manual Pause Recording Pause and resume recording in the same file. There are three ways to use this feature: Camera Status Operations Recording Tap the red button at the bottom center of the screen to pause the recording for the first time. - Page 28 Ace Pro User Manual Auto Dash In camera settings, tap "Power Off Charging Settings" and choose"Charge and Record". You can adjust the shooting settings and mode here. When the camera is connected to an external power source, it will automatically power on and start shooting in the set shooting mode and parameters.
- Page 29 Ace Pro User Manual AI Highlights Assistant You can use this feature on the camera or in the app. In-Camera: Swipe down from the top of the touchscreen and enable AI Highlights Assistant. Go to the Album Page to view the footage after recording.
- Page 30 Ace Pro User Manual GPS Preview Remote Preview your footage in real-time and adjust camera settings with the GPS Preview Remote. Record precise GPS information and other data to add to your footage in post. Overview D.Speaker A.Shutter Button E.Charging Points B.Power Button...
- Page 31 Ace Pro User Manual Install You can attach the GPS Preview Remote in three ways. It has two straps for flexible mounting. Position Description Figure On wrist Use the Wrist Strap to wear the GPS Preview Remote on your wrist. Ensure the buttons are aligned correctly.
- Page 32 Connecting the Camera Long press the Power Button to turn on the remote. Power on the camera. Click "Insta360 GPS Preview Remote" on the camera's Bluetooth Remote interface. When the camera's screen displays Connected, it has been paired successfully. Notes: For the best experience, update your camera's firmware to the latest official version.
- Page 33 Ace Pro User Manual Connecting Multiple Cameras Swipe down from the top of the remote's watch dial to enter the connecting interface and tap the camera button.The remote will be ready to pair. Enter the Bluetooth Remote feature on your camera and connect to the remote.
- Page 34 Ace Pro User Manual Control the Camera When the camera is connected, use the remote's touchscreen or press its buttons to control the camera. Preview Page When the camera is connected, the remote will display the following camera information on the...
- Page 35 Language, About and Factory Data Reset. Firmware Update Open the Insta360 App > Settings > Update GPS Remote Control. Search and connect to the remote. Once connected, the app will prompt you to update if there is a new firmware version.
- Page 36 Connect Ace Pro to a mobile phone or computer with the included Type-C cable for file transfer. You can download Ace Pro's files to your phone or PC, then use the Insta360 App or Insta360 Studio to edit and export.
- Page 37 After successful authorization, click the iPhone icon in the top left corner, and the iPhone's files will appear. Click "File Sharing" and choose "Insta360" from the list. Then do one of the following: ￮ Transfer from iPhone to Windows PC: Find the DCIM folder, then click Save. Choose your desired path and click Save.
- Page 38 Transfer from Mac to iPhone: Drag a file or a selection of files from your Mac onto the Insta360 App in the list. ￮ Transfer from iPhone to Mac: Click the small triangle beside the Insta360 App to see its files on your iPhone, then drag the desired files to a folder on your Mac. Android Install Android File Transfer on your Mac.
- Page 39 If you connect to the Insta360 App for the first time, you need to authorize the connection on the touchscreen. If you are unable to connect to the app, go to your smartphone's Wi-Fi settings, find your Ace Pro, enter the password and return to the app.
- Page 40 Before updating, ensure Ace Pro has at least 20% battery remaining. Update via Insta360 App: Connect Ace Pro to the Insta360 App. The app will notify you if there is a new firmware update available. Follow the on-screen instructions to update the firmware.
- Page 41 Ace Pro User Manual Waterproofing Insta360 Ace Pro camera is waterproof up to 33ft (10m) without a Dive Case. For extended underwater use, use the Dive Case. The Dive Case is waterproof to 96ft (60m). Check that the battery compartment is free from dirt or foreign objects. Once the battery is inserted, close the Battery Cover and ensure the yellow indication mark is completely covered to ensure waterproofing is not affected.
- Page 42 Battery Precautions • Only use batteries provided by Insta360 designed for Ace Pro. Insta360 is not responsible for any accidents or failures that occur by using unofficial batteries. If you need to replace the battery, please purchase it from the Insta360 official store.
- Page 43 Ace Pro User Manual Arashi Vision Inc. ADD: 11th Floor, Building 2, Jinlitong Financial Center, Bao'an District, Shenzhen, Guangdong, China WEB: www.insta360.com TEL: 400-833-4360 +1 800 6920 360 EMAIL: service@insta360.com V1.0...
