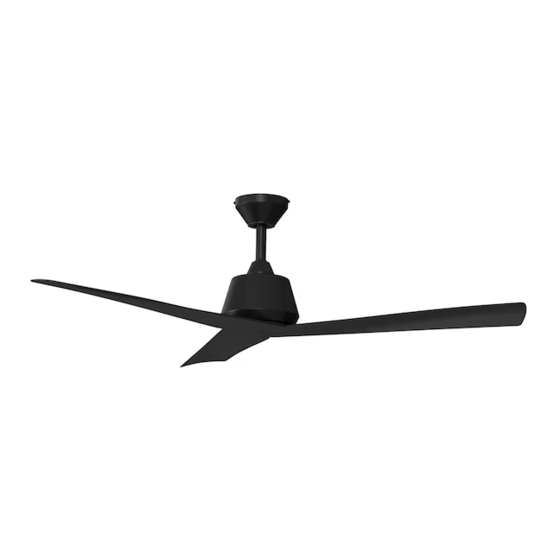

STOKES II CEILING FAN
1
ITEM #5971309
MODEL #GTA52MBK3R
Español p. 19
ATTACH YOUR RECEIPT HERE
4009218

Advertisement

loading
Need help?

Need help?

Do you have a question about the HARBOR BREEZE STOKES II and is the answer not in the manual?

Questions and answers

Related Manuals for LF HARBOR BREEZE STOKES II

Summary of Contents for LF HARBOR BREEZE STOKES II

  • Page 1 MODEL #GTA52MBK3R STOKES II CEILING FAN HARBOR BREEZE and logo design are trademarks or Español p. 19 registered trademarks of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Purchase Date 4009218 Thank you for purchasing this HARBOR BREEZE product.
  • Page 2 TABLE OF CONTENTS Safety Information ............................. 2 Package Contents ............................ 5 Hardware Contents ..............................6 Preparation ............................... 6 Initial Installation ............................6 Downrod-Style Fan Mounting ........................9 Closemount-Style Fan Mounting ......................11 Wiring ..............................12 Final Installation ............................. 14 Operating Instructions ..........................15 Care and Maintenance ...........................
  • Page 3 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, install or operate the product. Review the accompanying assembly diagrams. • Do not discard fan carton or packing material. Should this fan need to be returned to the factory for repairs, it must be shipped in its original packaging to ensure proper protection against damage that might exceed the initial cause for return.
  • Page 4 SAFETY INFORMATION WARNING When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 35 lbs.).
  • Page 5 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Downrod Pin (preassembled) Canopy Clip (preassembled) Mounting Bracket Blade (preassembled) Blade Plate Motor Housing Remote Control Receiver Yoke Cover Remote Pack Motor Additional Wiring Canopy Mounting Screw/ Lock Washers (preassembled) IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation and safety.
  • Page 6 Blade Screw/ Lever Wire Lock Washer Connector Qty. 6 Qty. 3 + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
  • Page 7 INITIAL INSTALLATION If applicable, remove existing fan, including the mounting bracket, from outlet box and disconnect all electrical wiring. WARNING: To reduce the risk of personal injury, use ONLY parts provided with your new fan. The use of parts OTHER than those provided with this fan will void the warranty.
  • Page 8 INITIAL INSTALLATION 5a. Loosen canopy mounting screws/lock washers in slotted holes of canopy (B) and remove the other two canopy mounting screws/lock washers (G) -- save for later use. Remove mounting bracket (C) from canopy (B). Secure mounting bracket (C) to outlet box (not included) using screws, spring washers and flat washers provided with the outlet box.
  • Page 9 INITIAL INSTALLATION Thread wires from motor (F) through opening in top of motor housing (D). Use gap in hole at top of motor housing (D) to get motor housing (D) past set screw in yoke. Align 3 holes on topside of motor housing (D) with 3 preassembled rubber soft nails in yoke, and press down firmly on the motor housing (D) to Set Screw...
  • Page 10 DOWNROD-STYLE FAN MOUNTING Slip downrod (A) into yoke, align holes and re-install pin (H) and clip (I). Tighten set screws and then tighten nut. Slide yoke cover (E) down until it rests on top of motor housing (D). Set Screw and Nut Depending on the length of downrod you use, you may need to use the additional wiring (N).
  • Page 11 CLOSEMOUNT-STYLE FAN MOUNTING Remove preassembled canopy cover from bottom of canopy (B). [NOTE: It may be necessary to use the handle end of a screwdriver (not included) to remove the canopy cover by tapping on the canopy cover from the inside of the canopy (B).] NOTE: The downrod (A), yoke cover (E) and canopy cover are not used in this type of...
  • Page 12 CLOSEMOUNT-STYLE FAN MOUNTING Temporarily hang fan on the tab on the mounting bracket (C) using one of the non-slotted holes in the canopy (B). Continue to WIRING below. WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this fan are designed to accept only one 12-gauge house wire and one lead wires from the fan.
  • Page 13 WIRING 1. IMPORTANT: Each wire connection is made by firmly raising the levers on each lever wire connector (BB), as shown. Then, ONE wire is inserted into each opening. WARNING: In order for wire connections to be secure, all levers on the lever wire connectors (BB) must be completely returned to their original position as shown on Step 2.
  • Page 14 WIRING Gently slide remote control receiver (L) flat-side up into mounting bracket (C). Turn spliced/taped wires upward and gently push wires and lever wire connectors (BB) into outlet box. Let antenna from remote control receiver (L) hang to the side. NOTE: The remote control included with this fan meets the following requirements: a.
  • Page 15 OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control. CAUTION: Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 16 OPERATING INSTRUCTIONS 2. Restore electrical power. Replace battery cover. IMPORTANT: To prevent damage to remote control transmitter, remove the battery if not used for long periods. Store the remote control transmitter away from excess heat or humidity. NOTE: If fan and/or remote control fail(s) to operate or you have purchased a new remote control transmitter, make sure to turn the power off first.
  • Page 17 TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not move. 1. Power is off or fuse is blown. 1. Turn power on or check fuse. 2. Faulty wire connection. 2.
  • Page 18 LIMITED LIFETIME WARRANTY Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.
