HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Purchase Date _________________________
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at ascs@lowes.com.
SG24547
ITEM #2599779/1059430/1059429/5737474
MODEL #42223/42466/42467/43386

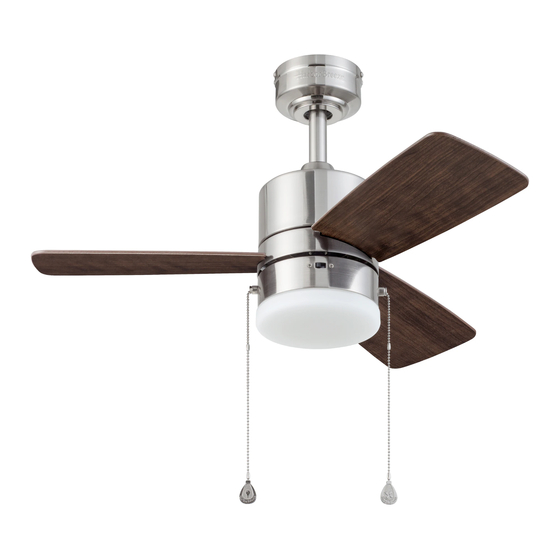

MONROEM CEILING FAN
1
ATTACH YOUR RECEIPT HERE
Español p. 20
Advertisement
Related Manuals for LF Harbor Breeze MONROEM
Summary of Contents for LF Harbor Breeze MONROEM
- Page 1 MONROEM CEILING FAN Español p. 20 ATTACH YOUR RECEIPT HERE HARBOR BREEZE and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. Purchase Date _________________________ Thank you for purchasing this HARBOR BREEZE product. Questions, problems, or missing parts? Before returning, contact us at: 888-251-1003, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ..............3 Hardware Contents . -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket (preassembled to Canopy [E]) Canopy Canopy Cover (preassembled to Canopy [E]) Motor Assembly Yoke Cover Light Pan Light Pan Screw (preassembled to Light Pan [I]) Light Kit Glass Bowl Blade... -
Page 4: Hardware Contents
HARDWARE CONTENTS (shown actual size) Wire Connector Blade Screw Blade Washer Pull Chain Extension Qty. 3 Qty. 9 Qty. 9 Qty. 2 + 1 extra + 1 extra + 1 extra... -
Page 5: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199. -
Page 6: Preparation
SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured. -
Page 7: Initial Installation
INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard Mounting is best suited for ceilings 8 ft. - Page 8 INITIAL INSTALLATION 4. Loosen all four preassembled mounting bracket screws (N), then completely remove the two mounting bracket screws (N) from the round holes of canopy (E). Set aside for later use. Turn the canopy in a counterclockwise direction. Detach mounting bracket (D) from canopy (E). 5.
- Page 9 INITIAL INSTALLATION 7. Insert the downrod (A) through the canopy (E) and yoke cover (H). Feed the wires from the fan through the downrod (A). 8. Slide the downrod (A) into the yoke, align the holes, then re-install the downrod pin (B) and downrod clip (C).
- Page 10 INITIAL INSTALLATION 10. If you decided to cut back the lead wire in Step 9, strip 1/2 in. of insulation from the end of the white wire. Twist the stripped ends of each strand of wire within the insulation with pliers (not included). Repeat this step for black and blue wires.
-
Page 11: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use. -
Page 12: Final Installation
FINAL INSTALLATION 1. Align the canopy (E) over the loosened mounting bracket screws (N) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (N) and rotate the canopy (E) clockwise. 2. Secure the canopy (E) with the mounting bracket screws (N) previously removed (Step 4, page 8). - Page 13 FINAL INSTALLATION 4. Remove one and loosen the other two fitter plate screws (P) but do not remove from fitter plate (O). Feed the 9-pin connector through center hole in light pan (I). Align the two key slots in the light pan (I) with the loosened fitter plate screws (P).
- Page 14 FINAL INSTALLATION 7. Attach the pull chain extensions (DD) or custom pull chain extensions (not included) to the fan and light pull chains. Reverse Switch Note: When facing the reverse switch, the light pull chain is on the left and the fan pull chain is on the right. Hardware Used Pull Chain Extension...
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS 1. The fan pull chain has four positions to control the fan speed. One pull is high, two is medium, three is low, Reverse Switch and four turns the fan off. The light pull chain turns the light on and off. Fan Pull Chain Light Pull Chain 2. -
Page 16: Care And Maintenance
CARE AND MAINTENANCE At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor assembly with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Bulb Replacement: Total fixture wattage is 18.5 watts;... - Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades and/or blade arms 1. Check and tighten all screws that hold are loose. the fan blades to the blade arms and the blade arms to the motor. 2. The blades are unbalanced. 2.
-
Page 18: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail. -
Page 19: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at ascs@lowes.com. PART DESCRIPTION #2599779 #1059430 #1059429 #5737474 Downrod 4L000011630 4L000007500 4L000015030 4L000013820 Mounting Bracket 4L000006350 4L000006410 4L000011050 4L000006350 Canopy...
