Canon Pixma TS300 Series, Pixma TS302a Manual

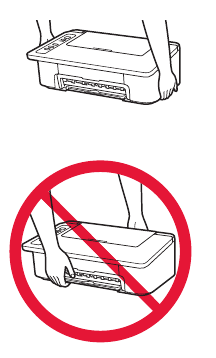

How to Hold Printer

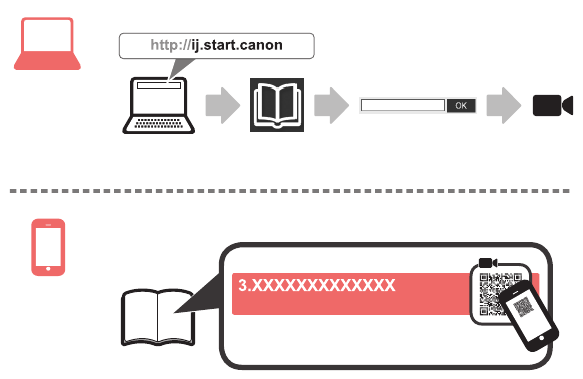

Explanatory Movies

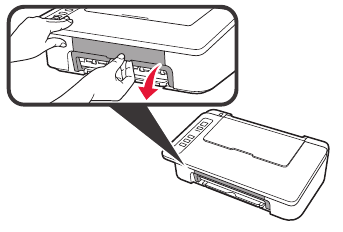

1. Open the cover.


2.

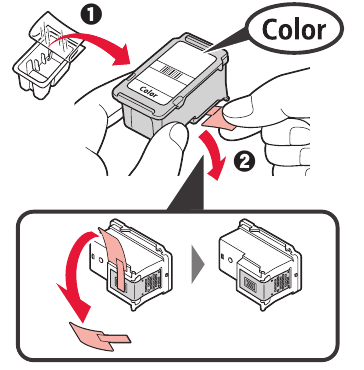

   1. Take out the Color FINE cartridge from the package.
   2. Remove the protective tape.
      Be careful of ink on the protective tape.


3.

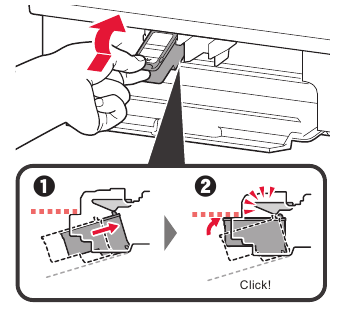

   1. Insert the Color FINE cartridge into the FINE cartridge holder on the left at a slight upward angle.
   2. Push the FINE cartridge in and up firmly until it snaps into place.
      Make sure that the FINE cartridge is installed horizontally.

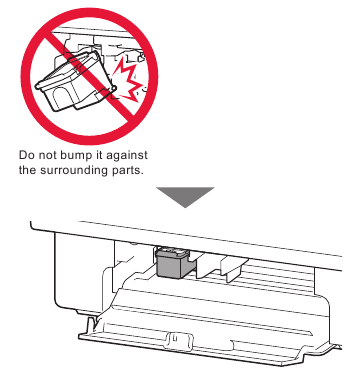

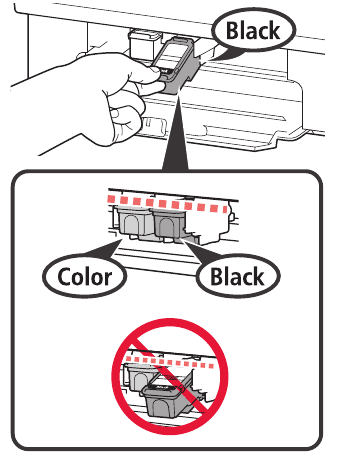

4. Repeat steps 2 to 4 and install the Black FINE cartridge as well, on the right.

5. Close the cover.

   If the Alarm lamp flashes 4 times at a time, go back to step 3 of "Install Inks" and check whether the FINE cartridges for Color and Black are installed correctly.

Load Paper

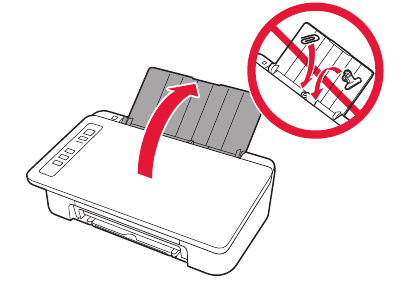

1. Open the paper support.

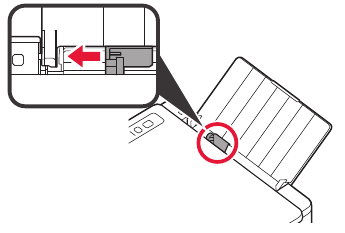

2. Slide the paper guide to the left.

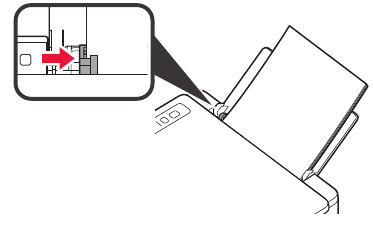

3. Load plain LTR or A4 size paper against the right edge with the print side facing up.

4. Slide the paper guide to align it with the side of the paper stack.

5. Pull out the paper output tray and output tray extension.


Preparing for Connection

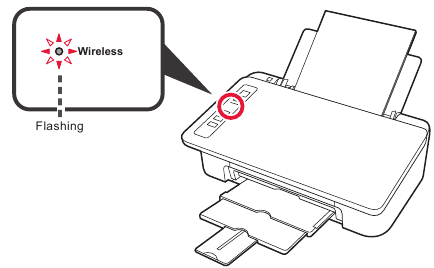

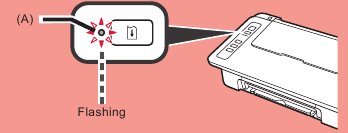

From here on, the procedure differs depending on the device used to connect to the printer. First, after checking that the Wireless lamp is flashing 2 times at a time, proceed to the following operations. In the following description, smartphones and tablet devices are collectively described as smartphone.

When the Wireless lamp does not flash, try again from "Remove Tape and Turn on".

• To use the printer by connecting only to a computer or both to a computer and smartphone "Connecting to Computer"
• To use the printer by connecting only to a smartphone "Connecting to Smartphone"

Connecting to Computer

Windows

macOS

You need a connection setup for each computer. Proceed with the setup from step 1 for each computer.

1. Start the setup file.
   1. Open a web browser on your computer.
   2. Input the following URL and access the Canon website.

   3. Select Set Up.

   4. Input the model name of your printer and click OK.
      You can select a model name from the list.

   5. Click Setup.
      The procedures for Windows and macOS are shown below. If you are using a computer with an OS other than Windows or macOS, such as a Chrome OS, do the setup according to the on-screen instructions.

   6. Click Download and download the setup file.

   7. Execute the downloaded file.

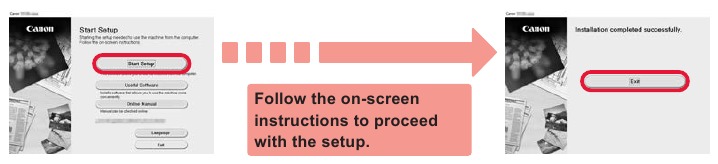

2. Click Start Setup.
   If the following screen appears, click Exit.


The connection with your computer is now complete. You can print from your computer.

Connecting to Smartphone

iOS

Android

You need a connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.
• If you have a wireless router, connect your smartphone to the wireless router you want to connect to the printer. * For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1. Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

   : Search "Canon PRINT" in App Store.
   : Search "Canon PRINT" in Google Play.
   Or access the Canon website by scanning the QR code.

   • You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly. In that case, you may be charged depending on the contract with your service provider.
   • Up to 5 devices can be connected to the printer via wireless LAN connection directly.

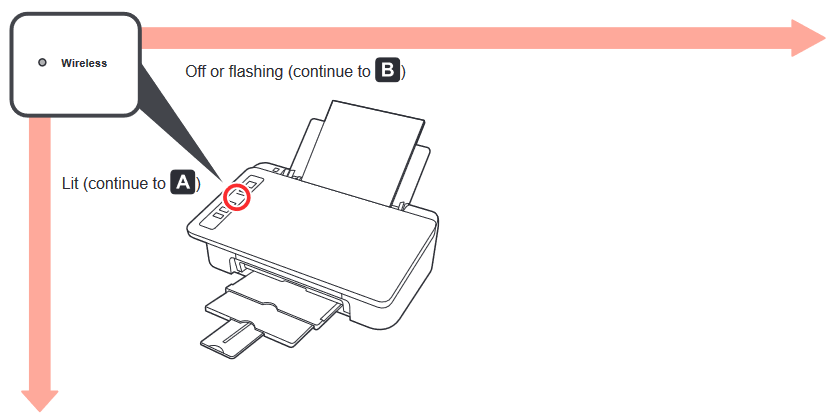

2. Check the Wireless lamp, and then proceed toor .

   If the Wireless lamp is not lit and the Network lamp is lit, the printer cannot send transmissions using a Wireless LAN connection. For details, access "http://ij.start.canon" to see the "Frequently Asked Questions".


Procedures below vary depending on iOS or Android. Select your operating system and proceed to its procedure.

1. Tap Settings on your smartphone's home screen, and tap Canon_ij_XXXX in the Wi-Fi settings.
   If Canon_ij_XXXX does not appear on the list, see "Troubleshooting" below to operate the printer, and then repeat step 1.

2. Tap the installed application software.

3. Follow the on-screen instructions to register the printer.
   Follow the on-screen instructions to proceed with the setup.
   If you select Auto Select Conn. Method (recommended) on the connection method selecting screen, the appropriate connection method is selected automatically depending on your environment.
4. Make sure that the following screen appears.


1. Tap the installed application software.

2. Follow the on-screen instructions to register the printer.
   If a message saying "Printer is not registered. Perform printer setup?" does not appear, see "Troubleshooting" below to operate the printer, and then wait for a while until the message appears.
   Follow the on-screen instructions to proceed with the setup. The appropriate connection method is selected depending on your environment.
3. Make sure that the following screen appears.


The connection with your smartphone is now complete. You can print from your smartphone.
To print photos, load photo paper. Proceed to "Loading Photo Paper".

Troubleshooting

Printer is not found from your smartphone.

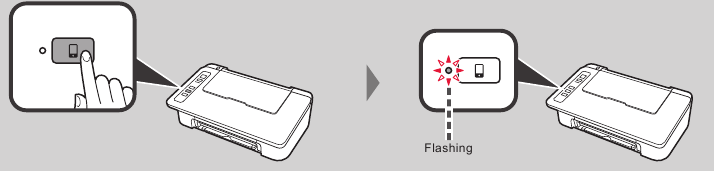

1. Press and hold the Direct button on the printer for about 2 seconds until the Direct lamp starts to flash.

2. Return to the operation of your smartphone.

Loading Photo Paper

1. Open the paper support.

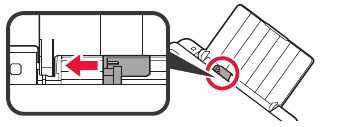

2. Slide the paper guide to the left.

3.

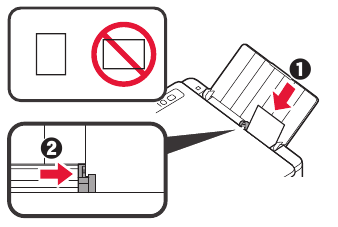

   1. Load photo paper against the right edge with the print side facing up.
   2. Slide the paper guide to align it with the side of the paper stack.

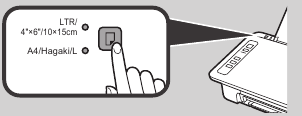

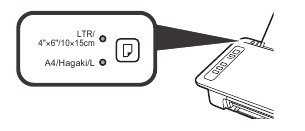

4. Confirm that the Paper lamp that is lit matches the paper size that is loaded.

   If the Paper lamp that lights does not match the paper size, press the Paper Select button.

5. Pull out the paper output tray and output tray extension.
