Dell Latitude 5430 (P137G) Manual

NOTE: A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING indicates a potential for property damage, personal injury, or death.

Set up your Latitude 5430

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

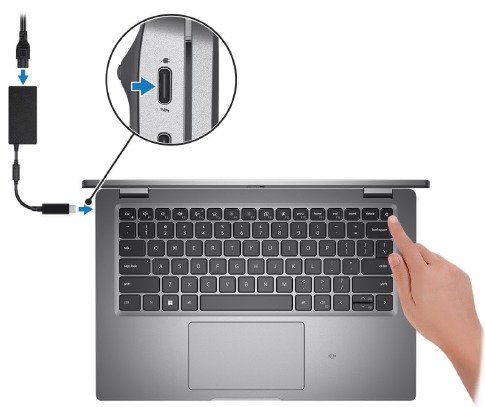

1. Connect the power adapter and press the power button.


NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.

2. Finish operating system setup.

For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resource at www.dell.com/support.

For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:

• Connect to a network for Windows updates.
  NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
• If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
• On the Support and Protection screen, enter your contact details.

3. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Resources	Description
	Dell Product Registration Register your computer with Dell.
	Dell Help & Support Access help and support for your computer.
	SupportAssist SupportAssist is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues, removing viruses and notifies when you need to make system updates. SupportAssist proactively checks the health of your system's hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system. For more information, see SupportAssist for Home PCs User's Guide on www.dell.com/serviceabilitytools. NOTE:In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/ support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.

Views of Latitude 5430

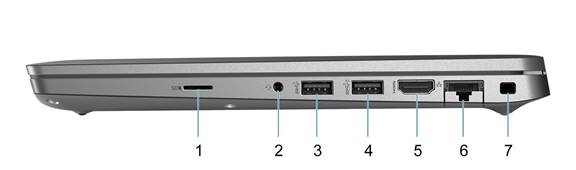

Right

1. microSD-card slot
2. Universal audio port
3. USB 3.2 Gen 1 port
4. USB 3.2 Gen 1 port with PowerShare
5. HDMI 2.0 port
6. RJ45 Ethernet port (flip-down)
7. Wedge-shaped lock slot

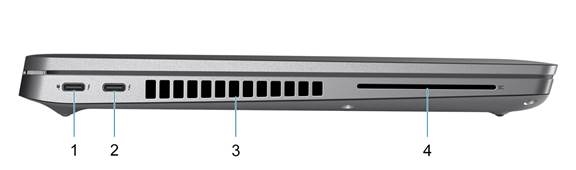

Left

1. Thunderbolt 4 port with DisplayPort Alt Mode/USB Type-C/USB4/Power Delivery
2. Thunderbolt 4 port with DisplayPort Alt Mode/USB Type-C/USB4/Power Delivery
3. Fan vents
4. Smart-card reader slot (optional)

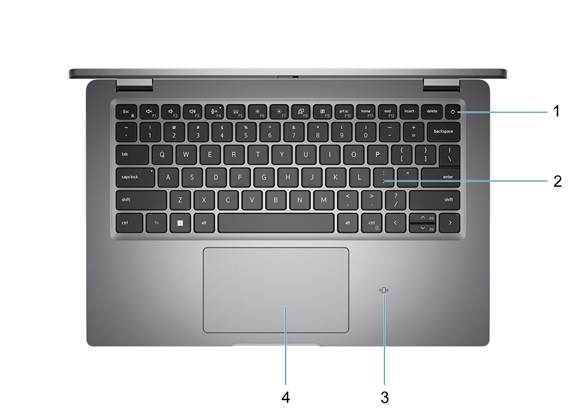

Top

1. Power button with fingerprint reader (optional)
2. Keyboard
3. NFC/Contactless smart card reader (optional)
4. Clickpad

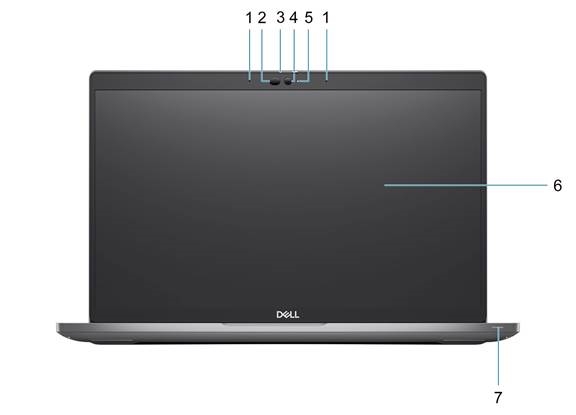

Front

1. Dual array microphone
2. IR emitter/Ambient Light Sensor (ALS) (optional)

3. Camera shutter
4. HD RGB camera / FHD IR camera / FHD IR camera with Proximity Sensor (optional)
5. Camera status LED
6. LCD panel
7. Battery indicator LED

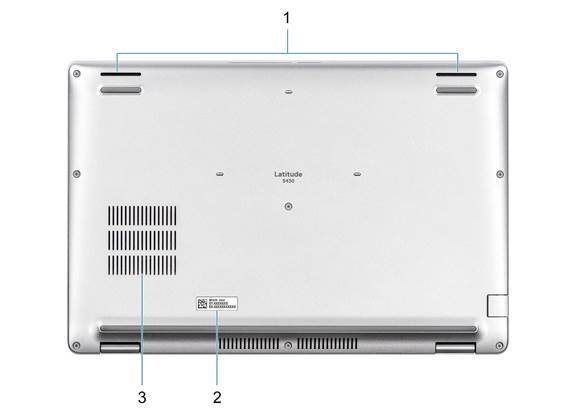

Bottom

1. Speaker
2. Service tag label
3. Fan vents

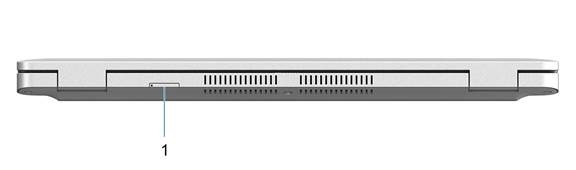

Back

1. microSIM-card slot (optional)

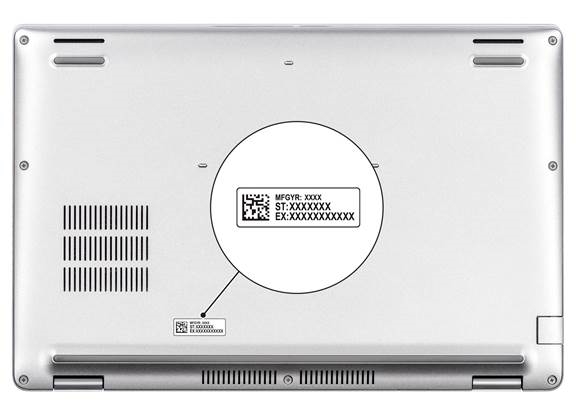

Service Tag

The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information.

Battery charge and status light

The following table lists the battery charge and status light behavior of your Latitude 5430.

Table 2. Battery charge and status light behavior

• S0 (ON) - System is turned on.
• S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
• S5 (OFF) - The system is in a shutdown state.

Specifications of Latitude 5430

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 5430.

Table 3. Dimensions and weight

Description		Values
Height:
Front height		19.30 mm (0.76 in.)
Rear height		20.90 mm (0.82 in.)
Width		321.35 mm (12.65 in.)
Depth		212.00 mm (8.35 in.)
Weight NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.		1.36 kg (3.01 lb)

Processor

The following table lists the details of the processors supported by your Latitude 5430.

Table 4. Processor

Description	Option one	Option two	Option three	Option four	Option five	Option six
Processor type	11th Generation Intel Core i5-1145G7, vPro	12th Generation Intel Core i3-1215U	Intel vPro Essentials with 12th Gen Intel Core i5-1235U	Intel vPro Enterprise with 12th Gen Intel Core i5-1245U	Intel vPro Essentials with 12th Gen Intel Core i7-1255U	Intel vPro Enterprise with 12th Gen Intel Core i7-1265U
Processor wattage	15 W	15 W	15 W	15 W	15 W	15 W
Processor core count	4	2+4	2+8	2+8	2+8	2+8
Processor thread count	8	8	12	12	12	12
Processor speed	2.6 GHz to 4.4 GHz	1.20 GHz to 4.40 GHz	1.30 GHz to 4.40 GHz	1.60 GHz to 4.40 GHz	1.70 GHz to 4.70 GHz	1.80 GHz to 4.80 GHz
Processor cache	8 MB	10 MB	12 MB	12 MB	12 MB	12 MB
Integrated graphics	Intel Iris Xe Graphics NOTE: System with single-channel memory is shown as Intel UHD Graphics in Intel Graphics Command Center(IGC C)	Intel UHD Graphics	Intel Iris Xe Graphics NOTE: System with single-channel memory is shown as Intel UHD Graphics in Intel Graphics Command Center(IGC C).	Intel Iris Xe Graphics NOTE: System with single-channel memory is shown as Intel UHD Graphics in Intel Graphics Command Center(IGC C).	Intel Iris Xe Graphics NOTE: System with single-channel memory is shown as Intel UHD Graphics in Intel Graphics Command Center(IGC C).	Intel Iris Xe Graphics NOTE: System with single-channel memory is shown as Intel UHD Graphics in Intel Graphics Command Center(IGC C).

Chipset

The following table lists the details of the chipset supported by your Latitude 5430.

Table 5. Chipset

Operating system

Your Latitude 5430 supports the following operating systems:

• Windows 11 Home
• Windows 11 Pro
• Windows 11 Pro Downgrade (Windows 10 Pro Image-factory installed)
• Ubuntu Linux 20.04 LTS

Memory

The following table lists the memory specifications of your Latitude 5430.

Table 6. Memory specifications

External ports

The following table lists the external ports of your Latitude 5430.

Table 7. External ports

Internal slots

The following table lists the internal slots of your Latitude 5430.

Table 8. Internal slots

Description	Values
M.2	One M.2 2230 slot for WiFi and Bluetooth card One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 5430.

Table 9. Ethernet specifications

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module specifications of your Latitude 5430.

Table 10. Wireless module specifications

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 5430.

Table 11. WWAN module specifications

Description	Values
Model number	Intel 7360 (DW5820e)
Transfer rate	Up to 450 Mbps DL/50 Mbps UL (Cat 9)
Frequency bands supported	LTE FDD: 450 Mbps DL/50 Mbps UL (Cat 9) LTE TDD: B347 Mbps DL/30 Mbps UL (Cat 9) UMTS/HSPA+: UMTS 384 Kbps DL/384 Kbps UL
Wireless standards	LTE Category 9 UMTS/HSPA+
Encryption	Not supported
Global Navigation Satellite System (GNSS)	Supports GPS, BDS, and GLONASS
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, see the knowledge base article 000143678 at www.dell.com/support.

Audio

The following table lists the audio specifications of your Latitude 5430.

Table 12. Audio specifications

Storage

This section lists the storage options on your Latitude 5430.

Table 13. Storage matrix

The primary drive of your Latitude 5430 varies with the storage configuration.

Table 14. Storage specifications

Media-card reader

The following table lists the media-card reader specifications of your Latitude 5430.

Table 15. Media-card reader (standard offering)

Keyboard

The following table lists the keyboard specifications of your Latitude 5430.

Table 16. Keyboard specifications

Camera

The following table lists the camera specifications of your Latitude 5430.

Table 17. Camera specifications

Clickpad

The following table lists the touchpad specifications of your Latitude 5430.

Table 18. Clickpad specifications

Power adapter

The following table lists the power adapter specifications of your Latitude 5430.

Table 19. Power adapter specifications

Description		Option one	Option two	Option three	Option four
Type		60 W AC adapter, USB-C	60 W AC adapter, USB-C, 2pin	65 W AC adapter, USB-C	90 W AC adapter, USB-C
Power-adapter dimensions:
Height		22 mm (0.87 in.)	22 mm (0.87 in.)	28 mm (1.10 in.)	22 mm (0.87 in.)
Width		55 mm (2.16 in.)	55 mm (2.16 in.)	51 mm (2.01 in.)	66 mm (2.60 in.)
Depth		66 mm (2.60 in.)	66 mm (2.60 in.)	112 mm (4.41 in.)	130 mm (5.12 in.)
Input voltage		100 VAC–240 VAC	100 VAC–240 VAC	100 VAC x 240 VAC	100 VAC x 240 VAC
Input frequency		50 Hz–60 Hz	50 Hz–60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz
Input current (maximum)		1.70 A	1.70 A	1.70 A	1.50 A
Output current (continuous)		20 V/3 A (Continuous) 15 V/3 A (Continuous) 9V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/3 A (Continuous) 15 V/3 A (Continuous) 9V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/4.5 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)
Rated output voltage		20 VDC/15 VDC/9 VDC/5VDC	20 VDC/15 VDC/9 VDC/5VDC	20 VDC/15 VDC/9VDC/5 VDC	20 VDC/15 VDC/9VDC/5 VDC
Temperature range:
Operating		0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
Storage		-20°C to 70°C (-4°F to 158°F)	-20°C to 70°C (-4°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Latitude 5430.

Table 20. Battery specifications

Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Display

The following table lists the display specifications of your Latitude 5430.

Table 21. Display specifications

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Latitude 5430.

Table 22. Fingerprint reader specifications

Sensor

The following table lists the sensor of your Latitude 5430.

Table 23. Sensor

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 5430.

Table 24. GPU—Integrated

Controller	Memory size	Processor
Intel UHD Graphics	Shared system memory	12th Generation Intel Core i3 processor with single channel memory
Intel Iris Xe Graphics	Shared system memory	11th/12th Generation Intel Core i5/i7 processors with dual channel memory NOTE: System with single-channel memory is shown as Intel UHD Graphics in Intel Graphics Command Center(IGCC).

Hardware security

The following table lists the hardware security of your Latitude 5430.

Table 25. Hardware security

Smart-card reader

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Latitude 5430.

Table 26. Contactless smart-card reader specifications

NOTE: 125 Khz proximity cards are not supported.

Table 27. Supported cards

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Latitude 5430.

Table 28. Contacted smart-card reader specifications

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 5430.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 29. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse.

Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

• Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
• Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours.

Using the privacy shutter

1. Slide the privacy shutter to the left to access the camera lens.
2. Slide the privacy shutter to the right to cover the camera lens.


Dell Optimizer

This section details the Dell Optimizer specifications of your Latitude 5430.

On Latitude 5430 with Dell Optimizer, the following features are supported:

• ExpressConnect—Automatically joins the access point with the strongest signal, and directs bandwidth to conferencing applications when in use.
• ExpressSign-in—The Intel Context Sensing Technology's proximity sensor detects your presence to instantly wake up the computer and login using the IR camera and Windows Hello feature. Windows locks when you walk away.
• ExpressResponse—Prioritizes the most important applications. Applications open faster and perform better.
• ExpressCharge—Extends the battery runtime and improves battery performance by adapting to your patterns.
• Intelligent Audio—Collaborate like you're in the same room. Intelligent Audio enhances your audio quality and reduces background noises, so you can hear and be heard, creating a better conference experience for all.

For more information about configuring and using these features, see Dell Optimizer User Guide.

Keyboard shortcuts of Latitude 5430

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 30. List of keyboard shortcuts

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 31. Secondary behavior

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 32. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	Go towww.dell.com/support. On the menu bar at the top of the Support page, selectSupport > Knowledge Base. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.

NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
