AOC Q27G4XN - Gaming Monitor Manual

Setup

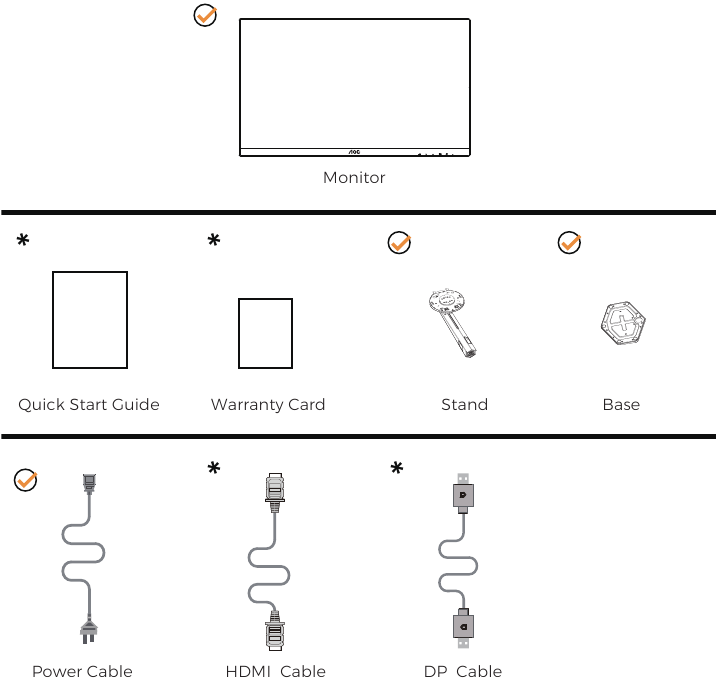

Contents in Box

*Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

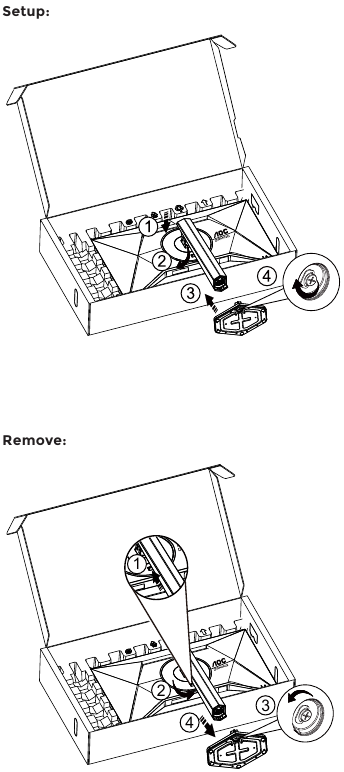

Set-up Stand & Base

Setup - Setting up Stand & Base
Please setup or remove the base following the steps as above.

information NOTE: Display design may differ from those illustrated.

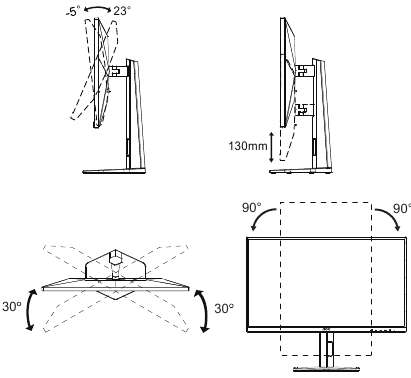

Adjusting Viewing Angle

Setup - Adjusting Viewing Angle
To achieve the best viewing experience, it is recommended that the user can make sure they are able to look at their whole face on the screen, then adjust the monitor's angle based on personal preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor as below:

information NOTE:
Do not touch the LCD screen when you change the angle. Touching the LCD screen may cause damage.

To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

Connecting the Device

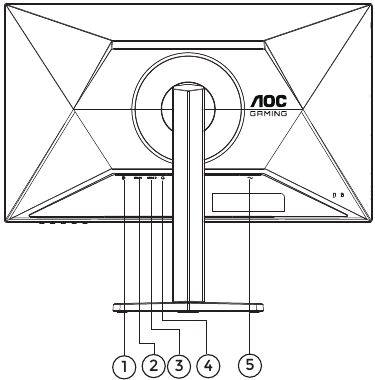

Setup - Connecting the Device
Cable Connections In Back of Monitor and Computer:

DisplayPort
HDMI 1
HDMI 2
Earphone
Power

Connect to PC

Connect the power cord to the back of the display firmly.
Turn off your computer and unplug its power cable.
Connect the display signal cable to the video connector on the back of your computer.
Plug the power cord of your computer and your display into a nearby outlet.
Turn on your computer and display.

If your monitor displays an image, installation is complete. If it does not display an image, please refer to Troubleshoot.

To protect equipment, always turn off the PC and LCD monitor before connecting.

Wall Mounting

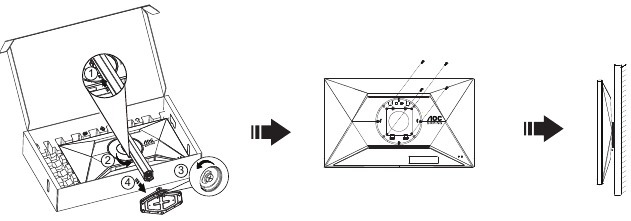

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

Remove the base.
Follow the manufacturer's instructions to assemble the wall mounting arm.
Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
Insert the 4 screws into the holes and tighten.
Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Specification of wall hanger screws: M4*(10+X)mm (X=Thickness of Wall mount bracket)

information Note: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. Always contact manufacturer for wall-mount installation.

* Display design may differ from those illustrated.

To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

AMD FreeSync function

AMD FreeSync function works with DP/HDMI
Compatible Graphics Card: Recommended list is as below, also could be checked by visiting www.AMD.com

Graphics Cards

Radeon RX Vega series
Radeon RX 500 series
Radeon RX 400 series
Radeon R9/R7 300 series (R9 370/X, R7 370/X, R7 265 except)
Radeon Pro Duo (2016)
Radeon R9 Nano series
Radeon R9 Fury series
Radeon R9/R7 200 series (R9 270/X, R9 280/X except)

Processors

AMD Ryzen 7 2700U
AMD Ryzen 5 2500U
AMD Ryzen 5 2400G
AMD Ryzen 3 2300U
AMD Ryzen 3 2200G
AMD PRO A12-9800
AMD PRO A12-9800E
AMD PRO A10-9700
AMD PRO A10-9700E
AMD PRO A8-9600
AMD PRO A6-9500
AMD PRO A6-9500E
AMD PRO A12-8870
AMD PRO A12-8870E
AMD PRO A10-8770
AMD PRO A10-8770E
AMD PRO A10-8750B
AMD PRO A8-8650B
AMD PRO A6-8570
AMD PRO A6-8570E
AMD PRO A4-8350B
AMD A10-7890K
AMD A10-7870K
AMD A10-7850K
AMD A10-7800
AMD A10-7700K
AMD A8-7670K
AMD A8-7650K
AMD A8-7600
AMD A6-7400K

HDR

It is compatible with input signals in HDR10 format.
The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select "OFF" for the HDR function when you have no need for automatical activation function.

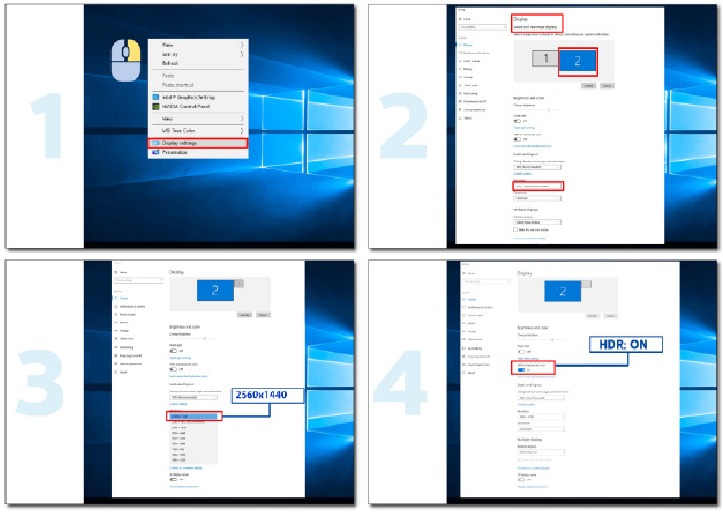

Setup - Turning on the HDR

Note:

No special setting is needed for the DisplayPort/HDMI interface in WIN10 versions lower (older) than V1703.
Only the HDMI interface is available and the DisplayPort interface cannot function in WIN10 version V1703.
3840x2160 only suggest for Blu-ray Player, Xbox and PlayStation.
1. The display resolution is set to 2560*1440, and HDR is preset to ON.
2. After entering an application, the best HDR effect can be achieved when the resolution is changed to 2560*1440 (if available).

Adjusting

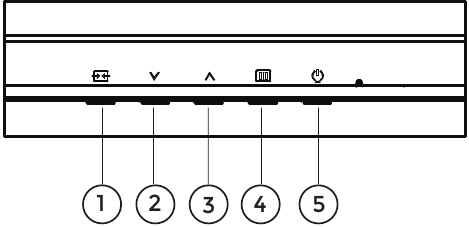

Hotkeys

Adjustment Hotkeys

1	Source/Exit
2	Gaming Mode
3	Dial Point
4	Menu/Enter
5	Power

Menu/Enter
Press to display the OSD or confirm the selection.

Power
Press the Power button to turn on the monitor.

Dial Point
When there is no OSD, press Dial Point button to show / hide Dial Point.

Gaming Mode
When there is no OSD, press " " key to open Gaming mode function, then press " " or " " key to select Gaming mode (Standard, FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.

Source/Exit
When the OSD is closed, press Source/Exit button will be Source hot key function.
When the OSD menu is active, this button acts as an exit key (to exit the OSD menu).

OSD Setting

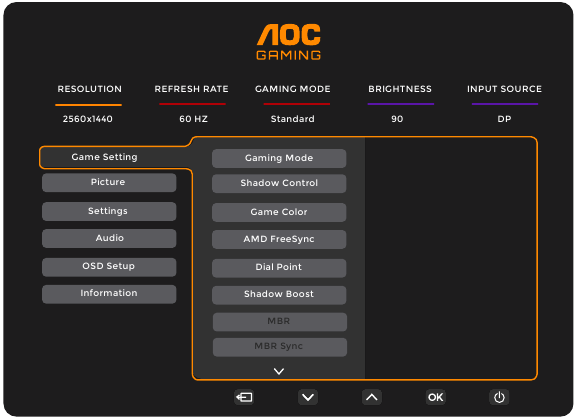

OSD Setting - Basic instruction on control keys
Basic and simple instruction on the control keys.

Press the MENU-button to activate the OSD window.
Press or to navigate through the functions. Once the desired function is highlighted, press the MENU-button / OK to activate it, press or to navigate through the sub-menu functions. Once the desired sub-menu function is highlighted, press MENU-button / OK to activate it.
Press or to change the settings of the selected function. Press to exit. If you want to adjust any other function, repeat steps 2-3.
OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then press power button to turn the monitor on. To unlock the OSD - press and hold the MENU- button while the monitor is off and then press power button to turn the monitor on.

Notes:

If the product has only one signal input, the item of "Input Select" is unable to be adjusted.
If the input signal resolution is the native resolution or AMD FreeSync, then the item "Image Ratio" is invalid.

Game Setting

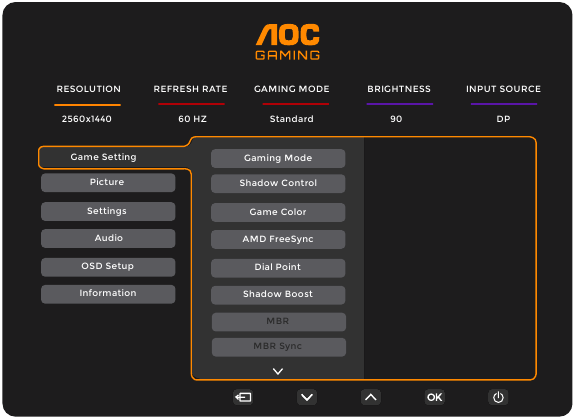

OSD Setting - Game Setting

Gaming Mode	Standard	Enhance readability for suitable web and mobile games.
	FPS	For playing FPS (first Person Shooters) games. Improves black level in dark theme.
	RTS	For playing RTS (Real Time Strategy) games. Improves the image quality.
	Racing	For playing Racing games, Provides fastest response time and high color saturation.
	Gamer 1	User's preference settings saved as Gamer 1.
	Gamer 2	User's preference settings saved as Gamer 2.
	Gamer 3	User's preference settings saved as Gamer 3.
Shadow Control	0 ~ 100	Shadow Control Default is 50, then end-user can adjust from 50 to 100 or 0 to 50 to increase/decrease contrast for a clearer picture. If picture is too dark to be saw the detail clearly, adjusting from 50 to 100 for a clear picture. If picture is too white to be saw the detail clearly, adjusting from 50 to 0 for a clearer picture.
Game Color	0 ~ 20	Game Color will provide 0-20 level for adjusting saturation to get a better picture.
AMD FreeSync	Off / On	Disable or Enable AMD FreeSync. AMD FreeSync Run Reminder: When the AMD FreeSync feature is enabled, there may be flashing in some game environments.
Dial Point	Off / On / Dynamic	The"Dial Point"function places an aiming indicator in the center of screen for helping gamers to play First Person Shooter (FPS) games with accurate and precise aiming.
Shadow Boost	Off / Level 10 / Level 20 / Level 30	Enhance the screen details in the dark or bright area to adjust the brightness in the bright area and ensure that it is not oversaturated.
MBR	0 ~ 20	MBR (Motion Blur Reduction) Provides 0-20 levels of adjustments to reduce motion blur. Note: The MBR function can be adjusted when AMD FreeSync is turned off, and the refresh rate ≥75Hz. The brightness of the screen will decrease as the adjustment value increases.
MBR Sync	Off / On	Disable or Enable MBR Sync (Motion Blur Remove). Note: The MBR Sync function can be adjusted when AMD FreeSync is turned On, and the refresh rate ≥75Hz.
Overdrive	Off / Weak / Medium / Strong / Boost	Adjust the response time. Note: If the user adjusts OverDrive to "Strong" the displayed image may be blurred. Users can adjust the OverDrive level or turn it off according to their preferences. The "Boost" function is optional when AMD FreeSync is turned off, and the refresh rate is ≥75Hz. The screen brightness will decrease when the "Boost" function is turned on.
Frame Counter	Off / Right-up / RightDown / Left-Up / Left-Down	Display V frequency on the corner selected.

Note:

. When "HDR Mode" under "Picture" is enable, the items "Gaming Mode", "Shadow Control", "Game Color" cannot be adjusted.
. When "HDR" under "Picture" is enable, the items "Gaming Mode", "Shadow Control", "Shadow Boost", "Game Color", "MBR" and "MBR Sync" can not be adjusted. "Boost" under "Overdrive" is not available.
. When the "Color Space" under "Picture" is set to sRGB, the items "Gaming Mode", "Shadow Control", "Shadow Boost" and "Game Color" cannot be adjusted.

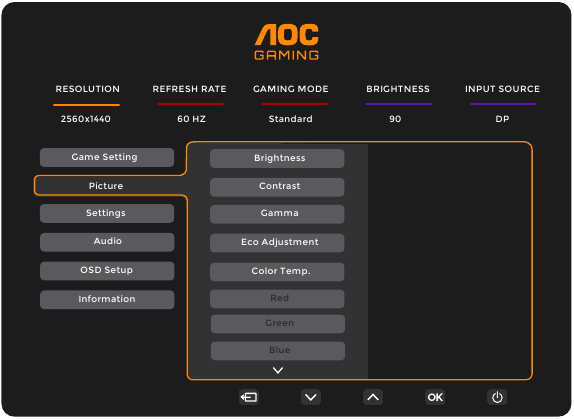

OSD Setting - Picture tab

Brightness	0-100	Backlight Adjustment.
Contrast	0-100	Contrast from Digital-register.
Gamma	1.8 / 2.0 / 2.2 / 2.4 / 2.6	Adjust Gamma.
Eco Adjustment	Standard	Standard Mode.
	Text	Text Mode.
	Internet	Internet Mode.
	Game	Game Mode.
	Movie	Movie Mode.
	Sports	Sports Mode.
	Reading	Reading Mode.
Color Temp.	Warm	Recall Warm Color Temperature from EEPROM.
	Normal	Recall Normal Color Temperature from EEPROM.
	Cool	Recall Cool Color Temperature from EEPROM.
	User	Restore Color Temperature from EEPROM.
Red	0-100	Red gain from Digital-register.
Green	0-100	Green gain from Digital-register.
Blue	0-100	Blue gain from Digital-register.
HDR	Off	Set the HDR profile according to your usage requirements. Note: When HDR is detected, the HDR option is displayed for adjustment.
	DisplayHDR
	HDR Picture
	HDR Movie
	HDR Game
HDR Mode	Off	Optimized for the color and contrast of the picture, which will simulate showing the HDR effect. Note: When HDR is not detected, the HDR Mode option is displayed for adjustment.
	HDR Picture
	HDR Movie
	HDR Game
DCR	Off	Disable dynamic contrast ratio.
DCR	On	Enable dynamic contrast ratio.
Color Space	Panel Native	Standard color space panel.
Color Space	sRGB	sRGB Color space.
LowBlue Mode	Off	Decrease blue light wave by controlling color temperature.
	Multimedia
	Internet
	Office
	Reading
Image Ratio	Full / Aspect / 1:1 / 17" (4:3) / 19" (4:3) / 19" (5:4) / 19"W (16:10) / 21.5"W (16:9)/ 22"W (16:10)/ 23"W (16:9) / 23.6"W (16:9) / 24"W (16:9)	Select image ratio for display.

Note:

When "HDR" is enable, all the items except "HDR" under "Picture" cannot be adjusted.
When "HDR Mode" is enable, all the items except "HDR Mode", "Brightness", "DCR" cannot be adjusted.
When the "Color Space" is set to sRGB, all the items except "Color Space", "Brightness", "DCR" cannot be adjusted.
When the "Eco Adjustment" is set to Reading, "Color Temp.", "Gaming Mode", "Game Color", "LowBlue Mode", "MBR", "MBR Sync" cannot be adjusted.

Settings

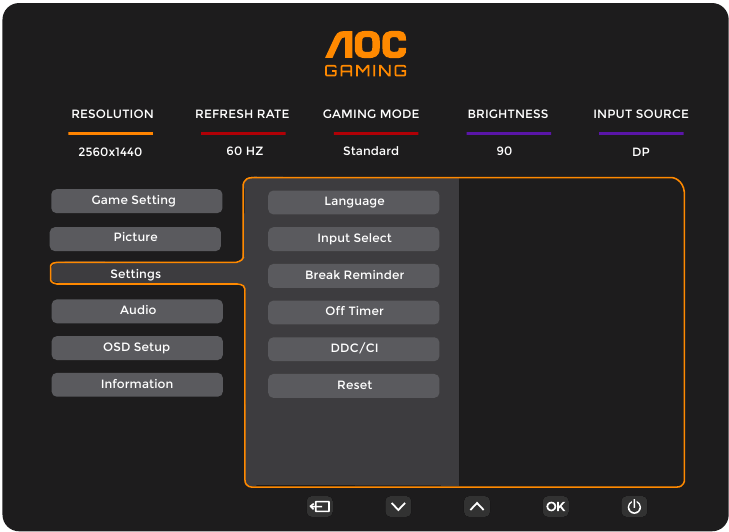

OSD Setting - Settings tab

Language		Select the OSD language.
Input Select	Auto / HDMI1 / HDMI2 / DP	Select Input Signal Source.
Break Reminder	Off / On	Break reminder if the user continuously works for more than 1hrs.
Off Timer	0-24 hrs	Select DC off time.
DDC/CI	No / Yes	Turn On/Off DDC/CI Support.
Reset	No / Yes	Reset the menu to default.

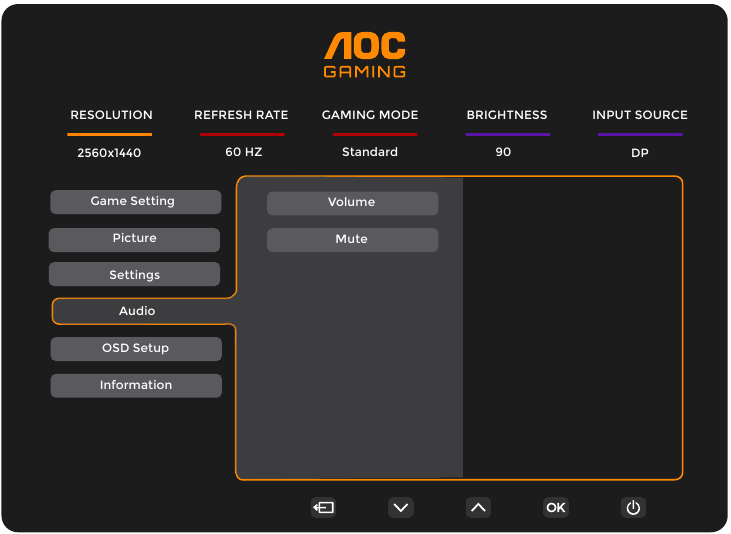

Audio

OSD Setting - Audio tab

Volume	0-100	Volume Adjustment.
Mute	Off / On	Mute the volume.

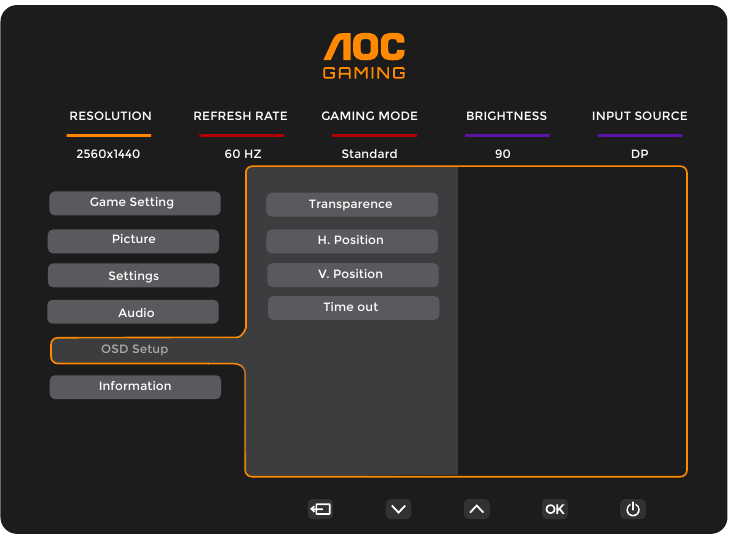

OSD Setup

OSD Setting - OSD Setup tab

Transparence	0-100	Adjust the transparence of OSD.
H. Position	0-100	Adjust the horizontal position of OSD.
V. Position	0-100	Adjust the vertical position of OSD.
Timeout	5-120	Adjust the OSD Timeout.

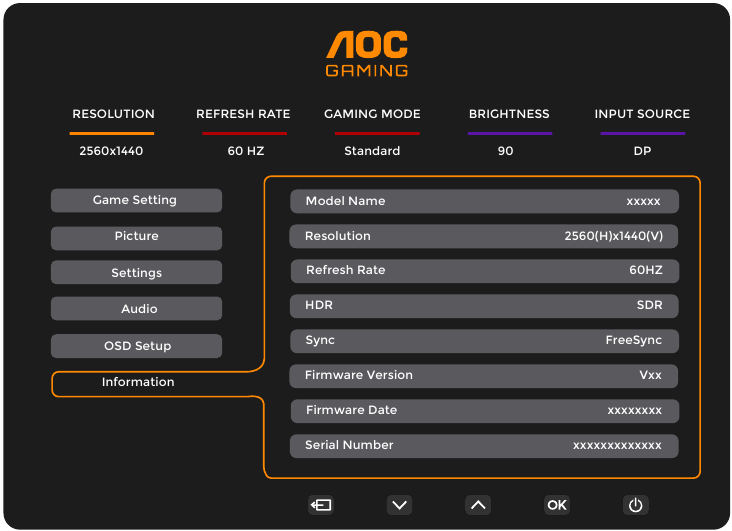

Information

OSD Setting - Information tab

LED Indicator

Status	LED Color
Full Power Mode	White
Active-off Mode	Orange

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No image on the screen	Is the power cord connected properly? Check the power cord connection and power supply. Is the video cable connected correctly? (Connected using the HDMI cable) Check the HDMI cable connection. (Connected using the DP cable) Check the DP cable connection. * HDMI/DP input is not available on every model. If the power is on, reboot the computer to see the initial screen (the login screen.) If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows 7/8/10) and then change the frequency of the video card. (Refer to the Setting the Optimal Resolution) If the initial screen (the login screen) does not appear, contact the Service Center or your dealer. Can you see "Input Not Supported" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls. Press hot-key (AUTO) to auto-adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution you are using.
The Unit Is Stuck In Active Off-Mode	The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Inspect the monitor's video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged. Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 7/8/10/11 shut-down mode to adjust CLOCK and FOCUS. Press hot-key (AUTO) to auto-adjust.
Regulation & Service	Please refer to Regulation & Service Information which is in the CD manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.

Specification

General Specification

Panel	Model name	Q27G4XN
	Driving system	TFT Color LCD
	Viewable Image Size	68.5 cm diagonal
	Pixel pitch	0.2331mm(H) x 0.2331mm(V)
	Video	HDMI lnterface & DP Interface
	Display Color	16.7M Colors
Others	Horizontal scan range	30k-230kHz(HDMI) 30k-255kHz(DP)
	Horizontal scan Size(Maximum)	596.736mm
	Vertical scan range	48-144Hz(HDMI) 48-180Hz(DP)
	Vertical Scan Size(Maximum)	335.664mm
	Optimal preset resolution	2560X1440@60Hz
	Max resolution	2560X1440@144HZ(HDMI) 2560X1440@180HZ(DP)
	Plug & Play	VESA DDC2B/CI
	Power Source	100-240V~, 50/60Hz, 1.5A
	Power Consumption	Typical(default brightness and contrast)		32W
		Max. (brightness = 100, contrast =100)		≤50W
		Standby Mode		≤0.5W
Physical Characteristics	Connector Type	HDMIx2/DP/Earphone out
	Signal Cable Type	Detachable
Environmental	Temperature	Operating	0°C~40°C
		Non-Operating	-25°C~55°C
	Humidity	Operating	10%~85% (Non-Condensing)
		Non-Operating	5%~93% (Non-Condensing)
	Altitude	Operating	0m~5000m (0ft~16404ft)
		Non-Operating	0m~12192m (0ft~40000ft)

Preset Display Modes

STANDARD	RESOLUTION(±1Hz)	HORIZONTAL FREQUENCY(KHz)	VERTICAL FREQUENCY(Hz)
VGA	640x480@60Hz	31.469	59.94
	640x480@72Hz	37.861	72.809
	640x480@75Hz	37.5	75
	640x480@100Hz	50.313	99.826
	640x480@120Hz	60.938	119.72
SVGA	800x600@56Hz	35.156	56.25
	800x600@60Hz	37.879	60.317
	800x600@72Hz	48.077	72.188
	800x600@75Hz	46.875	75
	800x600@100Hz	62.76	99.778
	800x600@120Hz	76.302	119.972
XGA	1024x768@60Hz	48.363	60.004
	1024x768@70Hz	56.476	70.069
	1024x768@75Hz	60.023	75.029
	1024x768@100Hz	80.448	99.811
	1024x768@120Hz	97.551	119.989
SXGA	1280x1024@60Hz	63.981	60.02
SXGA	1280x1024@75Hz	79.976	75.025
FHD	1920x1080@60Hz	67.5	60
FHD	1920x1080@120Hz	139.1	119.93
QHD	2560x1440@60Hz	88.787	59.951
	2560x1440@120Hz	182.996	119.998
	2560x1440@144Hz	222.056	143.912
QHD(DP)	2560x1440@165Hz	242.55	165
	2560x1440@170Hz	249.9	170.001
	2560x1440@180Hz	264.603	180.002
IBM MODES
DOS	720x400@70Hz	31.469	70.087
MAC MODES
VGA	640x480@67Hz	35	66.667
SVGA	832x624@75Hz	49.725	74.551
XGA	1024x768@75Hz	60.241	74.927

Note: According to the VESA standard, there may be a certain error (+/-1Hz) when calculating the refresh rate (field frequency) of different operating systems and graphics cards. In order to improve compatibility, the nominal refresh rate of this product has been rounded off. Please refer to the actual product.

Pin Assignments

Pin Assignments - 19-Pin Color Display Cable
19-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1.	TMDS Data 2+	9.	TMDS Data 0-	17.	DDC/CEC Ground
2.	TMDS Data 2 Shield	10.	TMDS Clock +	18.	+5V Power
3.	TMDS Data 2-	11.	TMDS Clock Shield	19.	Hot Plug Detect
4.	TMDS Data 1+	12.	TMDS Clock-
5.	TMDS Data 1Shield	13.	CEC
6.	TMDS Data 1-	14.	Reserved (N.C. on device)
7.	TMDS Data 0+	15.	SCL
8.	TMDS Data 0 Shield	16.	SDA

Pin Assignments - 20-Pin Color Display Cable
20-Pin Color Display Signal Cable

Pin No.	Signal Name	Pin No.	Signal Name
1	ML_Lane 3 (n)	11	GND
2	GND	12	ML_Lane 0 (p)
3	ML_Lane 3 (p)	13	CONFIG1
4	ML_Lane 2 (n)	14	CONFIG2
5	GND	15	AUX_CH(p)
6	ML_Lane 2 (p)	16	GND
7	ML_Lane 1 (n)	17	AUX_CH(n)
8	GND	18	Hot Plug Detect
9	ML_Lane 1 (p)	19	Return DP_PWR
10	ML_Lane 0 (n)	20	DP_PWR

Plug and Play

Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Safety

National Conventions

The following subsections describe national conventions used in this document.

Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE:
A NOTE indicates important information that helps you make better use of your computer system.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

warning The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
warning The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
warning Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
burn hazard shock hazard
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
caution To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.
warning The wall socket shall be installed near the equipment and shall be easily accessible.

Installation

warning Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
burn hazard shock hazard
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
caution Do not place the front of the product on the floor.
warning If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
caution Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.
caution To avoid potential damage, for example the panel peeling from the bezel, ensure that the monitor does not tilt downward by more than -5 degrees. If the -5 degree downward tilt angle maximum is exceeded, the monitor damage will not be covered under warranty.

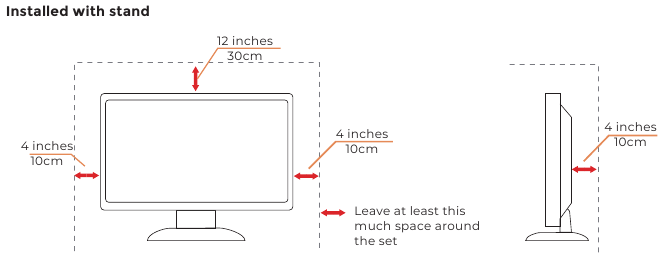

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Cleaning

caution Clean the cabinet regularly with a water-dampened, soft cloth.

caution When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case.

caution Please disconnect the power cord before cleaning the product.

Other

caution If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
caution Make sure that the ventilating openings are not blocked by a table or curtain.
caution Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
caution Do not knock or drop the monitor during operation or transportation.
caution The power cords shall be safety approved. For Germany, it shall be H03VV-F, 3G, 0.75 mm², or better. For other countries, the suitable types shall be used accordingly.

caution Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphones and headphones output voltage and therefore the sound pressure level.

WWW.AOC.COM
