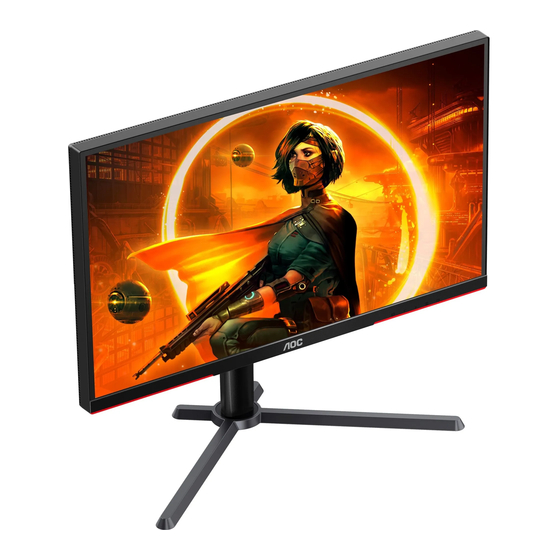

- Page 1 LCD Monitor User Manual Q27G3XMN www.aoc.com 2023 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 Wall Mounting................................ -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. NOTE, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are NOTE, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Contents in Box Monitor Warranty card Stand Base Power Cable DP Cable HDMI Cable Not all signal cables (DP, HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 30°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Power 2. HDMI1 3. HDMI2 4. DP 5. Earphone Connect to PC 1. Connect the power cord to the back of the display firmly. 2. Turn off your computer and unplug its power cable. -
Page 12: Wall Mounting
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Note: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. 0° 90°... -
Page 13: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com Graphics Cards • Radeon RX Vega series • Radeon RX 500 series • Radeon RX 400 series •... -
Page 14: Hdr
It is compatible with input signals in HDR 600 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 15: Adjusting
Adjusting Hotkeys Source/Exit Game Mode/< Dial Point/> Menu/Enter Power Source/Exit When the OSD is closed, press Source/Exit button will be Source hot key function. Game Mode/< When there is no OSD, press “<” key to open game mode function, then press ”<” or “>” key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types. -
Page 16: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Game Se�ng Color Setup Picture Boost Extra OSD Setup 1). Press the MENU-button to activate the OSD window. 2). Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it, press <... -
Page 17: Game Setting
Game Setting Game Se�ng Game Mode Shadow Control Game Color Adaptive-Sync Overdrive Low Input Lag Frame Counter Volume No optimization by Smart image game For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy) games. Improves the image quality. -
Page 18: Luminance
Luminance Luminance Contrast Brightness Eco Mode Standard Gamma Gamma1 HDR Mode Local Dimming Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode Eco Mode Movie Movie Mode Sports Sports Mode Reading Reading Mode... - Page 19 cannot be adjusted. 3)When “Color Gamut” under “Color Setup” is set to “sRGB” or “DCI-P3”,“DCR”,“Eco Mode”,“Gamma”and “HDR”/“HDR Mode”cannot be adjusted. 4) When the Local Dimming function is activated, due to the light diffusion effect. The edges of windows or the edges of moving objects there will be a slight halo phenomenon.
-
Page 20: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm Color Gamut Panel Native DCB Mode DCB Demo Green Blue Off / Multimedia LowBlue Mode / Internet / Office Decrease blue light wave by controlling color temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. -
Page 21: Picture Boost
Picture Boost Picture Boost Bright Frame Frame Size Brightness Contrast H. Position V. Position Bright Frame On or Off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. -
Page 22: Extra
Extra Extra Input Select Auto Off Timer Image Ratio Wide DDC/CI Reset Resolution: 2560(H)x1440(V) SDR H.Frequency: 250 KHz V.Frequency: Adaptive-Sync Auto / HDMI1 / HDMI2 / Input Select Select Input Signal Source Off timer 0-24hrs Select DC off time Wide/ 4:3 / 1:1 / 17"(4:3) / 19"(4:3) / 19"(5:4) / 19"W(16:10) /... -
Page 23: Osd Setup
OSD Setup OSD Setup Language English Timeout H.Position V.Position Transparence Break Reminder Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout H. Position 0-100 Adjust the horizontal position of OSD V. Position 0-100 Adjust the vertical position of OSD Transparence 0-100 Adjust the transparence of OSD... -
Page 24: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 25: Troubleshoot
Press hot-key (AUTO) to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.) -
Page 26: Specification
Specification General Specification Model name Q27G3XMN Driving system TFT Color LCD Panel Viewable Image Size 68.5 cm diagonal Pixel pitch 0.2331mm(H) x 0.2331mm(V) Display Color 1.07 Billion 30k~230kHz (HDMI) Horizontal scan range 30k~255kHz (DP) Horizontal scan Size(Maximum) 596.736mm 48~144Hz (HDMI) -
Page 27: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (±1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640×480 @60Hz 31.475 59.952 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.000 640x480@100Hz 51.080 99.769 640x480@120Hz 60.938 119.720 800x600@56Hz 35.156 56.250 800×600 @60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 75.000 800x600@100Hz 62.760 99.778... -
Page 28: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 29: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
