VIESMANN Installation and service instructions for contractors Vitotrol 200-E Remote control for up to 4 heating circuits VITOTROL 200-E Please keep safe. 5839309 GB 2/2023...
Safety instructions Safety instructions Please follow these safety instruc- tions closely to prevent accidents and material losses. Safety instructions explained Danger Note This symbol warns against the risk Details identified by the word "Note" of injury. contain additional information. Please note This symbol warns against the risk of material losses and environmen- tal pollution.
Page 3
Viessmann. water pipes to discharge static loads. Repair work Please note Repairing components that fulfil a safety function can compromise the safe operation of the system. Replace faulty components only with genuine Viessmann spare parts.
Page 4
Safety instructions Safety instructions (cont.) Safety instructions for operating the system If you smell gas Condensate Danger Danger Escaping gas can lead to explo- Contact with condensate can be sions which may result in serious harmful to health. injury. Never let condensate touch your Do not smoke.
Page 5
Safety instructions Safety instructions (cont.) Danger The simultaneous operation of the boiler and appliances that exhausts air to the outside can result in life threatening poisoning due to a reverse flow of flue gas. Fit an interlock circuit or take suita- ble steps to ensure an adequate supply of combustion air.
Page 6
Preparing for installation System requirements ................Place of installation ................Installation sequence Fitting and connecting the Vitotrol 200-E ..........10 Connecting several remote controls ............11 Fitting and removing the programming unit ........... 11 Commissioning Configuring the remote control .............. 13 Reconfiguration ..................
Viessmann heat and power generators ted and will result in an exclusion of liability. Incorrect designed for this system. Also take account of the rele- usage also occurs if the components in the heating vant installation, service and operating instructions.
Page 8

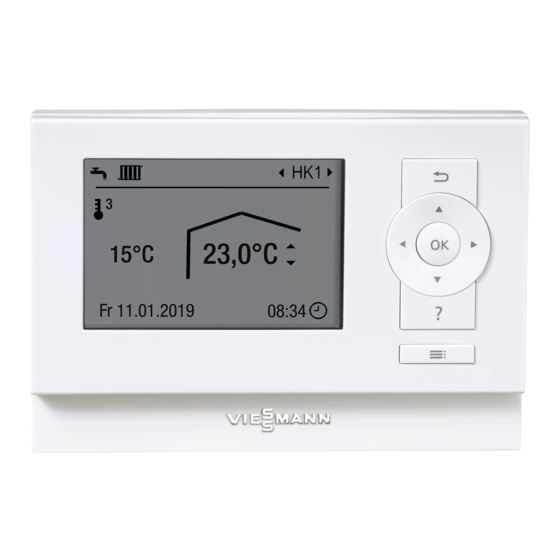

Information Product information Vitotrol 200-E Wired remote control for connection to Viessmann Holiday program and "Holiday at home" function ■ heat generators Time programs for heating circuits and DHW cylinder ■ ■ Extended heating For programming up to 4 heating circuits: ■...
Preparing for installation System requirements Supported control units For an up to date overview of the supported control units: See www.vitotrol.info Place of installation Weather-compensated mode Do not install additional control devices in this room. If ■ Installation in any room the radiators are equipped with thermostatic valves, ■...
Page 10
Installation sequence Fitting and connecting the Vitotrol 200-E Please note Connection Electronic assemblies can be damaged by elec- 2-core cable with a cross-section of at least 0.75 mm²; trostatic discharge. cores are interchangeable. Prior to commencing any work, touch earthed Cable length: Max.
Page 11
BUS connection, dis- connect plug and connect the wires directly. Connecting several remote controls Two Vitotrol 200-E can be connected to the same con- Total length of all PlusBus cables max. 50 m. trol unit. Version 1...
Page 12
Installation sequence Fitting and removing the programming unit (cont.) Fitting Removing Fig. 5 Fig. 6...
Up to 4 heating circuits can be controlled with a The remote control must be configured during commis- Vitotrol 200-E. sioning: Up to 2 Vitotrol 200-E can be connected to one control ■ If no Vitotrol 200-E has previously been connected to unit.
Page 14
Commissioning Configuring the remote control (cont.) 2. Look in the following table to find the correct sub- 3. Follow the steps detailed in chapter "Reconfigura- scriber number that needs to be set at the new tion". Set the subscriber number specified in the remote control (1, 2, 3 or 4).
Troubleshooting Service indication If the heating system is due for a service, the sym- Call up the submenu with the OK key to acknowledge bol flashes on the display and "Service" is shown. all current service messages. Further information on the pending service: Control unit installation and service instructions Fault display In the event of a fault, the...
Page 16
Appendix Specification Power supply Via PlusBus Voltage Current Protection class Permissible ambient temperature Operation °C 0 to +40 ■ Storage and transport °C 20 to +65 − ■ Permissible humidity 5 to 95, without condensation...
Certificates Declaration of conformity We, Viessmann Limited, Hortenwood 30, Telford TF1 7YP, United Kingdom, declare as authorised rep- resentative of the manufacturer and in sole responsibil- ity for the manufacturer, that the named product com- plies with the applicable UK regulations in terms of its design and operational characteristics.
