Related Manuals for Comfee CDWMT305W-UK
Summary of Contents for Comfee CDWMT305W-UK

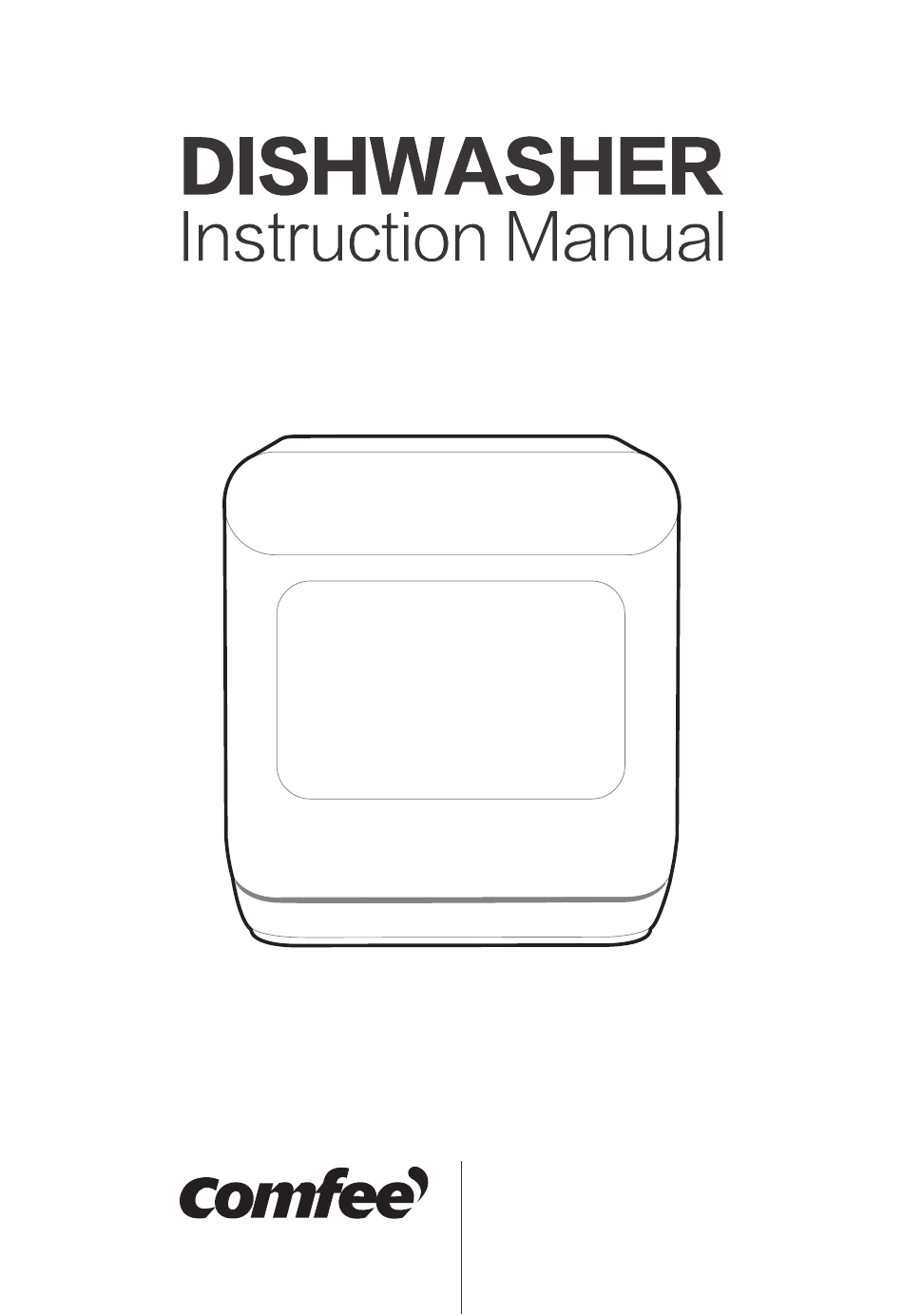

- Page 1 CDWMT305W-UK Please read this manual carefully before customerservice@comfee using the dishwasher -appliances.com Keep this manual for future reference. 0333 900 3303 TEL:...
- Page 2 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Connected to power supplies The power supply is 220-240V AC 50Hz the specification of the socket is 10A 250V AC The connection of the drain pipe: Put end of the drain into a sink or bucket. Fix the drain pipe with the back pipe of the machine.The interface is fitted with clamps and tightened with a screwdriver.
- Page 3 Open the door, placing the dishes and adding detergent Placing order by size and from the two sides to the middle. All cutlery are suggested to be tilted to improve cleaning preformance. The arm will be blocked with the improper placement of the cutlery and cleaning effect may not be ideal.
-
Page 4: Table Of Contents
CONTENTS Please carefully read this manual before using the dishwasher, it will help you use and maintain the dishwasher properly . IMPORTANT SAFETY INSTRUCTIONS GETTING TO KNOW YOUR APPLIANCE Dishwasher features Control panel USING YOUR DISHWASHER Loading the salt into the softener Adjusting Salt Consumption Loading the dishwasher baskets Adding the detergent... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING When using your dishwasher, follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;... -
Page 6: Earthing Instructions
Packaging material could be dangerous for children! Children should be supervised to ensure that they do not play with the appliance. This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance .Use a soft cloth moisten with mild soap,... - Page 7 Do not modify the plug provided with the appliance if it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 8 For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. The door should not be left open, since this could increase the risk of tripping.
- Page 9 Disposal For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 10: Getting To Know Your Appliance
GETTING TO KNOW YOUR APPLIANCE IMPORTANT: Before using this dishwasher for the first time and to get the best performance, read these instructions. Dishwasher features Control panel Kick board Upper spray arm Cap of water tank Lower spray arm Salt container Filter Tableware basket Basket... -
Page 11: Control Panel
Control panel Buttons Power Press this button to power on or power off your dishwasher. Use to sanitize your dishes and glassware. Maintains the water Hygiene 72° temperature at 72°C. For the heaviest soiled crockery, and normally soiled pots, pans, Intensive dishes etc. - Page 12 Control panel Press this button to set the delayed hours for washing.You can delay the start of washing up to 24 hours. One press on this button delays Delay + the start of washing by one hour. This function allows you to lock the buttons on the control panel, so children cannot accidently start the dishwasher by pressing the buttons on the panel.
-
Page 13: Using Your Dishwasher
USING YOUR DISHWASHER NOTE If your model have no water softener, you may skip this section. Loading the salt into the softener Always use salt intended for use with dishwasher. The salt container is located beneath the basket and should be filled as follows: WANING Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use,... -
Page 14: Adjusting Salt Consumption
E. Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt. F. Immediately after filling the salt into the salt container, a washing programme should be started (Suggest choose rapid program). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. -
Page 15: Loading The Dishwasher Baskets
There are 6 levels of salt consumption in all. It is recommended to select the level according to below table: WATER HARDNESS Water softner Regeneration occurs Salt consumption level every X program (gram/cycle) German German French French British British sequence 1) Mmol/l Mmol/l Clarke... -
Page 16: Attention Before Or After Loading The Dishwasher Baskets
Suitability of use in the dishwasher Not suitable for use: Limited suitability: Cutlery with wooden, horn, china or Some glasses can become dull mother-of-pearl handles after a large number of washes. Plastic items that are not heat resistant Silver and aluminium have a Older cutlery with glued parts that are tendency to discolour during not temperature resistant... - Page 17 Use of the dishware support Small-size dishware will drop through the basket and block the rotation of spray arm. Flip the dishware support inward to support the small-size dishware.
- Page 18 Loading the basket according to EN60436 Loading basket Position the dishes and cookware so that they will not get moved by the spray of water. Number Item Soup Plate Medium Bowl Melamine dessert plate Dessert plate Dessert bowl Glass Saucer...
-
Page 19: Loading The Cutlery Basket
Loading the cutlery basket Item Number Knife Soup spoon Tea spoon Dessert spoon Fork Serving fork Gravy ladle For personal safety and a top quality clean, make sure place the silverware in the basket as follows: They do not nest together. Place silverware with handles-down. -
Page 20: Adding The Detergent
Adding the detergent WANING Only use detergent specifically for dishwashers. Never use any other detergents. This will damage the appliance. Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: Conventional, alkaline detergents with caustic components. -
Page 21: Adding Detergent
Adding detergent The palce to add the detergent... -
Page 22: Program Selection
PROGRAM SELECTION Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about programs.Consumption values and program duration are only indicative except for the ECO program. -
Page 23: Saving Energy
Saving Energy 1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. 2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions. -
Page 24: Forget To Add A Dish
Press Start/Pause Button to pause the machine when the door is closed, Press any Program Button for more than 3 seconds the machine will be in stand-by state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash program" ). The Display window shows the state of the dishwasher: a) Display window shows "-:--"... -
Page 25: At The End Of The Wash Cycle
At the end of the Wash Cycle When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible to breakage. -
Page 26: Maintenance And Cleaning
MAINTENANCE AND CLEANING Filter system WANING Never use the dishwasher without filters! Make sure the filter is properly assembled. The performance may be affected and dishes and utensils could become damaged. The filter efficiently removes food particles from the wash water , allowing it to be recycled during the cycle. -
Page 27: Caring For The Dishwasher
NOTE If do it from step1 to step 2, the filter system will be removed; while if do it from Step 2 to Step 1, the filter system will be installed. The entire filter assembly should be cleaned once a week. Inspect the filters for blocking after every time the dishwasher has been used. -
Page 28: Protect Against Freezing
Protect against freezing please take frost protection measures on the dishwasher in winter. Each time after washing cycles, please operate as follows. 1. Cut off electrical power to the dishwasher 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. -
Page 29: How To Keep Your Dishwasher In Shape
How to keep your dishwasher in shape After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. -
Page 30: Installation Instruction
INSTALLATION INSTRUCTION WANING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. Installation preparation The installation position of dishwasher should be near the existing water inlet tap and drain outlet and power socket. -
Page 31: Electrical Requirements
Electrical Requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. -
Page 32: Connection Of Drain Hoses
Connection of drain hoses Fix the drain pipe with the back pipe of the machine.The interface is fitted with clamps and tightened with a screwdriver. Fix the drain pipe with suction cups The connection of the drain pipe: Put end of the drain into a sink or bucket. How to Drain Excess Water From Hoses If the sink is more than1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. -
Page 33: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher. - Page 34 Problem Possible Causes What To Do Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent inside surface and wear rubber gloves.
- Page 35 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray can rotate freely . the movement of the spray arms.
-
Page 36: Error Codes
Problem Possible Causes What To Do The dishesare Wrong program has With a short programme, the not drying been selected. washing temperature is lower, decreasing cleaning performance. Choose a programme with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating. -
Page 37: Technical Information
Technical information 4 2 0 Height(H) 465mm Width(W) 420mm Depth(D1) 435 mm (with the door closed) Depth(D2) 780 mm (with the door opened 90°) - Page 38 Product information sheet (EN60436) Supplier's name or trade mark: COMFEE’ Supplier's address ( ): 5 New Street Square, London, United Kingdom, EC4A 3TW Model identifier: CDWMT305W-UK General product parameters: Parameter Value Parameter Value Height Rated capacity ( ) (ps) Dimensions in cm...
- Page 39 -appliances.com 0333 900 3303 TEL:...
