26/08/2024, 12:57
Knowledge Base
/
Devices

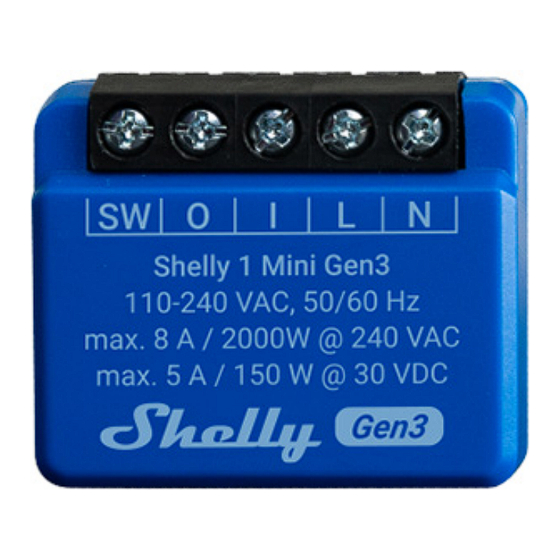

Shelly 1 Mini Gen3
Device identification
Device name: Shelly 1 Mini Gen3
Device model: S3SW-001X8EU
Device SSID: Shelly1MiniG3-XXXXXX
BLE model ID: 0x1015
Short description
Shelly1 Mini Gen3 is a small form factor smart switch with potential-free contacts, which allows
remote control of electric appliances through a mobile phone, tablet, PC, or home automation
system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud
home automation services. The device is an improved version of Shelly Plus 1 Mini with a more
advanced processor and increased memory.
Shelly1 Mini Gen3 can be accessed, controlled and monitored remotely from any place where the
User has internet connectivity, as long as the device is connected to a Wi-Fi router and the
Internet.
https://kb.shelly.cloud/knowledge-base/shelly-1-mini-gen3#Shelly1MiniGen3-Deviceidentification
/
Shelly Gen3 devices
/
Shelly 1 Mini Gen3
Shelly Mini Gen3 devices
1/10
Advertisement
Related Manuals for Shelly 1 Mini Gen3
Summary of Contents for Shelly 1 Mini Gen3
- Page 1 It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is an improved version of Shelly Plus 1 Mini with a more advanced processor and increased memory.
-
Page 2: Main Features
Integration with Smart Home Platforms: You can integrate the Shelly 1 Mini Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms. -
Page 3: Use Cases
PC, or home automation system. Internet-Connected Convenience: Access аnd control devices from anywhere with internet connectivity, as long as the Shelly 1 Mini Gen3 is connected to a Wi-Fi router. Space-Efficient Retrofitting: Retrofit the smart switch into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space. -
Page 4: Safety Functions
26/08/2024, 12:57 Shelly 1 Mini Gen3 Device electrical interfaces Inputs 1 switch/button input on screw terminal 1 potential-free contacts relay input on screw terminal 2 power supply inputs on screw terminals: N and L Outputs 1 potential-free contacts relay output on screw terminal... -
Page 5: User Interface
26/08/2024, 12:57 Shelly 1 Mini Gen3 Capacitive (capacitor banks, electronic equipment, motor start capacitors) Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners)) User interface Inputs One (Control) button Press and hold for 5 seconds to enable Device access point and Bluetooth connection. -
Page 6: Specifications
26/08/2024, 12:57 Shelly 1 Mini Gen3 The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one. Specifications Quantity Value Physical Size (HxWxD): 29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 in Weight: 19 ±1 g / 0.65 ±0.04 oz... - Page 7 26/08/2024, 12:57 Shelly 1 Mini Gen3 Power supply: 110 - 240 VAC Relay: Dry, NO contact, 1-pole, µ contact Power consumption: < 1.2 W External protection: Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating,...
- Page 8 26/08/2024, 12:57 Shelly 1 Mini Gen3 Protocol: 802.11 b/g/n RF band: 2401 - 2495 МHz Max. RF power: < 20 dBm Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
-
Page 9: Basic Wiring Diagrams
26/08/2024, 12:57 Shelly 1 Mini Gen3 KVS (Key-Value Store): Basic wiring diagrams Legend Terminals Wires Switch (controlling Live (110 - 240 O) input terminal VAC) wire Load circuit output Neutral wire terminal Load circuit input terminal Live (110-240 V) https://kb.shelly.cloud/knowledge-base/shelly-1-mini-gen3#Shelly1MiniGen3-Deviceidentification... - Page 10 Shelly 1 Mini Gen3 multilingual printed user and safety guide.pdf Installation guides Privacy policy / Cookie policy / Support / FB community support / Contact us Copyright © 2024 Shelly Cloud. Allterco Robotics OOD • Powered by Scroll Viewport & Atlassian Confluence • Reset cookie settings https://kb.shelly.cloud/knowledge-base/shelly-1-mini-gen3#Shelly1MiniGen3-Deviceidentification...
