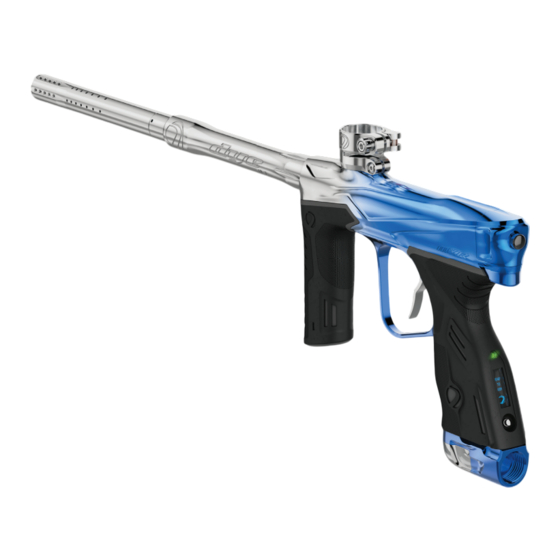

dye MXR Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MA NUAL
9.5.24
1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXR and is the answer not in the manual?

Questions and answers

Related Manuals for dye MXR

Summary of Contents for dye MXR

  • Page 1 MA NUAL 9.5.24...

  • Page 2: Table Of Contents

    • Never look into the barrel or breech area of the DYE marker when it is switched on and able to fire. T.A.A.C. SYSTEM ........... 20 •...

  • Page 3: Key Features

    KEY FEATURES KEY FEATURES CONTINUED ON PAGE 5 CONTINUED FROM PAGE 4 LOCKDOWN2 FEEDNECK KNOB CLAMPING HYPER 6 WHEEL FEEDNECK...

  • Page 4: Quick Start Guide

    • IF THE BATTERY IS LOW, IT MAY NOT BE ABLE TO POWER THE SOLENOID that you use a motorized loader (Eyes on) CORRECTLY. THIS WILL EFFECT THE MXR VELOCITY, CAUSING IT TO BECOME Blinking Red: system. Preferably the Dye LT-R or Eyes are off INCONSISTENT AND/OR LOW.
  • Page 5 Make adjustments in small increments. The MXR comes with the Boomstick UL-I barrel system and 3 bore diameter options .680” .684” and .688”. Choose the appropriate size insert for the paint you are using. Too tight of ball to barrel match will increase the chances of paintball barrel breaks.

  • Page 6: Trigger

    TRIGGER TRIGGER TRIGGER ADJUSTMENT MAG X REACH TRIGGER Your marker features the MAG X REACH trigger system. The pre- travel, post-travel, and rake angle are adjustable using the 5/64” ( Blue ) allen key provided. • Superior trigger speed • All-new trigger design •...

  • Page 7: Bolt

    Regular maintenance of the ARC X bolt is important to the performance of the MXR. Use DYE Slick lube Advanced when servicing the MXR. It is recommended that the ARC X bolt is serviced with a light coating of fresh lube every 4,000 to 8,000 shots, depending on playing conditions.

  • Page 8: Frame

    The solenoid assembly can now be pulled up and out of If there is ever a reason to remove the UL frame from the MXR body make the top of the frame.

  • Page 9: Regulator

    PARTS LIST WARNING! top hole of the reg cap and gently push the piston out of the bottom of the reg cap. 77 - MXR Reg Cap THE HYPER6™ CAN HOLD A SMALL CHANGING THE HYPER6™ REG SEAT 78 - Hyper6 IM Reg Piston RESIDUAL CHARGE OF GAS, •...

  • Page 10: Asa

    AIR SOURCE ADAPTER DISASSEMBLE SLAP 2 ASA SLAP 2 ASA AIR SUPPLY The MXR should be operated using air / nitrogen gas only. DO NOT USE CO2. Tank output pressure should not exceed 850psi. The recommended tank output pressure is 450-650psi.

  • Page 11: System

    Clamping Feedneck securely locks in loader for a compact, lower profi le. Fits most loaders. To install your DYE loader, swivel the feedneck arm away from the feed- neck body and rotate the thumb wheel clockwise to tighten or coun- terclockwise to loosen the grip on your loader.
  • Page 12 SERVICE DIAGRAM SERVICE LEVELS LEVEL 0 SERVICE DIAGRAM PREVENT MAINTENANCE WEEKLY • WIPE BOLT CLEAN AND APPLY FRESH LUBE • INSPECT SEALS FOR DAMAGE • CHECK SCREWS ARE TIGHT • INSPECT AND CLEAN BREECH SLEEVE • PSI BETWEEN 120-130 • CONFIRM SETTINGS •...

  • Page 13: Mos Hardware

    31 - MXR Transfer Board Set 9 - Magnet D4*2mm 32 - M2*3mm Flat head Screw 10 - MXR Board Retaining Clip 33 - 2*1mm N70 O-ring 1x2mm 25 - MXR Main Circuit Board Set 69 - MXR OLED Holder DYEPAINTBALL.COM DYEPAINTBALL.COM...

  • Page 14: Method Operating System

    NOTE: To exit scroll until the “exit” screen appears and then press the CENTER of the joystick. • THE MXR IS NOT WATER RESISTANT. EXCESS MOISTURE WILL CAUSE DAMAGE TO ELECTRONIC PARTS. NOTE: At any point you can also toggle and hold the •...
  • Page 15 On the second System Check screen the gun’s operating pressure is HYPER 6 REG RATE OF FIRE OUTPUT displayed. The MXR has an internal PRESSURE pressure sensor that takes real time readings of the Hyper6 regulator’s LOCK MODE output pressure. The gun must be aired up for the pressure sensor to acquire a reading.
  • Page 16 METHOD OS METHOD OS PERFORMANCE SETTINGS PERFORMANCE SETTINGS RATE OF FIRE OUTLAW Values 1 - 18 (Factory Default 12.5 Customize pull per second, pulls bps)The ROF setting is used to set to start, burst of ramp. Select the maximum rate of fi re. ROF is Outlaw mode and follow prompts to adjustable by 1/10th per second.
  • Page 17 MXR is allowed to fi re. This helps to prevent ball chop in the breech. It is play mode screen. To reset from the...
  • Page 18 METHOD OS METHOD OS PERFORMANCE SETTINGS PERFORMANCE SETTINGS PLAY SCREEN EXIT SCREEN Values 1-3 (Factory Default 1) Select Selecting Exit will return you to the the best play mode screen for your previous menu layer. At any point in style of play. the menu tree you can toggle and hold the joystick UP to exit to the previous menu layer.
  • Page 19 Counter also indicates that the gun user’s name displayed on boot up. was tested at the factory prior to shipping. It is also a strong indicator of how much use the MXR has seen in its life. USER NAME SCREEN SLEEP TIME...
  • Page 20 METHOD OS METHOD OS GENERAL SETTINGS GENERAL SETTINGS AUTO POWER OFF AUDIO ON/OFF Values 10 – 60 min (Factory Default ON) (Factory Default 10 min) Turn the sound off or on for The board will automatically shut navigation. The game timer alarm down if the marker is not used for a cannot be turned off.
  • Page 21 • Repeat 5 times to complete 1 set. • At the end of the 5th rep, the MXR will beep 3 times and display your fastest, slowest, and average response time it took you to turn and shoot 10 balls.
  • Page 22 METHOD OS METHOD OS MXR MENU TREE CONTINUED ON PAGE 41 CONTINUED FROM PAGE 40 BOOT SCREEN DEFAULT PLAY SCREEN PROFILE 1 MXR MENU TREE ENTER CONFIG READY PERFORMANCE SETTINGS PERFORMANCE SETTINGS TRIG RATE FIRE DWELL SMART TOUCH SHOT PLAY...

  • Page 23: Electronics

    To get the best performance out of locate the dip switches on the main board. SOLID RED: your MXR it is recommended that Breach is Clear DIP SWITCH 1 - TOURNAMENT LOCK - View you use a motorized loader system.

  • Page 24: Software Upgrade

    Save the new operating software to any USB C fl ash drive. A USB C fl ash drive is included with the MXR. If this fl ash drive is not available, any USB C with a memory capacity of 16gb or smaller The system will begin to upgrade will work.

  • Page 25: Troubleshooting

    DOUBLE FEEDING • For disassembly instructions consult the technical section under Hyper6™ • If more than one ball is feeding at a time into the breech of your MXR, check regulator. to see if the TAAC Detent Band is missing or damaged.

  • Page 26: Parts

    PARTS LIST PARTS LIST CONTINUED ON PAGE 48 CONTINUED FROM PAGE 49 DYEPAINTBALL.COM DYEPAINTBALL.COM...
  • Page 27 Feedneck Knob Wheel 015 N70 O-ring, Red 2*1mm N70 O-ring Lockdon2 Lever Pin (Brass) 016 N70 O-ring, Brown MXR Sticky Grip W/ OLED Lens 4*1.2 EP70 O-ring MXR OLED Holder Gen 2 on/off button, Clear Lockdown2 Feedneck Washer 020 N70 O-ring, Green DYEPAINTBALL.COM...

  • Page 28: Warranty

    WARRANTY For more information and videos on all aspects of the MXR use the QR code below. DYE Precision, Inc. warrants for one year to the initial retail purchaser, from the initial date of purchase, that the paintball marker and regulator are free...
