- Page 1 ES-12B 5 Terminal Single Phase Residential Electricity Meter Installation and Commissioning Guide Date: 07/02/2020 Version / Status: 1.0...
-
Page 2: Confidentiality
Meter - Installation and Commissioning Guide Confidentiality The information that is contained in this document is the exclusive property of EDMI Europe Limited (“EDMI”) except as otherwise indicated. The contents of this document and any attached appendices, in whole or in part, must not be reproduced, stored, transmitted or used for design purposes without the prior written permission of EDMI Europe Limited. -
Page 3: Table Of Contents
Step 7: Replace terminal cover and fit the Communications Hub ........17 Step 8: Turn on the mains power supply ................. 17 Commissioning ....................... 18 Normal Meter Operation ....................21 10 Troubleshooting......................22 Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 3 OF 25 Public... - Page 4 Figure 1-1: ES-12B connection diagram ..................7 Figure 2-1: Meter Dimensions ......................8 Figure 3-1: ES-12B Meter ......................11 Figure 7-1: Terminal Connections ....................16 Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 4 OF 25 Public...
-
Page 5: Glossary Of Terms
Smart Metering Equipment Technical Specifications – Technical specification documents published by SMETS DECC Volts Alternating Current – 230VAC is standard in the UK for sockets Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 5 OF 25 Public... -
Page 6: Introduction
The EDMI ES-12B is a single element, SMETS2 compliant single phase direct connected electricity meter with LCS support that can be fitted with an ICHIS compliant Communications Hub. The EDMI ES-12B electricity meter and Communications Hub (if fitted) are intended for use in CAT III 300V / 4000VAC rated installations. -
Page 7: Different Between Es-10 & Es-12
The ES-12B features an additional 100Amp latching relay which serves as a Load Control Switch (LCS), connected to the 5th terminal. Thus ES-12B is fitted with two internal breakers (2x 100A bi- stable relays) allowing to switch off or on power delivery to the end customer. -
Page 8: Meter Dimensions
Note: Height, width and depth values for the meter do not include the dimensions of the Communications Hub. Please refer to the relevant Product Guide for Communications Hub dimensions. Figure 2-1: Meter Dimensions Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 8 OF 25 Public... -
Page 9: Environmental Conditions
The Communications Hub dimensions and required environmental conditions will vary according to manufacturer. For Communications Hub specifications, refer to your Communications Hub documentation. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 9 OF 25... -
Page 10: Handling Of Meters
ES-12B 5 Terminal Single Phase Residential Electricity Meter - Installation and Commissioning Guide 4 Handling of Meters To ensure the longevity of ES-12B meters supplied by EDMI we ask for some steps to be followed when handling meters. Always use EDMI provided packaging EDMI packaging is supplied with every meter, this packaging is designed to protect the meter from environmental issues as well as protecting it from damage. -
Page 11: External Features

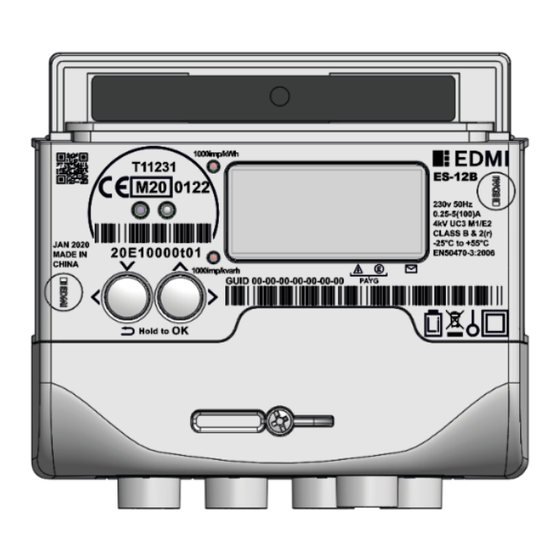

100A relay – the Load Control Switch. ICHIS cover. Remove to install a Communications Hub on the meter. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 11 OF 25... -
Page 12: Guidance For Initial Delivery
If any problems or damage should occur during transit, installation or initial operation of the meters, please notify your ES-12B meter supplier immediately. Do not attempt to apply repairs or modifications to the meter, as doing so will be a basis for voiding all claims for warranty. -
Page 13: Installation
Step 7: Replace terminal cover and fit the Communications Hub. See page 17. Step 8 Step 8: Turn on the mains power supply. See page 17. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 13 OF 25... -
Page 14: Step 1: Unpack Meter And Inspect For Damage
1. Unscrew the central screw on the terminal cover. 2. Slide off the terminal cover. Terminal cover screw ES-12B Terminal Block Uncovered Terminal Block 1 (TB1) Supply Connections Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 14 OF 25 Public... -
Page 15: Step 3: Isolate Mains Power Supply
2. Hang the meter on the top screw using the keyhole. 3. Insert and tighten the remaining two screws at the meter base, under the terminal cover, to hold the meter securely. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 15 OF 25... -
Page 16: Step 6: Connect Supply Wires To The Meter's Terminal Block
2. Using a hand-held torque screwdriver, secure each terminal’s two screws (M6 thread) with a recommended 2.5Nm torque (Note: Design maximum torque is 3.0Nm) Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 16 OF 25... -
Page 17: Step 7: Replace Terminal Cover And Fit The Communications Hub
3. Remove ICHIS rubber cover and dispose of according to your company’s waste disposal / recycling policy. Note: For installs without a communications hub an EDMI hard plastic ICHIS cover should be used affixed to the meters ICHIS interface. Fit Communications hub: 4. -
Page 18: Commissioning
HAN, they must be whitelisted via the 8.1.1 service request. For more information about whitelisting, refer to your Communications Hub documentation and company installation procedures. After power has been applied, the LCD display screen on the ES-12B displays the following message: H O L D... - Page 19 ES-12B 5 Terminal Single Phase Residential Electricity Meter - Installation and Commissioning Guide Message Description The ES-12B has finished pairing and is waiting to receive its first O M I GBCS message. The first message has been received and the meter is processing C O M I DUIS service request 8.1.1.
- Page 20 Holding the OK button for one second at any stage in the process dismisses the commissioning mode UI updates. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 20 OF 25 Public...
-
Page 21: Normal Meter Operation
(displayed in the event log) matched with DUIS codes (displayed in commissioning mode). Alternatively, request that the event log be read remotely by the supplier. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 21 OF 25... -
Page 22: Troubleshooting
B A D K E Y corresponding Communications contact your support centre Hub and has terminated the key establishment. Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 22 OF 25 Public... -
Page 23: The Esme Does Not Default To The "Join Hold Ok" Screen Upon Power Up
After power has been applied to the ES-12B, the LCD display screen on the meter should display “Join HOLD OK”. If the installed ES-12B meter does not default to the “Join HOLD OK” screen upon power up of the meter, please follow the steps stated below: 1. -
Page 24: Revision History
ES-12B 5 Terminal Single Phase Residential Electricity Meter - Installation and Commissioning Guide 11 Revision History Description of Change Date Version Document released 07/02/2020 Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 24 OF 25 Public... -
Page 25: Contact Us
If you have any further questions or would like to get in touch, please use the details below. EDMI Europe Limited Support Queries: servicedesk.europe@edmi-meters.com Website: https://www.edmi-meters.com/ Copyright © 2020 EDMI Europe Ltd. All rights reserved Version / Status: 1.0 PAGE 25 OF 25 Public...
