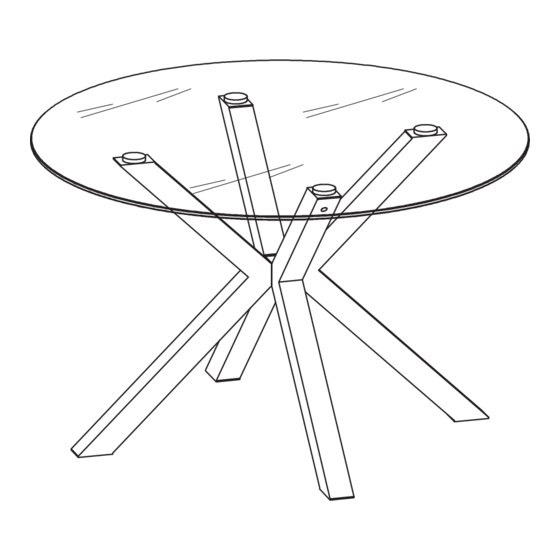

- Page 1 SBCRDMGN TEMPLE SBCRDGBK WEBSTER ASSEMBLY INSTRUCTIONS Charlie 120cm round glass dining table-Oak effect legs Charlie 120cm round glass dining table-Black Powder Coated legs Two People Required www.templeandwebster.com.au...
- Page 2 Keep these instructions for future reference Assemble the furniture on a soft level surface to avoid damaging the furniture or your floor. Parts of the assembly will be easier with 2 people. We recommend furniture be assembled near where they will be placed, to avoid moving the product unnecessarily once assembled.
- Page 3 Tools Required Time Required DO NOT USE 30 min Parts List People Required Glass Top (P1); (P2) x 4. (P1) (P2) (P2) (P2) (P2)
- Page 4 Hardware/Fittings Leg Bracket x 1 Bracket Top Cover x 1 Bracket Bottom Cover x 1 M8x16mm Bolt x 8 M8x50mm Bolt x 1 M8x35mm Bolt x 4 Washer x 9 Spring Washer x 13 50x50x3mm Felt Pad x 4 6mm Allen Key x 1...
- Page 5 1 x1 4 x8 7 x8 8 x8 9 x1 Loosely attach 4 x Legs (P2) to Leg Bracket with 8 x Bolts , 8 x Spring Washers 8 x Washers using Allen Key 5 x4 7 x4 9 x1 10 x4 Paste 4 x Felt Pads to the 4 x Legs (P2).
- Page 6 9 x1 Fully tighten the Bolts with Allen Key 6 x1 7 x1 8 x1 9 x1 2 x1 3 x1 Fix the Bracket Top Cover , Bracket Bottom Cover onto the Leg Bracket with 1 x Bolt Spring Washer and Washer as shown.
- Page 7 With help,carefully turn the table over. Please dispose of all packaging thoughtfully. Assembly is complete.
