SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
Please read this operation manual before using the air conditioner
No.0010554404B
HSU-09C03/VA(ZXF)
HSU-09H03/VA(ZXF)
HSU-12C03/VA(ZXF)
HSU-12H03/VA(ZXF)
HSU-12H03/VB(ZXF)
HSU-12H03/V(ZXF)
HSU-24C03/V(ZXF)
HSU-24H03/V(ZXF)
HSU-18C03/V(ZXF)
HSU-18H03/V(ZXF)
HSU-22C03/V(ZXF)
HSU-22H03/V(ZXF)
HSU-22C03/V(ZF)
HSU-22H03/V(ZF)

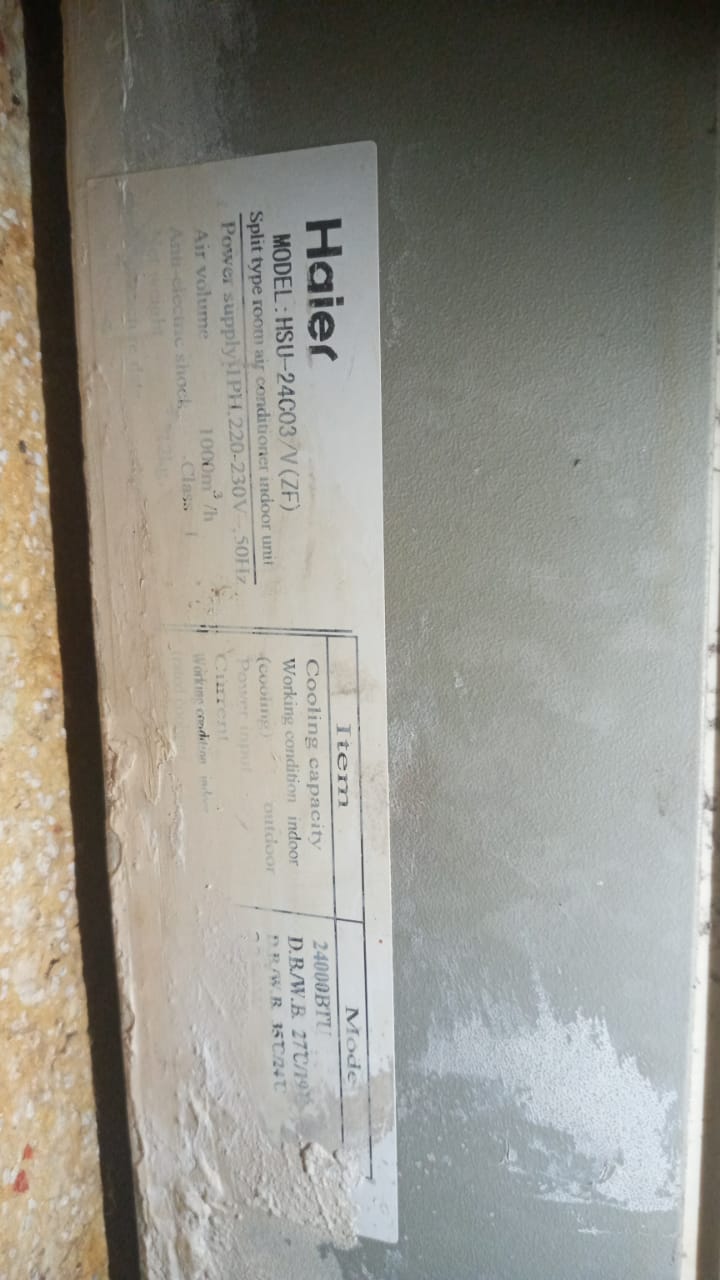

HSU-24C03/V(ZF)
HSU-24H03/V(ZF)
Advertisement
Table of Contents
Related Manuals for Haier HSU-09H03/VA - annexe 1
Summary of Contents for Haier HSU-09H03/VA - annexe 1
-
Page 1: Operation Manual
SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL HSU-09C03/VA(ZXF) HSU-18C03/V(ZXF) HSU-09H03/VA(ZXF) HSU-18H03/V(ZXF) HSU-12C03/VA(ZXF) HSU-22C03/V(ZXF) HSU-12H03/VA(ZXF) HSU-22H03/V(ZXF) HSU-12H03/VB(ZXF) HSU-22C03/V(ZF) HSU-12H03/V(ZXF) HSU-22H03/V(ZF) HSU-24C03/V(ZXF) HSU-24C03/V(ZF) HSU-24H03/V(ZXF) HSU-24H03/V(ZF) Please read this operation manual before using the air conditioner No.0010554404B... - Page 2 Safety Instructions and Warnings Before disposing an old air conditioner that Before starting the air conditioner, read the goes out of use, please make sure it's inop- information given in the User's Guide caref- erative and safe. Unplug the air conditioner ully.
- Page 3 3. If the fuse of indoor unit on PC board is broken,please change it with the type of T. 3.15A/ 250V. 4. The wiring method should be in line with the local wiring standard.
-
Page 4: Safety Instruction
Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. lnstallation in a inadequate place may cause accidents. Do not install in the following place. CAUTION Do not install in the... - Page 5 PROHIBITION PROHIBITION CAUTION Take fresh air occasionally especially Do not operate the switch with Do not use for the purpose of storage of food, art work, precise equipment, when gas appliance is running at the wet hand. breeding, or cultivation.
-
Page 6: Parts And Functions
UV light degerming Air Purifying Filter device (inside) (inside) Inlet grille Anion generator (inside) Vertical flap (adjust up and down air flow. Don't adjust it manually) Horizontal louver (adjust left and right air flow) Outdoor unit HSU-09C03/VA(ZXF) HSU-09H03/VA(ZXF) HSU-22C03/V(ZXF) HSU-24C03/V(ZXF) - Page 7 Used to set clock and timer setting. NOTE:(1) The following functions and related displays are not available: (2) Cooling only unit do not have functions and displays related with heating. (3) The fresh function is only for the models ZXF.
- Page 8 If the remote controller can't run normally during operation, please remove the batteries and reload several minutes later. Hint: Remove the batteries in case unit won't be in usage for a long period. If there are any display after taking-out, just need to press reset key.
-
Page 9: Operation
When indoor fan motor is running, it has healthy process function. (It's available under any mode) When the fan in the indoor unit does not work, the health lamp lights up, but the anion generator does not release anion. BRIEF INTRODUCTION TO HEALTH ANION FUCTION... -
Page 10: Auto Operation
STERILIZE decrease 1 C,if kept depressed, it will decrease rapidly Select a desired temperature. 4.Fan speed selection Press FAN button. For each press, fan speed changes as follows: Remote controller: AUTO Air conditioner is running under displayed fan speed. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. -
Page 11: Cool Operation
1 C,if kept depressed, it will decrease rapidly Select a desired temperature. 4.Fan speed selection Press FAN button. For each press, fan speed changes as follows: Remote controller: AUTO Air conditioner is running under displayed fan speed. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. -
Page 12: Dry Operation
1 C,if kept depressed, it will decrease rapidly Select a desired temperature. 4.Fan speed selection Press FAN button. For each press, fan speed changes as follows: Remote controller: AUTO Air conditioner is running under displayed fan speed. In DRY mode, when room temperature becomes COOL operation starts when room lower than temp.setting+2... -
Page 13: Fan Operation
Press ON/OFF button, the unit stops. About FAN operation In FAN operation mode, the unit will not operate in COOL or HEAT mode but only in FAN mode ,AUTO is not available in FAN mode.And temp.setting is disabled. In FAN mode,SLEEP operation is not available. -
Page 14: Heat Operation
Remote controller: AUTO Air conditioner is running under displayed fan speed IN HEAT mode, warm air will blow out after a short period of the time due to cold-draft prevention function. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. -
Page 15: Air Flow Direction Adjustment
: remote controller: Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6 Pos.7 Pos.8 The horizontal louvers will swing according to the above positions. Note:When restart after remote turning off, the remote controller will automatically memorize the previous set swing position. -
Page 16: Sleep Operation
In COOL, DRY mode another 1 hours, temp. rises by 1 C further. The unit will run for further 6 hours then stops. In HEAT mode Temp. is higher than temp. setting so that room 1 hours after SLEEP mode starts, temp temperature won't be too Iow for your sleep. -
Page 17: Timer On/Off Operation
After replacing batteries or a power failure happens, time setting should be reset. Remote controller possesses memory function, when use TIMER mode next time, just press SET button after mode selecting if time setting is the same as previous one. - Page 18 " on the remote controller stops flashing. " " starts flashing. Time displayed: Unit starts or stops at x hour x min. 5.Time setting for TIMER OFF Just press HOUR button ,follow the same procedure in "Time setting for TIMER ON"...
-
Page 19: Health Airflow Operation
2).Press the button of health airflow again, appears on the display. The above inlet and outlet grills of the air cond- itioner are closed and the airflow is blown vertically from the FRESH nether inlet and outlet grills. Avoid the strong airflow blows direct to the body. -
Page 20: Emergency And Test Operation
Removal of the restriction of emergency or test operation Press the emergency operation switch once more, or manipulate through the remote controller; the "Pi" sound, the emergency or test operation is terminated. When the remote controller is manipulated, it gets the system back to the normal operation mode. -
Page 21: Maintenance
Use the timer effectively during operation During cooling operation prevent the penetration of direct sunlight with curtain or blind Use the louvers effectively If the unit is not to be used for a long time, turn off the power supply main switch. -
Page 22: Air Filter Cleaning
Maintenance For Smart Use of The Air Conditioner WARNING Before maintenance,be sure to turn off the system and the circuit breaker. Remote Controller Indoor Body Wipe the air conditioner by using a soft and dry cloth.For serious stains,use a neutral detergent diluted with water.Wring the water... - Page 23 The air purifying filter of the bacteria-killing medium and the multi-lights touching intermediary is effective for a long time and don't need to be changed (UV light emitted by the UV light device of the indoor unit catalytically activates the nano TiO on the multi-lights touching intermediary, and the degerming effect is highly efficient and lasting.
-
Page 24: Cleaning The Body
To Keep Your Air conditioner in Good Condition after Season. Operate in cooling mode for 2-3 hours. To prevent breeding mold or bad smell, be sure to operate at the designated temperature or 30 C,cooling mode and High speed fan mode for 2-3 hours. -
Page 25: Connecting The Earthing Cable
Before Setting in High season Cleaning the standard air filter. Operation without filter may cause troubles.Be sure to attach both right and left filters prior to the operation. Each of them are of different shapes. Connecting the earthing cable. Caution Incomplete earthing may cause an electric shock. -
Page 26: Troubleshooting
This noise is generated by the inspection casing expanding or shrinking because of temperature changes. Should there be a big noise from air flow in unit operation, air filter may be too dirty. This is because the system circulates smells Smells are generated.
