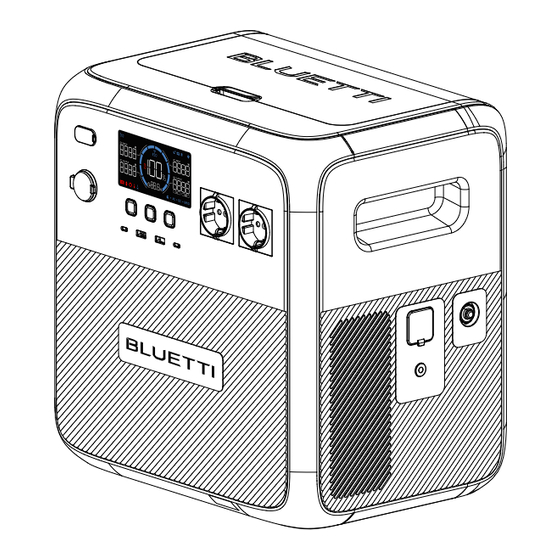

- Page 1 AC180T Portable Power Station User Manual V 2 . 0 Please read this manual carefully before use and keep it for future reference.
- Page 2 Warning 1. Charge the unit before first use. 2. Do not use solar panels with open circuit voltage higher than 60V. Solar input voltage range for the unit is 12V-60VDC. 3. Charge the unit immediately when the SoC drops below 5%. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.
- Page 3 Thank You! Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 4: Table Of Contents
Packing List Product Introduction Overview Power ON / OFF LCD Display Charging Discharging Settings BLUETTI App Specifications Button Operation Instructions Troubleshooting Appx. 1 Estimating Operation Time Appx. 2 FAQ Appx. 3 Abbreviation Appx. 4 FCC Statement Appx. 5 IC Caution... -
Page 5: Safety Instructions
The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards. If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers. - Page 6 • To reduce the risk of injury, close supervision is necessary when the product is used near children. • Do not put fingers or hands into the product. And do not insert foreign objects into any ports of the product. •...
- Page 7 • Only use the detachable battery with the specified BLUETTI products. 1.3 Grounding Instructions The product is designed for portable use and typically does not require earth grounding.
- Page 8 Please refer to the information on the exterior bottom enclosure for electrical and safety information before installing or operating the apparatus. SAVE THESE INSTRUCTIONS BLUETTI shall not be liable for any equipment damage caused by the violation of the above instructions. JUST POWER ON...
-
Page 9: Packing List
2. Packing List Standard Accessories Item Picture Qty. AC180T Portable Power Station AC Charging Cable Car Charging Cable Solar Charging Cable Grounding Screws AC180T Portable Power Station User Manual V 2 . 0 Please read this manual carefully before use and keep it for future reference. - Page 10 Optional Accessories (Available on the official BLUETTI website: https://www.bluettipower.com) Item Picture USB-C to USB-C Cable (output) 12V DC Power Cable (For 12V devices with DC5521 port, such as routers, cameras, etc.) JUST POWER ON...
-
Page 11: Product Introduction
716.8Wh LiFePO batteries to give you plenty of power for your journeys. The AC180T delivers up to 1,800W of AC output and a maximum combined AC+DC output of 1,900W. If your total power demand exceeds 1,900W, yet the AC loads stay below 1,800W, the AC180T intelligently turns off the DC output while maintaining the AC output. -
Page 12: Overview
4. Overview Grounding Pole Cigarette Lighter Port AC Outlet ① ⑤ ⑨ DC/PV Input AC Power Button USB-A Port ② ⑥ ⑩ ⑪ LCD Display Breaker USB-C Port ③ ⑦ ⑫ POWER Button AC Input DC Power Button ④ ⑧ 4.1 Detachable Battery Overview Latch Charging Port... -
Page 13: Power On / Off
• Power OFF：Press and hold the POWER Button for about 2 senonds to turn off. • AC ON / OFF: When the AC180T is on, press the AC Power Button to turn it on / off. • DC ON / OFF: When the AC180T is on, press the DC Power Button to turn it on / off. -
Page 14: Lcd Display
6. LCD Display The AC180T features an informative LCD display that offers easy access to all the essential information about the unit's status and performance. When you power on the unit, the LCD display lights up, and when you power off the unit, the display turns off as well. - Page 15 : Discharging The temperature inside the unit is too low. The temperature inside the unit is too high. The AC180T is drawing too much current, which can cause damage to the unit or any connected devices. The AC180T is overloaded.
-
Page 16: Charging
Avoid getting the plug and socket wet to prevent any potential damage. 7.1 AC Charging Plug the AC180T into a standard wall outlet and start charging. Once it's fully charged, the AC180T automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI App, which allows for an 80% capacity in just 48 minutes at an ambient temperature of 25°C (77°F). - Page 17 Connect AC180T to the vehicle's 12V or 24V cigarette lighter port via the car charging cable. The AC180T can charge at a maximum rate of 96W when connected to a 12V port and 192W when connected to a 24V port. Once it reaches full charge, it’ll automatically stop charging.
-
Page 18: Discharging
8. Discharging 8.1 AC Discharging Port Picture Specifications Description 120V AC Outlet x 4 Appliances up to 1,800W power. 50Hz / 60Hz 8.2 DC Discharging Port Picture Specifications Description Cigarette Lighter 12V DC appliances up to 120W power. 12V / 10A Port x 1 e.g. -
Page 19: Settings
AC180T. 9.1 Setting Mode When the AC180T is powered on, press and hold the AC and DC Power Buttons for more than 1 second till the output frequency flashes to enter the Setting Mode. - Page 20 Although the AC180T can handle higher power demands, its actual operating power remains at 1,800W. 9.5 AC Charging Mode The AC180T supports 3 AC charging modes - Standard, Turbo, and Silent to fit your specific needs. In the Setting Mode, use the DC power button to navigate until the icon starts flashing on the screen.
-
Page 21: Bluetti App
9.8 Exit Setting Mode To save your AC180T settings and exit the Setting Mode, press and hold both the AC and DC Power Buttons at the same time. Note: If you do not perform any operation in 1 minute, the AC180T will automatically exit the Setting Mode, and no changes will be saved. -
Page 22: Specifications
AC180T: 26.5kg / 58.4lbs (w/ 2 batteries) Weight Battery: 8.5kg / 18.7lbs AC180T: 390mm × 280mm × 395mm / 15.4in × 11.0in × 15.6in Dimensions (L × W × H) Battery: 134mm × 160mm × 350mm / 5.3in × 6.3in × 13.8in Charging Temperature 0°C to 40°C / 32°F to 104°F... - Page 23 DC Input Interface XT60PM-M Power 500W Max. Current 10A Max. Voltage 12V to 60V Other Parameters 1,940W Max.（w/ 2 batteries ） AC + DC/PV Charging Power 1080W Max. （w/ 1 battery ） AC + DC Output Power 1,900W Max.（w/ 2 batteries ） （without GRID）...
-
Page 24: Button Operation Instructions
1 seconds till the Mode If you do not perform any operation in output frequency flashes 1 minute, the AC180T will automatically exit the Setting Mode, and no changes will be saved. The flashing setting item is selected and editable. -
Page 25: Troubleshooting
13. Troubleshooting In the Setting Mode, press and hold the DC Power Button for more than 2 seconds until the error code appears on the display. Please refer to the table below for helpful guidance. Error Code Alarm Icon Description Troubleshooting Check if the power consumption of your E001... - Page 26 E115 Grid overfrequency flashes Contact your local power provider if necessary. Check if the grid frequency is too low. E116 flashes Grid underfrequency Contact your local power provider if necessary. Please contact BLUETTI support for assistance. Others JUST POWER ON...
-
Page 27: Appx. 1 Estimating Operation Time
Operation time = Battery Capacity (Wh) x DoD x η ÷ Load Power • For small-power loads (below 300W): Operation time = Battery Capacity (Wh) x DoD x η ÷ (Load Power + AC180T Self-con- sumption) Note: DoD refers to the depth of discharge. AC180T works at 90% DoD for longer battery life. -
Page 28: Appx. 2 Faq
How do I know whether my devices will work well with this product? Please evaluate the total constant load of your devices. If it doesn't exceed the Max. output power of AC180T (1,800W with 2 batteries or 1,200W with 1 battery), you can use this power station to run your devices. -
Page 29: Appx. 4 Fcc Statement
Appx. 4 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 30: Appx. 5 Ic Caution
Appx. 5 IC Caution This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innova- tion, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 31: Appx. 6 Consignes De Sécurité
Évitez tout démontage, tout remplacement des composants ou toute modification des codes logiciels non autorisés. BLUETTI n'est pas responsable des dommages résultant des circonstances suivantes : • Les cas de force majeure tels que les tremblements de terre, les incendies, les tempêtes, les inondations ou les coulées de boue. - Page 32 d. L'utilisation d'un accessoire non recommandé ou vendu par le fabricant peut entraîner un risque d'incendie, d'électrocution ou de blessure. e. Pour réduire le risque d'endommagement de la fiche et du câble électriques, tirez au niveau de la fiche plutôt que sur le cordon lors du débranchement. f.
- Page 33 p. N'utilisez PAS le produit dans des conditions humides. Si le produit est mouillé, veuillez le sécher soigneusement avant de l'utiliser. q. Veuillez assurer une ventilation adéquate pendant l'utilisation et ne pas obstruer les ouvertures du ventilateur. Une ventilation inadéquate peut causer des dommages permanents sur le produit.
- Page 34 CA. Si vous le chargez à l'aide de l'énergie solaire, assurez-vous que votre système solaire fournit une puissance supérieure à 100 W. BLUETTI n'est pas responsable des dommages causés à l'équipement en raison du non-respect des consignes ci-dessus.
- Page 35 SHENZHEN POWEROAK NEWENER CO., LTD. Add: F19, BLD No.1, Kaidaer, Tongsha Rd No.168, Xili Street, Nanshan, Shenzhen, China USA Agent Company: BLUETTI POWEROAK INC Add: 6185 S VALLEY VIEW BLVD STE D LAS VEGAS NEVADA 89118 United States FRN: 0033559824...
- Page 36 Cer t ifi ca te Inspector: Q C :...
