Bluetti AC70 User Manual

Portable power station
Hide thumbs Also See for AC70:
Table of Contents

Advertisement

Quick Links

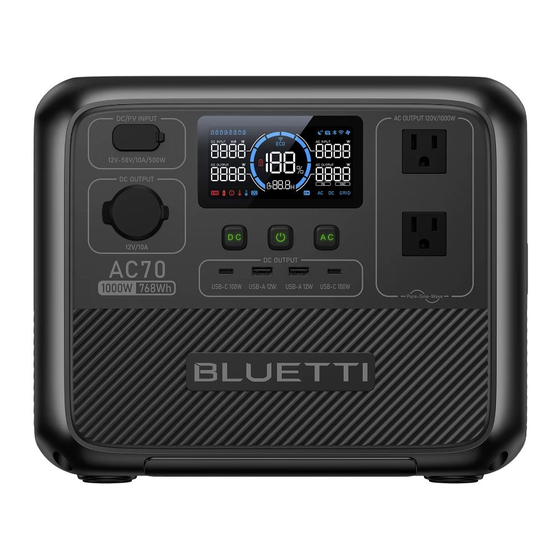

AC70
Portable Power Station
User Manual
Please Read This Manual Before Use And Follow Its Guidance.
Keep This Manual For Future Reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC70 and is the answer not in the manual?

Questions and answers

Related Manuals for Bluetti AC70

Summary of Contents for Bluetti AC70

  • Page 1 AC70 Portable Power Station User Manual Please Read This Manual Before Use And Follow Its Guidance. Keep This Manual For Future Reference.
  • Page 2 Warning 1. Charge the unit before first use. 2. Do not use solar panels with open circuit voltage higher than 58V. Solar input voltage range for the unit is 12V-58VDC. 3. Charge the unit immediately when the SoC drops below 5%. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.
  • Page 3 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.

  • Page 4: Table Of Contents

    Contents Safety Instructions Packing List Product Overview Power ON/OFF LCD Screen Charging Discharging Settings BLUETTI App Specifications Troubleshooting Appx. 1 Estimating Operation Time Appx. 2 FAQs Appx. 3 FCC Statement Appx. 4 IC Caution Appx. 5 Consignes de sécurité...

  • Page 5: Safety Instructions

    The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards. If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers.
  • Page 6 the cord when disconnecting the product. f. Do not use a battery pack or appliance that is damaged or modified, as they may exhibit unpredictable behavior resulting in fire, explosion, or personal injury. g. Do not operate the product with a damaged cord or plug, or a damaged output cable. h.
  • Page 7 s. In case of fire, use only a dry powder fire extinguisher appropriate for the product. t. WARNING - RISK OF ELECTRIC SHOCK. Never use the product to supply power tools to cut or access live parts or live wirings, or materials that may contain live parts or live wirings inside, such as building walls, etc.
  • Page 8 It's recommended to charge the product via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 100W. BLUETTI shall not be liable for any equipment damage caused by the violation of the above instructions.

  • Page 9: Packing List

    2. Packing List Standard Packaging Item Picture Qty. Portable Power Station AC Charging Cable Car Charging Cable Solar Charging Cable Grounding Screw （M5×10） User Manual JUST POWER ON...
  • Page 10 Cigarette Lighter to DC5521 Cable (For 12V devices with DC5521 port, such as routers, cameras, etc.) Lead-acid Battery Charger (Charge a 12V/10A lead-acid battery via AC70. For gasoline vehicle batteries only.) Lead-acid Battery Charging Cable Kit (Charge the AC70 via a lead-acid battery.)

  • Page 11: Product Overview

    Whether you're embarking on outdoor adventures, road trips, or camping trips with friends, the AC70 is built to accompany you every step of the way. So, go ahead and embrace your travel plans with confidence, knowing that the AC70 will provide reliable power whenever you need it.

  • Page 12: Power On/Off

    2 seconds to turn off the unit. • AC ON / OFF: When the AC70 is on, press the AC power button to turn it on / off. • DC ON / OFF: When the AC70 is on, press the DC power button to turn it on / off.
  • Page 13 LCD Instructions Startup LCD lights up Shutdown LCD lights off displays ECO Mode enabled displays Turbo Charging enabled State of Charge displays Silent Charging enabled displays DC input displays Bluetooth connected displays or flashes Fan on or abnormal AC input power AC output power displays AC input...

  • Page 14: Charging

    AC70 supports four charging methods: AC, solar, car, and generator. 6.1 AC Charging Plug the AC70 into a standard wall outlet and start charging. Once it's fully charged, the AC70 automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI App, which allows for an 80% capacity in just 45 minutes at an ambient temperature of 25℃...
  • Page 15 The AC70 also automatically stops charging when it's fully charged. On average, it takes about 7-9 hours to refill the AC70 using a 12V port and 4-5 hours with a 24V port at an ambient temperature of 25℃ (77 ℉).

  • Page 16: Discharging

    Appliances up to 1000W power. 2 × AC Outlet 50Hz / 60Hz e.g., air conditioners, refrigerators Note: Do not apply AC70 to loads higher than 1000W, as this may cause damage to AC70 and your devices. 7.2 DC Discharging Item Specifications Compatible Loads 12V DC appliances up to 120W power.
  • Page 17 ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70 is bearing low (less than 40W or the set power) or no load for a while.

  • Page 18: Bluetti App

    9. BLUETTI App Scan the QR code below or search "BLUETTI" in the App Store or Google Play to download the BLUETTI App. For more details, please refer to BLUETTI APP INSTRUCTIONS. 10. Specifications Model AC70 Country / Region EU / UK / AU...
  • Page 19 AC Input Voltage 100VAC 120VAC 220VAC 230VAC Max. Current Frequency 50Hz / 60Hz Switching time ≤20ms Power 850W Max. (0%-80% in 45 minutes @ 10℃-40℃ / 50°F-104°F) DC Input Interface XT60PM-M Power 500W Max. Current 10A Max. Voltage 12V-58VDC Bluetooth 5.0 / 5.1 Max.

  • Page 20: Troubleshooting

    Check if the grid frequency is too low. Contact E116 Grid underfrequency your local power provider if necessary. Disconnect the grid input and contact BLUETTI E117 Grid oscillation support for further assistance. Others Please contact BLUETTI support for assistance.

  • Page 21: Appx. 1 Estimating Operation Time

    Operation time = Battery Capacity (Wh) x DoD x η ÷ (Load Power + Self-consumption of AC70) Note: DoD refers to depth of discharge. AC70 works at 90% DoD for longer battery life. η is the conversion efficiency of the inverter, typically over 85% for AC70.

  • Page 22: Appx. 2 Faqs

    ECO Mode helps save power, and you can turn it on or off on the screen. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70 is bearing low or no load for a while. You can set the power threshold of AC output and DC output to 10W-30W / 5W-10W, respectively, for 1, 2, 3, or 4 hours.

  • Page 23: Appx. 3 Fcc Statement

    Appx. 3 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 24: Appx. 4 Ic Caution

    Appx. 4 IC Caution This device contains licence-exempt transmitter(s) / receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 25: Appx. 5 Consignes De Sécurité

    Évitez tout démontage, tout remplacement des composants ou toute modification des codes logiciels non autorisés. BLUETTI n'est pas responsable des dommages résultant des circonstances suivantes : • Les cas de force majeure tels que les tremblements de terre, les incendies, les tempêtes, les inondations ou les coulées de boue.
  • Page 26 d. L'utilisation d'un accessoire non recommandé ou vendu par le fabricant peut entraîner un risque d'incendie, d'électrocution ou de blessure. e. Pour réduire le risque d'endommagement de la fiche et du câble électriques, tirez au niveau de la fiche plutôt que sur le cordon lors du débranchement. f.
  • Page 27 p. N'utilisez PAS le produit dans des conditions humides. Si le produit est mouillé, veuillez le sécher soigneusement avant de l'utiliser. q. Veuillez assurer une ventilation adéquate pendant l'utilisation et ne pas obstruer les ouvertures du ventilateur. Une ventilation inadéquate peut causer des dommages permanents sur le produit.
  • Page 28 CA. Si vous le chargez à l'aide de l'énergie solaire, assurez-vous que votre système solaire fournit une puissance supérieure à 100 W. BLUETTI n'est pas responsable des dommages causés à l'équipement en raison du non-respect des consignes ci-dessus.
  • Page 29 * Only applies to products purchased directly from the official BLUETTI website. If you purchased the product from other channels, the warranty is valid for 24 months. However, you can register for BLUETTI VIP on the official website to get a free warranty extension.
  • Page 30 Customer: Date: Company (optional): Address: City: State: Zip: Phone: Fax: Email Address: Purchase From: Receptionist: RMA #: Model: S/N: Purchase Date: Problem Description:...
  • Page 31 SHENZHEN POWEROAK NEWENER CO., LTD. Add: F19, BLD No.1, Kaidaer, Tongsha Rd No.168, Xili Street, Nanshan, Shenzhen, China USA Agent Company: BLUETTI POWEROAK INC Add: 6185 S VALLEY VIEW BLVD STE D LAS VEGAS NEVADA 89118 United States FRN: 0033559824...
  • Page 32 Cer ti fi cate Inspector: Q C :...
