Summary of Contents for Sovol SV06-PLUS

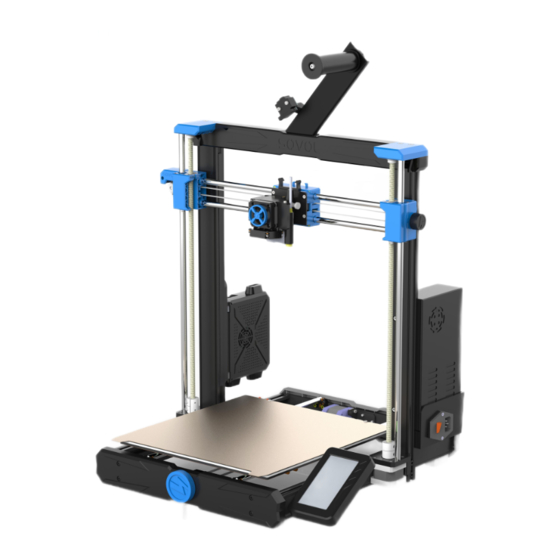

- Page 1 SOVOL User Manual V1.0...
- Page 2 Dear customers, Thank you for choosing Sovol printers! Sovol is committed to providing excellent machines to 3D printing enthusiasts all over the world .This manual is designed for SV06 Plus owners to start their SV06 Plus printing journey.We still recommend all the SV06 Plus owners to read the manual...
-
Page 3: Table Of Contents
Contents 1 Notice 2 Equipment Parameters 3 Package List 4 Assembly Install gantry Install power supply Install extruder kits Install control box Install filament holder Install touch screen Connect cable 5 Screen Information 6 Leveling 7 Load filament 8 Replace filament 9 Print 10 Mainboard... -
Page 4: Notice
Users shall abide by relevant laws and regulations of the countries and regions where the printer is placed (used) and professional ethics, perform safety obligations, and do not use our product or device for any illegal purpose. In no case shall Sovol bear any legal responsibilities for anyone breaching laws. -
Page 5: Equipment Parameters
Equipment Parameters Model SV06-Plus Software language English Printing method TF card and USB cord Type Number of nozzles Printing size 300*300*340mm Recommended printing speed ≤150mm/s Printing accuracy ±0.1mm Nozzle diameter 0.4mm (Replaceable) Nozzle temperature ≤300℃ Hot bed temperature ≤100℃ PLA/ ABS/ PETG/ TPU/ WOOD/ Carbon... -
Page 6: Package List
Package List Gantry Base Extruder kit Control box Power supply Touch screen Filament holder Tool box M3X5*3 M4X12*3 M5X10*2 M4X20*2 M5X50*4 Toolkit Scraper knife Spare nozzles Power cord Ribbon Cutting nippers Nozzle cleaner TF card/card reader screen bracket... -
Page 7: Assembly
Install gantry Assembly Install gantry on the base with 4 M5X50 screws, and tighten the screws. Base Gantry M5X50*4... -
Page 8: Install Power Supply
Assembly Install power supply Install power supply to the right profile of t h e g a n t r y w i t h 2 M4X20 screws and tighten the screws. Power M4X20*2 supply... -
Page 9: Install Extruder Kits
Assembly Install extruder kits Install the extruder kits on the sliding base via 3 M3X5 screws and tighten the screws. M3X5*3 Extruder kits Install it here... -
Page 10: Install Control Box
Assembly Install control box Please turn the aircraft switch on the control box hanging plateto the left from locked state to unlocked state. Control box... - Page 11 Assembly Install control box Install control box on the hanging plate. Press the entire control box downward to lock it to hanging plate. Re-rotate the aircraft switch to lock Control box position.
-
Page 12: Install Filament Holder
Assembly Install filament holder Install filament plate to the top of the machine with 2 M5X10 screws. Filament holder M5X10*2 Install filament barrel. * The figure shows the back side of the printer. When you face the back side, it means the filament holder faces to the left side. -
Page 13: Install Touch Screen
Install touch screen Assembly Mount the touch screen bracket to the profile on the right of the base via 3 M4X12 screws. Touch screen Touch Mount the touch screen on the bracket screen bracket, push and pull it downward, and fix it in the groove. M4X12*3 Install here... -
Page 14: Connect Cable
Assembly Connect cable Touch screen * Please select correct input voltage to match your local p o w e r s u p p l y ( 2 3 0 V o r 115V). Power supply Filament runout sensor part-2 Filament runout sensor part-1 Extruder kits... -
Page 15: Screen Information
Information of touch screen Theme switch Hot bed Nozzle temperature temperature Leveling Current nozzle Printing temperature Move axis Current hot bed temperature preheating Settings Fan speed Targeted temperature of nozzle Targeted temperature PLA preheating of hot bed Step value Speed adjustment Accelerated Jitter speed... -
Page 16: Leveling
Leveling Leveling-1 Click the “Leveling” on the main interface, the machine will auto home first. After the machine stops, click “Auto Z-axis Alignment”, and the whole X-axis beam of the machine will ascend to the top and then descend to zero again. I t i s q u i t e n o r m a l , i f n o i s e produces after the machine hits the top. - Page 17 Leveling Leveling-2 Step value Operating Operating 0.00 nozzle descends nozzle ascends Z offset value Save After the machine stops, adjust the Z offset value in order to adjust the distance between nozzle and hot bed. Remember to click “Save” after leveling. 0.2mm About 0.2mm，like the thickness of a piece of A4 paper.
- Page 18 Leveling Leveling-3 Click the “Auto Leveling” icon after finishing adjustment, and the machine will enable 25-point detection. Remember to click “Save Settings” after detecting. After clicking “Auto Leveling”, the nozzle will rise to 120℃ and the hot bed will rise to 60℃. Please wait patiently and avoid scalding.
-
Page 19: Load Filament
Load filament Click the temperature icon → select preheat PLA/ABS on the main interface. When the temperature reaches the target value, cut the front end of filament at a 45° bevel and insert it into the feed port for about 20mm. Hold it downward with your hand and turn the wheel in a clockwise direction until filament could be seen extruding out of the nozzle. -
Page 20: Replace Filament
Replace filament Main interface → Click the gear icon to enter the setting interface → Click “Refuel”. Enter “50” and click “Retreat”. If the nozzle temperature is too low, it will prompt you to heat up. Please click “Yes”. Wait until the temperature rises to the target value, click “Retreat”... -
Page 21: Print
Printing Sovol3D_Cura-1.5.6-win64 Double click the file “Sovol-Cura” installed in the TF card. Select to add SV06-Plus. Select to add the model you want to print. - Page 22 Printing Click slice and save the file to TF card. Insert the TF card into the card slot on the control box. In the interface →Click “Select Files” → Select files to print.
-
Page 23: Mainboard
Mainboard Power Fuse Controllable fan supply X-axis motor Normal fan Hot bed 24V Y-axis motor Nozzle 24V Filamnet runout sensor Z-axis motor No limit/limit X-axis limit switch Y-axis limit E-axis motor switch Z-axis limit switch Hot bed thermistor Nozzle thermistor TF card slot Touch Micro USB... - Page 24 SHENZHEN Lian Dian Chuang Technology CO.,LTD. Official website: sovol3d.com E-mail: info@sovol3d.com...
