IDW520 Photo ID System

Quick Start Guide

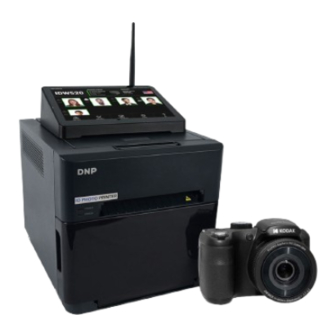

IDW520-3 ID Photo System

Version 1.3 Edition

DOC PN: DOC-R-IDW520-1.3

Rev: 2024.05.20

Table of Contents

Need help?

Do you have a question about the IDW520-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for DNP IDW520-3

Page 2: Before You Begin
Or by phone at 1-855-367-7604 Ordering Supplies To order more media, contact your supplier DNP Support at http://www.dnpphoto.com or support@dnpphoto.com. Each media kit contains 300 sheets (contents 2 rolls @150 sheets, 2 ink ribbons @ 150 images)
Page 3: Installing The System
IDW520 Photo ID System INSTALLING THE SYSTEM Preparing the Camera • Unpack the camera. • Locate the Wi-Fi SD card that was shipped in the box with your console kit. • For cameras with on-board chargeable batteries, either use the external battery charger cradle or place the rechargeable battery in the battery compartment and the SD card in the card slot.
Page 4: Setting Up The Printer
IDW520 Photo ID System Setting up the Printer Printer Components RIBBON COMPARTMENT PAPER COMPARTMENT PAPER TRAY PAPER SCRAP BIN PRINTER PAPER SPOOLS Printer paper spacers must be removed for ID Meida use...
Page 5 IDW520 Photo ID System Set Up your Printer • Unpack the printer. Remove any packaging foam or tape from the outside of the printer. • Connect your printer. Make sure your printer is powered OFF. Connect a USB cable to the type-B (small) USB port (yellow circle) and to the rear bottom console port.
Page 6 IDW520 Photo ID System Install the Ink Ribbon SUPPLY • Orient the Ribbon. Orient the new ink ribbon so that the supply side (larger side with yellow spool end) is towards you, and the take-up spool (smaller side with white spool ends) is towards the back of the printer. •...
Page 7: Power Port
IDW520 Photo ID System Setting up the Processor Console • Unpack the console from the shipping box. Remove any protective plastic sheeting, packaging materials, or foam from the processor console. BOTTOM USB POWER PORT PORT • Plug the printer USB cable into the bottom port on the back of the console.
Page 8: Using The System
IDW520 Photo ID System USING THE SYSTEM Starting the System (for the 1 time) Follow the proper sequence when powering ON the system. First the photo printer, then the IDW520 console, and finally the passport camera. • Power ON the ID Photo Printer. •...
Page 9: Start The System
IDW520 Photo ID System 1. Start the System • Follow the proper sequence when powering ON the system. First the photo printer, then the IDW520 console, and finally the passport camera. Do not turn the camera ON until you see the console main screen.
Page 10: Print The Image
IDW520 Photo ID System 3. Image Gallery Selection. • The images auto-transferred will appear in the Gallery. • Touch the image to Select. • Click ACCEPT to proceed. Tech Tip: The imageselection can be changed to Auto-Process, skipping the manual selection. When this enabled in settings, all auto-transferred images will be processed.
Page 11: Editing Images
IDW520 Photo ID System Editing Images ATTENTION: Only edit images if it is absolutely necessary. 1. Press the EDIT button. 2. Make changes to the color, brightness, contrast, and rotation. 3. Press ACCEPT to print your image. Press RESET to return to the original image.
Page 12 IDW520 Photo ID System TROUBLESHOOTING THE IDW520 SYSTEM Images aren’t printing • Is the app working? Make sure console is powered ON and that the IDW500 app is on the screen. If the system is not powered ON, use the proper powering sequence: first the printer first, then the console, and finally the camera.
Page 13 IDW520 Photo ID System ID Camera (Panasonic FZ80) Default Settings ATTENTION: The SD card is unique to your camera and console system. Do not use other cards or reformat the card you received with your system. If you need to restore the IDW520 default settings, use the following information.
Page 14: Default Value
IDW520 Photo ID System ID Camera (Sony H300 Camera) Default Settings The IDW500 camera ships to your location with the following default settings. If you are concerned that settings may have been altered, refer to this list. ATTENTION: The SD card is unique to your camera and console system. Do not use other cards or reformat the card you received with your system.
Page 15 IDW520 Photo ID System ID Camera (Kodak AZ255 Camera) Default Settings The IDW520 camera ships to your location with the following default settings. If you are concerned that settings may have been altered, refer to this list. ATTENTION: The SD card is unique to your camera and console system. Do not use other cards or reformat the card you received with your system.
Page 16 IDW520 Photo ID System For technical support, product information, or to watch how-to videos about your product, visit our website at http://www.dnpphoto.com...
