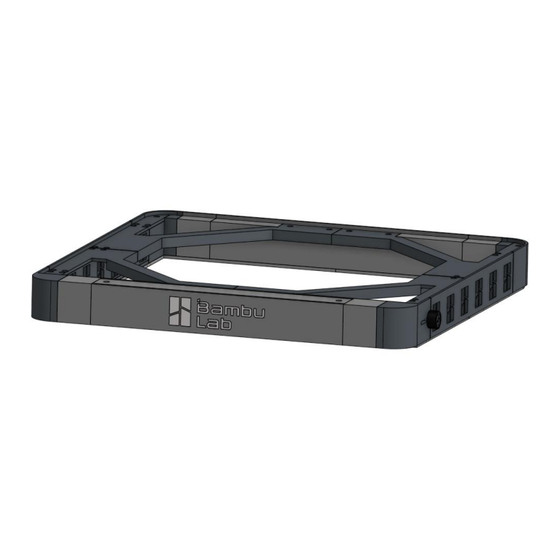

Light ramp Bambu Lab P1S
Requirements for this project:
Frame height as low as possible
Ventilation holes on the sides
Printing without supports
Quick assembly without gluing
P1S colour scheme respected
LED ramp at the top
Illuminated Bambu Lab logo
Ramp switching controlled by the original side light control
What you need:
Printed parts (use a prepared file with the correct placement and layout)
PETG material. I used this one:
https://www.prusa3d.com/cs/produkt/prusament-petg-jet-black-1kg/
https://www.prusa3d.com/cs/produkt/prusament-petg-prusa-galaxy-black-1kg/
https://www.prusa3d.com/cs/produkt/prusament-petg-signal-white-1kg/
https://www.prusa3d.com/cs/produkt/prusament-petg-clear-1kg/
Screws 3mm x 8mm (frame mounting) - 78pcs
https://www.aliexpress.com/item/32804364817.html?spm=a2g0o.order_list.order_list_mai
n.10.16d11802LNdnCl
Screws 3mm x 12mm (frame mounting) - 16pcs
https://www.aliexpress.com/item/32804364817.html?spm=a2g0o.order_list.order_list_mai
n.10.16d11802LNdnCl
Screws 3mm x 30mm (frame mounting) - 6pcs
Advertisement
Related Manuals for Bambu Lab P1S
Summary of Contents for Bambu Lab P1S
- Page 1 Light ramp Bambu Lab P1S Requirements for this project: Frame height as low as possible Ventilation holes on the sides Printing without supports Quick assembly without gluing P1S colour scheme respected LED ramp at the top Illuminated Bambu Lab logo...
- Page 2 https://www.aliexpress.com/item/32804364817.html?spm=a2g0o.order_list.order_list_mai n.10.16d11802LNdnCl Screws 3mm x 18mm (ventilation) - 2pcs https://www.aliexpress.com/item/32804364817.html?spm=a2g0o.order_list.order_list_mai n.10.16d11802LNdnCl Nut 3mm - 4pcs https://www.aliexpress.com/item/1005002177898963.html?spm=a2g0o.detail.pcDetailTop MoreOtherSeller.2.625chw8Fhw8Fqy&gps- id=pcDetailTopMoreOtherSeller&scm=1007.40050.354490.0&scm_id=1007.40050.354490.0 &scm-url=1007.40050.354490.0&pvid=61425e39-2c9f-489c-858f-bacbba5bfd2a&_t=gps- id:pcDetailTopMoreOtherSeller,scm-url:1007.40050.354490.0,pvid:61425e39-2c9f-489c- 858f- bacbba5bfd2a,tpp_buckets:668%232846%238112%231997&pdp_npi=4%40dis%21EUR%211 .62%211.20%21%21%211.72%211.27%21%402103094f17161087080137471e65b9%211200 0018951779284%21rec%21SK%212446727245%21&utparam- url=scene%3ApcDetailTopMoreOtherSeller%7Cquery_from%3A LED strip USB 5V https://www.aliexpress.com/item/1005005605269794.html?spm=a2g0o.order_list.order_lis t_main.47.328a1802pHe4um Relay https://www.aliexpress.com/item/1005005959775711.html?spm=a2g0o.productlist.main.3 5.432a0h3b0h3bxj&algo_pvid=8d388b71-13ee-46bb-a6c8- 6fecfb4e5499&algo_exp_id=8d388b71-13ee-46bb-a6c8-6fecfb4e5499- 17&pdp_npi=4%40dis%21EUR%210.53%210.53%21%21%214.09%214.09%21%40210308a61 7161107529181164eb958%2112000035049754685%21sea%21SK%212446727245%21&cur PageLogUid=oegmCB3K5nVm&utparam-url=scene%3Asearch%7Cquery_from%3A...
- Page 3 Procedure: Print all the parts as in the photo After printing the parts, clean them of dirt to make them smooth...
- Page 4 Assemble parts part 1a + connector1 (2x) + part 2a + 3a Connect part 3a...
- Page 5 Assemble parts part 1b + connector1 (2x) + part 2b + 3b Connect part 3b...
- Page 6 Assemble parts part 8a + connector1 (2x) + part 9a + 4a Connect part 4a...
- Page 7 Assemble parts part 8b + connector1 (2x) + part 9b + 4b Connect part 4b...
- Page 8 Prepare the already assembled parts according to the photo and the parts 6a + 7a + 5a First connect part 6a with the shorter screws...
- Page 9 Screw part 7a to the already connected parts Prepare part 5a and send the nut into it as in the picture...
- Page 10 Prepare the part button + button(logo)
- Page 11 Slide part 5a into the assembled part as shown in the picture Secure it with a formed button part...
- Page 12 After assembling the right and left sides, we will proceed to complete the ramp by adding the front with the Bambu Lab logo and the back. We will use the already assembled parts and part 12 + part 10 and the rear part part 11...
- Page 13 We start by assembling the part with the Bambu Lab logo Once the part is assembled, join the right and left parts of the ramp. Remember to use 4x + connector1...
- Page 14 In the next step we connect the rear part to the whole, don't forget to use 4x + connector1 The ramp is already finished, it will look like in the photos...
- Page 15 In the next step we assemble the frame for the LED strip. We will use for this part ramp LED1, ramp LED2, Ramp LED3, ramp LED4, connector 2 (4pcs)
- Page 16 In the next step we screw the ramp LED to the assembly, it will look like in the photos...
- Page 17 Prepare part 13 and glue the LED strip on it, as shown in the picture, interconnecting them. This part will be used to illuminate the Banbu Lab logo Prepare LED strip for LED ramp lighting. It's designed so that we use the LED strip in its entirety in the corners to be tucked into the prepared holes...
- Page 18 At the end of the strip, thread the wire through the prepared hole...
- Page 19 Finally, prepare part 14 (8pcs) and clip it onto the LED strip ramp. This part serves as a diffuser...
- Page 20 In the next step, we need to carefully peel off the electronics cover. Disconnect the connector from the LED light of the 3D printer. Pull it carefully and then unscrew it (this will render the LED light of the 3D printer inoperable). The next step is to connect the LED strip to the service USB. Thread the end through the same hole as the previous cable...
- Page 21 Connect the relay according to the drawing conector LED lights USB 5v LED strip...
- Page 22 At the very end we close the electronics, use part 15 and glue the Banbu Lab part button(logo) If you have any questions, please contact me I'll be glad if you give me Boosts for my efforts - thank you...
Need help?
Do you have a question about the P1S and is the answer not in the manual?
Questions and answers

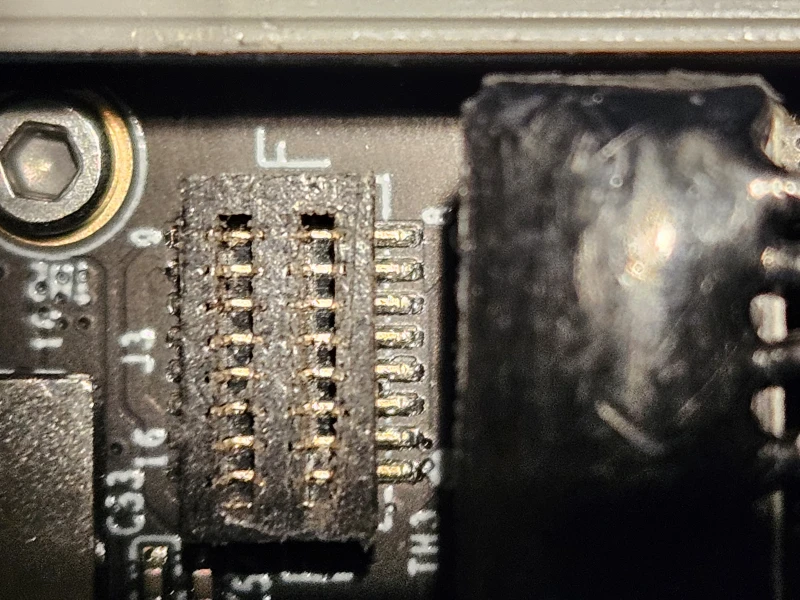

What is the part number for the replacement board on the P1S that controls the fan, hotend and extruder
