6. Program the inverter with the appropriate charge/discharge settings according to the specific battery manual and cable arrangement.
7. Enable "BMS Lithium Batt" and set its value to "00".
8. (Optional) Turn on "BMS_Err_Stop" if you wish for the system to fault on loss of battery communications.

18. STORZ POWER

The provided information serves as general setup instructions for Storz Power batteries and Sol-Ark inverters. Users are strongly advised to consult the
comprehensive technical documentation provided by Storz Power for specifications and settings to ensure optimal performance and safety. Visit the
manufacturer's website and consult the relevant documentation below.
Comm Installation and Setup Instructions
1. Use the DIP switches on the batteries such that the battery connected to the inverter is set as follower 1 (0001), and each unit behind it shall
increase the follower ID by one to be assigned. Each DIP switch (1-4) represents a binary digit (bit) in the follower ID with a value of 1 or 0.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 dec
0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 binary

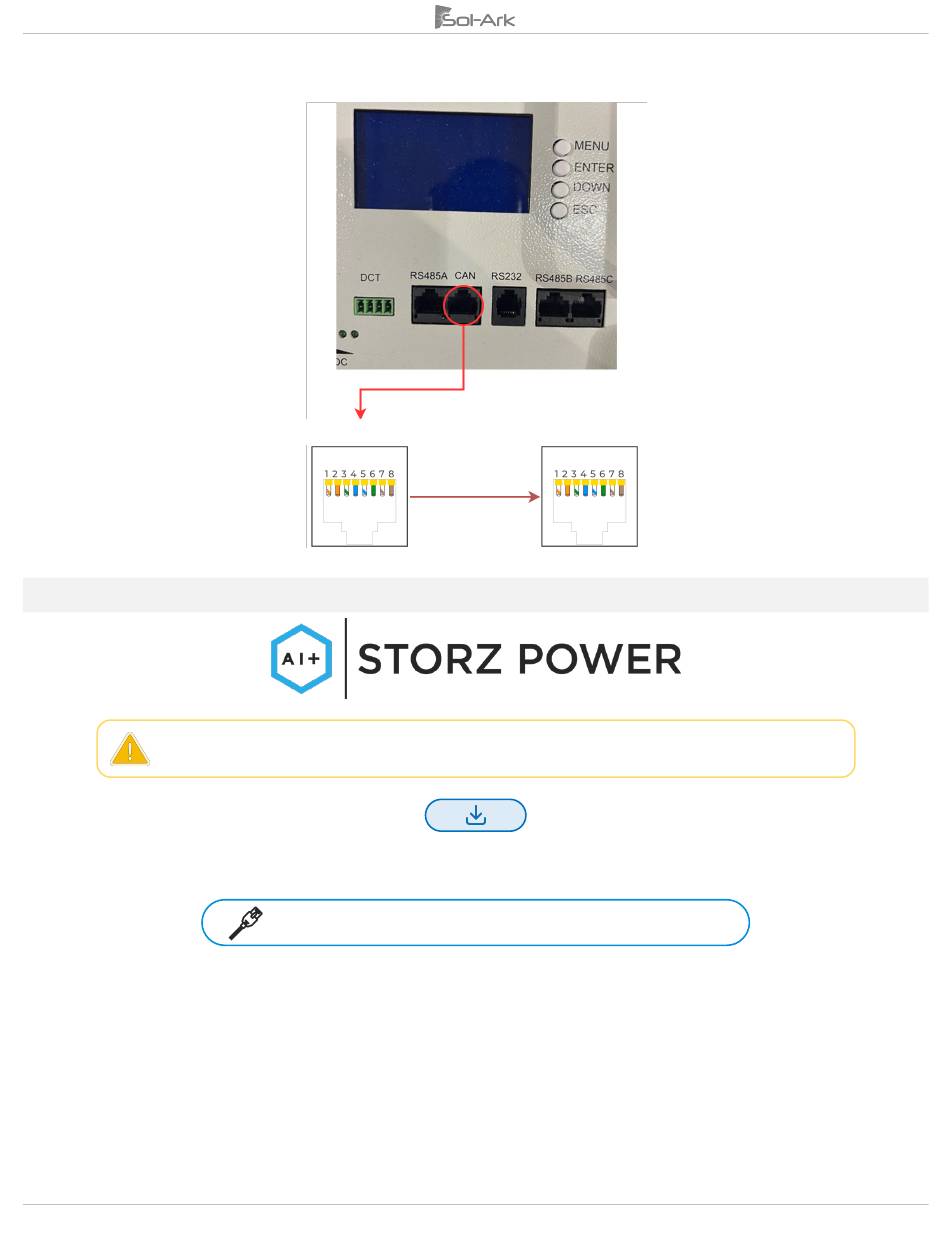

2. Connect all batteries with the RJ45 cable such that they are all in parallel.
3. Create a custom cable that connects battery pins 1 & 2 only (white-orange & solid orange).
30
BATTERY PORT
Make a custom cable as below or obtain it from Storz Power. Communications installation and setup
instructions are updated for newer battery models on the Storz Power website
Decimal counting from 0 to 15 in binary format as a 4-bit nibble (half byte):
For example: to set the DIP switch to decimal 13 = 1101 binary: [1: ON, 2: ON, 3: OFF, 4:ON]
INVERTER PORT
Storz Power documentation
