3.3.5 Install Weather Stripping

Before mounting the unit on the outside wall, fix neoprene weather stripping (installer provided) around the
openings of the air supply and the air return to ensure an airtight closure, as shown in Figure 3-1

Table 3-8 Openings and Holes in the Wall (Top Supply)

T3
in
29-3/4
9-11/16
15-11/16
30-1/4

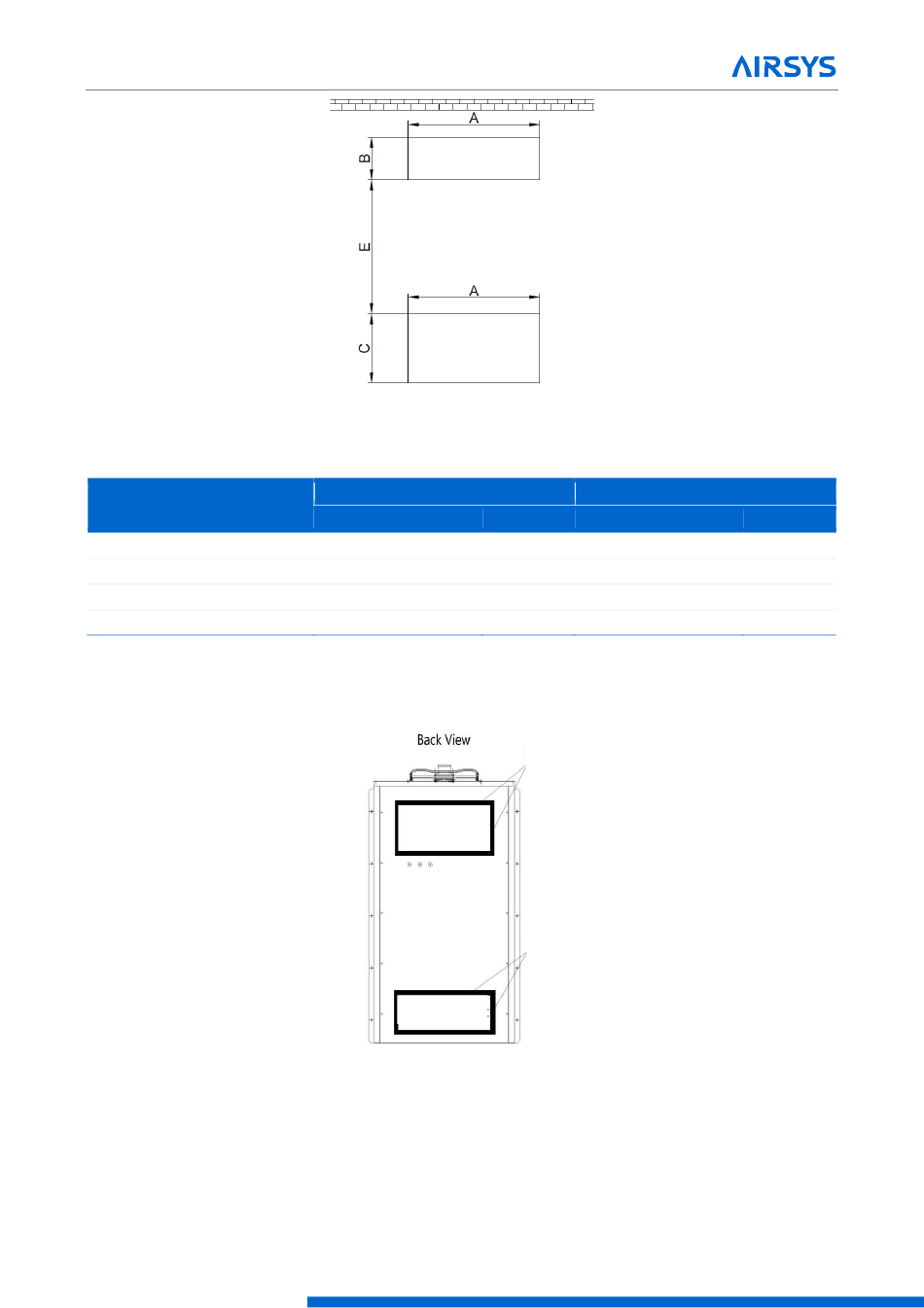

Figure 3-1 Install Weather Stripping

mm in
756 29-3/4
246 9-11/16
398 15-11/16
768 30-1/4
Weather stripping
Weather stripping
T4
mm
756
246
398
768
