EVM User's Guide: J722SXH01EVM
J722SXH01 Evaluation Module
Description
The J722SXH01EVM is a fully functional hardware
platform built around the J722S/AM67x/TDA4VEN,/
TDA4AEN vision and display processor, which
includes scalable Arm
®
Cortex
image signal processor (ISP) supporting up to
600MP/s, up to 4 tera-operations-per-second (TOPS)
AI accelerator, along with embedded features
such as triple high-definition display support, high-
performance 3D-GPU, 4K video acceleration, and
other extensive peripherals. The EVM is designed as
a low cost, standalone test and development platform
to provide users the basic resources to evaluate
performance and develop software for the J722S/
AM67x/TDA4VEN/TDA4AEN family of processors.
Get Started
1. Order the EVM at J722SXH01EVM.
2. Download the EVM
Design
3. Download the software from J722SXH01EVM.
4. Read this user's guide.
Features
Processing: Quad 64-bit Arm Cortex-A53 up to
1.4GHz, two ARM Cortex R5F single core up to
800MHz
Display: dual panel support with up to 3840p x
1080p display resolution, one dual-channel LVDS
SPRUJB5 – FEBRUARY 2024
Submit Document Feedback
®
-A53 performance,
Files.
Copyright © 2024 Texas Instruments Incorporated
and one MIPI
®
-DSI 4L. One HDMI
from DPI/RGB88 and one DisplayPort connector
from MIPI-DSI
High speed interface: PCie card slot for Wi-Fi
SDD, or other modules; one RJ-45 Ethernet
1000Mbps or 100Mbps with TSN support
Connectivity: three Type-A USB3.0, one Type-C
dual-role device (DRD) supports USB booting,
onboard XDS110 Joint Action Group (JTAG)
emulator, four universal asynchronous receiver-
transmitters (UARTs) via USB2.0-B
Storage: 8GB LPDDR4, 32GB eMMC; 512MB
Octal Flash; bootable interfaces on EVM include
removable microSD, eMMC, Octal Serial NOR/
NAND flash, Ethernet, UART
Security capable (Secure boot, Arm
cryptography)
Software: TI processor SDK Linux
RTOS MCU+ SDK, QNX SDK, out-of-box demos
including Android
®
Applications
Automotive
and
industrial
Automotive front camera systems
Automotive surround view
systems
Industrial HMI
Robot teach pendant
Description
connector
®
,
®
TrustZone
®
,
®
, RT-Linux,
and
park assistance

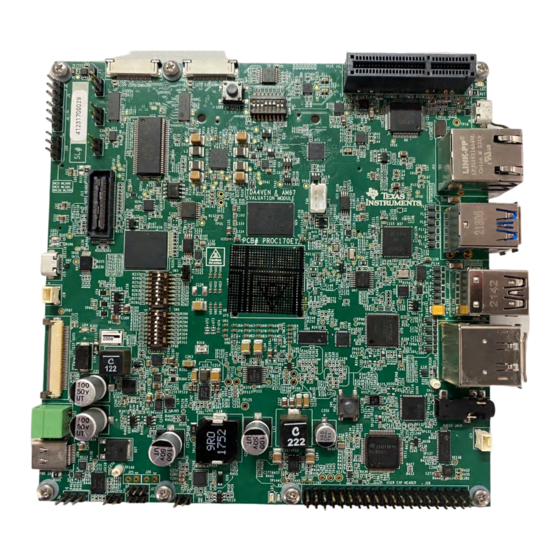

J722SXH01 Evaluation Module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the J722SXH01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments J722SXH01

  • Page 1 – Industrial HMI 800MHz – Robot teach pendant • Display: dual panel support with up to 3840p x 1080p display resolution, one dual-channel LVDS SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2 LM5141, LM5141-Q1 Power regulator (5V) LM61480, LM61480-Q1 Temperature sensor TMP100, TMP100-Q1 USB Hub controller TUSB8041, TUSB8041-Q1 USB Power controller TPS25750 USB Type-C controller TUSB321 J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3 Evaluation Module Overview 1.4 Specification The figure below shows the functional block diagram of the EVM. Figure 1-1. J722SXH01EVM Block Diagram SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 2.1 Key Features and Interfaces The J722SXH01EVM is a high performance, standalone development platform that enables users to evaluate and develop automotive and industrial applications using the Texas Instruments' J722S/AM67x/TDA4VEN/ TDA4AEN processor. A summary of the EVM features include: •...
  • Page 5 The EVM images identify the locations of these key features and user interfaces (top and bottom view). Figure 2-1. Key Features and Interfaces (Top) Figure 2-2. Key Features and Interfaces (Bottom) SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 PCIe peripherals can require significant power and the reason the higher wattage supply can be required. A red LED [LD4] is illuminated to indicate an active power supply is connected and on-board regulators are active. J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 BOOTMODE [2:0] selects the PLL configuration. The EVM uses a 25Mhz clock source, thus BOOTMODE [2:0] must be set to '011'. Dip switch SW3[1:3] must be set to ON-ON-OFF or ‘110’ (order reversed). SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Table 2-3. Processor Bootmode Settings [SW2 Switch 1-3] Processor Boot Source SW2.1 SW2.2 SW2.3 MicroSD Card [J32] Non-Volatile Flash (xSPI) eMMC Reserved UART (for Flashing) No Boot (JTAG/Emulator) Ethernet[J10] J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 2.5.1 Audio Input/Output The EVM supports stereo headset audio via a 3.5mm audio jack [J21]. Texas Instruments TLV320AIC3106 provides the audio conversions (DAC and ADC). The audio output conversion supports sampling rates of 8KHz to 96KHz.
  • Page 10 [J15] of the EVM is connected to a Host-PC using supplied USB cable (Type-A to Micro-B). The computer can use Texas Instruments' Code Composer Studio (CCS) to establish a connection with the processor and download and debug software on the various processor cores. The emulator circuit is powered via USB VBUS power.
  • Page 11 CSIPort 3 Data Lane 1 Input CSI3_D1_P CSIPort 3 Data Lane 1 Input Ground CSI3_CLK_N CSIPort 3 CLK Input CSI3_CLK_P CSIPort 3 CLK Input Ground SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 I2C_SCL I2C Clock, TCA9543 Port 0 (See I2C Table) Output I2C_SDA I2C Data, TCA9543 Port 0 (See I2C Table) Bi-Dir Power Power, 3.3V Output J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 (See GPIO Table) CAM_AUX GPIO, typically used for AUX (See GPIO Table) Bi-Dir Ground I2C_SCL I2C Clock, TCA9543 Port 1 (See I2C Table) Output SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 CSI Port 3 Clock Input CSI3_D3_P CSI Port 3 Data Lane 3 Input CSI3_CLK_N CSI Port 3 Clock Input CSI3_D3_N CSI Port 3 Data Lane 3 Input J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 CSI Port 0 Data Lane 3 Input Ground CSI1_CLK_P CSI Port 1 Clock Input CSI1_D3_P CSI Port 1 Data Lane 3 Input CSI1_CLK_N CSI Port 1 Clock Input SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 Table 2-13. CAN-FD Interface Pin Definition [J5] [J8] [J10] Pin # Pin Name Description CAN_H High level CAN Bus IO Bi-Dir Ground CAN_L Low level CAN Bus IO Bi-Dir J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 LVDS Channel #2 Data Lane 3 Output Ground CH2_LVDS_A2P LVDS Channel #2 Data Lane 2 Output CH2_LVDS_A2N LVDS Channel #2 Data Lane 2 Output Ground SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 Reset Bi-Dir GPIO Table) Ground Ground open/not connected open/not connected I2C_SDA I2C Data (I2C1) Bi-Dir I2C_SCL I2C Clock (I2C1) Output Power Power, 3.3V Output J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 EHRPWM1_B/ GPIO1 #18 (E19) Output Ground I2S_FS McASP #0 AFSX (C26) Bi-Dir GPIO GPIO0#41 (R27) Bi-Dir GPIO GPIO0#36 (P26) Bi-Dir I2S_DIN McASP #0 AXR0 (F23) Bi-Dir Ground SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 USB Type A (3x) USB1, USB1_SS Texas Instruments TUSB8041 USB Type C + CC Controller USB0, Texas Instruments TUSB321 USB1 Wired Ethernet RGMII1, MDIO Texas Instruments DP83867E J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 OLDI Expansion I2C1 Camera I2C2 0x70, Texas Instruments TCA9543A I2C Switch 0x71 Camera I2C2 Add-on Expansion Test Automation Boot Mode Reserved 0x22 Texas Instruments TCA6424 SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 Test Point Access (TP85) GPIO0_72 MMC2_SDWP Reserved / Ethernet Expansion Input Reserved GPIO1_15 SPI0_CS0 40 pin Expansion Header (J28) Bi-Dir Expansion Board Specific (Pin 29) J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 CAN-Bus PHY Stand-by [J5, J8] Output (default) ‘0’ – Active Interrupt Request ‘1’ – No MCU_GPIO0_23 WKUP_CLKOUT0 Watchdog Timer Interrupt Output Interrupt Request (default) SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24 Audio Headphone (Codec) Reset Output Audio is NOT Reset '0' - Memory is Reset, '1' - Memory GPIO_eMMC_RSTn eMMC Flash Memory Reset Output is NOT Reset (default) J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 '0' - Interrupt Pending, '1' - No OLDI_INT# Input Interrupt [J39] Interrupt Pending '0' - No Monitor Detected (default), HDMI_INTn HDMI Monitor Detect Input '1' - Monitor Detected SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 26 Processor IO (VDDSHV_MCU, VDDSHV0, …) 0.01 Ohms Processor Analog/PLL (VDDA_PLLx, 0X4D 0.01 Ohms VDDA_MCU, …) Processor IO for IO Retention 0X4E 0.01 Ohms (VDDSHV_CANUART) J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 27 UHS-I data rates (104MB/s). For on-board storage, 32GB is available from Micron (MTFC32GAZAQHD-IT) supporting data rates up to 200MB/s (HS200) and 400MB/s (HS400). SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 28 (operating at 0.85V) and the lower power or performance use cases (operating at 0.75V). J722SXH01 Evaluation Module SPRUJB5 – FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 29 The Bill Of Materials (BOM) is available in spreadsheet format (Microsoft Excel, *_BOM.XLSX) and is included as part of the design package download at Design Files. SPRUJB5 – FEBRUARY 2024 J722SXH01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 30 HDMI Licensing LLC. FreeRTOS ™ is a trademark of Amazon Web Services, Inc. Code Composer Studio ™ is a trademark of Texas Instruments. ® , Cortex ® , and TrustZone ® are registered trademarks of Arm Limited.
