Sealey PWH602 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR
FUTURE USE.
1. SAFETY
Protectors that have been subject to impact shall not be used and shall be discarded and replaced.
8
If the impact level symbols are not equal on both the lens/filter and the frame, then it is the lower level that shall be assigned to the
8
complete protector.
The protections corresponding to the code numbers/letter 7, 9, CH are provided by the complete protector only if the respective
9
symbols are equal on both the lens and the frame.
DO NOT place the helmet on hot surfaces.
8
DO NOT immerse the filter in water and protect it from contact with liquid and dirt.
8
The material which may contact the wearer's skin can cause allergic reactions.
9
Any helmet worn over standard ophthalmic spectacles may transmit impact, thus creating a hazard to the wearer.
9
DO NOT use this product for overhead welding or cutting.
8
This product is for eye protection against high-speed particles at room temperature.
9
The automatic welding filter shall always be used with a backing ocular.
9
IMPORTANT: Unauthorised modifications and replacement parts will void the warranty and expose the operator to the risk of personal injury.
WARNING! If the auto-darkening filter does not darken when the arc ignites, stop welding immediately and inspect the ADF and its
‰
power supply. Change if necessary.
DO NOT use any solvents or abrasive cleaning detergent on the filter screen or helmet components.
8
We recommend a usage period of 4 years. The period depends on various factors such as use, cleaning, storage and maintenance.
9
Frequent inspections and replacement in case of damage are recommended.
9
Always wear safety glasses or goggles under the welding helmet and protective clothing to protect your skin from radiation, burns and
9
splatter.
A visual inspection is necessary before every use.
9
The protection marked in accordance with this standard is only provided when all lens and retention components are installed
9
according top the list or other manufacturers insurrections.
If the helmet, filter or the cover plate is in any way damaged, they must be immediately replaced.
9
Replace the device after a mechanical impact.
9
2. INTRODUCTION

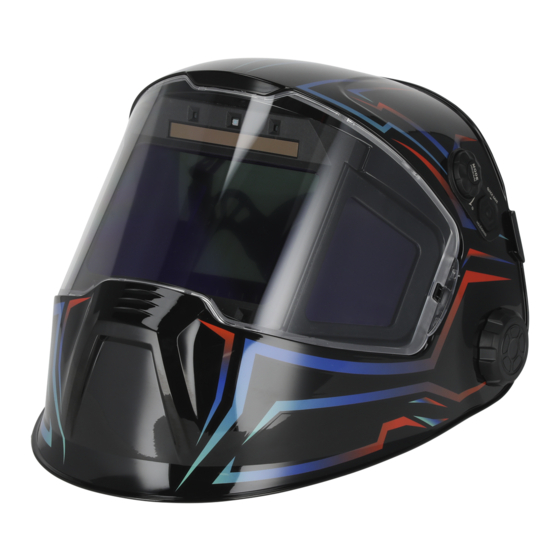

Fully digital Panoramic Welding Helmet and true colour technology give the best possible welding experience providing improved depth
perception and better peripheral vision. High quality variable shade 9-13 lens manufactured and tested to ISO 16321. Fully automatic
switching from light to dark on striking arc. Digital control panel easily switches between modes and set delay, sensitivity and shade
settings. Also includes memory save function to preset and save up to nine personalised settings. Externally the helmet also features
rotating switch and mode selector to easily switch between welding and grinding settings whilst adjusting shade without removing the
mask. Battery is easily replaceable but has solar back up to prolong the battery life. Suitable for MIG, TIG, MMA, gas welding, cutting
and grinding.
3. SPECIFICATION
MODEL NO.
Grinding Function:
Operating Temperature:
Operating Time Light/Dark: 0.04-2.0s (Digital Control)
Power:
Shade Active:
Shade Inactive:
Viewing Area:
Notified Body; 1883
Type Examination cerificate no. C3669.1YXE
Carried out by ECS GmbH -
European certification service
© Jack Sealey Limited
AUTO DARKENING PANORAMIC WELDING
HELMET - SHADE 9-13
PWH602
MODEL NO:
PWH602
Yes
-10 C to +60 C
o o
Lithium Cell Battery
Weld- 9 -13 Cut- 4-8 Grind- 3
3/4
Front Panel - 108 x 82mm
Side Panels - 75/50 x 60mm
Original Language Version
Applicable standards:
EN 61000-6-3:2007+A1, EN IEC 6100-6-1:2019, ISO 16321-2:2021
PWH602 Issue 2 15/02/24
