Safety Notice Safety Precautions The following precautions must be observed. 1:Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the cabinet or on the chassis. 2:When replacing a chassis in the cabinet, always be certain that all the protective devices are installed properly, such as, control knobs, adjustment covers or shields, barriers, etc..

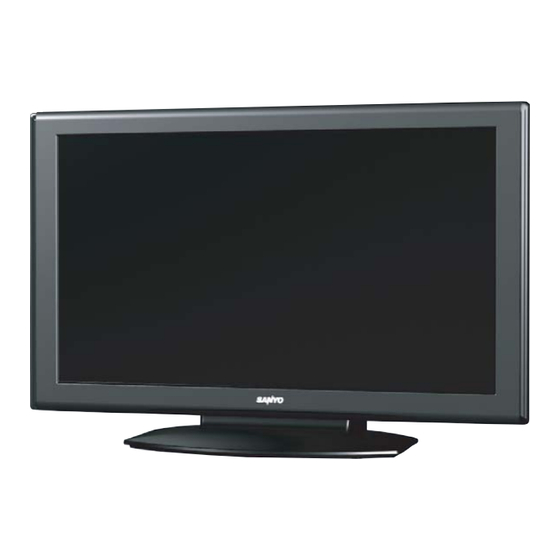

Specifications Model LCD-32K40 Maximum Visible Range 81cm(Screen Diagonal Size) Picture Resolution 1366(H) x 768(V) Viewable Angle(L ° /3) L/R:+/-89D, U/D:+/-89D Brightness 420cd/m² Contrast 3000:1 Definition RF Analog Signals: Horizontal≥300; Vertical≥400 Degree of Colour Coverage ≥30% Mobile Trailer Time 6.5ms Voltage...
On-screen Service Menu System General This set has an On-screen Service Menu System included in the CPU that allows remote operation for most of the service adjustments. On-screen Service Menu System Quick operation is needed to enter Service Mode. ■ How to enter the Service Menu 1.
Page 14
On-screen Service Menu System ■ Service Adjustment Data Table Item Name Initial Data Description 575i SUB-CONT MST6E16JS 575i SUB-BRIGHT MST6E16JS DVD Input 575i SUB-COLOR MST6E16JS Input Video Format: 575i 575i SUB-TINT MST6E16JS (Different Value) 575i SUB-SHARP MST6E16JS 575p SUB-CONT MST6E16JS 575p SUB-BRIGHT MST6E16JS DVD Input...
Page 15
On-screen Service Menu System Item Name Initial Data Description PC SUB-CONT MST6E16JS PC SUB-BRIGHT MST6E16JS PC SUB-COLOR MST6E16JS PC Input PC SUB-TINT MST6E16JS (Different Value) PC SUB-SHARP MST6E16JS DVI SUB-CONT MST6E16JS DVI SUB-BRIGHT MST6E16JS DVI SUB-COLOR MST6E16JS HDMI Input DVI SUB-TINT MST6E16JS (Different Value) DVI SUB-SHARP...
Page 16
On-screen Service Menu System Item Name Initial Data Description RFN SUB-CONT MST6E16JS RFN SUB-BRIGHT MST6E16JS RFN SUB-COLOR MST6E16JS Input Alteration: RF(NTSC) RFN SUB-TINT MST6E16JS (Different Value) RFN SUB-SHARP MST6E16JS RFN443 SUB-CONT MST6E16JS RFN443 SUB-BRIGHT MST6E16JS RFN443 SUB-COLOR MST6E16JS Input Alteration: RF(NTSC443) RFN443 SUB-TINT MST6E16JS (Different Value)
Page 17
On-screen Service Menu System Item Name Initial Data Description White-720P (50)R MST6E16JS White-720P (50)G MST6E16JS White-720P (50)B MST6E16JS DVD Input: 720P(50) Black-720P (50)R MST6E16JS (Different Value) Black-720P (50) G MST6E16JS Black-720P (50) B MST6E16JS White-720P (60) R MST6E16JS White-720P (60) G MST6E16JS White-720P (60) B MST6E16JS...
Page 18
On-screen Service Menu System Item Name Initial Data Description White-AVN443 R MST6E16JS White-AVN443 G MST6E16JS White-AVN443 B MST6E16JS VIDEO Input→NTSC443 Black-AVN443 R MST6E16JS (Different Value) Black-AVN443 G MST6E16JS Black-AVN443 B MST6E16JS BASEWhite-AVPAL R MST6E16JS BASEWhite-AVPAL G MST6E16JS BASEWhite-AVPAL B MST6E16JS VIDEO Input→PAL BASEBlack-AVPAL R MST6E16JS...
Service Adjustments CAUTION ! Do not attempt to adjust service adjustments not listed below otherwise it may cause loss of performance and for correct operation. ■ Setting the Initial data This adjustment is controlled by the CPU (IC8001) through the IIC Bus Data Line in the chassis, and those adjustment data are memorized the memory IC (IC8000).
±0.15 PART NAME DESIGNED NOTE 50 UND ±0.10 HOLES ANGLE UNIT FINISH ORIGINAL MODEL PROD.CODE SCALE 0.500 DRAWN ±0.05 ±0.1 DATE EI.NO. REVISION REV.BY DRAW.ID/FILE PLOT DATE 0A_32_HAOWEI.ASSEM 07-Sep-09 HUAQIANG SANYO TECHNOLOGY DESIGN Ltd. DIVISION JIS A1 1995/9 Pro/ENGINEER -20-...
Page 21
Mechanical Disassembly 1. STAND Removal 1. Remove 4 screws and remove the STAND. STAND 2. LID BACK Removal 1. Remove 10 screws and take the LID BACK off. Note: LID BACK can be removed even if it does not remove a stand. -21-...
Page 22
Mechanical Disassembly 3. ASSY, PWB, POWER Board , ASSY, PWB, MAIN Board and TERMINAL BASE Removal 1. Remove 6 screws and take ASSY, PWB, POWER off. 2. Remove 8 screws and take ASSY, PWB, MAIN and TERMINAL BASE off . FINISH REMARK TERMINAL...
Page 23
Mechanical Disassembly 5. SPEAKER Removal 1. Remove 4 screws and take both of SPEAKERS off. 6. DEC IND RC Board Removal 1. Remove 1 screws and take DEC IND RC Board off. -23-...
N7TK Chassis Electrical Parts List Product safety should be considered when a component replacement is made in any area of a receiver. Components indicated by a mark in this parts list and the circuit diagram show components whose value have special significance to product safety.
Page 25
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4051739714 TR 2SA1235A1F 4050144519 TR 2SC2412K T146 R Q047 4051648412 TR KTC3875S-GR-RTK 4050144618 TR 2SC2412K T146 S 4060214407 TR MMBTSC3928R 4050158724 TR 2SC2812-L6-TB 4050144519 TR 2SC2412K T146 R 4050158922 TR 2SC2812-L7-TB 4050144618 TR 2SC2412K T146 S...
Page 26
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4040949701 CERAMIC 1U Z INTEGRATED CIRCUIT 4033588316 CERAMIC 1U K IC001 4097026212 IC LV49157V-TLM-H 4033645811 CERAMIC 1U K IC1501 4094385510 IC TC4052BFT C018 4041067800 CERAMIC 1U K 4106046108 IC 74HC4052PW,118 4040949701 CERAMIC 1U Z...
Page 27
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4033588316 CERAMIC 1U K 4033701517 CERAMIC 0.1U K 4033645811 CERAMIC 1U K C108 4032383823 ELECT 10U M C049 4041044900 CERAMIC 0.1U K 4034028316 ELECT 10U M 4040912606 CERAMIC 0.1U K C109 4033238815 CERAMIC...
Page 28
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4032989619 CERAMIC 0.1U K C709 4041034505 CERAMIC 0.1U K C6608 4040988007 ELECT 1000U M 4040950509 CERAMIC 0.1U K 4040871804 ELECT 1000U M 4032989619 CERAMIC 0.1U K C6610 4041127900 ELECT 470U M C711 4033238815...
Page 29
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4033565119 CERAMIC 0.047U K 4040949701 CERAMIC 1U Z 4033233612 CERAMIC 0.047U K 4033588316 CERAMIC 1U K C7220 4041130801 ELECT 100U M 4033645811 CERAMIC 1U K 4040971801 ELECT 100U M C7246 4041034505 CERAMIC...
Page 30
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4040901204 CERAMIC 0.01U K 4040950509 CERAMIC 0.1U K 4032152211 CERAMIC 0.01U K 4032989619 CERAMIC 0.1U K 4032246118 CERAMIC 0.01U K C8024 4041079407 ELECT 10U M C766 4041032907 CERAMIC 0.01U K 4040970200 ELECT 10U M...
Page 31
N7TK Ref. No. Part No. Description Ref. No. Part No. Description 4032989619 CERAMIC 0.1U K R1013 4012562719 MT-GLAZE 75 JA 1/10W C8124 4041034505 CERAMIC 0.1U K R1016 4011505915 MT-GLAZE 10K JA 1/10W 4040950509 CERAMIC 0.1U K R1017 4012560418 MT-GLAZE 12K JA 1/10W 4032989619 CERAMIC 0.1U K...
Page 32
N7TK Ref. No. Part No. Description Ref. No. Part No. Description R1509 4012562719 MT-GLAZE 75 JA 1/10W R7203 4012565611 MT-GLAZE 47 JA 1/10W R1511 4012562719 MT-GLAZE 75 JA 1/10W R7204 4012565611 MT-GLAZE 47 JA 1/10W R1513 4012565611 MT-GLAZE 47 JA 1/10W R7205 4012565611 MT-GLAZE...
Page 33
N7TK Ref. No. Part No. Description Ref. No. Part No. Description R8016 4012558712 MT-GLAZE 22 JA 1/10W L001 6520030664 INDUCTOR,33UH, M R8017 4012558712 MT-GLAZE 22 JA 1/10W L002 6520030664 INDUCTOR,33UH, M R8018 4012558712 MT-GLAZE 22 JA 1/10W L003 6520030664 INDUCTOR,33UH, M R8019 4012556510 MT-GLAZE...
N: Metalized carbon SERVICE mark. 7. Parts specified with "X" are not installed in this model. Kind (M.carbon) S: Oxied metalized LCD-32K40-00 8. Parts specified with "J" are just jumper wires. REF. NO. Rated wattage (1/2W) W: Wire wounding C: Solid...
