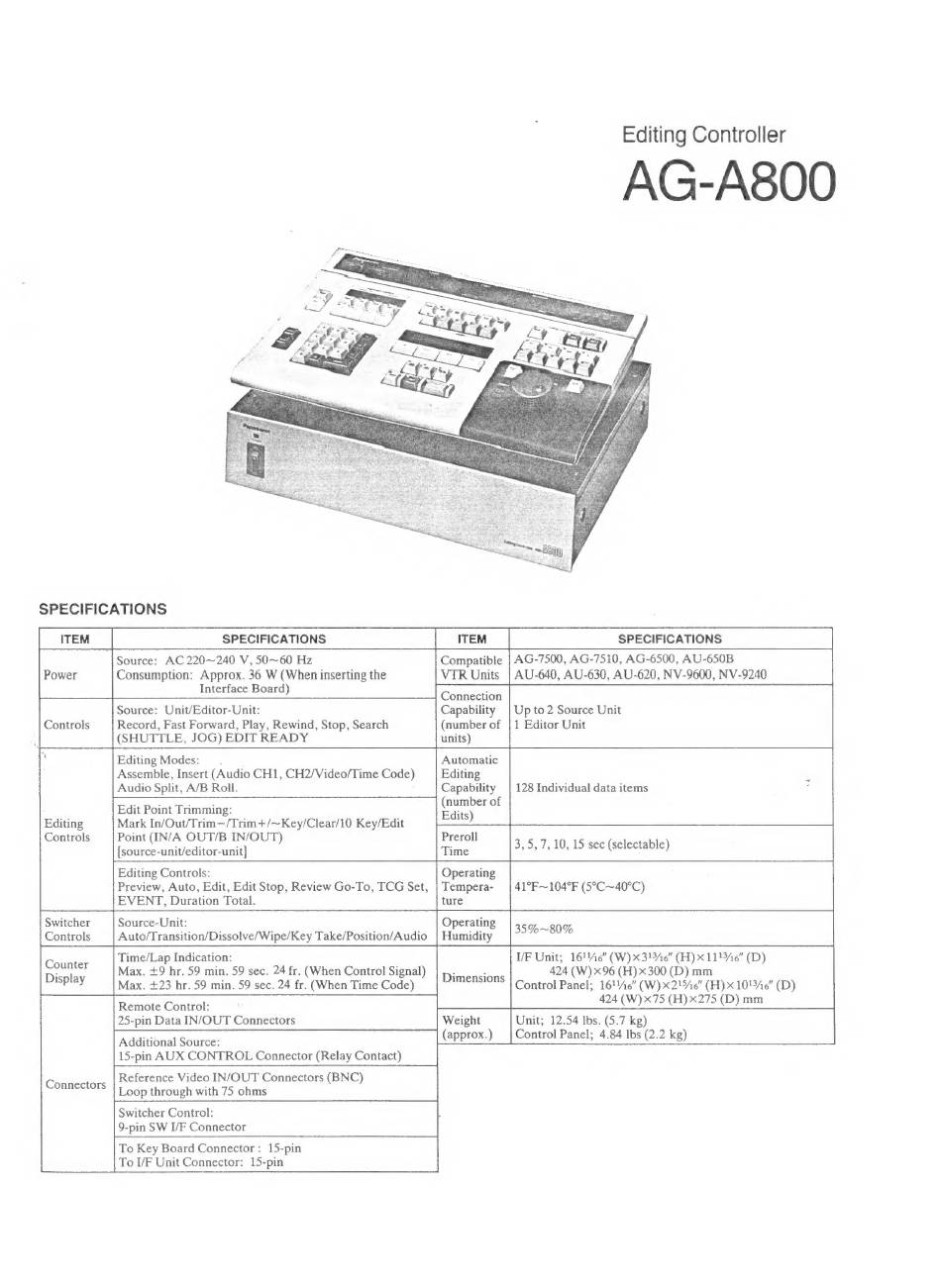

Editing Controller
AG-A800
SPECIFICATIONS
SPECIFICATIONS
Source:
AC 220~240 V, 50~60 Hz
Consumption: Approx. 36 W (When inserting the
Interface Board)
Source: Unit/Editor-Unit:
Record, Fast Forward, Play, Rewind, Stop, Search
(SHUTTLE,
JOG) EDIT READY
Editing Modes:
ITEM
SPECIFICATIONS
Compatible | AG-7500, AG-7510, AG-6500, AU-650B
VTR Units
| AU-640, AU-630, AU-620, NV-9600, NV-9240
Connection
Capability
| Up to 2 Source Unit
(number of
|1 Editor Unit
units)
Controls
Automatic
Assemble, Insert (Audio CH1, CH2/Video/Time Code)
Editing
Audio Split, A/B Roll.
Capability | 128 Individual data items
Edit Point Trimming:
ri OF
Editing
Mark In/Out/Trim—/Trim+/~Key/Clear/10 Key/Edit
Controls
Point (IN/A OUT/B IN/OUT)
Preroll
{source-unit/editor-unit]
3, 5,7, 10, 15 sec (selectable)
Editing Controls:
Operating
Preview, Auto, Edit, Edit Stop, Review Go-To, TCG Set, | Tempera-
| 41°F~104°F (S°C~40°C)
EVENT, Duration Total.
ture
Switcher
Source-Unit:
Operating
Controls
Auto/Transition/Dissolve/Wipe/Key Take/Position/Audio
| Humidity
Time/Lap Indication:
Max. +9 hr. 59 min. 59 sec. 24 fr. (When Control Signal)
Max. +23 hr. 59 min. 59 sec. 24 fr. (When Time Code)
Remote Control:
25-pin Data IN/OUT Connectors
Additional Source:
15-pin AUX CONTROL Connector (Relay Contact)
424 (W) x75 (H) X275 (D) mm
Reference Video IN/OUT Connectors (BNC)
Weight
Unit; 12.54 Ibs. (5.7 kg)
(approx.)
| Control Panel; 4.84 Ibs (2.2 kg)
Loop through with 75 ohms
Switcher Control:
:
9-pin SW I/F Connector
To Key Board Connector:
15-pin
To I/F Unit Connector:
15-pin
35% ~80%
VF Unit; 161%6" (W)x3'%6" (H) x 11136" (D)
424 (W)x96 (H)x300 (D) mm
Control Panel; 1611/6" (W)x21%i6" (H)X10!%/6" (D)
Dimensions
Connectors
