Sealey ECS650.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
Keep in dry area
protect from rain
1. SAFETY
ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
9
electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products.
1.1. Electrical safety information. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the
correct fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately by a
8
qualified electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualified electrician.
WARNING! Modern vehicles contain extensive electronic systems.
‰
You are required to check with the vehicle Manufacturer, for any specific instructions regarding the use of this type of equipment on
each vehicle. No liability will be accepted for damage / injury, where this product is not used in accordance with all instructions.
▲ DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS
REASON, IT IS VERY IMPORTANT TO READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY EACH TIME YOU USE THE CHARGING
EQUIPMENT. Follow these instructions and those published by the battery manufacturer and the maker of any equipment you intend to
use in the vicinity of the battery. Remember to review warning marks on all products and on engines.
1.2. PERSONAL PRECAUTIONS
When working with or near a lead-acid battery ensure there is another person within hearing range and close enough to come to your
9
aid, should a problem arise.
Wear safety eye protection and protective clothing. Avoid touching eyes while working near battery.
9
Have fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
9
Wash immediately with soap and water if battery acid contacts skin or clothing. If acid enters eye, flush eye immediately with cool,
9
clean running water for at least 15 minutes and seek immediate medical attention.
Remove personal metallic items such as rings, bracelets, necklaces and watches. A lead-acid battery can produce a short-circuit
9
current high enough to weld a ring or the like to metal, which may cause severe burns.
Ensure hands and clothing, including belts, are clear of fan blades and other moving or hot parts of the engine. Remove ties and contain
9
long hair.
DO NOT smoke or allow a spark or flame in the vicinity of the battery or the engine.
8
1.3. GENERAL SAFETY INSTRUCTIONS
Familiarise yourself with the applications, limitations and potential hazards relating to the starter/charger. Also refer to the vehicle
9
manufacturer's handbook. IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
Ensure the starter/charger is in good order and condition before use. If in any doubt, do not use the unit and contact an electrician.
9
Only use genuine parts. To use unapproved parts may be dangerous and will invalidate your warranty.
9
© Jack Sealey Limited

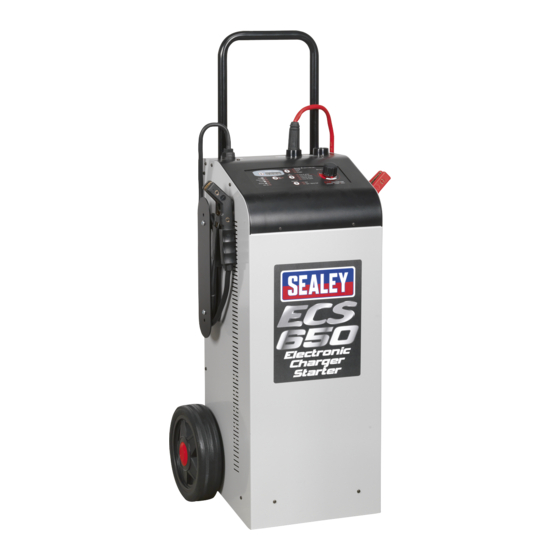

ELECTRONIC STARTER/CHARGER/MAINTAINER
650/100A 12/24V
MODEL NO:
Wear protective Electrical
gloves shock
hazard
Original Language Version
ECS650.V2
Warning
Warning:
corrosive explosive
material
substance
Use in well
Keep away
ventilated areas
from sources of
ignition
ECS650.V2 Issue 2 (3) 16/01/24
