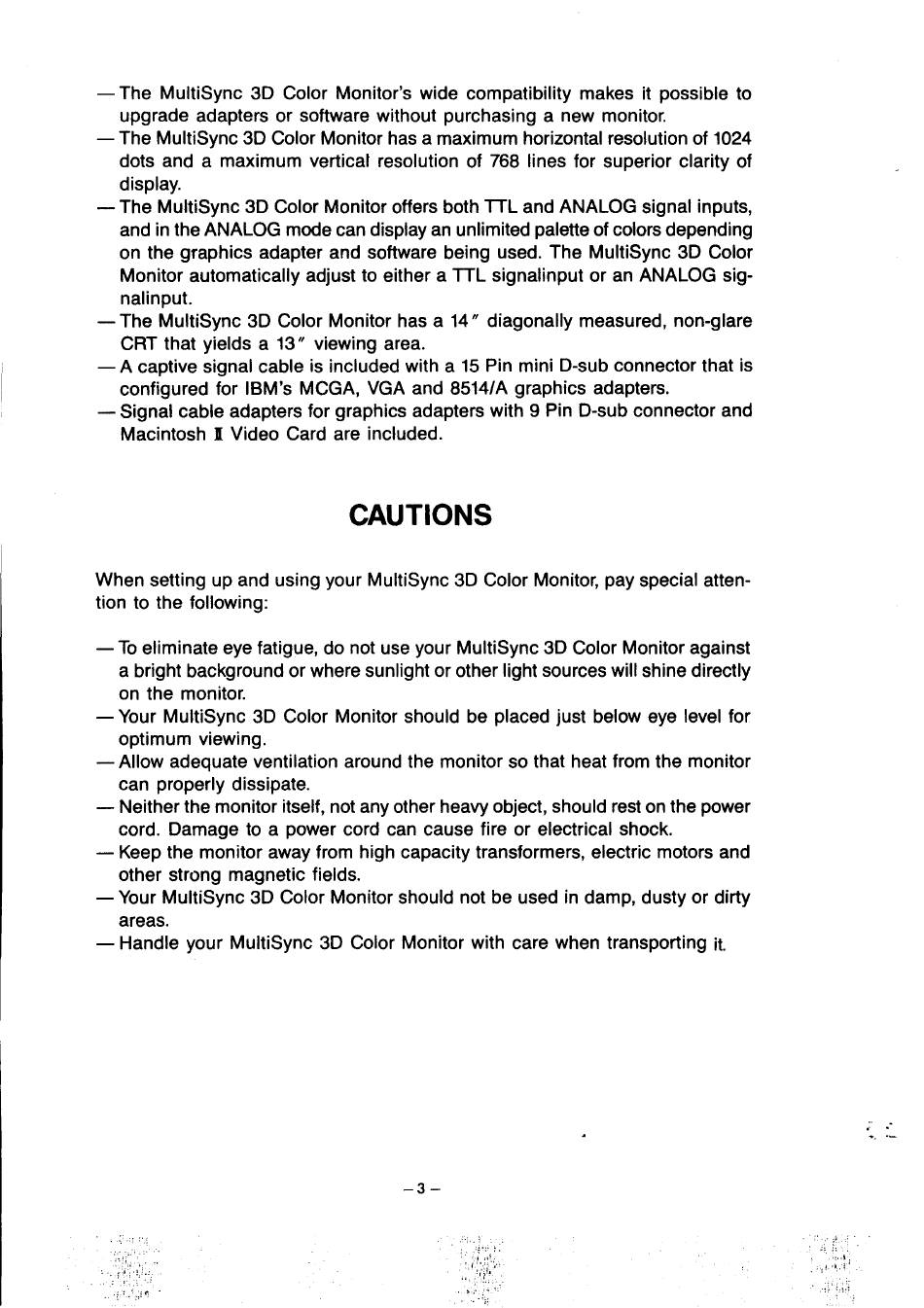

NEC MultiSync 3D JC-1404HME Service Manual page 4

-The MultiSync 30 Color Monitor's wide compatibility makes it possible to
upgrade adapters or software without purchasing a new monitor.
- The MultiSync 30 Color Monitor has a maximum horizontal resolution of 1024
dots and a maximum vertical resolution of 768 lines for superior clarity of
display.
- The MultiSync 30 Color Monitor offers both TTL and ANALOG signal inputs,
and in the ANALOG mode can display an unlimited palette of colors depending
on the graphics adapter and software being used. The MultiSync 3D Color
Monitor automatically adjust to either a TTL signalinput or an ANALOG sig-
nalinput.
- The MultiSync 3D Color Monitor has a 14" diagonally measured, non-glare
CRT that yields a 13" viewing area.
-A captive signal cable is included with a 15 Pin mini D-sub connector that is
configured for IBM's MCGA, VGA and 8514/A graphics adapters.
- Signal cable adapters for graphics adapters with 9 Pin D-sub connector and
Macintosh I Video Card are included.
CAUTIONS
When setting up and using your MultiSync 3D Color Monitor, pay special atten-
tion to the following:
- To eliminate eye fatigue, do not use your MultiSync 3D Color Monitor against
a bright background or where sunlight or other light sources will shine directly
on the monitor.
- Your MultiSync 3D Color Monitor should be placed just below eye level for
optimum viewing.
- Allow adequate ventilation around the monitor so that heat from the monitor
can properly dissipate.
- Neither the monitor itself, not any other heavy object, should rest on the power
cord. Damage to a power cord can cause fire or electrical shock.
- Keep the monitor away from high capacity transformers, electric motors and
other strong magnetic fields.
- Your MultiSync 3D Color Monitor should not be used in damp, dusty or dirty
areas.
- Handle your MultiSync 3D Color Monitor with care when transporting it.
-3-
