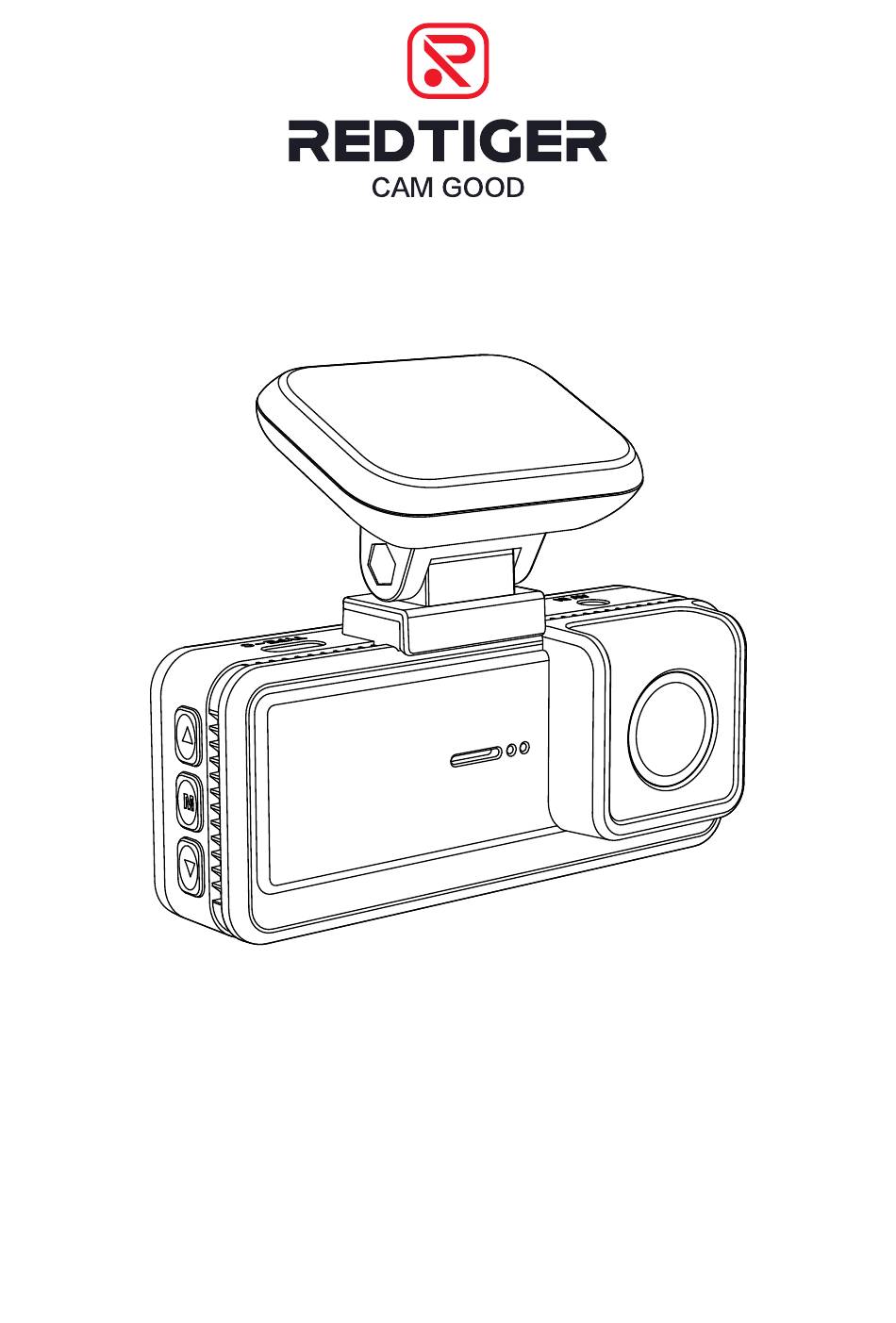

- Page 1 V1.0 User Manual redtigercam.com The information in this manual is subject to change without notice.
-
Page 2: Table Of Contents
Content Notice ......Product Specifications ..... Package Contents . -
Page 3: Notice
Notice • Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. • Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system. -
Page 4: Product Specifications
Product Specifications Item Name F8 Dash Cam Video Format Screen Size 3.18" IPS Touch Screen Photo Format JPEG Front 2160P @30fps / Recording Front 1440P @60fps Lens F1.5 Resolution Front 1080P @120fps Operating -4°F~158°F Input DC 5V-2.5A Temperature Warranty Micro SD card... -
Page 5: Package Contents
Package Contents •F8 4K Dash cam •GPS Mount •Power Supply Cable •32GB Memory Card •Electrostatic with Car Charger Sticker *2 •3M Adhesive •User Manual •Tool •Cable Clips*5... -
Page 6: Appearance
Appearance 3M Adhesive Type-C Port Rear Cam Slot Power Button Front Camera Len Memory Card Slot Status Light Blue light means power on, red light flashing GPS Mount means recording Up Button Menu Button Down Button Touch Screen Reset Button... -
Page 7: Buttons And Functions
Buttons and Functions Power Button Recording Mode: • Short press-to Switch screen • Long press-to Turn off the Camera Setup Mode: • Short press-to Return to the previous screen Playback Mode: • Short press-to Return to the previous screen Menu Button Recording Mode: •... - Page 8 Down Button Recording Mode: • Short press-to Take a snapshot • Long press-to Stop recording Setup Mode: • Short press-to Select the next function Playback Mode: • Short press-to Select the next file • Short press-to Fast forward while video is being played...
-
Page 9: Touch Screen Function
Touch Screen Function • Video Mode Swipe the screen left or right to switch the screen to Front camera > Screensaver. You can manually lock the video by clicking the icon in the upper right corner of the screen and a small white lock appears in the middle of the screen You can manually click the icon at the top of the screen to... - Page 10 You can manually click the icon at the top of the screen to choose whether to turn on Wi-Fi. You can manually click the icon at the top of the screen to choose whether to turn on the key sound . You can click the icon in the lower right corner of the screen to take a photo.
- Page 11 • Setting Mode Swipe up and down on the menu interface to turn pages. Click the icon , to select the icons in order in the menu interface. Click on any function icon to touch the screen.
-
Page 12: User Interface Overview
User Interface Overview • Recording Mode Icon Description G-Sensor sensitivity Loop recording in 1 min/3 mins/5 mins per file Whether to connect the hardwired kit and set up parking monitoring Fatigue driving function is on GPS status Wi-Fi status... - Page 13 Icon Description Camera system sound status Voice recording status Whether the rear camera is connected Recording status and recording time Emergency recording is on Date and time of the camera Recording resolution Emergency Video Lock Enter the menu Photograph function Power Indicator Red led blinking: Recording Video /No Red led: Not Recording Video...
- Page 14 • Playback Mode Press M button to enter Playback mode. Press Up or Down button to select the folder you want to play, press M button to enter. Press M button to watch the recorded video. Long press M button 3s to edit your records.
-
Page 15: Function Overview
Function Overview Short press M button to enter settings menu, where you can adjust various functions and parameters of the entire machine. Icon Function Option/Description 2160P @30fps/1440P @60fps/1080P Resolution @120fps Audio Sound Recording Date Stamp ON/OFF Loop recording 1/3/5mins G-sensor Off/Low/Medium/High A Reminder Will be Made During Fatigue Driving... - Page 16 Vertical Flip Your Rear View Rear Cam Flip * Need to connect rear camera Horizontal Flip Your Front View Mirror Flip * Need to connect rear camera A QR Code for Redtiger app Wi-Fi ON/OFF Language Choose Your Prefered Language Time Format...
- Page 17 Icon Function Option/Description Parking Mode Please connect the ACC hardwire kit Format Reminder Reminder to Clear Data Format Format SD card. All data will be deleted Card Speed Card Speed Detection Default Setting Reset All Settings Version Software Version Help Center Scan the QR code to contact us Note: •...
-
Page 18: App And Wi-Fi Function
2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and password will appear on the screen. 3. Open Redtiger APP> jump to the Wi-Fi connection interface according to the steps> find the Wi-Fi of the dash cam> enter the password to connect. - Page 19 • App home Native Wi-Fi Name Turn on/off recorded sound GPS information Video play window Mirror Flip Rotate the video screen left and right Dash cam file Pause/start recording Take pictures Dash cam settings...
-
Page 20: How To Play Using A Computer
• OTA(Over the air) Update Note: Please update the Redtiger APP to the latest version to use this function. 1. Disconnect the mobile phone and dash cam Wi-Fi. Connect the phone to lan for 5 seconds, then disconnect. Finally, connect the dash cam Wi-Fi. - Page 21 Video play window (Front) Map and track display Play control panel Speed and driving state indication Play list Note: When you find the desired video file, hold down the left mouse button and drag and drop it onto the video player to play it.
-
Page 22: Installation
Please follow the instructions below for the first-time installation of the redtiger dash cam. • Insert Memory Card Insert the Memory Card into the dash cam, taking care that the gold contacts are facing towards the screen of the dash cam. - Page 23 • Front camera installation Peel off the electrostatic sticker on the cellophane and transfer it to where you want to stick it. Attach the front camera to the electrostatic sticker and press to make it firmer.
- Page 24 • Wire Layout In The Vehicle The car charger is connected to the cigar socket. Connect the other end of the car charger to the dash cam. Use the crowbar to run the power cable along the front windshield and the roof, and hide the cable down the A-pillar, so as not to block the driver's sight and cause danger.
-
Page 25: Trouble Shooting
Trouble Shooting •Why is there no GPS signal? 1. Clean and reconnect the probe on the main unit and bracket. Check for any interference in your car, like metal film on the windshield, radio antenna, or radar detector. 2. Move your car to an open area. 3. - Page 26 accessories. 3. Reset the machine through the small hole at the bottom of the driving recorder. 4. If none of the above can solve the problem, please try to power on the USB cable to confirm whether the host can be used normally.
-
Page 27: Customer Service Center
Customer Service Center If you have any problems using or installing the dash cam, please contact us with any questions. Help Center WhatsApp redtiger_dashcam For more information: After sales: help@redtigercam.com Business Cooperation: contact@redtigercam.com Customer Phone Service: +1 888 966 8028 (US) - Page 28 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential...
- Page 29 equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. ISED Canada Statement: The device for the band 5745-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.
- Page 30 radiations du Canada limites d'exposition pour un environnement incontrôlé noncé d'exposition RF Pour maintenir le respect des guides d'exposition RF d'IC, cquipment doit être.installé et actionné avec une distance minimale de 20cm le radiateur de votre corps. Cet appareil et ses antennes ne doivent pas être co-localisé...
- Page 31 Check us out here. Product and service are the foundation of Redtiger. Instagram: @redtiger_dashcam Facebook: Redtiger Dash Cam www.redtigercam.com...
