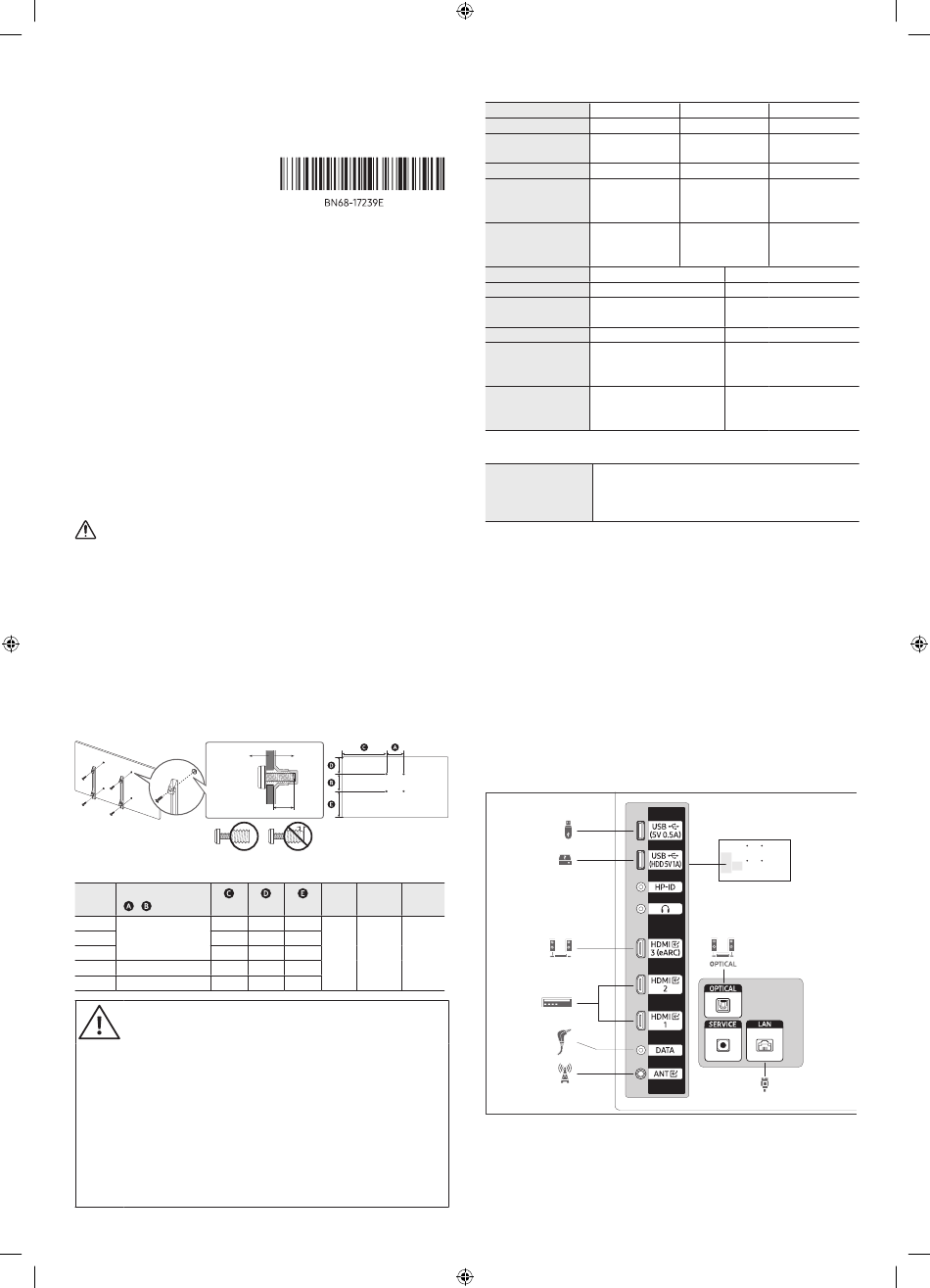

Samsung HG43CU700 Series Quick Start Manual

ENG
Quick Setup Guide
To register this product please visit www.samsung.com
1. List of Parts
The provided accessories may vary depending on the model.
• Remote Control & Batteries (AAA x 2)
• Power Cord
• Warranty Card / Quick Setup Guide / Regulatory Guide (Not available in some
locations)
• Data Cable (Not available in some locations)
• Antenna adapter (Not available in some locations)
2. Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall, perpendicular to the floor. When attaching to
other building materials, please contact your nearest dealer. If installing on a ceiling or
slanted wall, TV may fall and result in severe personal injury.
• The wall mount kit is not supplied, but sold separately.
• Standard dimensions for wall mount kits are shown in the table below.
• Samsung wall mount kits contain a detailed installation manual. All parts necessary
for assembly are provided.
Do not install your wall mount kit while your TV is turned on. This may result in
personal injury from electric shock.
• Do not use screws that are longer than the standard dimension or do not comply
with the VESA standard screw specifications. Screws that are too long may cause
damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications,
the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the
product to fall, leading to personal injury. Samsung is not liable for these kinds of
accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or
non-specified wall mount is used or when the consumer fails to follow the product
installation instructions.
• Do not mount the TV at more than a 15 degree tilt.
• Always have two people mount the TV onto a wall.
• The Product shape may differ depending on the model.
TV size in VESA screw hole specs
inches ( * ) in millimetres
43
50 200 x 200
55
65 400 x 300
75 400 x 400
THIS PRODUCT SHOULD BE MOUNTED OR ANCHORED TO A WALL
OR OTHER SUITABLE SURFACE TO AVOID SERIOUS INJURY.
To help avoid any serious or fatal injury, we strongly recommend that this product be
permanently mounted or anchored to the wall or other suitable surface. Anchoring
devices are not included since different surface materials require different attachments.
Please seek professional advice if you are in doubt about mounting this product or what
anchoring device to use.
Serious injury or death can be caused by toppling furniture and TVs.
Help prevent tip-over:
• Mount or anchor this product to a wall or other suitable surface.
• Check anchors regularly.
• Avoid placing this TV on top of furniture unless both the furniture and the TV are anchored.
• Use drawer locks to prevent children climbing.
-00
Wall mount TV
bracket
C
Standard
C (mm)
Screw
(mm) (mm) (mm)
379.3 90.4 262.0
455.7 148.7 292.3
512.7 205.2 298.9 20-22 M8
522.5 225.1 303.0
633.9 230.9 324.2
3. Specifications
Model Name
Display Resolution
Screen Size
Measured Diagonally
Sound (Output)
Dimensions (W x H x D)
Body
With stand
Weight
Without Stand
With Stand
Model Name
Display Resolution
Screen Size
Measured Diagonally
Sound (Output)
Dimensions (W x H x D)
Body
With stand
Weight
Without Stand
With Stand
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
• This device is a Class B digital apparatus.
• Design and specifications are subject to change without prior notice.
• For information about the power supply, and more information about power
consumption, refer to the information on the label attached to the product.
– On most models, the label is attached to the back of the TV. (On some models,
the label is inside the cover terminal.)
• To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)
* Shielded Twisted Pair
• Your TV and its accessories may look different than the product images presented in
this manual, depending on the model.
• All drawings are not necessarily to scale. Some dimensions are subject to change
without prior notice. Refer to the dimensions before installing your TV. Not
responsible for typographical or printed errors.
• Download the user manual from the following Samsung Website for further details.
http://www.samsung.com
4. The Connection Panel
USB
HDD
Quantity
ARC
4
HDMI
DATA
ANT IN
• The colour and shape of the product may differ depending on the model or geographical area.
HG43CU700** HG50CU700**
3840 x 2160 3840 x 2160
108 cm 125 cm
20 W 20 W
96.39 x 55.89 x 5.96 cm 111.68 x 64.42 x 5.99 cm
96.39 x 62.78 x 19.25 cm 111.68 x 71.91 x 25.02 cm
8.1 kg 11.4 kg
8.3 kg 11.6 kg
HG65CU700** HG75CU700**
3840 x 2160 3840 x 2160
163 cm
20 W
144.94 x 83.03 x 5.99 cm 167.32 x 95.82 x 5.99 cm
144.94 x 90.66 x 28.21 cm 167.32 x 104.79 x 34.11 cm
20.6 kg
20.9 kg
50 °F to 104 °F (10 °C to 40 °C)
10 % to 80 %, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5 % to 95 %, non-condensing
BACK OF TELEVISION
LAN
HG55CU700**
3840 x 2160
138 cm
20 W
123.05 x 70.72 x 5.99 cm
123.05 x 78.33 x 25.02 cm
13.9 kg
14.2 kg
189 cm
20 W
30.4 kg
30.8 kg
