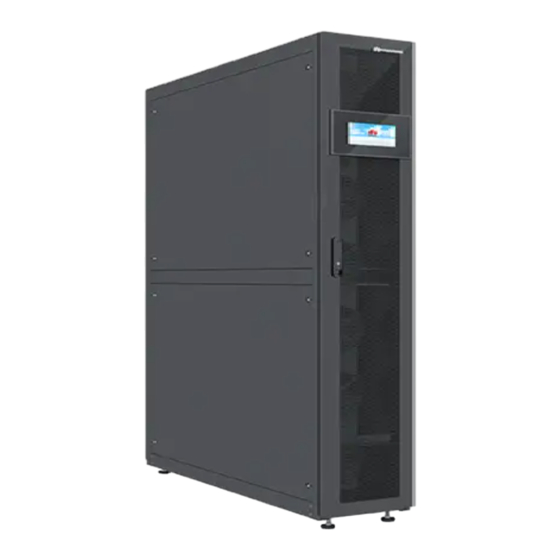

Huawei NetCol5000-A035 Quick Manual

In-row air cooled smart cooling product

Hide thumbs Also See for NetCol5000-A035:

User manual (223 pages)

Quick manual (28 pages)

User manual (244 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

NetCol5000-A(025, 035) In-row Air Cooled

Smart Cooling Product

Quick Guide (300 mm Width)

Issue: 08

Part Number: 31500CQE

Date: 2023-03-30

Overview

Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

Category Product Model

NetCol5000-A035

Indoor

Unit

NetCol5000-A025

Summary of Contents for Huawei NetCol5000-A035

Page 1 Outdoor Unit 1156 (703) x 1356 (1217) x 1094 NetCol500-A080 (52273541-005, 1107 (655) x 2186 (2047) x 1094 52273541-010) NetCol500-A120 (52273755-002, 1107 (655) x 1356 (1217) x 2189 52273755-004) Copyright © Huawei Digital Power Technologies Co., Ltd. 2023. All rights reserved.
Page 2 Onsite Preparations Gas pipe requirements when the NetCol5000-A035 and NetCol500-A080 Man- Refrigerant are used together: outer diameter of 7/8 inch (22.22 mm) ; thickness of datory pipe 1.2 mm; operating pressure ≥ 4.5 MPa Gas pipe requirements for other models: outer diameter of 3/4 inch (19.05 mm);...
Page 3 Do not use inferior refrigerant. Otherwise, Huawei has no responsibility for the damage caused by the inferior refrigerant. Refrigerant authenticity verification method: 1. Dial the hotline of the refrigerant producer to confirm its reliability. 2. Put the refrigerant indoor for 24 hours. Then use a thermometer to measure the external surface temperature of the refrigerant cylinder (figure 1) , and connect a pressure gauge to the cylinder to measure its internal pressure (figure 2) .
Page 4: Checking The Nitrogen Pressure
Discharge pipe needle valve 1. If they do not exist, contact Huawei technical support. 2. Connect the hose to the pressure gauge, and tighten all pressure gauge valves. 3. Remove the needle valve bonnet, and connect the other end of the hose to the needle valve.
Page 5 Removing Transport Fasteners Removing the Pallet from the Compressor Combining Cabinets Leveling a Cabinet...
Page 6: Installing The Outdoor Unit
Securing to the Floor or Base Installing the Outdoor Unit • The protective cardboard for fins must be removed after installation to protect people from injuries. • If the space does not meet the requirements of the recommended layout, you can use any of the user manual layouts (applicable only to NetCol500-A060).
Page 7 Horizontal Installation b. Install the four legs. a. Remove the angle brackets. c. Secure the legs to the concrete base. Unit: mm Distance Distance between the between the centers of two centers of Model platforms at two platforms the length at the length side (W) side (D)
Page 8: Connecting The Refrigerant Pipe
(Optional) Installing an Air Baffle When the NetCol5000-A025 is used with the NetCol500-A060, if the outdoor unit cannot be installed against a wall or the local outdoor temperature is below –15°C, place an air baffle at the air intake side of the side-mounted outdoor unit. Connecting the Refrigerant Pipe Laying the Engineering Pipe 1.
Page 9 Discharging Nitrogen Exhaust nitrogen from three needle valves for the indoor unit and one needle valve for the outdoor unit. When exhausting nitrogen, do not remove the valve plug in case of losing or damaging it. Welding the Indoor Unit Ports Take protective measures, such as spreading a piece of wet cloth, around the welding position, to avoid burning the bottom panel, top panel, side panel, internal components, needle valves, other pipes, thermal insulation foam, power cables, labels, and tags.
Page 10: Connecting Water Pipes
Welding the Outdoor Unit Ports • When the outdoor is installed Thermal insulation foam vertically, the gas pipe should be connected to the top port and liquid pipe should be connected to the bottom port. • A reducing pipe is required when welding 3/4 inch copper pipe to 5/8...
Page 11 Top pipe routing Bottom pipe routing Connecting the Drainpipe Connection method The external drainpipe must have a downward gradient (> 1:100) along the drainage direction, and no accumulated water is allowed.
Page 12: Installing Cables
Top pipe routing Bottom pipe routing Installing Cables • If there is only one power supply, connect the power cable to the main power route. The equipment must be grounded as required by local electrical specifications. • Before connecting cables, remove the power cable protective cover. •...
Page 13 Connecting the Indoor Unit Power Cable and Equipotential Ground Cable Top cable routing Single power supply Dual power supplies Equipotential ground ports Equipotential ground ports Bottom cable routing Single power supply Dual power supplies Equipotential ground ports Equipotential ground ports...
Page 14 Connecting the Power Cable and the (Optional) Signal Cable Between Indoor and Outdoor Units Connecting the Power Cables to the Outdoor Units 1. Outdoor units of different models have Power cable hole different electric control box layout but (on the top) the same port silk screen.
Page 15 Connecting T/H Sensors Outside Cabinets 1. Connect the T/H sensor cables. The T/H sensors in the aisles should be installed on the door frame of IT cabinets, and 1.5 m (33U) away from the ground. After the sensor is secured, set the sensor address according to the following table.
Page 16 (Optional) Connecting the Teamwork Network Cable Ports on the Main Control Module Name Description Running indicator Alarm indicator FE_1 port FE teamwork control CAN_IN port CAN teamwork and RS485 monitoring cascading RS485/12V port Connecting to a T/H sensor USB port Connecting to a WiFi module or USB flash drive Button for restoring factory settings SW button...
Page 17 b) Connect teamwork and monitoring communications cables. The teamwork modes include FE teamwork and CAN teamwork. FE teamwork is recommended. FE teamwork support point-to-point communication, long-distance cascading, and group upgrade. If the number of units in a group is greater than 16, FE teamwork needs to be implemented by group.
Page 18 FE Teamwork + RS485 Monitoring Networking Teamwork Monitoring Protocol MAC_CAN Modbus-RTU It takes 3 x n seconds to collect data from n units. If the time required for the host to collect data from all units does not meet the performance requirements, group the units.
Page 19 CAN Teamwork + FE Monitoring Networking Teamwork Monitoring Protocol Modbus-TCP/SNMP One teamwork network supports a maximum of 32 units. On the Teamwork Settings screen of the Description display modules of the first and last units, set Enable teamwork CAN resistor to Yes. If the Modbus-TCP/SNMP protocol is used, customers can purchase the NetEco (a LAN switch is required) or a third-party NMS as the monitoring system.
Page 20: Post-Installation Check
Post-Installation Check Item Content Result Ports are connected properly. The pipeline has oil traps, inverted U-shaped traps, gradients (for the refrigerant pipes), and pipe supports. Pipes are Refrigerant securely connected. All pipes are wrapped with thermal insulation foam, □ Passed pipe and the insulation foam is intact.
Page 21 10.3 Precharging Refrigerant If the R410A refrigerant is provided by Huawei, put the refrigerant steel vessel upside down when charging in the refrigerant. If the refrigerant is not provided by Huawei, check with the refrigerant provider whether the steel vessel has a siphon. If the vessel has a siphon, put it upside up when charging in refrigerant.
Page 22 Amount of refrigerant to be charged for the NetCol5000-A025 Refrigerant Actual length of NetCol500- NetCol500- NetCol500- NetCol500- Charge Amount the one-way A040 A040 including A060/A120 A060/A120 pipe(L) a low including a low temperature temperature component component Standard charge 32.7 0 m < L ≤ 10 m amount (kg) Refrigerant 8.6 + (L - 10) x...
Page 23: System Power-On
Scenarios with low temperature components • On the left is the low pressure gauge. On the right is the high 1. Leak checking pressure gauge. 2. Vacuuming The specification of needle valves is 7/16-20UNF. • 3. Precharging refrigerant Vacuum pump Low-pressure needle valve Refrigerant...
Page 24 1. Turn on the indoor fan circuit breaker. 2. Switch on the smart cooling product switch in the upstream power distribution frame (PDF). 3. After the first power-on, the Quick Settings screen is displayed. On the screen, set the language, date format, date, time, time zone, temperature control intelligent monitoring board (open the electric control box of the outdoor unit and check whether there is a temperature control intelligent monitoring board on the box cover.
Page 25 Item (CAN network) Teamw Enable Teamw Number of Number of Rotatio Require System teamwo Networki running systems in ment group address rk CAN functio ng mode systems in this group function control resistor this group Enable 6 (2 standby) Enable Enable network Enable...
Page 26 • Ensure that no combustion-supporting materials (air or additives) enter the air conditioning system during commissioning. Huawei shall not be liable for any risks and losses thus incurred. • Except that the indoor fan item is mandatory, you can clear other commissioning items that are not required.
Page 27: Optional) Power-Off
2. Wizard startup flowchart Start Precautions Select commissioning items Commissioning interrupted (Handle Fail Indoor fan commissioning the fault by referring to the tips displayed on Success Fail the home screen. Electric heater commissioning Perform wizard startup Success after the handling.) Fail Humidifier commissioning Success...
Page 28: Checking After Commissioning
• During the support preparation process, pay attention to welding errors and ensure that the prepared supports are usable. Top view Huawei Digital Power Technologies Co., Ltd. Huawei Digital Power Antuoshan Headquarters Futian, Shenzhen 518043 People's Republic of China www.huawei.com...
