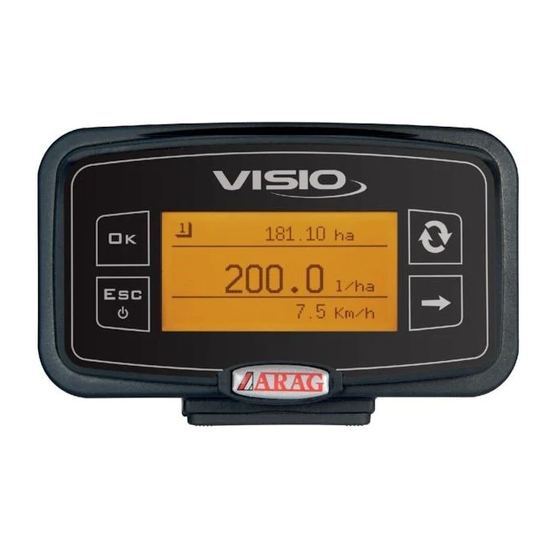

- Page 1 DOUBLE TANK LEVEL MONITOR 4670610 Software rel. 2.6.x INSTALLATION, USE AND MAINTENANCE...
- Page 2 This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for any future reference; ARAG reserves the right to modify product specifications and instructions at any moment and without notice...
-
Page 3: Table Of Contents
• CONTENTS 1 INTRODUCTION ......4 9.4 OPTIONS ............ 23 1.1 PRODUCT DESCRIPTION ......4 9.4.1 Language ..........23 2 INTENDED USE ....... 4 9.4.2 Units of measurement ......24 3 CONTENT OF THE PACKAGE ..4 9.4.2.1 Flowrate units of measurement ..24 4 PRECAUTIONS ........ -
Page 4: Introduction
• Do not clean equipment with direct water jets. • Comply with the specified power voltage (12 Vdc). • In case of voltaic arc welding, remove connectors from VISIO and disconnect the power cables. • Only use ARAG genuine spare parts and accessories. -
Page 5: Risks And Protections Before Assembly
WHEN ARC WELDING IS REQUIRED, MAKE SURE THAT EQUIPMENT POWER IS SWITCHED OFF; DISCONNECT POWER CABLES IF NEEDED. ARAG is not liable for damage to the system, persons, animals or property caused by VISIO wrong or unsuitable assembly. Failure to observe the above instructions automatically voids the warranty. -
Page 6: Assembly Diagrams
ASSEMBLY DIAGRAMS Counting abort Connection +12VDC (yellow wire) sensor 1 +12Vdc Counting abort Ground connection (green wire) sensor 2 Legend: 1) Power cable 2) Connection cable for double sensors 3) Flowmeter 4) Level sensor 1 5) Level sensor 2 Tank 1 If you wish to automatically calibrate (connected to level sensor 1), you will need to temporarily connect a flow meter to the input of sensor 2. -
Page 7: Controls In The Menu
CONTROLS IN THE MENU FIRST SWITCHING ON At first switching on, VISIO will run a guided procedure allowing user to set the device's basic settings. Press to scroll through items, to save and move on to next setting, or to go back to previous setting. WARNING: Before changing operating mode, make sure that all sensors / flowmeters are DISCONNECTED from the device. -
Page 8: Controls In The Menu
CONTROLS IN THE MENU In the following pages, according to the set operating mode, some menu items could slightly differ from the shown ones. SWITCHING ON A Press for 1 second; B Press the key a few times to view the various values in extended mode (on display central part). - Page 9 EDITING A VALUE A Press to move through digits; B Press a few times to edit the highlighted digit; Tank 1 reserve C Press to confirm. The display goes back 0050 l/min to previous page; Min Value D Press to exit page without confirming Max Value 1000 modification.
-
Page 10: Menu Structure
MENU STRUCTURE Alarms Tank 1/2 reserve Tank 1/2 max level Sensors Calib. flowmeter Man. calibration Tank 1 / 2 Tank name Capacity Tank zero value Calibration Man. calibration Auto calibration Load/Save Tank Save tank profile Load tank profile Save tank pr. Bravo Options Language Units of measurem. -
Page 11: Preliminary Setup For Use
PRELIMINARY SETUP FOR USE ALARMS Set the values above which you want the display to show an alarm message. 9.1.1 Tank 1 reserve alarm Set the reserve value below which the alarm is triggered. The tank alarm is activated whenever, during treatment, the tank level falls below the set value. -
Page 12: Tank 1 Max Level
9.1.2 Tank 1 max level Set the maximum tank capacity percentage value for the desired alarm activation threshold. Setup menu 1) Open tank max level menu ( > Alarms > Max level Alarms The display will show the current Tank 1 reserve Tank 1 max level setting below the selected item. -
Page 13: Sensors
SENSORS Setup menu > Setup menu 1) Open Sensors menu ( Alarms Sensors Sensors Tank 1 The menu items displayed below change according to the set operation mode: when more items are available, select the desired one and press to edit it. -
Page 14: Flowmeter Calibration
9.2.1 Flowmeter calibration Due to the different system configurations (tubes, valves, etc.) rate reading could not be correct. It is therefore recommended to perform a spraying test. If measured value is different from actual value, change the rate constant through an automatic calibration procedure or manually calculate the constant. -
Page 15: Tank 1 / Tank 2
TANK 1 / TANK 2 In this menu you can view and set some values related to the chosen tank. The Tank 1 Tank 2 settings for are equivalent. 9.3.1 Tank name Assign an identification name for each tank (Tank 1 / Tank 2). 1) Access the menu where you set the tank Setup menu >... - Page 16 Setup menu 1) Open tank zero value menu ( > Tank > Tank zero value Tank Capacity The display will show the current Tank zero value setting below the selected item. 4.000 mA Calibration Press to edit the selected menu item 2) Press : VISIO will save the level sensor zero value, which will be shown in...
-
Page 17: Calibration
If necessary, the tank profile can be saved and reimported into VISIO or compatible ARAG Computers (Bravo 400S / Bravo 400S LT / Delta80 / Delta80t / Delta70t) at a later time (e.g., when reusing the same tank). - Page 18 2) Start tank draining. Once the measurement container is full, stop draining and, in the display central part, enter the volume of the drained fluid with respect to the previous calibration Rec. cal. point point: 00010 A) Press to move through digits 1/200 B) Press a few times to edit the highlighted digit...
-
Page 19: Flowmeter Connection
9.3.4.2 Flowmeter connection Tank 1 In order to be able to calibrate correctly, the flowmeter must be connected to Sensor 2 ("ASSEMBLY DIAGRAMS" on page 6), in which case the Visio will Tank 1 recognise the input of Sensor 2 as a frequency signal.Once the calibration of has been carried out we will have to move the flowmeter from Sensor 1 and connect Tank 2 to Sensor 2. - Page 20 3) Start tank draining. The display will start showing the increasing measured fluid quantity value (central area of the display), the instant flowrate value (bottom right), Calibration... and the progressive number of measured 8.23 calibration points (bottom left). 1/200 751.7 If a sensor malfunction occurs, the message Check sensor! will be shown in the top part of the...
-
Page 21: Load/Save Tank
9.3.5 Load/Save tank The tank calibration can be saved or loaded onto a USB pen drive, in order to restore it if required, fix problems or set another VISIO with no need to repeat all calibration operations. Once installation is completed, check VISIO operation and it is recommended to save the tank configuration on a USB pen drive. - Page 22 Load tank profile Allows to select the tank configuration file saved in the USB pen drive and to set VISIO again. WARNING: By loading the TANK. TKL file contained in the USB pen drive onto the VISIO, the current Load/Save Tank tank profile will be lost.
-
Page 23: Options
OPTIONS 9.4.1 Language Set the desired language. Setup menu Open language setting menu ( > Options > Language Options Language The display will show the current setting English below the selected item. Units of measurem. Display contrast Press to edit language. 1) Select a language through Language Italiano... -
Page 24: Units Of Measurement
9.4.2 Units of measurement Set unit of measurement for the values detected by the device. 9.4.2.1 Flowrate units of measurement Open instant rate unit of measurement Setup menu > Options > Units setting menu ( of measurem. > Flowrate Units of measurem. Flowrate The display will show the current setting l/min... -
Page 25: Display Contrast
9.4.3 Display contrast Set display contrast. Setup menu > Open display contrast menu ( Options > Display contrast Options Language The display will show the current setting Units of measurem. below the selected item. Display contrast Press to edit the selected menu item. 1) Set a value through . -
Page 26: Alarm Tones
9.4.4 Alarm tones Enable/disable the alarm tones. Setup menu > Open alarm tones menu ( Options > Alarm tones Options Units of measurem. The display will show the current setting Display contrast below the selected item. Alarm tones Press to edit the selected menu item. 1) Set status through Alarm tones 2) Press... -
Page 27: Operating Mode
9.4.6 Operating mode Set required operating mode. Setup menu > Open operating mode menu ( Options > Operating mode Options Keytones The display will show the current setting Display settings Operating mode below the selected item. Level 2 tanks Press to change the operating mode. -
Page 28: Setup Management
SETUP MANAGEMENT VISIO settings can be loaded from or saved on a USB pen drive in order to reconfigure it if required, fix problems or set another VISIO with no need to repeat all manual operations. Once installation is completed, and VISIO operation has been checked, we recommend to save all settings onto a USB pen drive. - Page 29 Load setup Allows to select a configuration file saved in the USB pen drive and to set VISIO again. WARNING: By loading the SETUP.BIN file contained in the USB pen drive onto Setup management the VISIO, all current settings will be Save setup Load setup lost.
-
Page 30: Test
TEST This menu allows user to view some data and carry out an operation test of VISIO: - Firmware version: the display shows the firmware version installed. - Hardware version: the display shows the hardware version installed. - Battery voltage: the display shows the power voltage of the device. -
Page 31: Sensors Test
9.6.3 Sensors test Sensors test checks correct operation of the sensors connected to the device. Setup menu > Open sensors test menu ( Test Test > Sensors Display Keys Sensors Press to perform the test. The display will show the current sensor reading below the selected item. -
Page 32: Use
10 USE The main page shows the display divided into three horizontal parts: - top part: the value represents the amount of liquid Tank 2 volume present in the - central part: the value represents the amount of liquid Tank 1 volume present in the - bottom part: the value represents the amount of total... -
Page 33: Technical Data
11 TECHNICAL DATA 11.1 DEVICE TECHNICAL DATA Description VISIO Display Graphic LCD, 128 x 64 pixels, back-lighting Power supply voltage 9 ÷ 16 Vdc Protection against short-circuit • Protection against polarity inversion • Max. frequency 1,2 KHz Analog inputs 4 ÷ 20 mA Digital output - Max current 100 mA Maximum power input (with no... -
Page 34: Setup Menu
11.2 SETUP MENU Dato Min. Max. Default UoM Notes Flowmeter Calibration 10000 pls/l Alarm can be disabled by setting Tank reserve 1 / 2 1000 value to "OFF" Alarms Tank 1 / 2 max Alarm can be disabled by setting level value to "OFF"... -
Page 35: Maintenance / Diagnostics / Repairs
12 MAINTENANCE / DIAGNOSTICS / REPAIRS • Clean only with a soft wet cloth. • Do not use aggressive detergents or products. • Do not clean equipment with direct water jets. 12.1 TROUBLESHOOTING FAULT CAUSE REMEDY Check power cable No power supply connections VISIO is off or does not switch on... -
Page 36: Guarantee Terms
14 GUARANTEE TERMS ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are... - Page 37 CONFORMITY DECLARATION The declaration of conformity is available at www.aragnet.com, in the relevant section.
- Page 38 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the internet address www.aragnet.com. 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 www.aragnet.com...
