Summary of Contents for Eizo RadiForce LS580W
- Page 1 Instructions for Use 8 MP 58" LCD Monitor Important Please read the safety information and all information delivered with the product carefully to familiarize yourself with safe and effective usage.
-
Page 2: Legal Information
Use of EIZO products WARNING EIZO products may only be used for the applications described in the catalog and in the relevant tech- nical documentation. If products and components from other manufacturers are used, these must be recommended or approved by EIZO. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 3: Table Of Contents
8 Cleaning and check settings .................. 28 Cleaning........................ 28 Check the settings .................... 29 9 Troubleshooting ...................... 30 10 Technical specifications .................... 31 10.1 Monitor characteristics.................... 31 10.2 Power supply ...................... 31 10.3 Inputs/outputs ...................... 32 10.4 Controls and connectors.................. 32 RadiForce LS580W Instructions for Use, 08/2022... - Page 4 12.4 China RoHS (Restriction of Hazardous Substances) .......... 42 12.5 Declaration of compliance with India RoHS............ 43 12.6 Environmental protection .................. 44 12.7 Warranty ......................... 44 12.8 Additional devices.................... 44 12.9 Repairs ........................ 44 12.10 Contact ........................ 44 12.11 Trademarks...................... 45 Index .......................... 46 RadiForce LS580W Instructions for Use, 08/2022...
-
Page 5: Introduction
1.2 Intended use Intended purpose The RadiForce LS580W is intended for the display of still images and moving images from various commercially available devices commonly used in a medical environment, in partic- ular radiology. The monitor is optimized for the reproduction of grayscale X-ray images. The monitor is not suitable for mammography. -
Page 6: User Groups
Cleaning staff "Cleaning staff" refers to personnel responsible for cleaning medical devices. RadiForce LS580W Instructions for Use, 08/2022... -
Page 7: Safety Information
2 Safety information 2.1 General safety instructions Correct and safe operation of EIZO devices assume professional transport, storage, installa- tion, and connection, as well as careful operation and service. The devices may only be used for applications for which they are intended. - Page 8 Only use power cables approved for China. These power cables are identified by the labels "CCC" or "CQC". Observe the country-specific regulations Observe all regulations of the country in which the device is used. RadiForce LS580W Instructions for Use, 08/2022...
- Page 9 If the device is brought into a room with a higher or rising temperature, condensed water will form in and on the device. Do not switch on the device until the condensed water has evaporated. Other- wise, the device could be damaged. RadiForce LS580W Instructions for Use, 08/2022...
- Page 10 Note that monitors can fail as a result of aging, and that image properties such as brightness, con- trast,and color value can change. Do not touch the monitor screen Due to mechanical pressure or electrostatic discharges, touching the screen can result in brief distur- bances to the image. RadiForce LS580W Instructions for Use, 08/2022...
-
Page 11: Product-Specific Safety Instructions
Note Image quality To maintain constant image quality, EIZO recommends cleaning the monitor on a regular basis and checking image properties in accordance with all applicable local regulations. RadiForce LS580W Instructions for Use, 08/2022... -
Page 12: Description

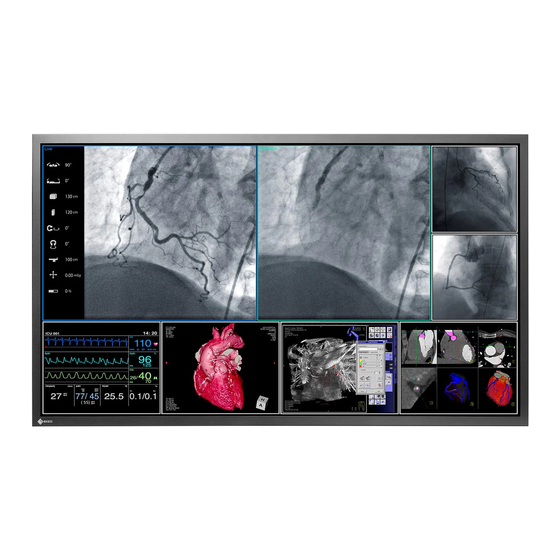

Note Keep the packaging material for subsequent transport of the device. Device The RadiForce LS580W is a LCD Monitor for mounting in a ceiling suspension unit or wall mount. Product Order No. -
Page 13: Monitor Performance Features
The LS580W is precalibrated at the factory. A total of five practice oriented Look Up Tables (LUTs) have been preset. This calibration data makes installation and maintenance easier. As such, the monitor can be easily adapted to the respective application and local lighting conditions. RadiForce LS580W Instructions for Use, 08/2022... -
Page 14: Medical Subsystem
Description 3.3 Medical subsystem 3.3 Medical subsystem The RadiForce LS580W can be part of a medical subsystem comprising the following com- ponents. Mandatory Devices • RadiForce LS580W • Suitable Large Monitor Manager, such as LMM56800 or LMM0802 for example. Accessories and Optional Devices •... -
Page 15: Setup And Installation
In the worst case, deposits are possible which become evident as dark spots in a white picture and result in deterioration of the luminance. • Protect the monitor from dust, for example through appropriate construction measures at the installation site. RadiForce LS580W Instructions for Use, 08/2022... -
Page 16: Unpacking The Monitor
• Make sure the monitor cannot tip over. • The monitor must be removed from the packaging and carried by at least two persons. • Wear appropriate protection to prevent injuries should the monitor fall. RadiForce LS580W Instructions for Use, 08/2022... - Page 17 1. Carefully open the packaging and remove the upper section of the carton as well as all accessible packing parts. 2. Lift the monitor from the base of the packing carton. Hold it on the side and underside. RadiForce LS580W Instructions for Use, 08/2022...
-
Page 18: Mounting The Monitor
• An installed stand must be sufficiently stable such that tilting up to 10° does not result in the monitor toppling. Note Recommended wall mount EIZO recommends the FWM6300 wall mount because it has been tested with the monitor and meets all necessary conditions. Order No.: 6GF69888AB02 Note... -
Page 19: Connecting
Device settings may only be adjusted by service personnel. NOTICE Disconnecting from line power Always set the power switch to "Off" before disconnecting the device from power. Other- wise the device could be destroyed. RadiForce LS580W Instructions for Use, 08/2022... - Page 20 • Externally connected cables can represent a trip hazard. Make sure that all incoming cables are safely routed. • If the device offers strain relief mechanisms for the cables, use them to prevent unin- tended loosening of connected cables. RadiForce LS580W Instructions for Use, 08/2022...
-
Page 21: Device Connectors
The monitor has two dual-link DVI connectors (A and B) 5 V connections The monitor has two 5 V outputs which can be used to supply external devices. Grounding screw The additional protective conductor is connected to the grounding screw. RadiForce LS580W Instructions for Use, 08/2022... - Page 22 • Only service can connect or disconnect a photometer. • Only photometers tested for calibrating the monitor may be connected to the serial inter- face. • A photometer must not be connected in the presence of the patient. RadiForce LS580W Instructions for Use, 08/2022...
-
Page 23: Description Of Connection Procedure
4. Secure appliance cable with cable ties to the lug to prevent unintentional loosening (marked with a circle). 5. Insert the DVI cable directly into the DVI socket. Only Dual Link DVI cables of a corre- spondingly high quality may be used. RadiForce LS580W Instructions for Use, 08/2022... - Page 24 Connecting 5.3 Description of connection procedure 6. If TDL3600-QL modules from EIZO are used: Connect the CAT cables to the DVI receiver module connectors and tighten the clamps. When connecting the cables, observe the color coding and customer-specific informa- tion.
-
Page 25: Commissioning
Use a screen saver with regularly changing images • Switch off the monitor when it is no longer needed. • The monitor has an energy saving mode: If the application in use supports the energy saving mode, activate it. RadiForce LS580W Instructions for Use, 08/2022... -
Page 26: Graphics Controller Settings
6.4 Check for pixel defects Pixel defects (small bright or dark dots) can occur in LCD monitors. During the manufactur- ing process, all monitors are checked for the permitted number of defective pixels. Defective pixels cannot be corrected. RadiForce LS580W Instructions for Use, 08/2022... -
Page 27: Operation
Measures in the event of a failure Note Device malfunction in operation If the device is not working properly, check the system for basic connection and operating errors before contacting service personnel. RadiForce LS580W Instructions for Use, 08/2022... -
Page 28: Cleaning And Check Settings
Perform 3% by weight Morning Mist (1:64) Terralin Protect 2% by vol. Mikrozid Sensitive Liquid, undi- luted Microbac Tissues Glucoprotamin Incidin Plus 8% by vol. Guanidine derivatives Lysoformin 2% by vol. Quaternary compounds Incidur spray, undiluted RadiForce LS580W Instructions for Use, 08/2022... -
Page 29: Check The Settings
The picture quality of the monitor changes due to aging of the LCD unit and the backlight. • Check the monitor settings at regular intervals in accordance with the local guidelines. • Correct the settings if necessary. RadiForce LS580W Instructions for Use, 08/2022... -
Page 30: Troubleshooting
Lamp warm-up period: Inform servicing department Setting is active, and the warm-up pe- riod has expired without the monitor having reached the stabilized lumi- nance level. Internal error Inform servicing department RadiForce LS580W Instructions for Use, 08/2022... -
Page 31: Technical Specifications
AC 100 ... 240 V (± 10%) Line frequency 50 ... 60 Hz (± 5%) Current consumption < 2.0 A @ 240 V, < 5.0 A @ 100 V Maximum power consumption 400 W Energy saving mode < 41 W RadiForce LS580W Instructions for Use, 08/2022... -
Page 32: Inputs/Outputs
In rear panel Degree of protection IP20 according to EN 60529 Connector panel On rear panel, under cover Weight 47 kg +/- 2 kg Dimensions (W x H x D) in mm 1319 x 776 x 146 RadiForce LS580W Instructions for Use, 08/2022... -
Page 33: Climatic Conditions
IEC/EN 60601-1 • CAN/CSA - C 22.2 No. 60601 • GB4943.1 (non-tropical, altitude < 2000 m), safety specification T8AL, 250 V Protection class Protection class I Degree of protection IP20 Medical device classification (EU) Class 1 RadiForce LS580W Instructions for Use, 08/2022... -
Page 34: Dimension Drawings
Dimension drawings 11.1 Monitor dimensions 11 Dimension drawings All dimensions in mm 11.1 Monitor dimensions Front view View from behind and to the side - with cover RadiForce LS580W Instructions for Use, 08/2022... -
Page 35: Appendix
Symbol for degree of protection according to DIN EN 60529. "On" symbol (voltage). "Off" symbol (voltage) Input for service calls. Symbol for "Comply with the instructions for use". Symbol for "Dangerous voltage". UK Responsible Person Swiss authorised representative (CH-REP) RadiForce LS580W Instructions for Use, 08/2022... -
Page 36: Information On Electromagnetic Compatibility (Emc)
IEC/EN 60601-1-2. Electromagnetic radiation The RadiForce LS580W is intended for use in the electromagnetic environments noted below. Customers and users of the RadiForce LS580W have to ensure that the device is used in such an environment. Radiation test Conformity... - Page 37 The RadiForce LS580W was tested with the following compliance levels in accordance with the test requirements for professional healthcare facilities, as established in IEC/EN 60610-1-2. Customers and users of the RadiForce LS580W have to ensure that the monitor is used in such an environment.
- Page 38 12.2 Information on electromagnetic compatibility (EMC) Electromagnetic interference immunity The RadiForce LS580W was tested with the following compliance levels in accordance with the test requirements for professional healthcare facilities, as established in IEC/EN 60601-1-2. Customers and users of the monitor have to ensure that the monitor is used in such an environment.
- Page 39 Recommended minimum distance between portable or mobile RF communications devices and the RadiForce LS580W The RadiForce LS580W is intended for use in an electromagnetic environment in which interference due to electromagnetic radiation is controlled. For other portable and mobile RF communication de- vices (transmitters), the recommended minimum distance between the portable and mobile RF com- munication devices (transmitters) and the monitor applies as listed below.
- Page 40 Recommended minimum distance between portable or mobile RF communications devices and the RadiForce LS580W The RadiForce LS580W is intended for use in an electromagnetic environment in which interference due to electromagnetic radiation is controlled. The customer or user of the monitor can help prevent electromagnetic interference by maintaining the recommended minimum distance between portable and mobile RF communications devices (transmitters) and the monitor.
-
Page 41: Fcc Declaration Of Conformity
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. •... -
Page 42: China Rohs (Restriction Of Hazardous Substances)
EFUP shall be done in accordance with the Product Maintenance Procedures. This product must not be disposed of as unsorted municipal waste, and must be col- lected separately and handled properly after decommissioning. RadiForce LS580W Instructions for Use, 08/2022... -
Page 43: Declaration Of Compliance With India Rohs
产品中有毒有害物质或元素的名称及含量 Table of hazardous substances’ name and concentration. 12.5 Declaration of compliance with India RoHS We, EIZO Corporation, hereby declare and guarantee that this product has been designed and manufactured in compliance with the E-Waste management rule 2016 which prohibit the inclusion of the following substances except for the exemptions listed in schedule II. -
Page 44: Environmental Protection
12.8 Additional devices Connected devices must meet the relevant safety standards. 12.9 Repairs Please contact the sales partner from whom you purchased the product. 12.10 Contact Support during installation and for technical questions www.eizo-or.com RadiForce LS580W Instructions for Use, 08/2022... -
Page 45: Trademarks
ENERGY STAR is a registered trademark of the United States Environmental Protection Agency in the United States and other countries. EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, Radi- Force, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corpora- tion in Japan and other countries. -
Page 46: Index
General safety instructions 7 Graphics card 26 Wall mount 18 Grounding 19 Warranty 44 Grounding screw 21 Image Sticking 25 Installation site 15 Large Monitor Manager 26 Luminance distribution 13 Order No. 12 Overheating 15 RadiForce LS580W Instructions for Use, 08/2022... - Page 48 Carl-Benz-Straße 3, 76761 Rülzheim, Germany Moosacherstrasse 6, Au, CH-8820 Wädenswil, Switzerland 1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire, SL5 9FE, UK Instructions for Use, 08/2022 RadiForce LS580W Copyright © 2022 EIZO GmbH. All rights reserved. 1050234-006...
