Summary of Contents for Cub Cadet XR5

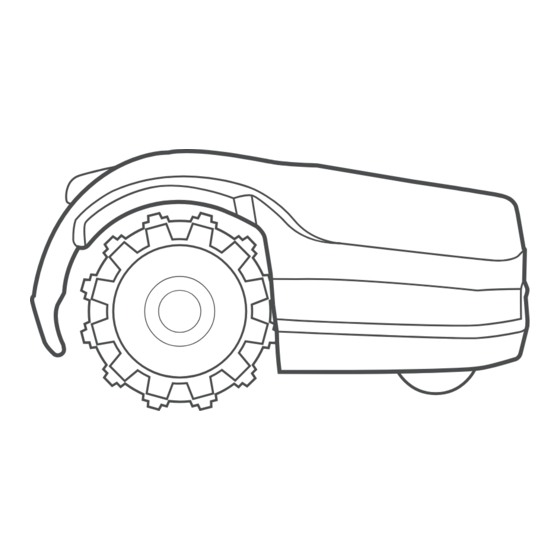

- Page 1 ADDITIONAL INFORMATION XR5 models Original user instructions...
-
Page 2: Additional Information
ADDITIONAL INFORMATION... -
Page 3: Maintenance And Cleaning
Maintenance and Cleaning Safety first 1. Switch off the robot 3 sec 2. Remove the disabling device before doing any maintenance... -
Page 4: Blade Replacement
Blade Replacement Periodically inspect the blades and replace them if damaged. It is recommended to replace the blades per the table below. Always replace all 4 blades, including the screws < 500 m² Every 8 - 10 weeks 500 m² - 1000 m² Every 6 - 8 weeks >... - Page 5 Cleaning The XR5 wheels and deck are self-cleaning. Accumulated grass, soil and debris will disperse when dry conditions return. Every 1-2 weeks, clean the robot underneath. Remove debris from the wheels...
- Page 6 Remove debris between the guard wires Use a soft brush to remove debris from the mowing deck...
- Page 7 Install the wheel cleaners During longer periods of increased wet conditions, mud and mulch can accumulate on wheels. It is recommended to attach the wheel cleaners accessories to assist in removing debris in these conditions. Watch the video STOP Left wheel Right wheel Insert each wheel cleaner into its respective slot...
- Page 8 Press wheel cleaner firmly into slot until it is securely in place...
- Page 9 Technical Spec XR5 1000 XR5 2000 Recommended lawn size [m Up to 1000 m Up to 2000 m Cutting width [cm] Cutting height [mm] 15-100 15-100 Sub-zones Separated zones Wire [m] Number of pegs Mowing motors DC Brushless DC Brushless...
- Page 10 Technical Spec XR5 3000 XR5 4000 Up to 3000 m Up to 4000 m Recommended lawn size [m Cutting width [cm] 15-100 15-100 Cutting height [mm] Sub-zones Separated zones Wire [m] Number of pegs DC Brushless DC Brushless Mowing motors...
-
Page 11: Replacement Parts
832 – 862 MHz 0.66 W LTE 28 703 – 748 MHz 0.15 W Replacement parts Part Number Part Description 753-11235 Battery for XR5 1000 / 2000 753-11260 Battery for XR5 3000 753-11261 Battery for XR5 4000 122-105-603 Blade Kit 1111-M6-1008 8-Blade Kit... - Page 12 18 Volt Battery operated Robotic Lawn Mower models: Cub Cadet XR5 1000, XR5 2000, XR5 3000, and XR5 4000 with the Base Station, with serial number dating year 2023 week 50 and onwards. Stanley Black & Decker Outdoor GmbH declares that the products identified above...
- Page 13 Stanley Black & Decker Outdoor GmbH • Wiesenstraße 9 • D-66129 Saarbrücken • Germany...
