Sealey WL483D.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
You must check the Power Adaptor to ensure that it is safe before using.
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An RCCB (Residual Current
Circuit Breaker) should be incorporated in the main distribution board.
We recommend that an RCD (Residual Current Device) is used with all electrical products. It is particularly important to use an RCD
with portable products that plug into an electrical supply not protected by an RCCB. If in doubt consult a qualified electrician. You
can obtain a Residual Current Device through your Sealey stockist. You must read and understand instructions concerning electrical
safety.
The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
person, using a Portable Appliance Tester (PAT), at least once a year.
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
Ensure that the insulation on all cables and the product itself is safe before connecting to the mains power supply.
9
Ensure that cables are always protected against short circuit and overload.
9
2. INTRODUCTION
Powerful 3 dioptre 120mm precision lens gives high quality magnifying capabilities. Features 48 SMD LEDs to illuminate the object
for improved detailed work. Multi-position swing arm allows simple positioning of lamp to suit task. Features a G-clamp base to secure
to a workbench or table. Ideal for electrical engineers, engravers and fine detail work. Supplied with BS power adaptor.
3. SPECIFICATION
Model No: ...................................................WL483D.V2
LED Type ............................................................... SMD
Supply: ....................... 12V DC Transformer 230V~50Hz
4. OPERATION
4.1. MOUNTING

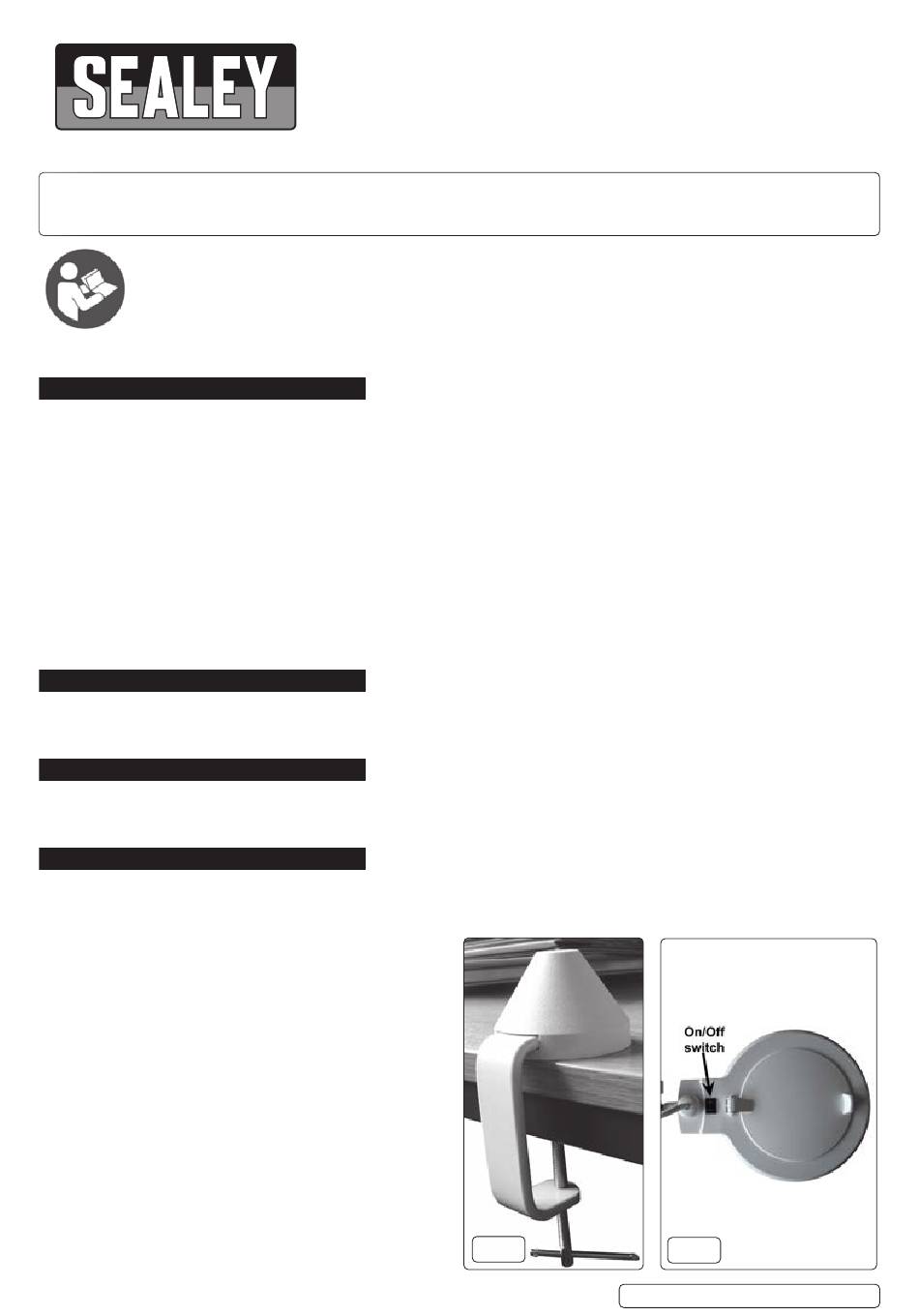

4.1.1. Fix the clamp to a secure surface. See fig.1.
4.1.2. Lower the work light assembly into the clamp, use two hands to prevent the lamp moving during this operation.
4.1.3. Turn on/off using the switch on top. See fig.2.
4.1.4. Adjust by loosening/tightening the head clamp. See fig.3.
NOTE: Be aware of the effect of using the lamp close to
a window/door where it could be in direct sunlight.
4.1.5. Connect the Power adapter lead into the flying lead at the
base of the unit.
4.1.6. Remember to close the lid on top whilst it is not in use.
© Jack Sealey Limited
BENCH MOUNTING MAGNIFYING WORKLIGHT
12W SMD LED
WL483D.V2
MODEL NO:
fig.1
Original Language Version
fig.2
WL483D.V2 Issue 3(3) 15/09/23
