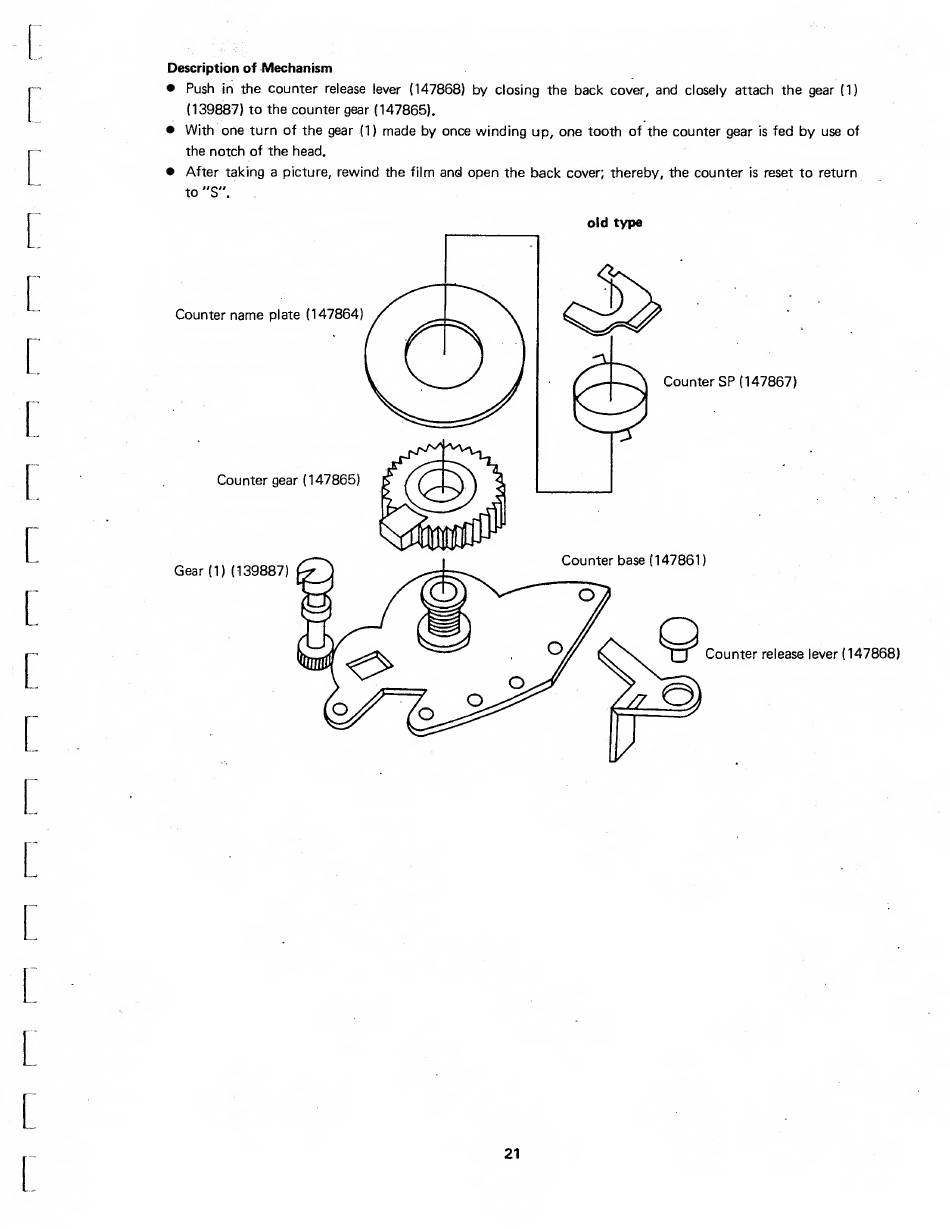

Description of Mechanism
• Push in the counter release lever (147868) by closing the back cover, and closely attach the gear (1)
(139887) to the counter gear (147865).
• With one turn of the gear (1) made by once winding up, one tooth of the counter gear is fed by use of
the notch of the head.
• After taking a picture, rewind the film and open the back cover; thereby, the counter is reset to return
to "S".
old type
21
