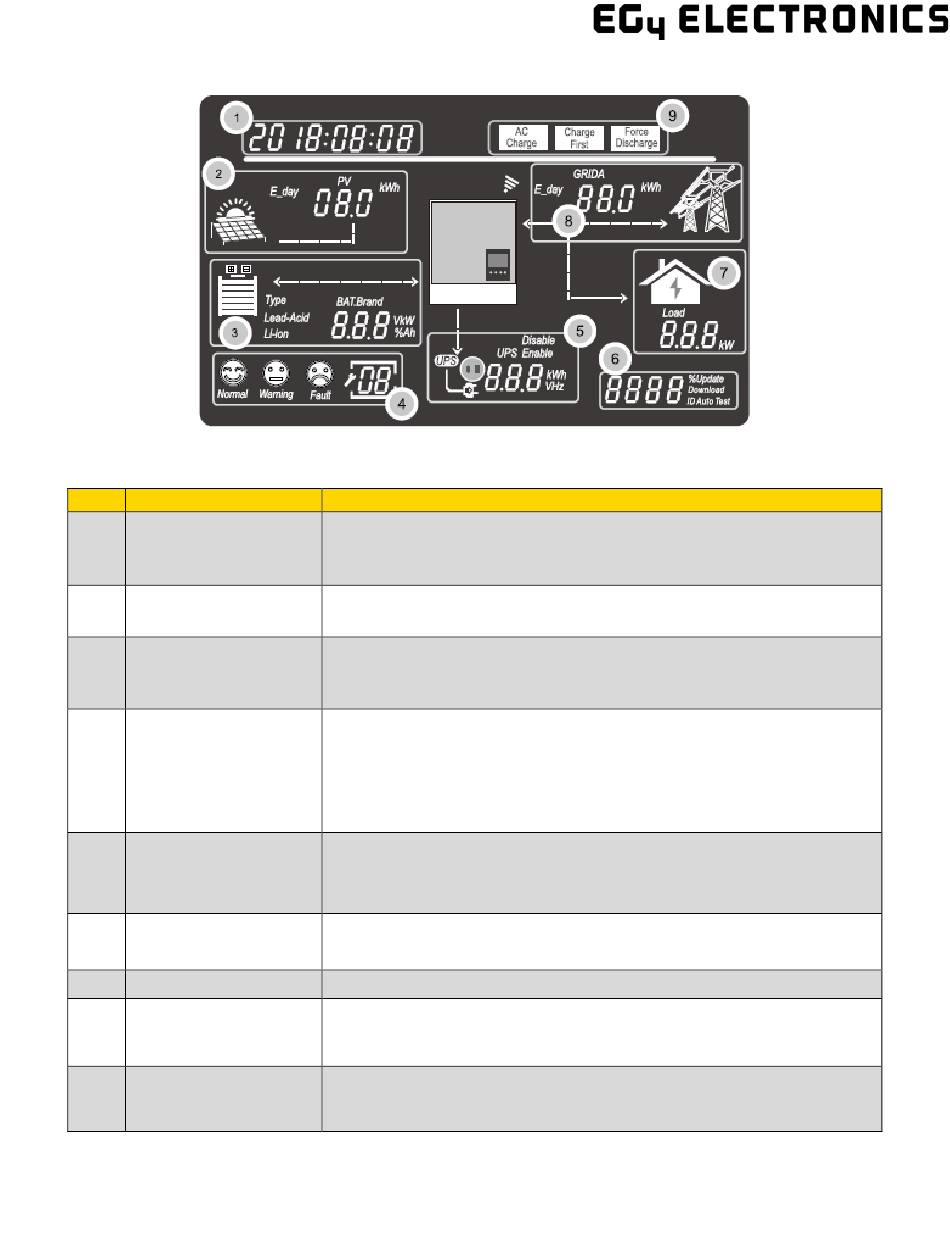

10.3.1 LCD DISPLAY

The data on the LCD screen updates every 3 seconds as various information is displayed in
each section. See table on next page for more details.
No. Description
General Information
1
Display Area
2
Photo Voltaic (PV) Data
Battery information and
3
data
System Status and
4
Codes
UPS/EPS output
5
information and data
Programming & the
6
percentage of AC output
power
7 Load consumption
Grid and Generator
8
information
9 Working mode area
Comments
Displays the current system status by default. Pressing the Up/Down buttons will
cycle through Time, Date, Single/Parallel Inverter Setting, Inverter Serial Number,
and Firmware Version. When entering new settings, the selection information is
displayed in this area.
Cycles every 3 seconds through: PV1 Voltage, PV2 Voltage, PV1 power, PV2
Power, PV1 Energy (day), PV2 Energy (day), PV1 Energy (total to-date), and PV2
Energy (total to-date).
Displays the battery type and brand. For lead-acid batteries, this area will cycle
every 3 seconds through the CV voltage, Float Charge Voltage, Cut-off Voltage, and
Discharge End Voltage. For Lithium-ion batteries, this area will cycle every 3
seconds through the Voltage (V), SOC (%), Power (kW), and Capacity (Ah).
There are three system status icons, Normal, Warning and Fault, and a 2-digit field
that displays codes.
• Status = 'Normal': nothing is displayed in the 2-digit field
Status = 'Warning': warning code is displayed in the 2-digit field.
•
• Status = 'Fault': fault code is displayed in the 2-digit field.
• System in 'Setting' mode: current Setting is displayed in the 2-digit field.
When the UPS function is enabled, this area will cycle every 3 seconds through
UPS1 V, UPS1 Hz, UPS1 kW, UPS2 V, and UPS2 kW. There is no UPS2 Hz,
because it will always be the same as UPS1 frequency by default.
UPS1=Phase1=L1, UPS2=Phase2=L2.
When in Off-Grid mode, this area will display the percentage of the maximum AC
output power. Relevant information is displayed during firmware updates
Displays the power consumption by the load in the On-grid Mode.
Cycles every 3 seconds through: Grid1 Voltage, Grid2 Voltage, Grid Hz, Gen1
Voltage, Gen2 Voltage, Gen Hz, Grid Power, Grid Energy (day), and Grid Energy
(total to-date). Grid1=Phase1=L1, Grid2=Phase2=L2; Gen1=Phase1=L1,
Gen2=Phase2=L2
When the user makes changes to the 6000XP inverter through the LCD, this area
will display the AC Charge, Charge First and Force Discharge settings. Otherwise,
this area displays nothing.
